Sound Control Technologies RC8-CQC-F3 – Cisco Quad Camera Codec EQ Extension Kit
Sound Control Technologies RC8-CQC-F3 – Cisco Quad Camera Codec EQ Extension Kit is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC8-CQC-F3 – Cisco Quad Camera Codec EQ ...
Product Overview

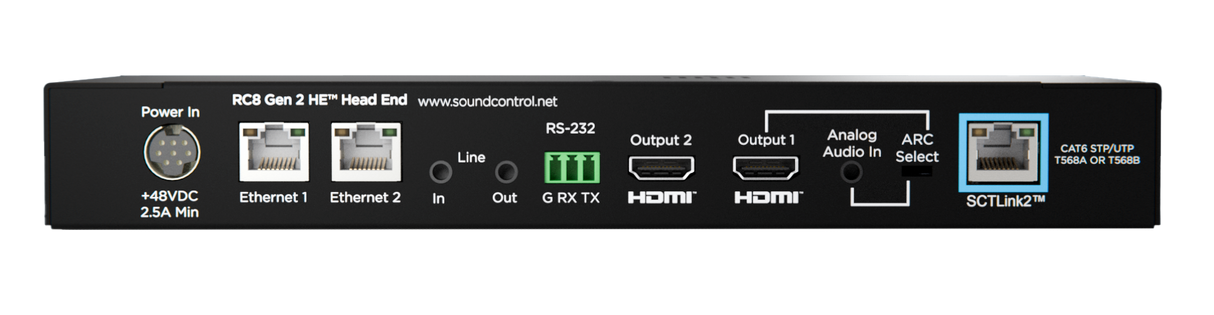

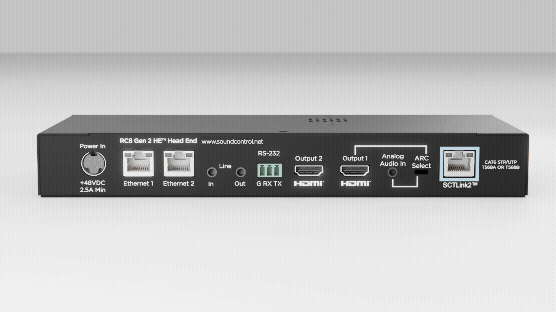

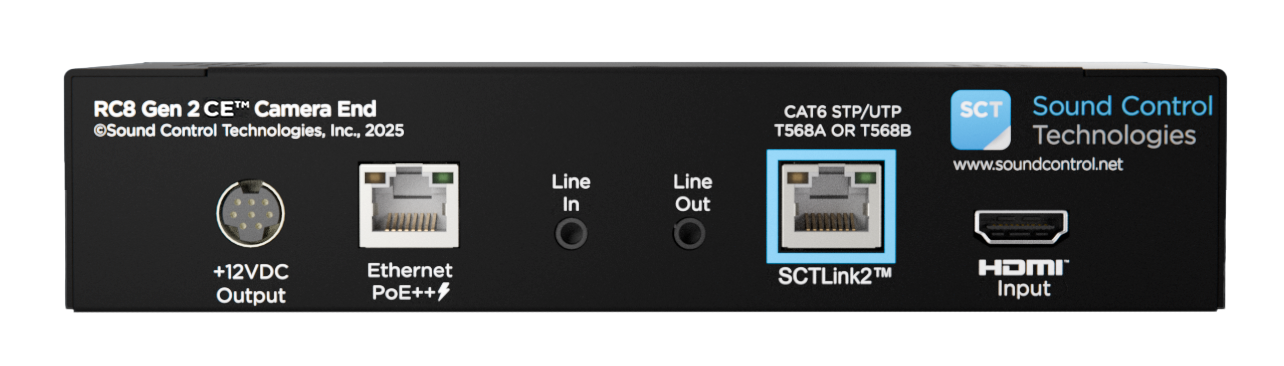

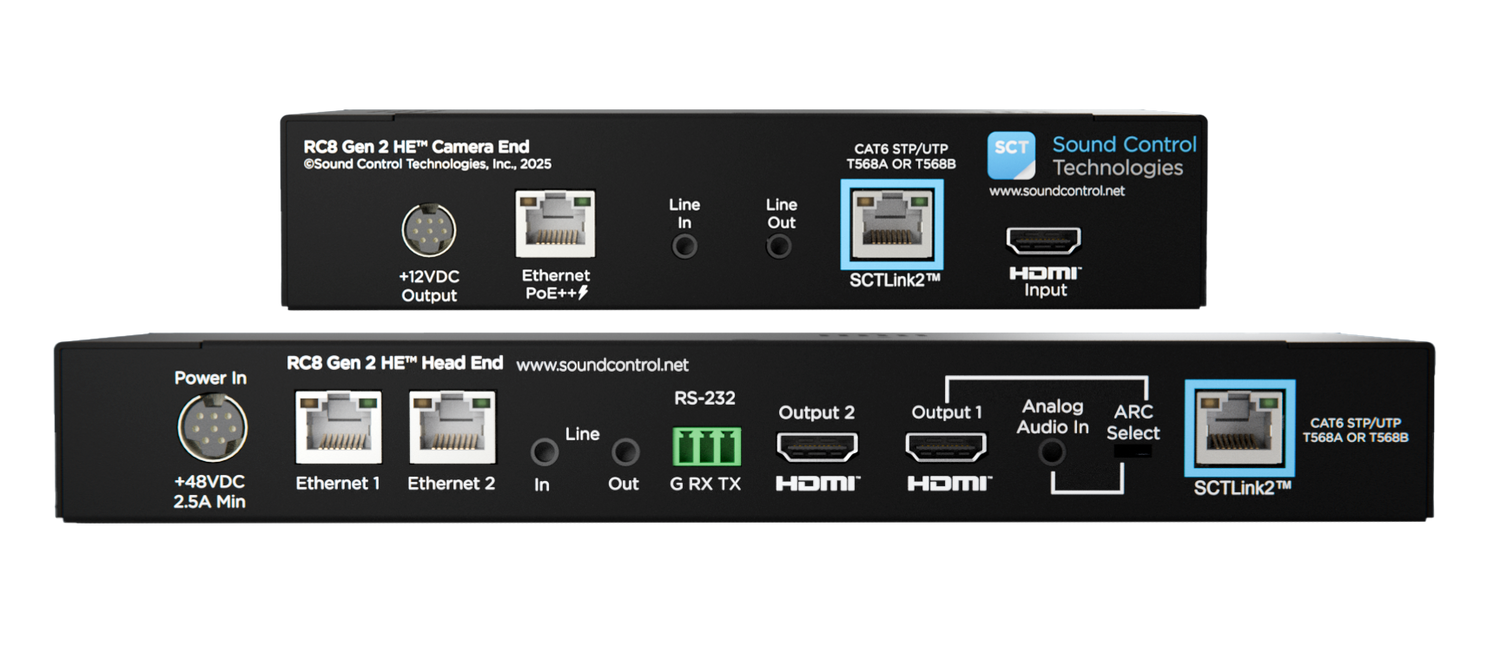

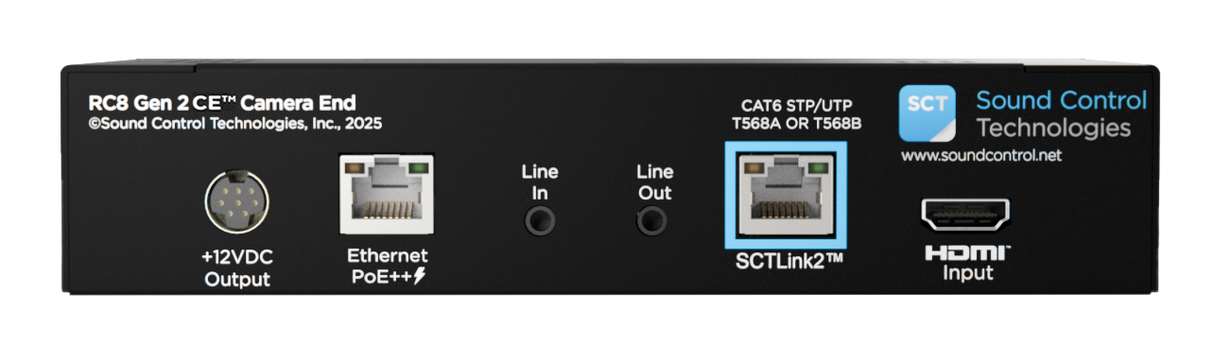

The Sound Control Technologies RC8-CQC-F3 is a camera extension kit for Cisco Codec EQ rooms using the Cisco Quad Camera. Based on the RC8 Gen2 RemoteCam8 platform, this kit extends HDMI video, IP control, bidirectional audio with ARC (HDMI), and 12V QuadCam power over structured cabling. The kit includes the RC-RCF3 Codec EQ rack shelf for clean integration at the head end.
Product Description
The RC8-CQC-F3 provides AV integrators with the core RC8 Gen2 extension components plus the RC-RCF3 rack shelf designed for Cisco Codec EQ installations. Head-end and camera-end modules carry HDMI, IP control, bidirectional audio including HDMI ARC, and 12V camera power on a single structured cable run. The RC-RCF3 rack shelf mounts cleanly in a standard 19-inch rack alongside the Cisco Codec EQ. The IP control path provides full PTZ camera command passthrough from the codec to the Quad Camera, and the HDMI DA function supports signal distribution at the head end. This kit does not include the RC-CUBBY-CQC camera cubby; for a complete project pack with cubby, see the RC8-CQC-F3-K. Recommended for installations where a camera-end enclosure is already specified or where the integrator prefers to source enclosures separately.
Key Features
- RC8 Gen2 Extension Platform — Extends HDMI, IP control, bidirectional audio/ARC, and 12V QuadCam power over structured cabling.
- RC-RCF3 Codec EQ Rack Shelf Included — Purpose-built rack shelf for Cisco Codec EQ, providing clean 19-inch rack mounting at the head end.
- Bidirectional Audio with HDMI ARC — Carries audio in both directions including HDMI ARC for room audio system integration.
- 12V QuadCam Power Delivery — Regulated 12V power delivered to the Cisco Quad Camera over the same cable run.
- IP Camera Control Passthrough — Full IP control enables PTZ camera commands from Cisco Codec EQ to the Quad Camera.
- HDMI DA Support — Built-in HDMI distribution amplifier at the head end for signal management.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Government space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC8-CQC-F3 |
| Platform | RC8 Gen2 RemoteCam8 |
| What's Included | RC8 Gen2 Extension Kit (head-end + camera-end modules) + RC-RCF3 Codec EQ Rack Shelf |
| Signals Extended | HDMI, IP Control, Bidirectional Audio / ARC (HDMI), 12V QuadCam Power, HDMI DA |
| Compatible Camera | Cisco Quad Camera |
| Compatible Codec | Cisco Codec EQ |
| Unit of Measure | Each |
| Country of Origin | USA / Taiwan |
| MSRP | $4,365 |
Frequently Asked Questions
How does the RC8-CQC-F3 differ from the RC8-CQC-F3-K?
The RC8-CQC-F3 includes the RC8 Gen2 extension kit and RC-RCF3 rack shelf. The RC8-CQC-F3-K adds the RC-CUBBY-CQC camera cubby enclosure for a complete project pack.
Is a camera-end enclosure included?
No. The RC8-CQC-F3 does not include the RC-CUBBY-CQC. If a camera-end cubby is needed, consider the RC8-CQC-F3-K project pack.
What cable is required?
The RC8 Gen2 platform uses structured CAT cable. Contact Creation Networks for distance and cable specifications for your Cisco Codec EQ installation.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RC8-CQC-F3.
