Sound Control Technologies RC5-USM – HDMI Camera Extension for Multiple Manufacturers

Product Overview

The Sound Control Technologies RC5-USM is a multi-manufacturer HDMI camera extension kit that carries HDMI video, IP/Ethernet camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-USM supports PTZ cameras from AVer, Sony, Atlona, Lumens, and VHD — including the full AVer PTZ and TR tracking camera lines. It is the kit of choice for AV integrators who need one extension solution across mixed AVer-heavy camera deployments.

Product Description

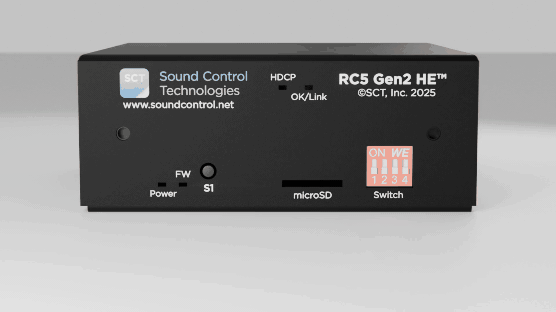

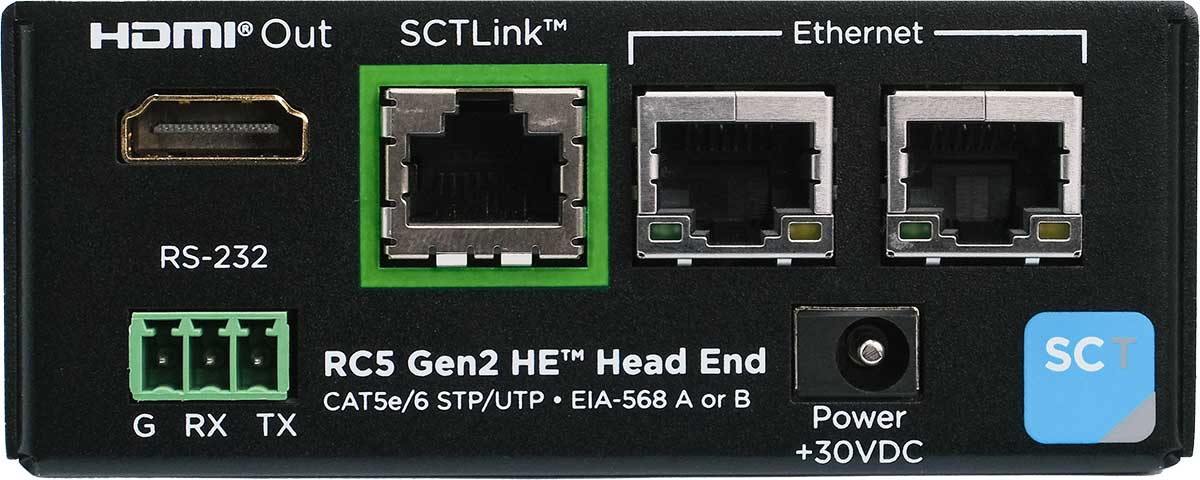

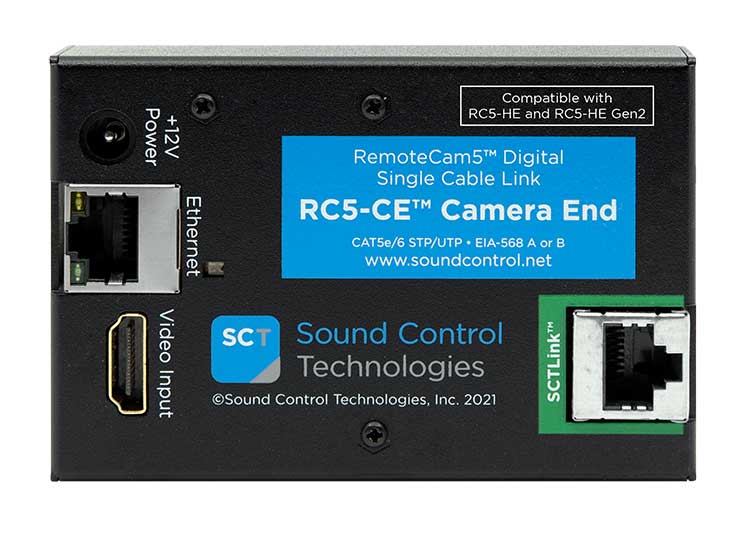

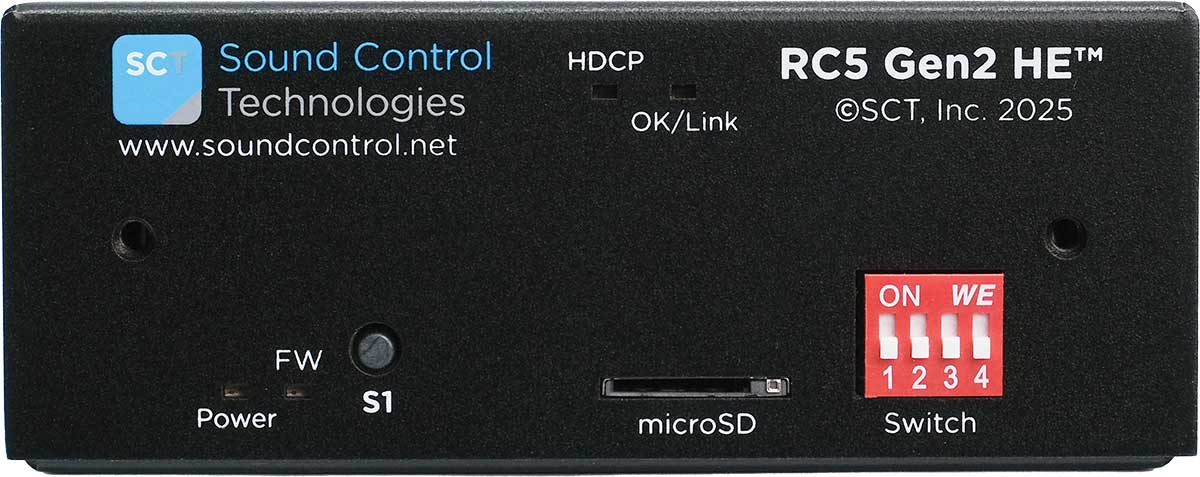

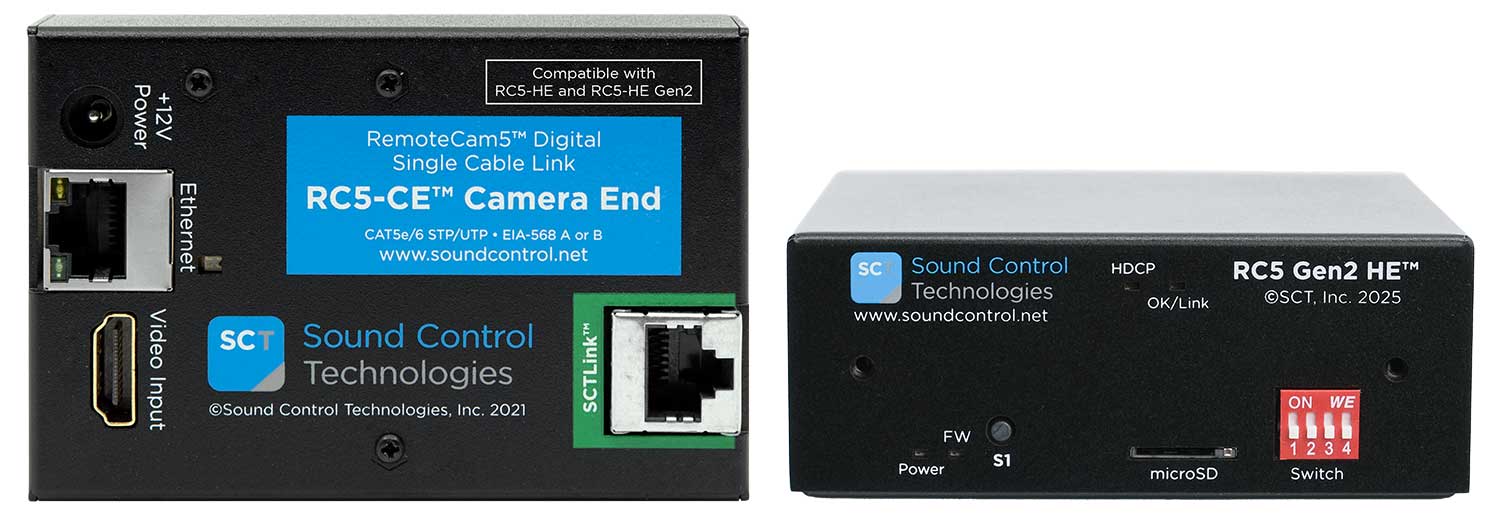

The RC5-USM addresses installations where the camera must sit far beyond native HDMI reach — rear walls, ceiling positions, or across large rooms — while the codec or processor lives in a rack. A camera-end RC5-CE module and head-end RC5-HE module connect over one installer-supplied CAT run up to 100 meters (328 ft), carrying video, Ethernet control, and camera power together. Supported cameras include the Sony SRG-X40UH, Atlona HDVS-CAM-HDMI, Lumens VC-TR40, VHD V60XL/V61XL/V63XL, and an extensive AVer list: PTZ211, PTZ231, PTC300, PTC310UV2, PTC320UV2, TR311HN, PTZ313, PTZ313V2, PTZ310, PTZ310UV2, PTZ310UNV2, PTZ330, PTZ330UV2, PTZ330UNV2, TR311HWV2, TR313V2, TR323NV2, TR333NV2, and TR335. The kit includes HDMI and UTP camera cables, the PPC-004 DC power cable, head-end HDMI and UTP cables, and a WPS-12 power supply. As an RC5 Gen2 product it provides Cisco Control Hub integration, diagnostics, and field-upgradeable firmware. Project packs add an RCM-USM camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). Sibling kits cover other camera footprints — see the RC5-UNI for additional multi-manufacturer models.

Key Features

• Multi-Brand Camera Compatibility — Supports PTZ and auto-tracking cameras from AVer, Sony, Atlona, Lumens, and VHD with one kit.
• Extensive AVer Coverage — Tested with nineteen AVer PTZ, PTC, and TR-series models including current V2 tracking cameras.
• Single-CAT Extension up to 100m — HDMI video, IP/Ethernet control, and 12V DC camera power over one CAT cable run.
• 12V Camera Power Delivery — The WPS-12 supply powers the camera through the link, removing outlet requirements at the camera position.
• No Programming Required — Transparent video and control transport for plug-and-play deployment.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Project Pack Options — Variants add the RCM-USM wall mount, RC-RK2 rack shelf, or both.

Typical Applications

• Conference room with an AVer PTZ or auto-tracking camera mounted beyond HDMI distance from the codec
• Training room using AVer TR-series tracking cameras for instructor capture
• Multi-purpose room or all-hands room with Sony or Lumens PTZ cameras on long CAT runs
• House of worship deploying tracking cameras at ceiling or rear-wall positions
• Commercial meeting spaces standardizing one extension platform across mixed camera brands

Technical Specifications

Frequently Asked Questions

How does the RC5-USM differ from the RC5-UNI and RC5-URM?

All three are multi-manufacturer RC5 kits, but each includes a cable set matched to a different camera power and control footprint, and each carries its own tested camera list. The RC5-USM covers AVer PTZ/TR-series, Sony SRG-X40UH, Atlona, Lumens VC-TR40, and VHD XL-series cameras. Check the compatibility list for each SKU or contact Creation Networks before ordering.

Is the CAT cable included?

No. The CAT run between the camera-end and head-end modules is installer-supplied. CAT5e or better is recommended, with a 100-meter maximum.

Does the kit power the camera?

Yes. The WPS-12 power supply delivers 12V DC to the camera through the SCTLink connection, eliminating the need for an outlet at the camera position.

Can the RC5-USM be used with cameras not on the supported list?

Only the listed cameras are tested and supported. For other models, contact Creation Networks to identify the correct RC5 variant.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
