Sound Control Technologies RC5-URM – HDMI Camera Extension for Multiple Manufacturers

Product Overview

The Sound Control Technologies RC5-URM is a multi-manufacturer HDMI camera extension kit that carries HDMI video, IP/Ethernet camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-URM supports PTZ and tracking cameras from ClearOne, Crestron, Lumens, MaxHub, Minrray, and VHD. It gives AV integrators a single, no-programming camera extension solution for conference room and commercial video deployments using these camera families.

Product Description

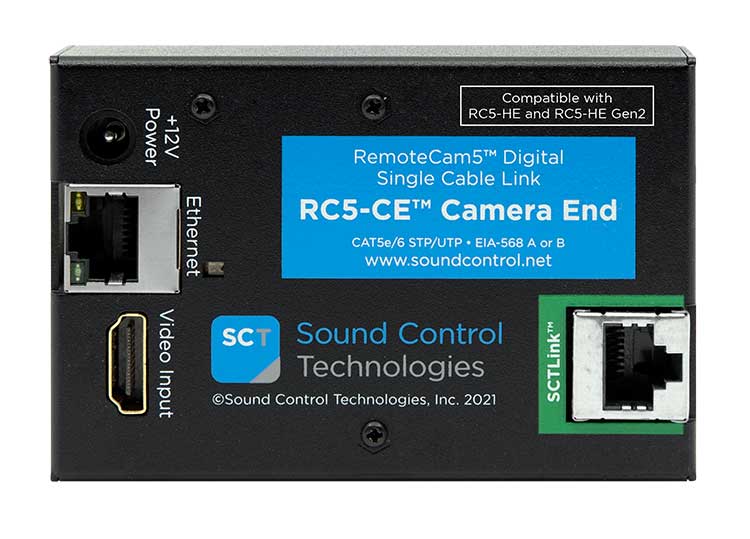

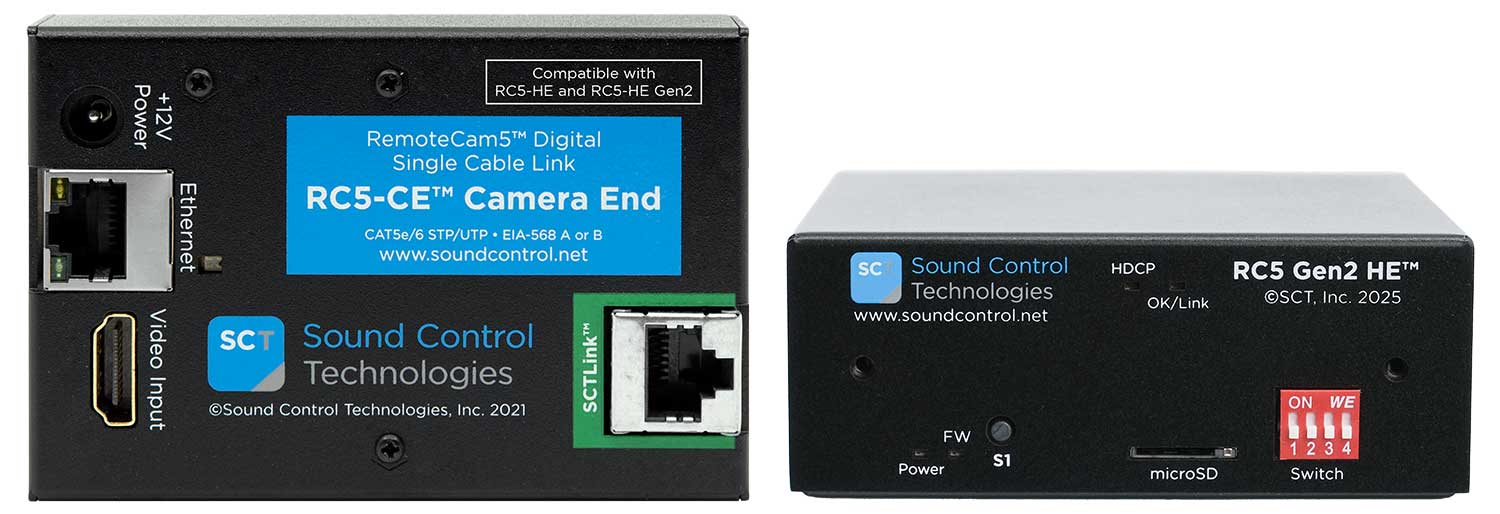

When a PTZ camera needs to live at the rear of a boardroom, on a ceiling pole, or across a large training room, native HDMI cabling falls short. The RC5-URM pairs a camera-end RC5-CE module with a head-end RC5-HE module over one installer-supplied CAT run up to 100 meters (328 ft), transporting video, Ethernet control, and camera power on the same cable. Supported cameras include the ClearOne Unite 200, Crestron IV-CAM-I12-B and IV CAM 12P, Lumens VC-TR1, MaxHub UC P20, Minrray UV430 and UV570, and VHD VX110, VX710N, VX701L, and VX120. The kit ships with HDMI and UTP camera cables, the PPC-004 DC power cable, head-end HDMI and UTP cables, and a WPS-12 power supply. As an RC5 Gen2 kit it provides Cisco Control Hub integration, diagnostics, and field-upgradeable firmware, and the head end is backwards compatible with existing RC5-CE modules. Project packs add an RCM-URM camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). For other camera footprints, compare the RC5-UNI multi-manufacturer kit.

Key Features

• Multi-Brand Camera Compatibility — Supports ClearOne, Crestron, Lumens, MaxHub, Minrray, and VHD PTZ and tracking cameras with one kit.
• Single-CAT Extension up to 100m — HDMI video, IP/Ethernet control, and 12V DC camera power over one CAT cable run.
• 12V Camera Power Delivery — The WPS-12 supply powers the camera through the link, removing outlet requirements at the camera location.
• No Programming Required — Transparent transport of video and control for plug-and-play installation.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Complete Kit — Camera-end module, head-end module, matched cable set, and power supply in one box.
• Project Pack Options — Variants add the RCM-URM wall mount, RC-RK2 rack shelf, or both.

Typical Applications

• Boardroom with a Crestron IV-CAM or ClearOne Unite 200 camera positioned far from the codec rack
• Conference room running a MaxHub or VHD PTZ camera over building CAT infrastructure
• Training room with a Lumens VC-TR1 auto-tracking camera at the rear wall
• House of worship or multi-purpose room with ceiling-mounted Minrray PTZ cameras
• Government space requiring a single-cable, no-programming camera extension standard

Technical Specifications

Frequently Asked Questions

How does the RC5-URM differ from the RC5-UNI and RC5-USM?

Each multi-manufacturer RC5 kit ships with a cable set matched to a different camera power and control footprint and carries its own tested camera list. The RC5-URM covers ClearOne, Crestron IV-CAM, Lumens VC-TR1, MaxHub, Minrray UV430/UV570, and VHD VX-series cameras. Verify the compatibility list for your camera model before ordering, or contact Creation Networks.

Is the CAT cable included?

No. The CAT run between camera-end and head-end modules is installer-supplied. CAT5e or better is recommended, with a 100-meter maximum.

Does the kit power the camera?

Yes. The included WPS-12 power supply delivers 12V DC to the camera through the SCTLink connection, so no outlet is required at the camera position.

Can I add BYOD soft-codec capability later?

Yes. The RC5-CE camera module pairs with the RC-SDA5+ BYOD camera bridge to add USB3 connectivity for Zoom, Microsoft Teams, and other soft codecs.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
