Sound Control Technologies RC5-P60 – HDMI Camera Extension for Cisco Precision 60

Product Overview

The Sound Control Technologies RC5-P60 is an HDMI camera extension kit for the Cisco Precision 60 camera, carrying HDMI video, camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-P60 is engineered for Cisco SX80, Codec Plus, and Codec Pro environments where the Precision 60 must be positioned far from the codec. The complete kit installs with no programming, making long Cisco camera runs a single-cable job.

Product Description

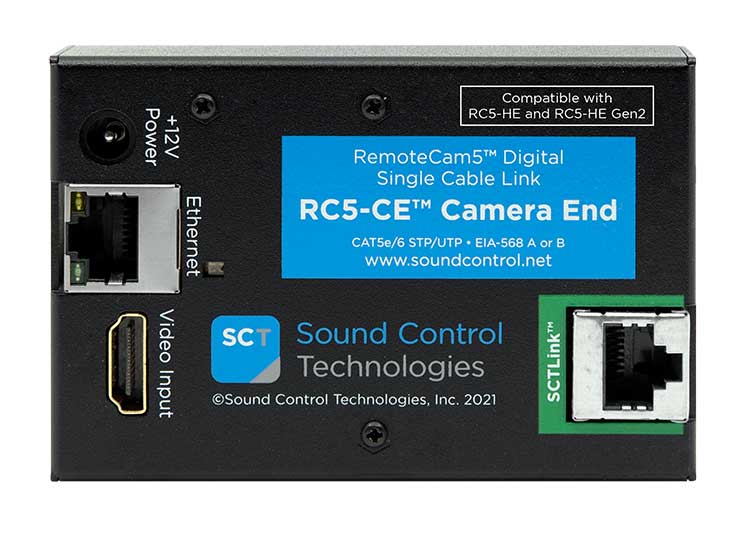

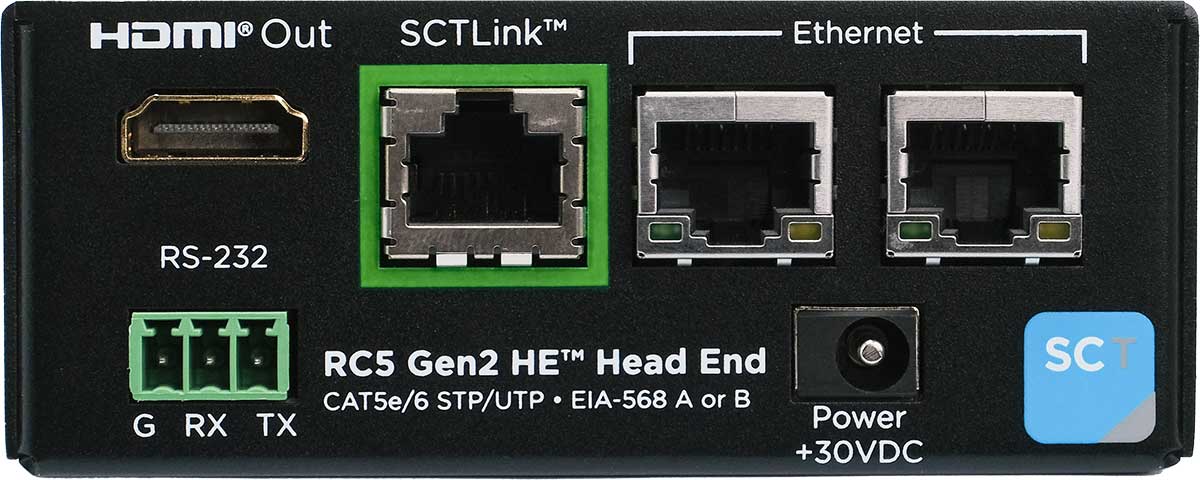

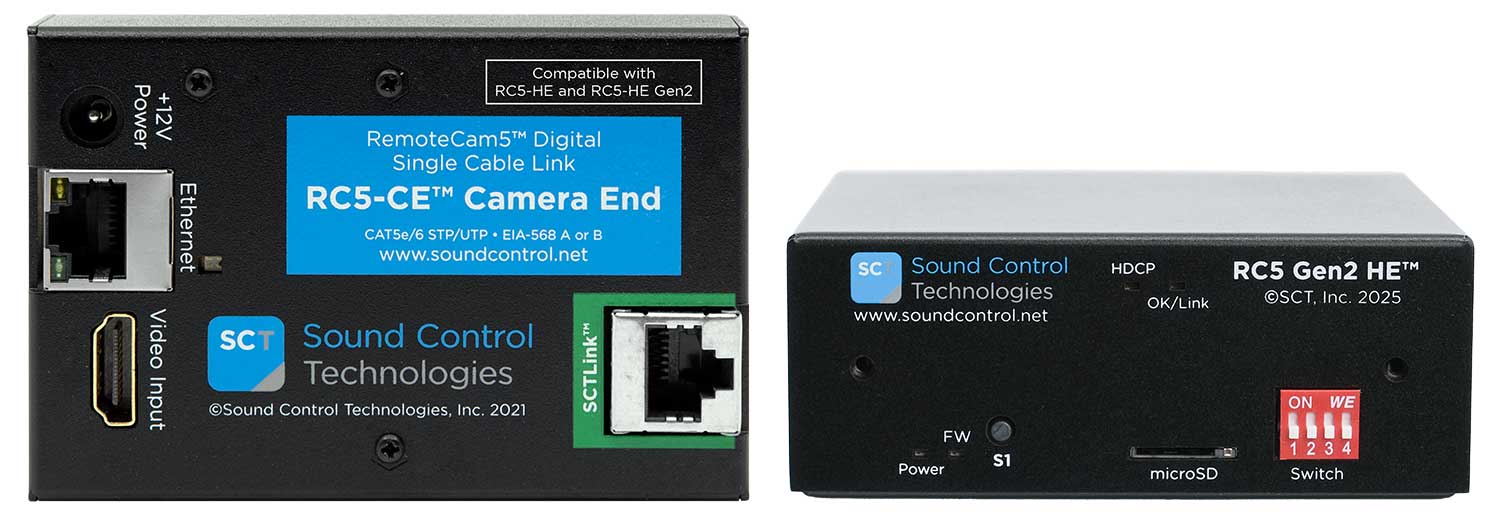

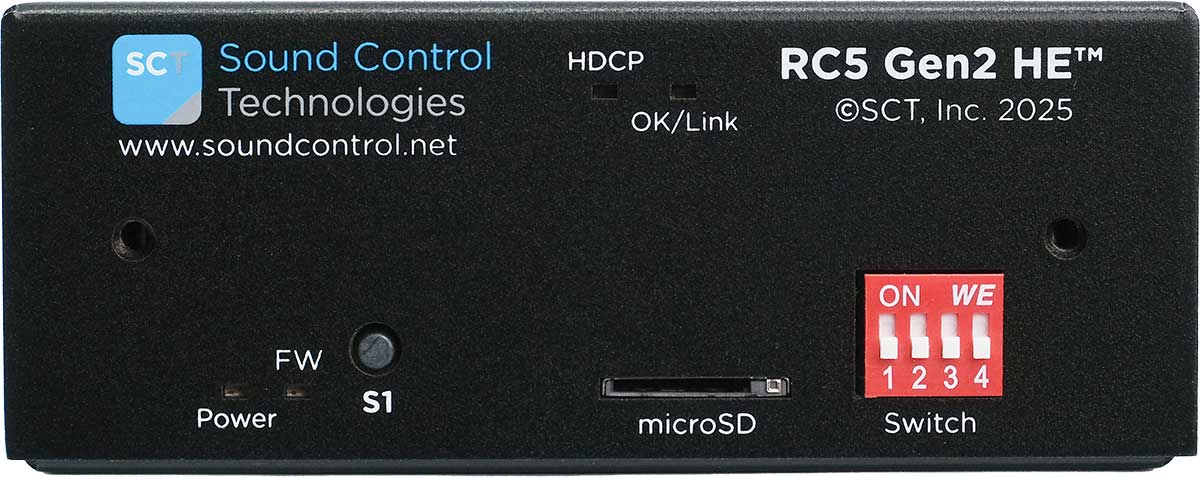

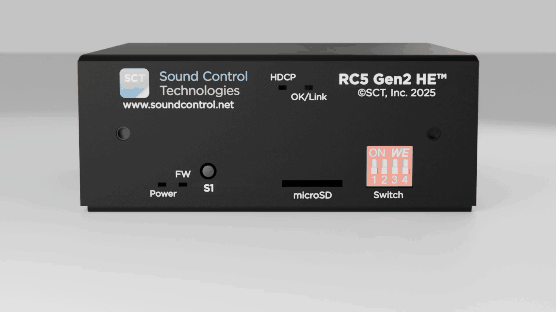

The Cisco Precision 60 is a staple of large Cisco video conferencing rooms, but its native cabling limits where the camera can be placed relative to the codec. The RC5-P60 solves this with a camera-end RC5-CE module and head-end RC5-HE module connected by one installer-supplied CAT run up to 100 meters (328 ft). The kit ships with Precision 60-specific cables — HDMI and UTP camera cables, the PPC-003 DC power camera cable, a USB-A to RS-232 cable, head-end HDMI and UTP cables — plus a WPS-12 power supply that powers the camera through the link. Vendor application guides cover single and dual Precision 60 deployments with SX80, Codec Plus, and Codec Pro codecs. As an RC5 Gen2 kit, the RC5-P60 adds native Cisco Control Hub integration, on-board diagnostics, and field-upgradeable firmware, and the head end is backwards compatible with existing RC5-CE camera modules. Project packs add an RCM-CP6 camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). For BYOD soft-codec rooms, the camera run pairs with the RC-SDA5+ BYOD camera bridge.

Key Features

• Cisco Precision 60 Support — Purpose-built cable set and application guides for Precision 60 cameras with SX80, Codec Plus, and Codec Pro codecs.
• Single-CAT Extension up to 100m — HDMI video, camera control, and 12V DC camera power over one CAT cable run up to 100 meters.
• Dual-Camera Deployments Documented — Vendor application guide covers dual Precision 60 configurations for large rooms.
• 12V Camera Power Delivery — The WPS-12 supply powers the Precision 60 through the link, removing outlet requirements at the camera position.
• No Programming Required — Video and control pass transparently for plug-and-play installation.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Project Pack Options — Variants add the RCM-CP6 wall mount, RC-RK2 rack shelf, or both.

Typical Applications

• Boardroom with a Cisco Precision 60 mounted at the rear or side wall, far from the codec rack
• All-hands room or auditorium using single or dual Precision 60 cameras with a Codec Pro
• Government space standardized on Cisco SX80 or Codec Plus/Pro room systems
• Training room extending a Precision 60 over existing CAT infrastructure
• Commercial meeting space pairing the Precision 60 with a SpeakerTrack or multi-camera design

Technical Specifications

Frequently Asked Questions

Which Cisco codecs does the RC5-P60 work with?

The RC5-P60 is documented for Cisco Precision 60 deployments with SX80, Codec Plus, and Codec Pro codecs, including dual Precision 60 configurations.

Is the CAT cable included?

No. The CAT run between the camera-end and head-end modules is installer-supplied. CAT5e or better is recommended, with a maximum run of 100 meters.

Does the kit power the Precision 60?

Yes. The included WPS-12 power supply delivers 12V DC to the camera through the SCTLink connection, so no electrical outlet is required at the camera position.

What is the difference between the base kit and the -K/-S/-KS variants?

The -K variant adds an RCM-CP6 camera wall mount, the -S variant adds an RC-RK2 rack shelf for the head end, and the -KS variant includes both. The extension electronics are identical.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
