Sound Control Technologies RC5-P13 – RemoteCam5 Extension for Panasonic AW-HE130

Product Overview

The Sound Control Technologies RC5-P13 is a commercial-grade RemoteCam5 camera extension kit for the Panasonic AW-HE130 professional PTZ camera. Using SCTLink™ technology, the RC5-P13 carries HDMI video at 4K30 up to 70 meters or 1080p60 up to 100 meters over a single CAT cable, along with IP PTZ control and 12V camera power on the same run. The kit includes RC5-CE and RC5-HE modules with a Panasonic-specific cable set, and no programming is required.

Product Description

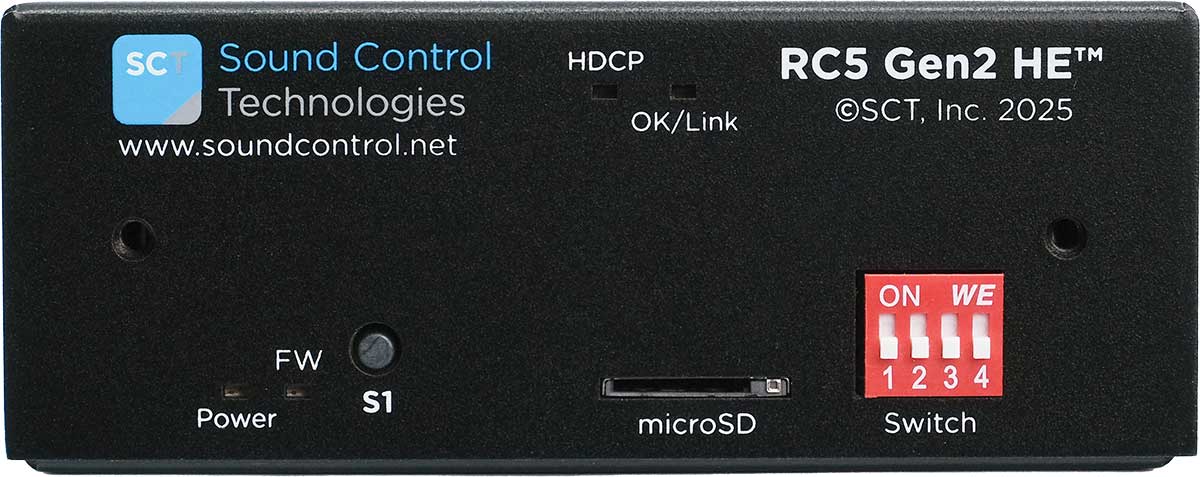

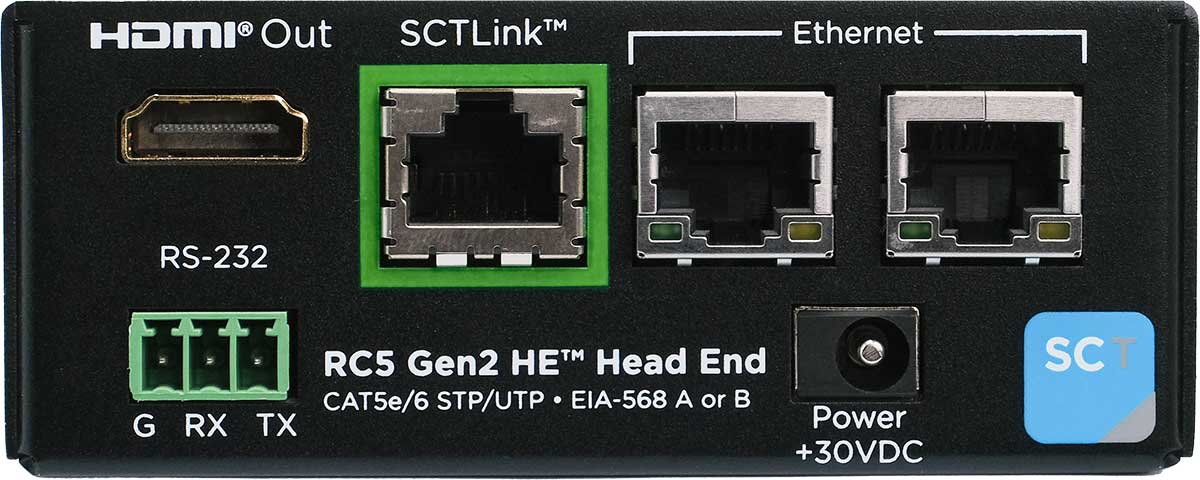

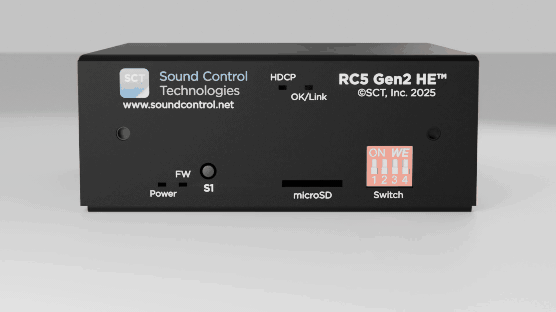

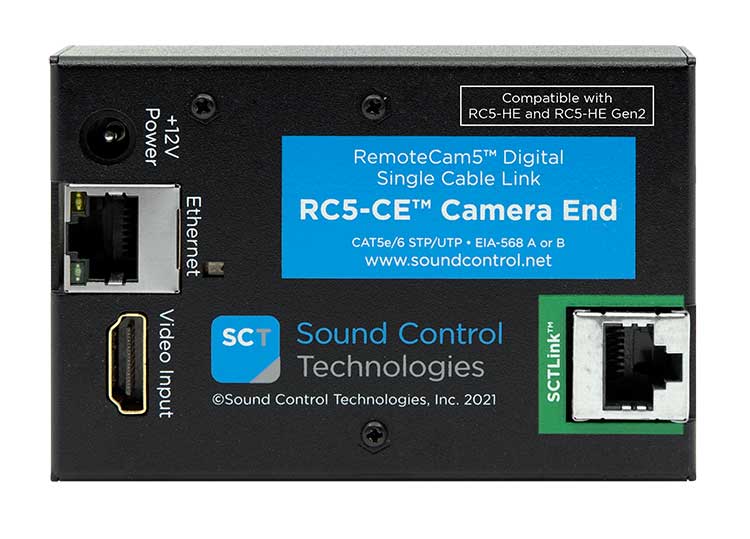

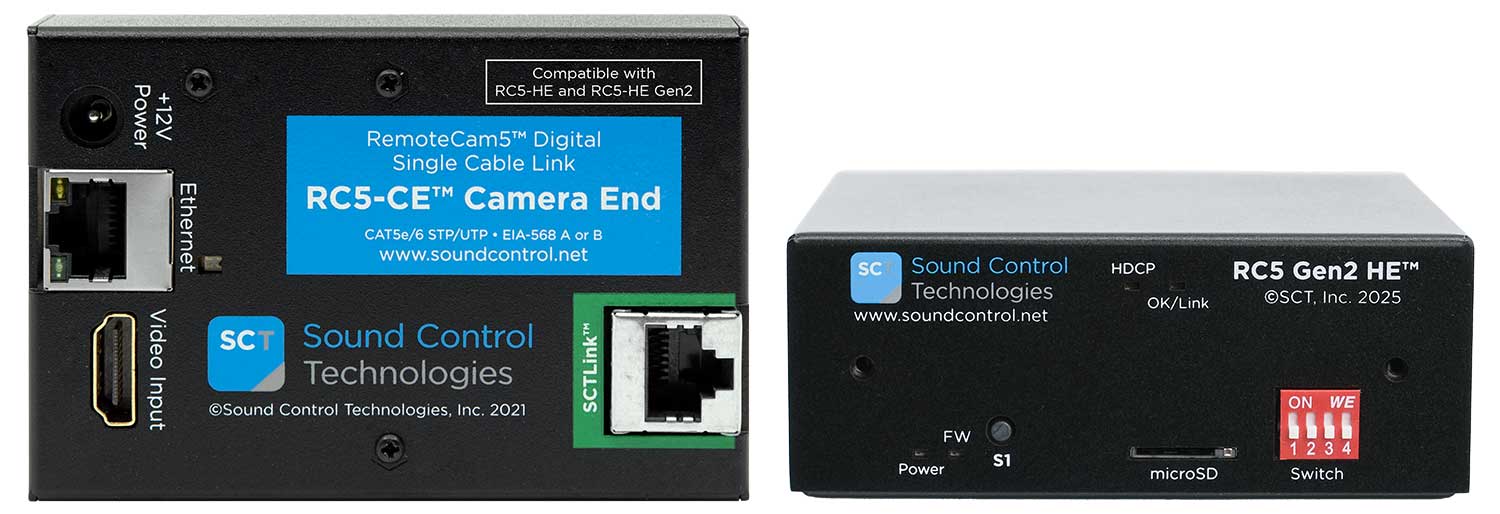

The RC5-P13 solves the distance limitation between the Panasonic AW-HE130 and the codec, switcher, or production rack. The RC5-CE camera interface module installs at the camera position and the RC5-HE head-end module installs at the rack; a single installer-supplied CAT cable between them carries HDMI video, IP/Ethernet control, and 12V power. Because control rides the same link, pan, tilt, zoom, presets, and controller operation work exactly as with direct cabling. The AW-HE130 is common in house of worship, broadcast, and auditorium installations where the camera sits at ceiling level or on a rear wall far from the rack, and the RC5-P13 makes that placement a single structured-cabling run. For the RS-232-based RemoteCam4 version supporting the AW-HE130, see the RC4-P13 at Creation Networks. Wall mount and rack shelf project packs are available as RC5-P13-K, RC5-P13-S, and RC5-P13-KS.

Key Features

• Panasonic AW-HE130 Compatibility — Cable set and power delivery are configured specifically for the AW-HE130 professional PTZ camera.
• 4K30 at 70M / 1080p60 at 100M — Professional HDMI extension over structured CAT cable.
• IP PTZ Control — Full pan, tilt, zoom, and preset control passes over the same CAT run.
• 12V Camera Power Delivery — The WPS-12 supply at the head end powers the camera, eliminating a separate electrical run at the camera position.
• No Programming Required — Plug-and-play operation between the camera and the head end.
• Modular Design — RC5-CE and RC5-HE modules are individually replaceable for long-term serviceability.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• House of worship with an AW-HE130 at ceiling level or on a rear wall for services and streaming
• Broadcast studio extending camera runs to a remote production rack
• Auditorium or all-hands room placing the camera far from the equipment closet
• Boardroom or training room using structured CAT cabling for camera placement
• Government space with fixed-installation Panasonic PTZ production cameras

Technical Specifications

Frequently Asked Questions

How does the RC5-P13 differ from the RC4-P13?

Both support the Panasonic AW-HE130. The RC5-P13 is built on the RemoteCam5 platform with 4K30 video support and IP-based control, while the RC4-P13 carries HDMI with RS-232 control. Choose based on the resolution and control method your system design requires.

Does the RC5-P13 include a wall mount or rack shelf?

No. The base kit includes the extension modules, Panasonic cable set, and power supply only. The RC5-P13-K adds the RCM-LCM large-camera wall mount, the RC5-P13-S adds the RC-RK2 rack shelf, and the RC5-P13-KS adds both.

Is the CAT cable included?

No. The CAT run between the RC5-CE and RC5-HE modules is supplied by the installer. CAT5e or better is recommended; 4K30 is supported to 70 meters and 1080p60 to 100 meters.

Will PTZ control and presets still work over the extension?

Yes. Control passes over the same SCTLink connection, so the controller or codec operates the AW-HE130 exactly as it would over direct cabling.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
