Sound Control Technologies RC5-HHV – RemoteCam5 Extension for HuddleCamHD HuddleView

Product Overview

The Sound Control Technologies RC5-HHV is a commercial-grade RemoteCam5 camera extension kit for HuddleCamHD HuddleView and SimplTrack2 cameras. Using SCTLink™ technology, the RC5-HHV carries HDMI video at 4K30 up to 70 meters or 1080p60 up to 100 meters over a single CAT cable, with PTZ control and 12V camera power on the same run. The kit includes RC5-CE and RC5-HE modules with a HuddleCamHD-specific cable set, and no programming is required.

Product Description

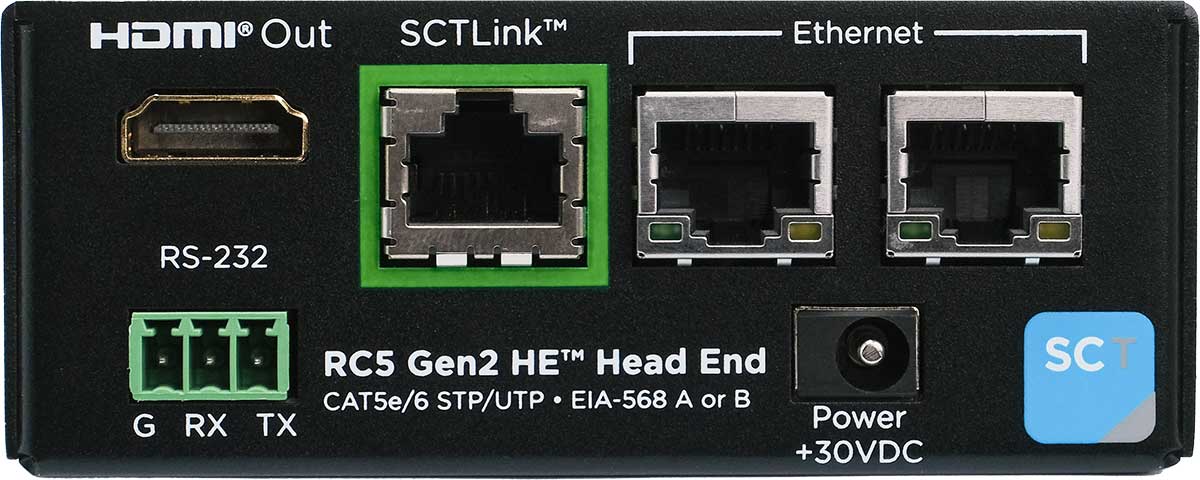

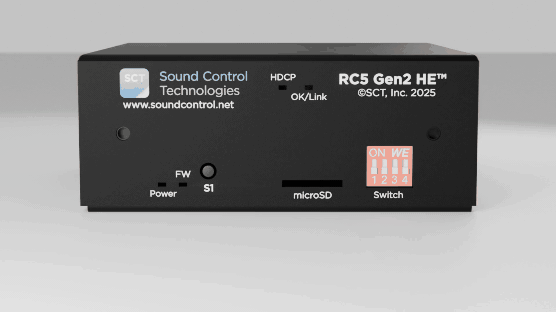

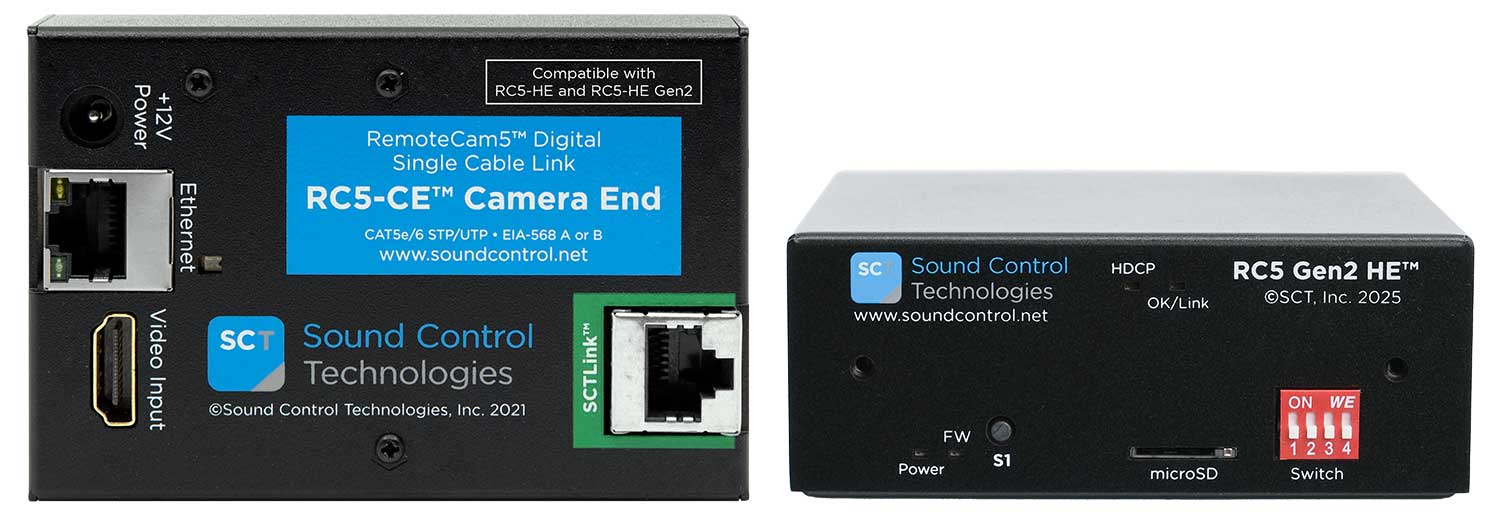

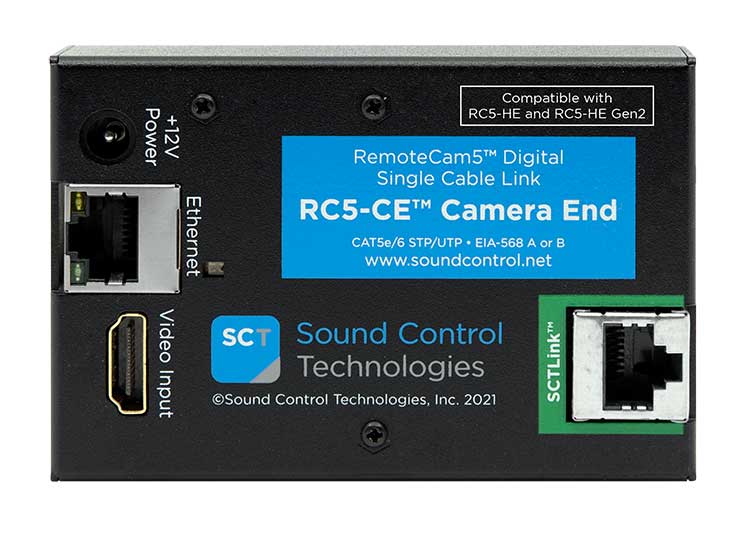

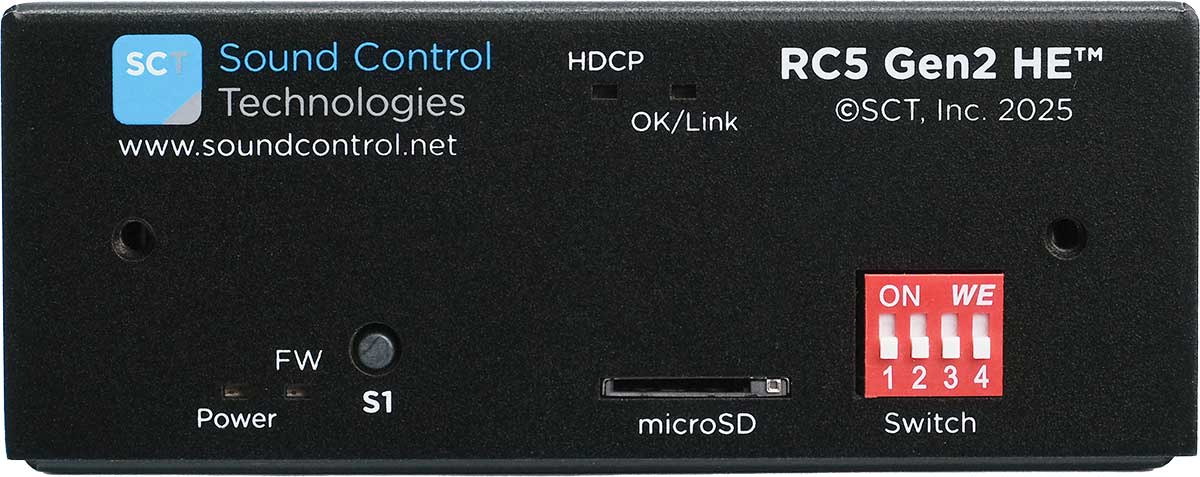

The RC5-HHV solves the distance limitation between a HuddleCamHD HuddleView or SimplTrack2 camera and the codec, recorder, or display chain. The RC5-CE camera interface module installs at the camera position and the RC5-HE head-end module installs at the rack; a single installer-supplied CAT cable between them carries HDMI video, control, and 12V power. Because these HuddleCamHD cameras perform auto-framing and presenter tracking on board, full functionality is preserved at any extension distance, and control passes through for preset and PTZ commands. This makes the RC5-HHV well suited to training rooms, lecture halls, and houses of worship where the camera mounts on a wall far from the equipment rack. For the HuddleCamHD SimplTrack Lite, see the RC5-HST, and for the RemoteCam4 platform version, see the RC4-HHV at Creation Networks. Wall mount and rack shelf project packs are available as RC5-HHV-K, RC5-HHV-S, and RC5-HHV-KS.

Key Features

• HuddleCamHD HuddleView and SimplTrack2 Compatibility — Cable set and power delivery are configured specifically for these HuddleCamHD cameras.
• 4K30 at 70M / 1080p60 at 100M — Professional HDMI extension over structured CAT cable.
• Tracking and Auto-Framing Preserved — Onboard tracking and framing operate normally over the extended link.
• 12V Camera Power Delivery — The WPS-12 supply at the head end powers the camera, eliminating a separate electrical run at the camera position.
• No Programming Required — Control passes transparently for plug-and-play PTZ and preset operation.
• Modular Design — RC5-CE and RC5-HE modules are individually replaceable for long-term serviceability.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Training room or lecture hall with a wall-mounted SimplTrack2 tracking camera at extended distance from the rack
• House of worship using presenter tracking for services and streaming
• Auditorium or all-hands room with the camera on a rear or side wall
• Conference room or multi-purpose room using HuddleView auto-framing with the codec racked remotely

Technical Specifications

Frequently Asked Questions

Which cameras does the RC5-HHV support?

The RC5-HHV is designed and tested for the HuddleCamHD HuddleView and SimplTrack2 cameras. For the HuddleCamHD SimplTrack Lite, use the RC5-HST series instead.

Does tracking and auto-framing still work over the extension?

Yes. The HuddleView and SimplTrack2 perform framing and tracking in the camera itself, so these functions operate normally regardless of extension distance, and control passes through for preset and PTZ commands.

Does the RC5-HHV include a wall mount or rack shelf?

No. The base kit includes the extension modules, cable set, and power supply only. The RC5-HHV-K adds the RCM-UNI universal wall mount, the RC5-HHV-S adds the RC-RK2 rack shelf, and the RC5-HHV-KS adds both.

Is the CAT cable included?

No. The CAT run between the RC5-CE and RC5-HE modules is supplied by the installer. CAT5e or better is recommended; 4K30 is supported to 70 meters and 1080p60 to 100 meters.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
