Sound Control Technologies RC5-BRC-KS – RemoteCam5 Large Camera Extension Kit with Rack Shelf and Wall Mount
Sound Control Technologies RC5-BRC-KS – RemoteCam5 Large Camera Extension Kit with Rack Shelf and Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC5-BRC-KS – RemoteCam5 Large Camera Ext...
Product Overview

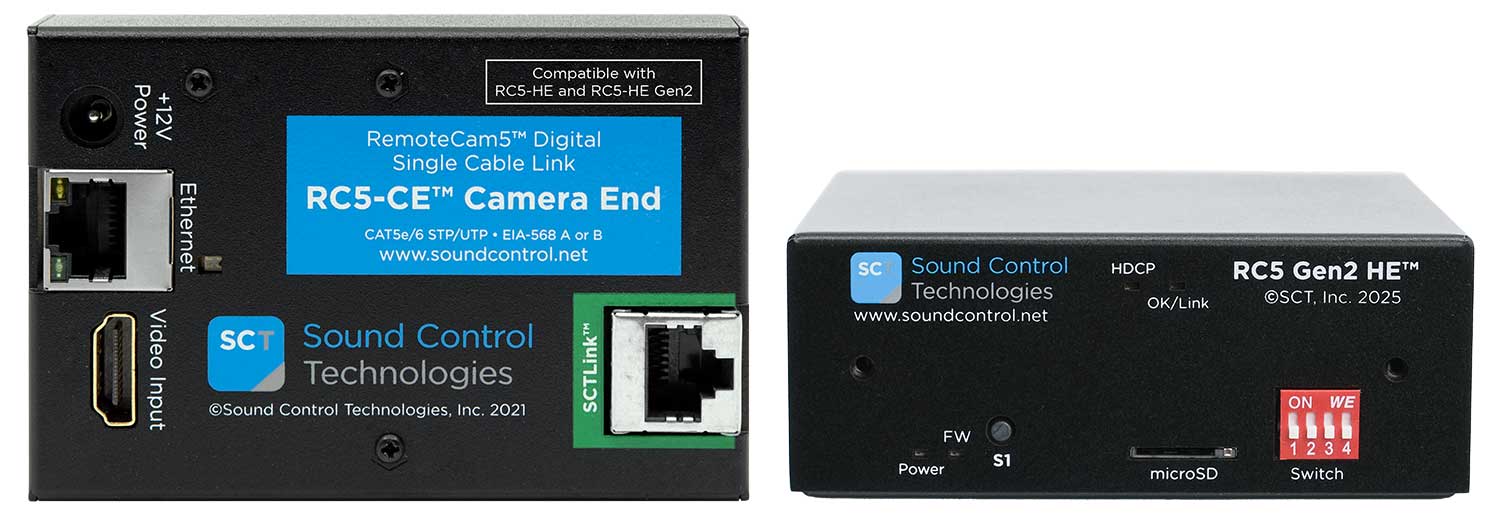

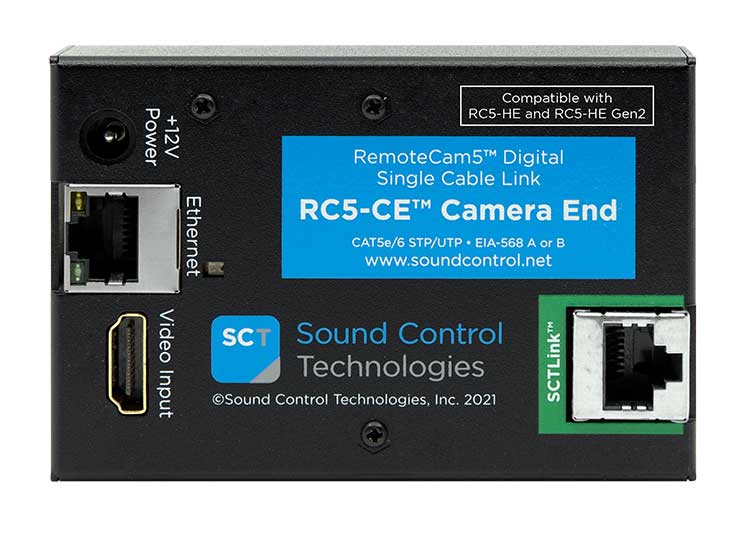

The Sound Control Technologies RC5-BRC-KS is a complete project pack for extending large-format PTZ and broadcast-style cameras over a single CAT cable, including both the RC-RK2 rack shelf and the RCM-LCM large-camera on-wall mount. The RemoteCam5 system delivers 4K30 video at up to 70 meters and 1080p60 at up to 100 meters over HDMI, with IP control and 12V camera power carried on the same cable. This kit is designed for integrators who need the full hardware set for a permanent installation in a single purchase.
Product Description

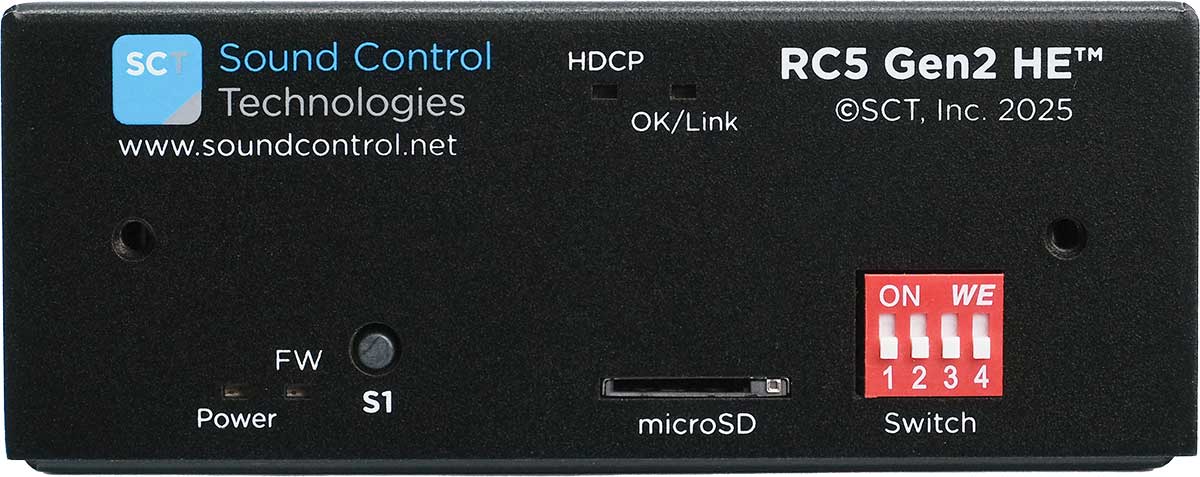

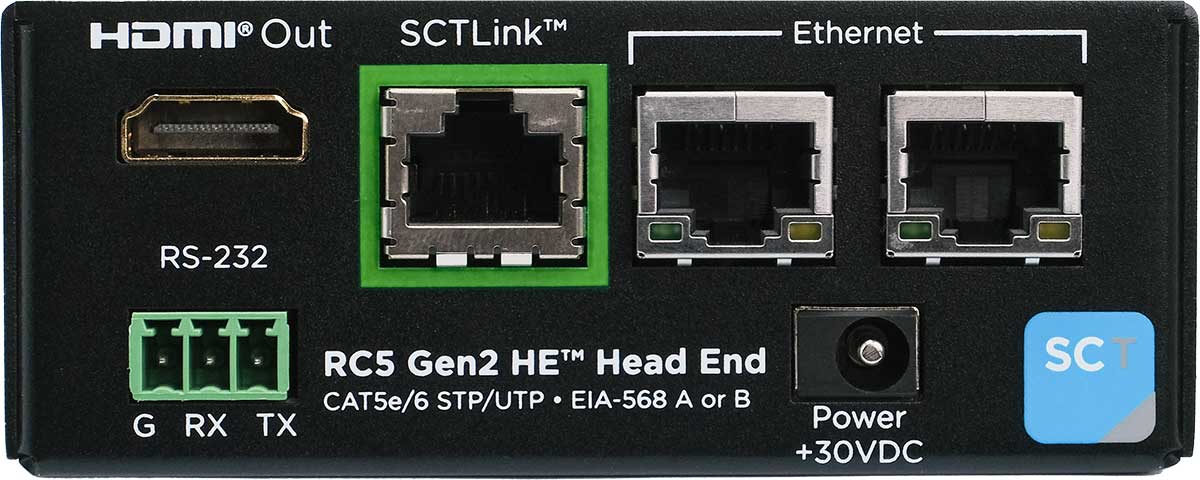

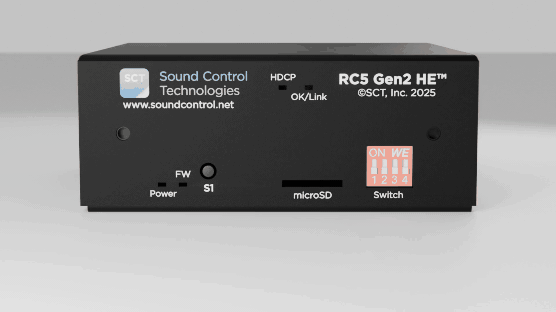

The RC5-BRC-KS project pack delivers the RemoteCam5 extension kit for large-format cameras along with both the RC-RK2 1RU rack shelf and the RCM-LCM large-camera on-wall mount, giving installers everything needed for a rack-to-wall camera deployment. The RemoteCam5 system carries HDMI video at 4K30 up to 70 meters or 1080p60 up to 100 meters, along with IP camera control and 12V power, all over a single structured CAT cable. The RCM-LCM mount is designed for large-format broadcast or PTZ cameras, providing a secure, angle-adjustable mounting solution at the camera end. The RC-RK2 1RU rack shelf accommodates the head-end module in a standard equipment rack alongside other RC5 or compatible modules. This configuration is suited for houses of worship, auditoriums, boardrooms, and broadcast studios where large-body cameras require a clean, permanent installation. Country of origin: USA/Taiwan.
Key Features
- 4K30 at 70M / 1080p60 at 100M — HDMI extension at professional video resolutions over structured CAT cable.
- 12V Camera Power — Powers the camera at the wall mount end over the CAT run, no local power supply needed.
- IP Control Passthrough — Carries IP PTZ control between the codec or control system and the camera.
- RCM-LCM Large Camera Wall Mount Included — Secure on-wall mount sized for large-format PTZ and broadcast cameras.
- RC-RK2 Rack Shelf Included — 1RU rack shelf for the head-end module accommodating up to two RC5-HE modules.
- Single CAT Cable Run — Video, control, and power over one cable, reducing installation complexity.
- Commercial-Grade — Designed for permanent commercial installation in high-use environments.
Typical Applications
- House of worship large-camera deployments with broadcast-style PTZ cameras
- Auditorium and broadcast studio large-format camera extension
- Boardroom and conference room PTZ camera installations requiring both rack shelf and wall mount
- Training rooms and multi-purpose rooms with large-format cameras at extended cable distances
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC5-BRC-KS |
| What's Included | RC5 Extension Kit + RC-RK2 Rack Shelf + RCM-LCM Large Camera On-Wall Mount |
| Signal Types Carried | HDMI, IP control, 12V camera power |
| Video Distance | 4K30 @ 70M / 1080p60 @ 100M over CAT |
| MSRP | $2,815 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What is different about RC5-BRC-KS vs RC5-BRC-K or RC5-BRC-S?
The RC5-BRC-KS includes all three components: the RC5 extension kit, the RC-RK2 rack shelf, and the RCM-LCM large camera wall mount. The RC5-BRC-K includes the kit and wall mount only; the RC5-BRC-S includes the kit and rack shelf only.
What size cameras does the RCM-LCM wall mount support?
The RCM-LCM is designed for large-format PTZ and broadcast-style cameras. Contact Creation Networks to confirm compatibility with your specific camera model.
What CAT cable grade is required?
Contact Creation Networks for current cabling recommendations for RC5 deployments at your target distance.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RC5-BRC-KS.
