Sound Control Technologies RC5-BCS – RemoteCam5 Camera Extension Kit
Product Overview
The Sound Control Technologies RC5-BCS is a RemoteCam5 camera extension kit that extends camera signals over a single CAT cable at 4K30 up to 70 meters and 1080p60 up to 100 meters. The system carries HDMI video, IP PTZ control, and 12V camera power over one structured cable. This base kit includes the extension modules only; for kits with rack shelf or camera mount, see the RC5-BCS-S project pack.
Product Description

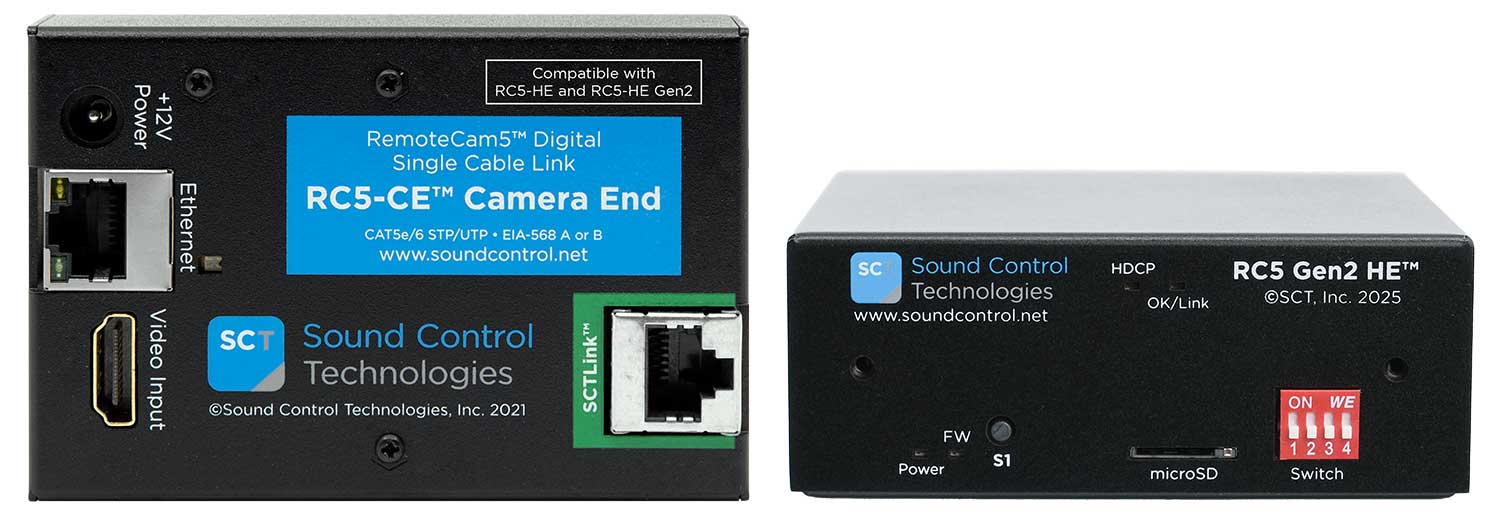

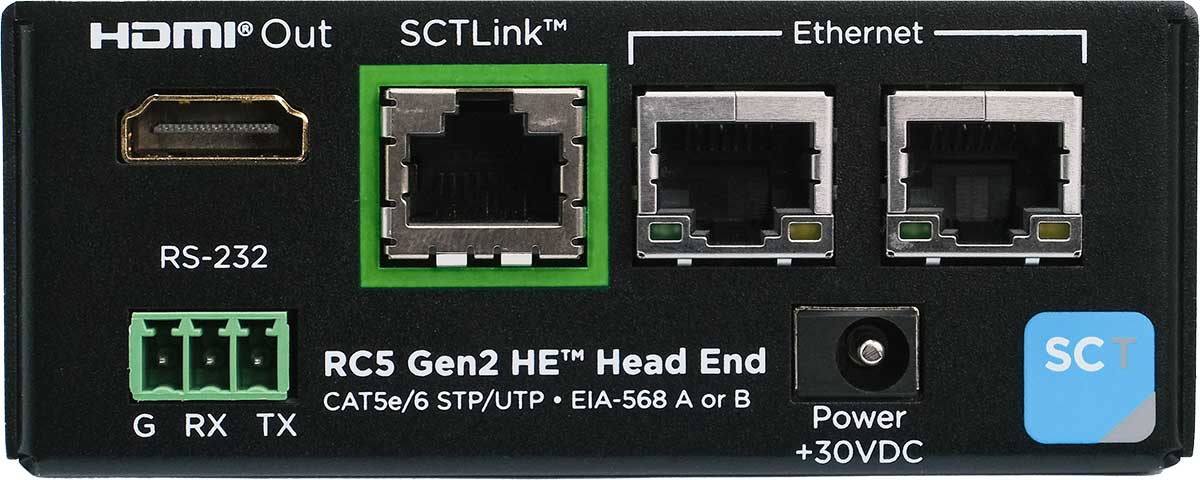

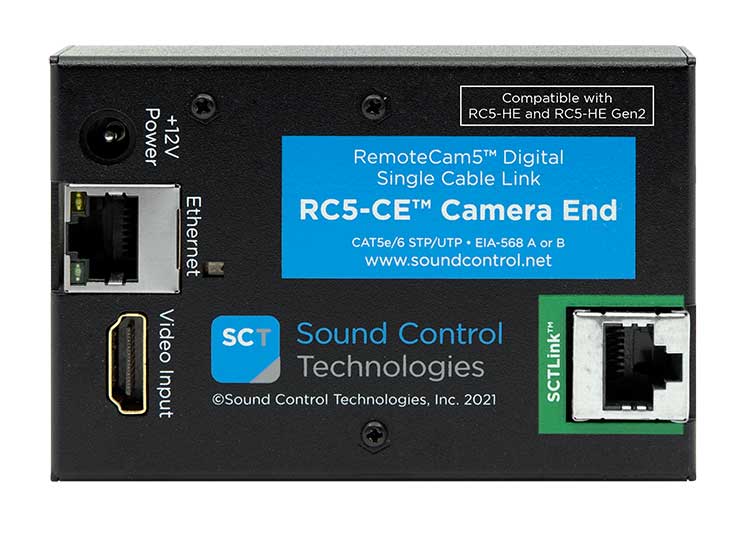

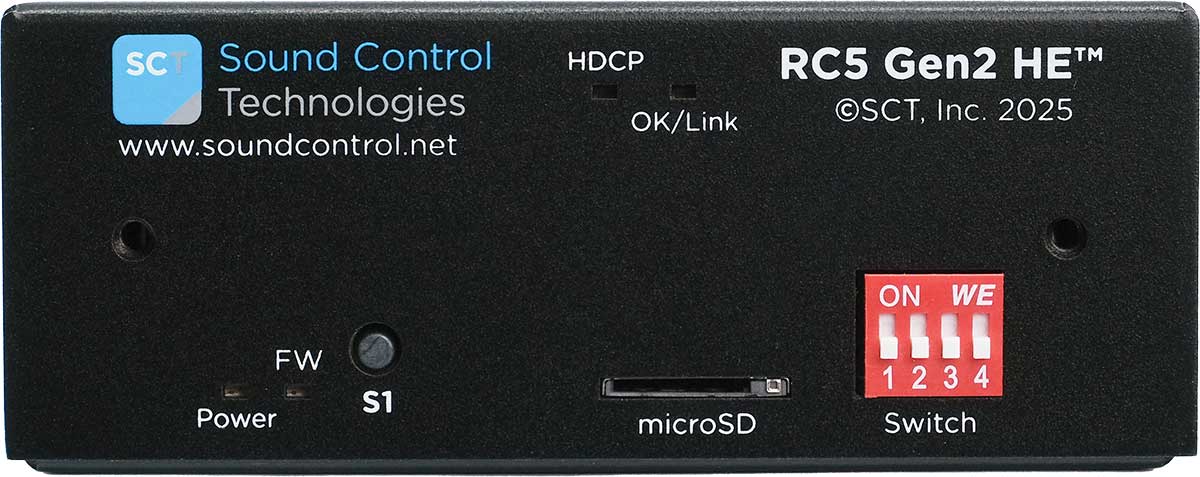

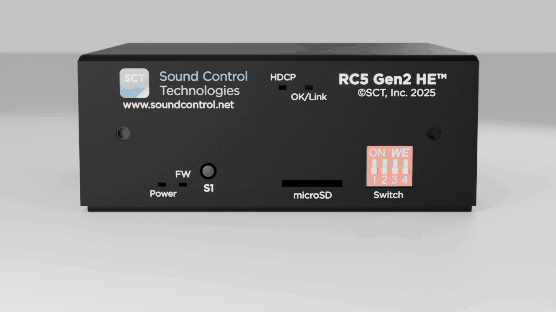

The RC5-BCS RemoteCam5 kit provides the camera-end and head-end extension modules for deploying a PTZ camera at distance from the equipment rack over a structured CAT cable. HDMI video is extended at 4K30 to 70 meters or 1080p60 to 100 meters, along with IP-based PTZ control and 12V power on the same cable run. IP control passthrough preserves all PTZ functions including pan, tilt, zoom, and preset recall from any compatible control system. For integrators needing a rack shelf for the head-end module, the RC5-BCS-S project pack adds the RC-RK2. This kit is suited for conference rooms, boardrooms, training rooms, and multi-purpose meeting spaces. Country of origin: USA/Taiwan.
Key Features
- 4K30 at 70M / 1080p60 at 100M — Professional HDMI extension over structured CAT cable.
- 12V Camera Power — Delivers power to the camera over the CAT run.
- IP PTZ Control Passthrough — Full PTZ control over the CAT extension.
- Single CAT Cable Run — Video, control, and power on one cable.
- Commercial-Grade — Designed for permanent commercial installation.
Typical Applications
- Conference rooms and boardrooms with PTZ camera extension
- Training rooms and multi-purpose spaces with cameras at extended distances
- Commercial meeting spaces with existing rack and camera-end mounting infrastructure
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC5-BCS |
| What's Included | RC5 Extension Kit (camera end + head end modules) |
| Signal Types Carried | HDMI, IP control, 12V camera power |
| Video Distance | 4K30 @ 70M / 1080p60 @ 100M over CAT |
| MSRP | $2,445 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Does RC5-BCS include a rack shelf or camera mount?
No. The RC5-BCS base kit includes extension modules only. See RC5-BCS-S for a kit with the RC-RK2 rack shelf.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RC5-BCS.
