Sound Control Technologies RC5-APA – HDMI Camera Extension for AVer Cameras

Product Overview

The Sound Control Technologies RC5-APA is an HDMI camera extension kit for AVer professional cameras, carrying HDMI video, camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-APA supports the AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, and the MD120UI, MD330U, and MD330UI medical-grade cameras. The complete kit installs without programming, making long AVer camera runs in conference rooms and specialty spaces a single-cable job.

Product Description

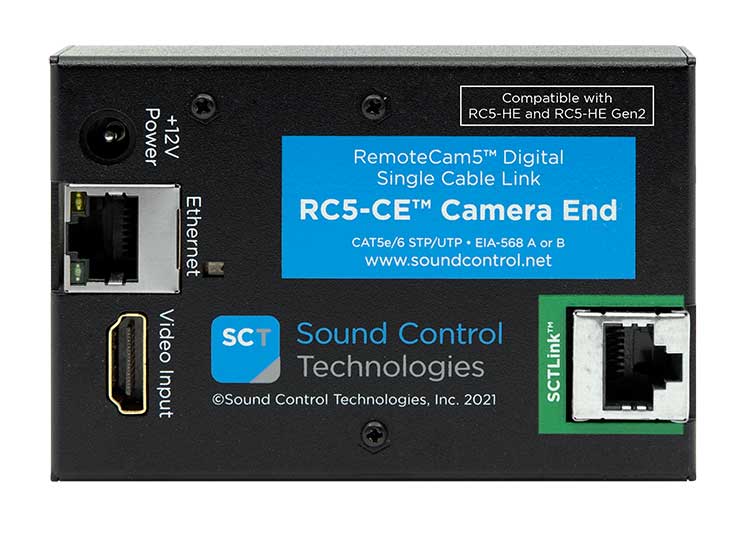

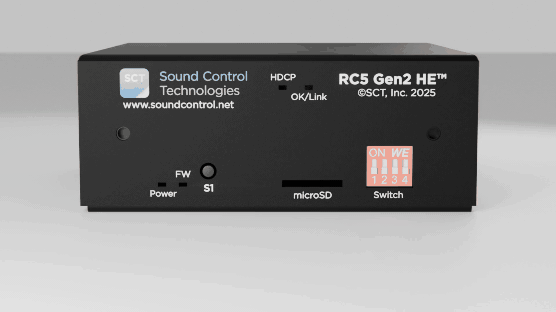

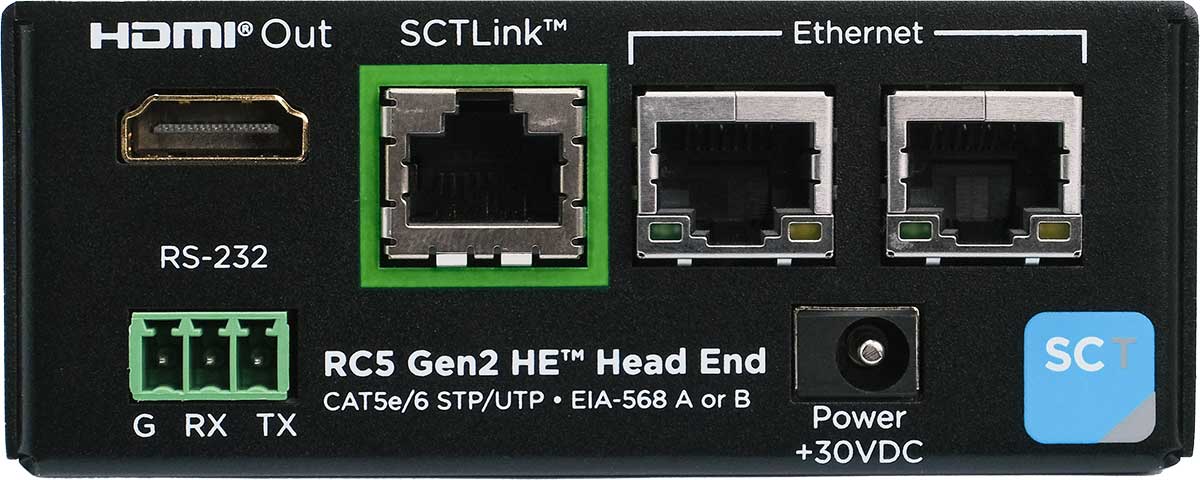

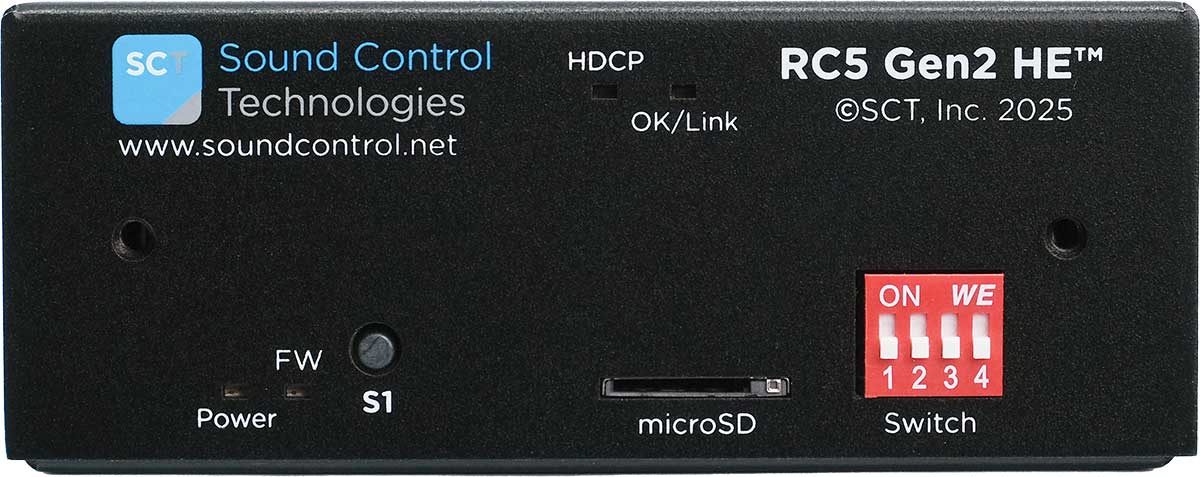

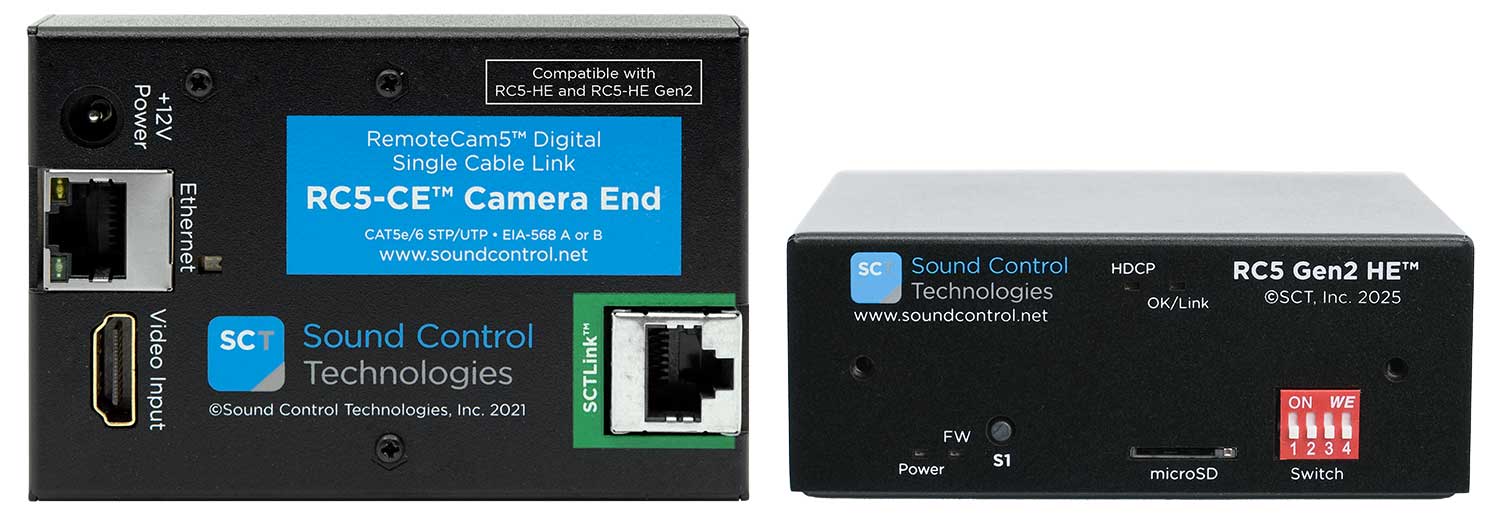

AVer conferencing cameras such as the CAM520 Pro Advanced and the 4K dual-lens CAM570 are common in mid-size and large meeting rooms, where the camera often needs to sit far from the codec or UC compute. The RC5-APA solves the distance problem with a camera-end RC5-CE module and a head-end RC5-HE module connected by one installer-supplied CAT run up to 100 meters (328 ft). The kit ships with AVer-matched HDMI, UTP, and PPC-003 DC power camera cables, head-end HDMI and UTP cables, and a WPS-12 power supply that powers the camera through the link — no outlet needed at the camera position. Support for the AVer MD120UI, MD330U, and MD330UI also makes the RC5-APA suitable for telehealth and medical observation installations using AVer's MD camera line. As an RC5 Gen2 kit, it adds Cisco Control Hub integration, diagnostics, and field-upgradeable firmware, and the head end remains backwards compatible with existing RC5-CE modules. Project packs add an RCM-UNI camera wall mount (-K), an RC-RK2 rack shelf (-S), or both (-KS). For BYOD soft-codec rooms, pair the run with the RC-SDA5+ BYOD camera bridge.

Key Features

• AVer Camera Support — Tested with the CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI.
• Single-CAT Extension up to 100m — HDMI video, camera control, and 12V DC camera power over one CAT cable run up to 100 meters.
• 12V Camera Power Delivery — The WPS-12 supply powers the AVer camera through the link, removing outlet requirements at the camera location.
• No Programming Required — Video and control pass transparently for plug-and-play installation.
• Medical Camera Compatibility — Supports the AVer MD-series for telehealth and patient observation deployments.
• RC5 Gen2 Platform — Cisco Control Hub integration, diagnostics, and field-upgradeable firmware; backwards compatible with RC5-CE modules.
• Project Pack Options — Variants add the RCM-UNI wall mount, RC-RK2 rack shelf, or both.

Typical Applications

• Conference room with an AVer CAM520 Pro Advanced or CAM570 mounted beyond standard cable distance from the codec
• Boardroom or all-hands room running dual-lens AVer cameras over building CAT infrastructure
• Training room with rear-of-room AVer camera positions for instructor capture
• Telehealth or observation space extending AVer MD-series cameras to a remote equipment location
• Multi-purpose room standardizing on AVer cameras across an extension platform

Technical Specifications

Frequently Asked Questions

Which AVer cameras does the RC5-APA support?

The RC5-APA is tested with the AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI. For AVer PTZ and TR-series tracking cameras, use the RC5-USM kit instead; contact Creation Networks to confirm the right variant.

Is the CAT cable included?

No. The CAT run between the camera-end and head-end modules is installer-supplied. CAT5e or better is recommended, with a maximum run of 100 meters.

Does the kit power the camera?

Yes. The included WPS-12 power supply delivers 12V DC to the AVer camera through the SCTLink connection, so no outlet is required at the camera position.

Can I add BYOD soft-codec capability?

Yes. The RC5-CE camera module pairs with the RC-SDA5+ BYOD camera bridge to convert the camera to USB3 for Zoom, Microsoft Teams, and other soft-codec platforms.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
