Sound Control Technologies RC5-1BC – HDMI Camera Extension for Crestron 1Beyond Cameras

Product Overview

The Sound Control Technologies RC5-1BC is an HDMI camera extension kit for Crestron 1Beyond PTZ cameras, extending HDMI video, IP/Ethernet camera control, and 12V DC power up to 100 meters over a single CAT cable. Built on the RemoteCam5 (RC5 Gen2) platform with SCTLink technology, the RC5-1BC supports the Crestron 1Beyond IV-CAMPTZ-12, Crestron 1Beyond IV-CAMPTZ-20, and Lumens CL511 cameras. No programming is required, making it a straightforward camera extension solution for conference room and production-style installations where the camera must sit far from the codec or processor.

Product Description

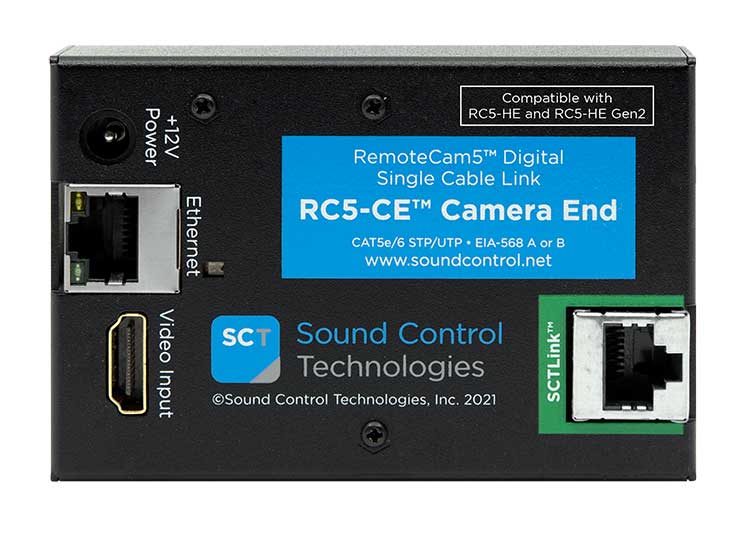

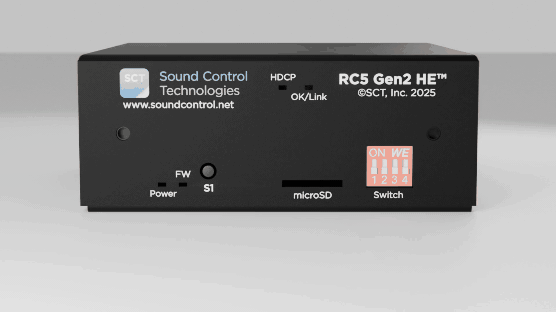

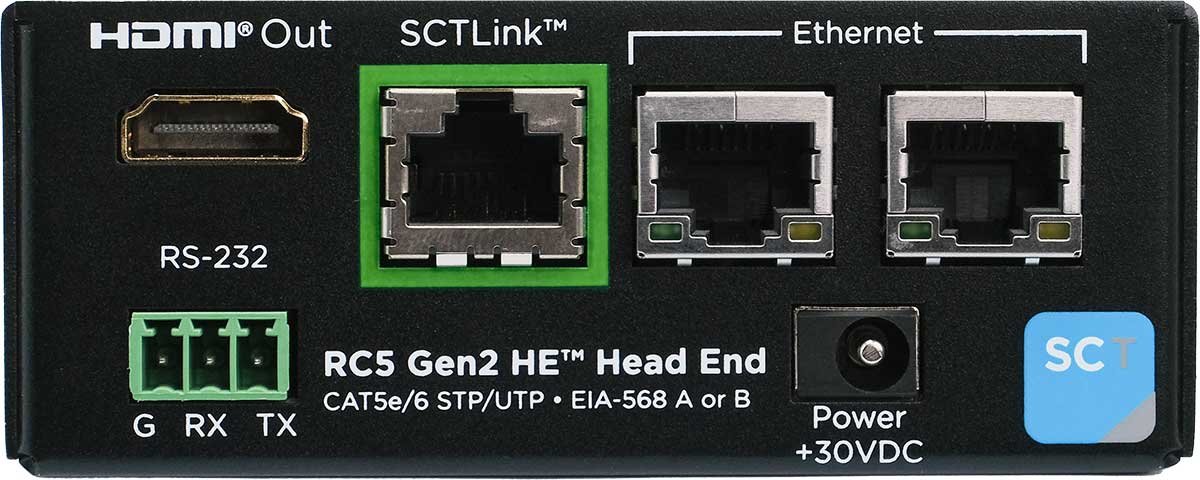

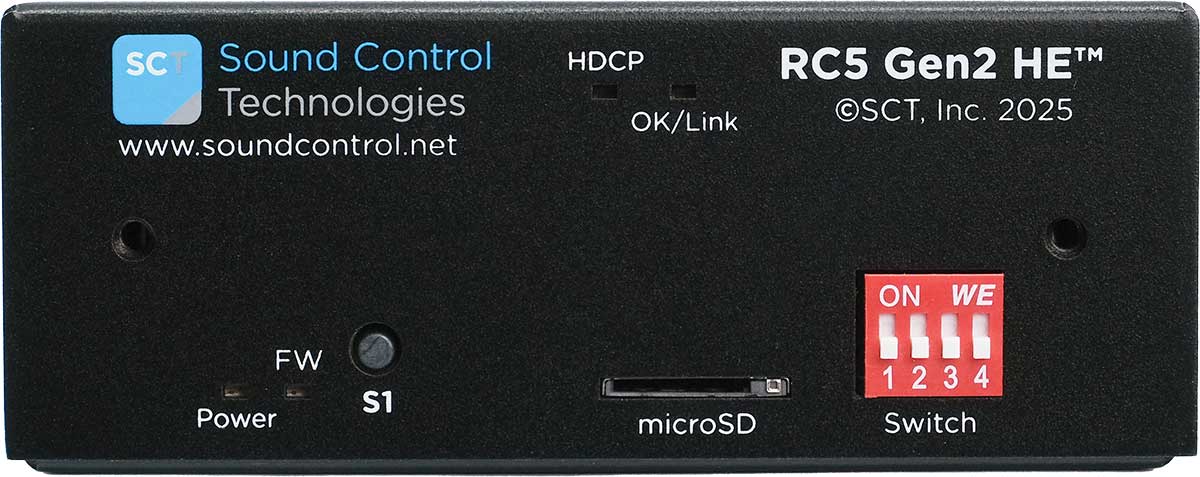

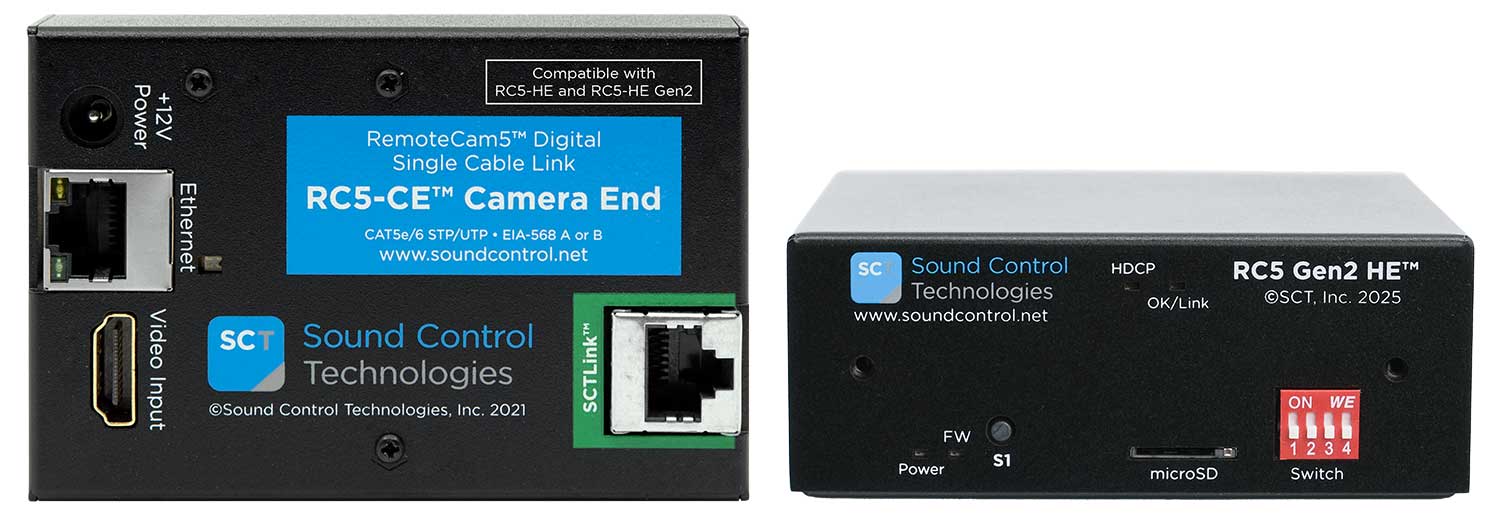

Crestron 1Beyond Intelligent Video cameras are frequently deployed at the rear or sides of large rooms, well beyond standard HDMI cable distances. The RC5-1BC solves this with a camera-end module and a head-end module that carry video, Ethernet control, and camera power over one installer-supplied CAT cable run of up to 100 meters (328 ft). At the camera end, the RC5-CE module connects to the 1Beyond camera with the included short HDMI, UTP, and DC power cables, eliminating local power outlets at the camera position. At the head end, the RC5-HE module hands off HDMI video and network control to the codec, capture system, or control processor. As an RC5 Gen2 kit, the RC5-1BC adds native Cisco Control Hub integration, on-board diagnostics, and field-upgradeable firmware enhancements, and the Gen2 head end remains backwards compatible with existing RC5-CE camera modules. For BYOD soft-codec applications, the head end can be paired with the RC-SDA5+ BYOD camera bridge.

Key Features

• Crestron 1Beyond Camera Support — Purpose-built cable set for the Crestron 1Beyond IV-CAMPTZ-12, IV-CAMPTZ-20, and Lumens CL511 PTZ cameras.
• Single-CAT Extension up to 100m — HDMI video, IP/Ethernet control, and 12V DC camera power travel over one CAT cable run up to 100 meters.
• No Programming Required — SCTLink transport passes video and control transparently for plug-and-play installation.
• 12V Camera Power Delivery — The included WPS-12 supply powers the camera through the link, removing the need for an outlet at the camera location.
• RC5 Gen2 Platform — Adds Cisco Control Hub integration, diagnostics, and field-upgradeable features; backwards compatible with RC5-CE modules.
• Complete Kit — Ships with camera-end module, head-end module, camera and head-end cable set, and power supply.
• BYOD Expandable — Pairs with the RC-SDA5+ bridge to add USB3 soft-codec connectivity to the same camera run.

Typical Applications

• Boardroom or all-hands room with a Crestron 1Beyond camera mounted at the rear wall, far from the codec rack
• Training room or auditorium using 1Beyond Intelligent Video tracking cameras over existing CAT infrastructure
• Government space standardized on Crestron control and 1Beyond cameras requiring a single-cable camera run
• House of worship with PTZ cameras positioned at distance for presenter capture
• Broadcast studio or production-style commercial meeting space integrating Lumens CL511 capture cameras

Technical Specifications

Frequently Asked Questions

Which cameras does the RC5-1BC support?

The RC5-1BC is tested and supported with the Crestron 1Beyond IV-CAMPTZ-12, Crestron 1Beyond IV-CAMPTZ-20, and Lumens CL511. For other 1Beyond or Lumens models, contact Creation Networks to confirm the correct RC5 kit variant before ordering.

Is the CAT cable between the modules included?

No. The installer supplies the CAT cable run between the camera-end and head-end modules. CAT5e or better is recommended, with a maximum run of 100 meters.

Does the RC5-1BC require programming or drivers?

No programming is required. The kit passes video and Ethernet camera control transparently. RC5 Gen2 units also provide diagnostics and field-upgradeable firmware for ongoing support.

Can I add BYOD soft-codec support to this kit?

Yes. The RC-SDA5+ BYOD camera bridge works with RC5-CE camera modules to convert the camera feed to USB3 for Zoom, Microsoft Teams, and other soft codecs.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
