Product Overview
The Sound Control Technologies RC4-USM-K is a project pack combining the RC4-USM HDMI camera extension kit with an RCM-USM on-wall camera mount. Supporting cameras from Atlona, AVer (PTZ and TR series), Lumens VC-TR40, and VHD, the kit extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RCM-USM wall mount is purpose-matched to the camera form factors in the RC4-USM compatibility list, providing a clean permanent installation without custom fabrication.
Product Description

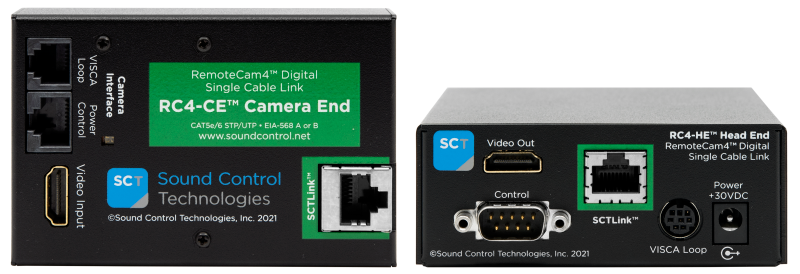

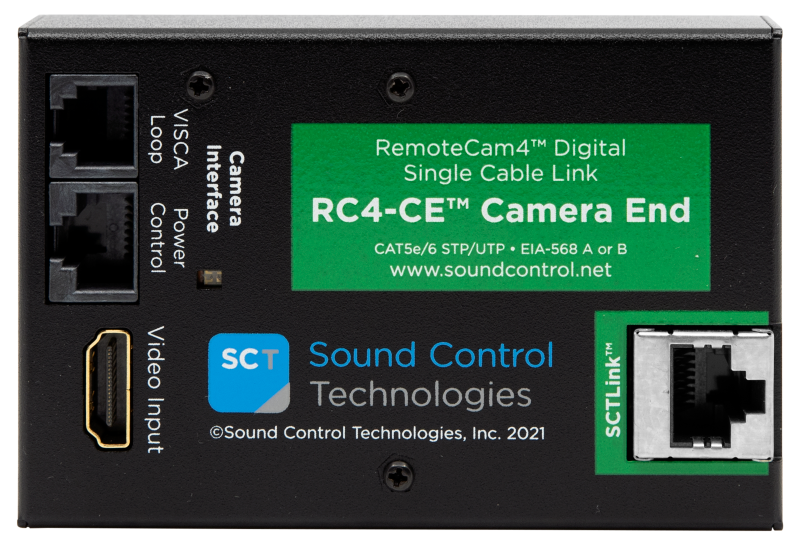

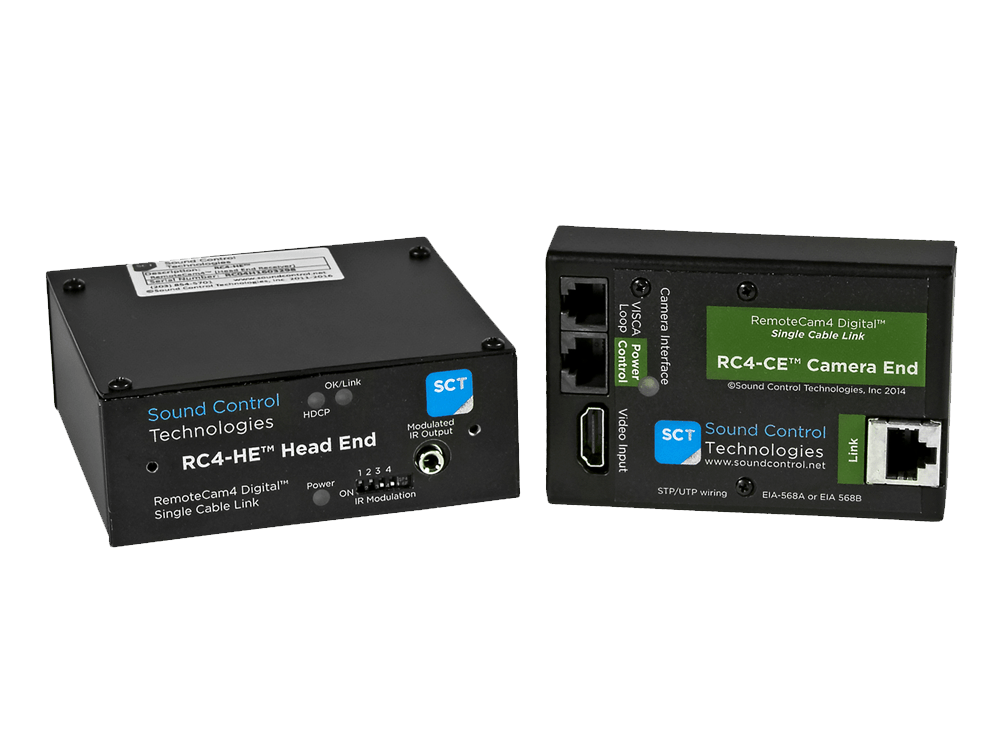

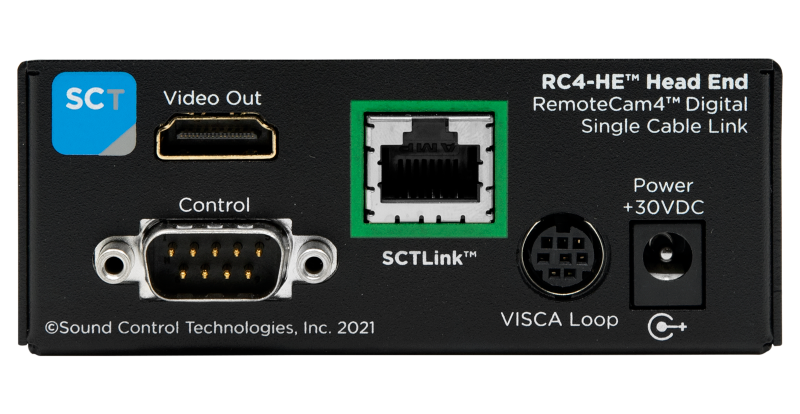

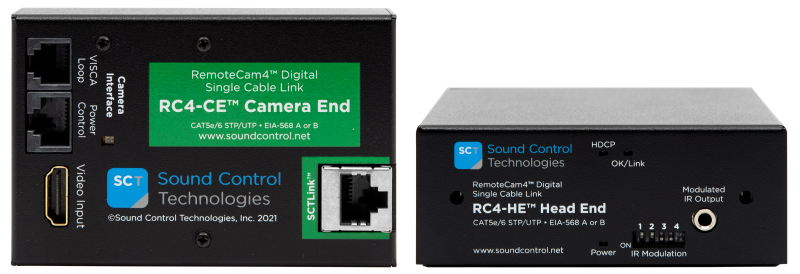

The RC4-USM-K includes all components of the RC4-USM base kit—RC4-CE, RC4-HE, HDMI and power cables, and WPS-12 power supply—plus the RCM-USM on-wall camera mount. The RCM-USM is a dual-gang wall plate mount sized for the cameras in the RC4-USM compatibility list, including AVer PTZ and TR series and VHD cameras. The RC4 extension system carries HDMI video, RS-232 Visca control, and 12V camera power over one CAT cable. No programming is required for standard Visca PTZ operation. The -K suffix distinguishes this pack from the RC4-USM-S (rack shelf only) and RC4-USM base kit (no accessories).
Key Features
- RCM-USM On-Wall Mount Included — Dual-gang wall mount matched to RC4-USM compatible camera form factors.
- Complete Extension Kit — RC4-CE, RC4-HE, targeted cable set, and WPS-12 power supply included.
- Multi-Manufacturer Compatibility — Supports Atlona, AVer PTZ/TR series, Lumens VC-TR40, and VHD cameras.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Modular Design — RC4-CE and RC4-HE individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Conference room with wall-mounted AVer PTZ330 or TR323NV2 camera at extended distance
- Boardroom deploying VHD cameras with integrated wall mount and CAT extension
- Training room with AVer tracking cameras requiring clean wall-mount finish
- Commercial meeting space with Lumens VC-TR40 camera on wall mount via CAT infrastructure
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-USM-K |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, targeted camera cable set, WPS-12 Power Supply, RCM-USM On-Wall Camera Mount |
| Supported Cameras | Atlona HDVS-CAM-HDMI; AVer PTZ and TR series; Lumens VC-TR40; VHD V60/V61/V63 UL/CL — see full compatibility list |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -K suffix mean?
The -K suffix indicates this is the RC4-USM base kit plus the RCM-USM on-wall camera mount. No rack shelf is included. For a rack shelf, see RC4-USM-S. For both accessories, see RC4-USM-KS.
Is the RCM-USM mount different from the RCM-UNI mount?
Yes. Different RCM mount variants are paired with specific RC4 camera kits to match the camera form factor. The RCM-USM is selected for cameras on the RC4-USM compatibility list. Confirm camera compatibility before ordering.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
