Sound Control Technologies RC4-UNI-K – Multi-Manufacturer Camera Extension Kit with Wall Mount
Sound Control Technologies RC4-UNI-K – Multi-Manufacturer Camera Extension Kit with Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-UNI-K – Multi-Manufacturer Camera Ex...
Product Overview
The Sound Control Technologies RC4-UNI-K is a project pack that bundles the RC4-UNI multi-manufacturer HDMI camera extension kit with an RCM-UNI on-wall camera mount. Compatible with PTZ cameras from AVer, Lumens, Marshall, PTZOptics, Sony, and other manufacturers using 8-pin Mini-DIN Visca control, the kit extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The included RCM-UNI dual-gang wall mount simplifies camera installation at the remote location.
Product Description

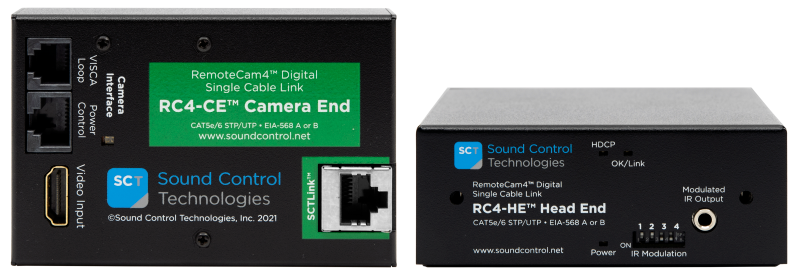

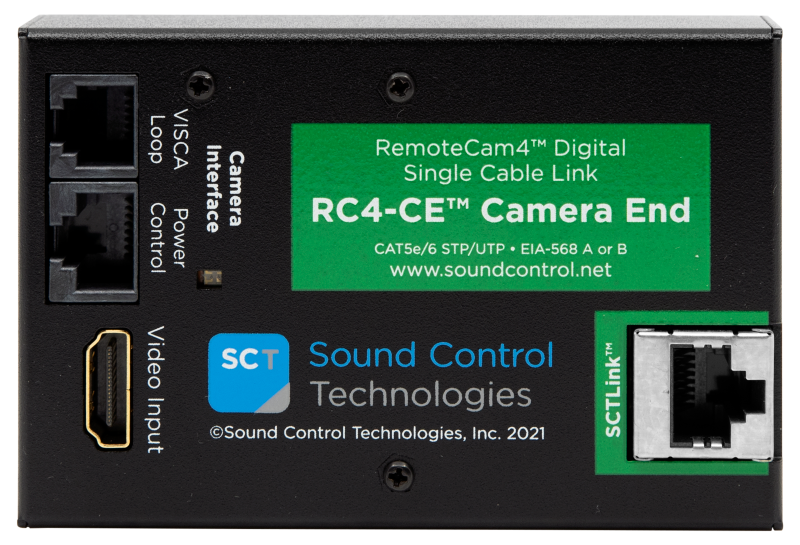

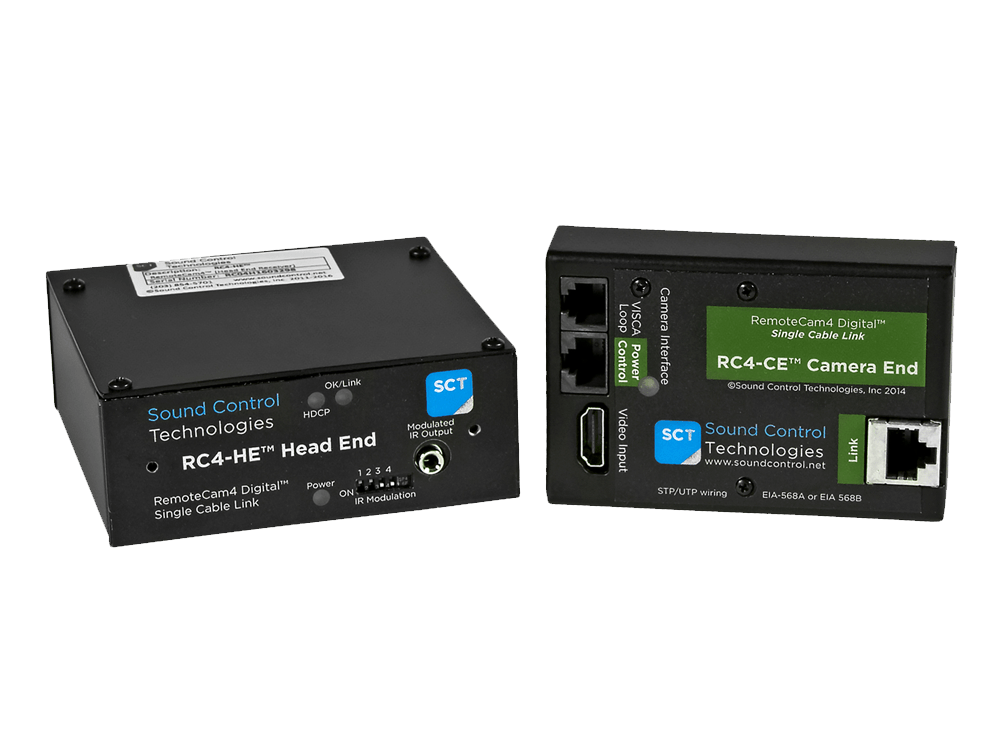

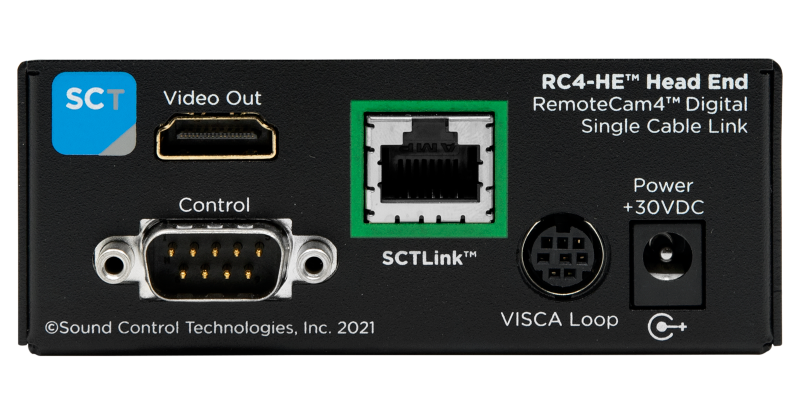

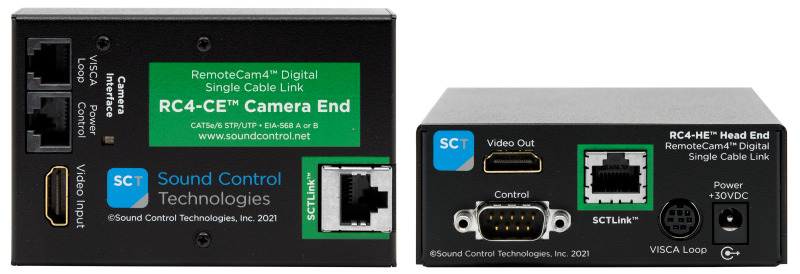

The RC4-UNI-K includes all components of the RC4-UNI base kit—RC4-CE, RC4-HE, comprehensive multi-brand cable set, and WPS-12 power supply—plus the RCM-UNI on-wall camera mount. The RCM-UNI is a dual-gang wall plate mount compatible with a range of PTZ camera form factors, enabling clean surface-mount installation at the camera location without custom hardware. The RC4 extension system carries HDMI video, 8-pin Mini-DIN RS-232 Visca control, and 12V DC power over one CAT cable to the camera end. Compatible cameras include the AVer CAM520 Pro Advanced, Angekis Saber Plus, Lumens VC-A series, Marshall CV series, PTZOptics PT series, Sony SRG series, and VDO360 Saber20X NDI. No programming is required for standard Visca PTZ operation.
Key Features
- RCM-UNI On-Wall Mount Included — Dual-gang wall mount for clean permanent camera installation at the remote location.
- Multi-Brand Compatibility — Supports PTZ cameras from AVer, Lumens, Marshall, PTZOptics, Sony, Angekis, Minrray, and VDO360.
- Complete Cable Set — HDMI, 8-pin Mini-DIN Visca, and power cables for camera and head-end connections.
- Single-CAT Extension up to 100m — All signals over one CAT cable run.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Modular Design — RC4-CE and RC4-HE modules individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Conference room with wall-mounted PTZOptics or Lumens camera at extended distance from the codec rack
- Boardroom requiring a clean wall-mount finish for a Marshall or Sony PTZ camera
- Multi-purpose room deploying a multi-brand PTZ camera with integrated wall mount
- House of worship with ceiling or wall-mounted PTZ camera connected via CAT infrastructure
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-UNI-K |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, full multi-brand cable set (HDMI, Visca, power), WPS-12 Power Supply, RCM-UNI On-Wall Camera Mount |
| Supported Cameras | AVer CAM520 Pro Advanced, Angekis Saber Plus, Lumens VC-A series, Marshall CV620/CV630/CV730, PTZOptics PT series, Sony SRG-120DH/SRG-300H, VDO360 Saber20X NDI, and others — see compatibility guide |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -K suffix mean?
The -K suffix indicates this project pack includes the RC4-UNI base extension kit plus the RCM-UNI on-wall camera mount. It does not include a rack shelf. For a rack shelf, see RC4-UNI-S. For both mount and rack shelf, see RC4-UNI-KS (if required).
Is the RCM-UNI compatible with all cameras on the RC4-UNI supported list?
The RCM-UNI is a universal dual-gang wall plate mount suitable for a range of PTZ camera form factors. Confirm camera physical dimensions against mount specifications before installation. Contact Creation Networks if you need mounting guidance for a specific camera model.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
