Sound Control Technologies RC4-PSA – Camera Extension for Cisco PrecisionHD 12x

Product Overview

The Sound Control Technologies RC4-PSA is a commercial-grade camera extension kit for Cisco PrecisionHD 1080p 12xS2, 12xS1, and 4xS1 cameras paired with the Cisco SX80 and C-Series codecs. Using SCTLink™ technology, the RC4-PSA extends HDMI video, camera control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit includes camera and head-end modules with a Cisco-specific cable set, and no programming is required.

Product Description

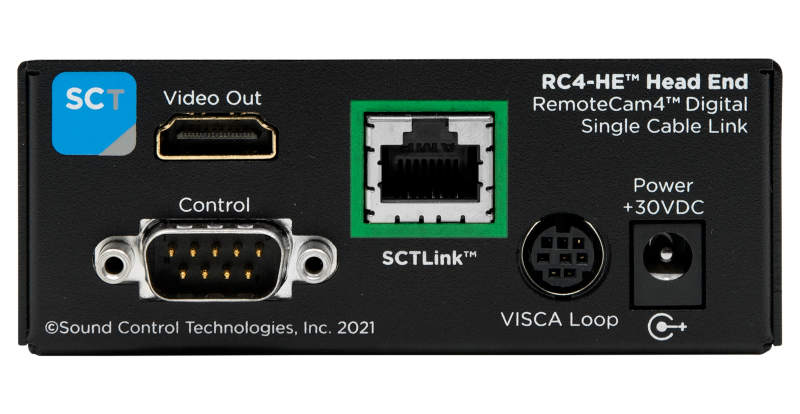

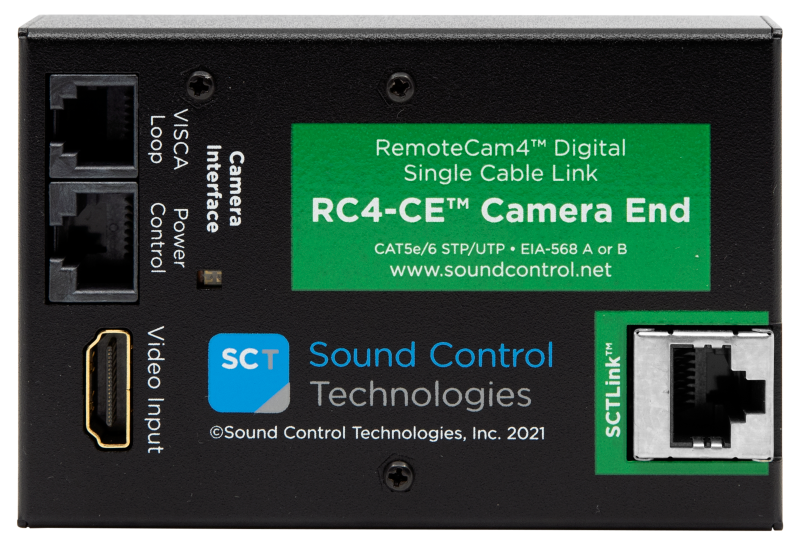

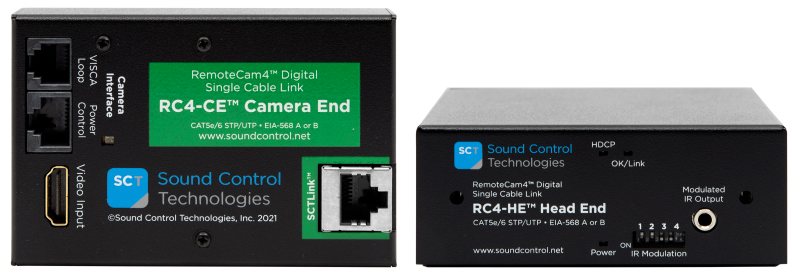

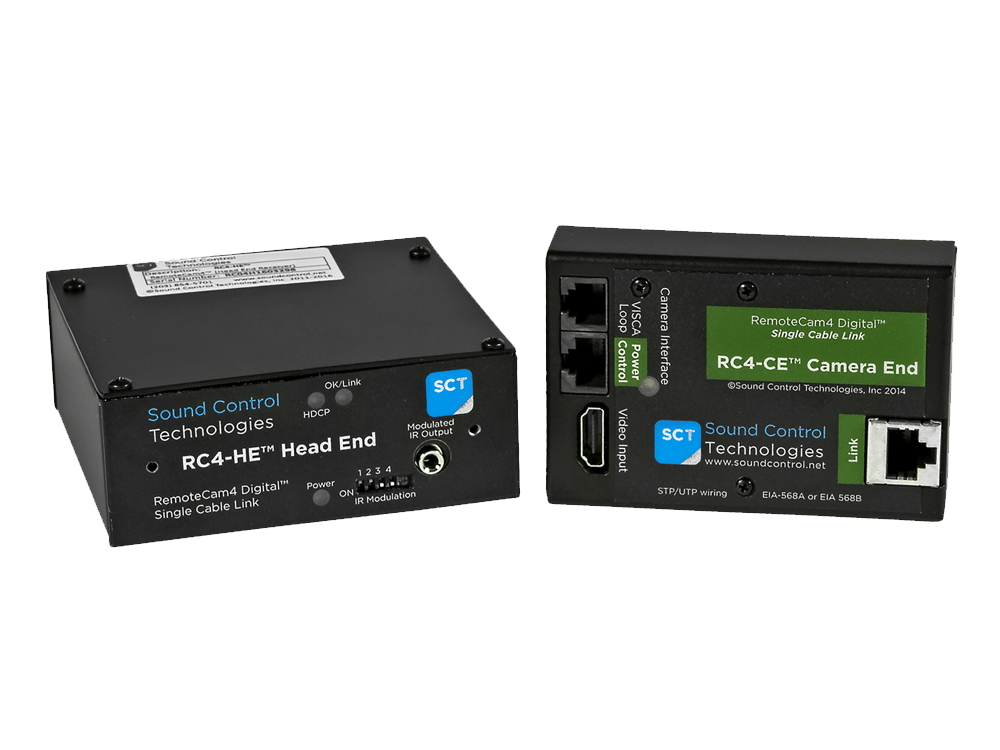

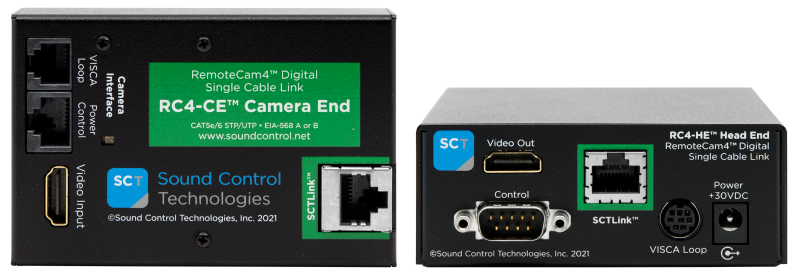

The RC4-PSA solves the distance limitation between a Cisco SX80 or C-Series codec and its PrecisionHD 12x-class camera in boardroom and large conference room installations. The RC4-CE camera module installs at the camera position and the RC4-HE head-end module installs at the codec; a single installer-supplied CAT cable between them carries HDMI video, camera control, and 12V DC power up to 100 meters. Control passes transparently, so pan, tilt, zoom, presets, and camera behavior operate exactly as with a direct connection. This lets the integrator place the SX80 codec in a remote equipment rack while positioning the long-zoom PrecisionHD camera at the front of the room. For PrecisionHD 4xS2 and 2.5x cameras, see the RC4-PSX (SX20) or RC4-PSB (C-Series) at Creation Networks. Wall mount and rack shelf project packs are available as RC4-PSA-K, RC4-PSA-S, and RC4-PSA-KS.

Key Features

• Cisco PrecisionHD 12x Compatibility — Tested and supported for the PrecisionHD 1080p 12xS2, 12xS1, and 4xS1 cameras with the SX80 and C-Series codecs.
• Single-CAT Extension up to 100m — HDMI video, camera control, and 12V DC camera power travel over one CAT cable run.
• No Programming Required — Camera control passes transparently for plug-and-play operation with the SX80 and C-Series codecs.
• 12V Camera Power Delivery — The WPS-12 supply at the head end powers the camera remotely, eliminating a separate electrical run.
• Cisco-Specific Cable Set Included — Camera-side and codec-side cables for the supported PrecisionHD cameras and codecs ship in the kit.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable for long-term serviceability.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Boardroom with an SX80 codec racked in a remote AV closet and the 12x camera at the display wall
• Large conference room or all-hands room using the PrecisionHD 12x zoom range at distance
• Auditorium or training room with the camera positioned far from the codec rack
• Government space maintaining installed Cisco SX80 and C-Series video conferencing systems
• Commercial meeting space extending the service life of PrecisionHD camera inventory

Technical Specifications

Frequently Asked Questions

What is the difference between the RC4-PSA, RC4-PSX, and RC4-PSB?

The RC4-PSA supports PrecisionHD 12xS2, 12xS1, and 4xS1 cameras with the Cisco SX80 and C-Series codecs. The RC4-PSX supports PrecisionHD 4xS2 and 2.5x cameras with the SX20 codec, and the RC4-PSB supports those same cameras with C-Series codecs. Match the kit to your codec and camera combination before ordering.

Does the RC4-PSA include a wall mount or rack shelf?

No. The base kit includes the extension modules, Cisco cable set, and power supply only. The RC4-PSA-K adds a camera wall mount, the RC4-PSA-S adds the RC-RK2 rack shelf, and the RC4-PSA-KS adds both.

Is the CAT cable included?

No. The CAT run between the RC4-CE and RC4-HE modules is supplied by the installer. CAT5e or better is recommended, with a maximum run of 100 meters.

Will camera control and presets still work over the extension?

Yes. Camera control passes transparently through the SCTLink connection, so the codec controls the PrecisionHD camera exactly as it would over a direct cable.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
