Sound Control Technologies RC4-Producer – Camera Extension for Poly EagleEye Producer

Product Overview

The Sound Control Technologies RC4-Producer is a commercial-grade camera extension kit for the Poly EagleEye Producer speaker-framing camera system paired with Poly RealPresence Group Series and G7500 codecs. Using SCTLink™ technology, the RC4-Producer extends video, camera control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit includes camera and head-end modules with a Poly-specific cable set, and no programming is required.

Product Description

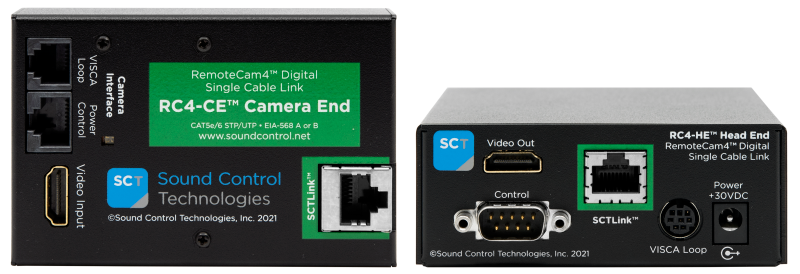

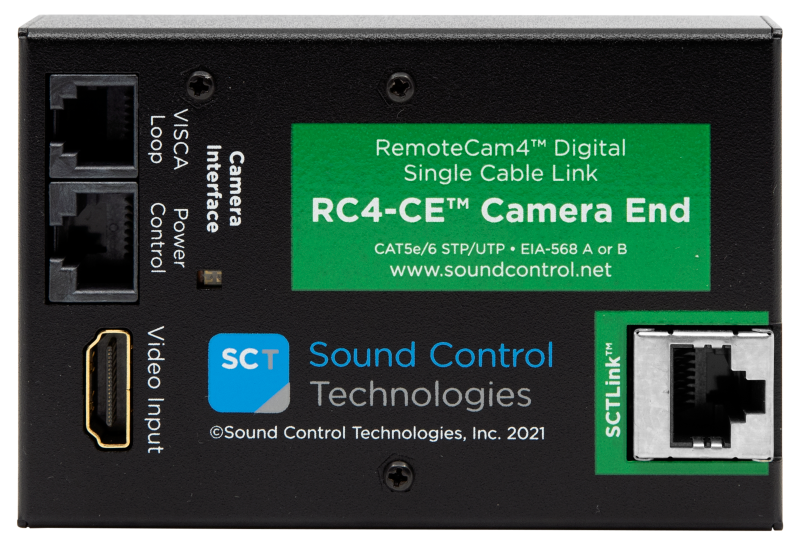

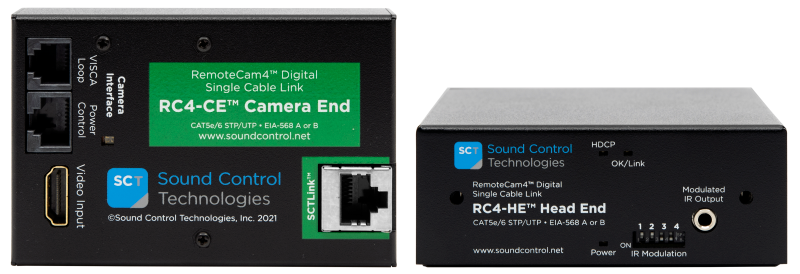

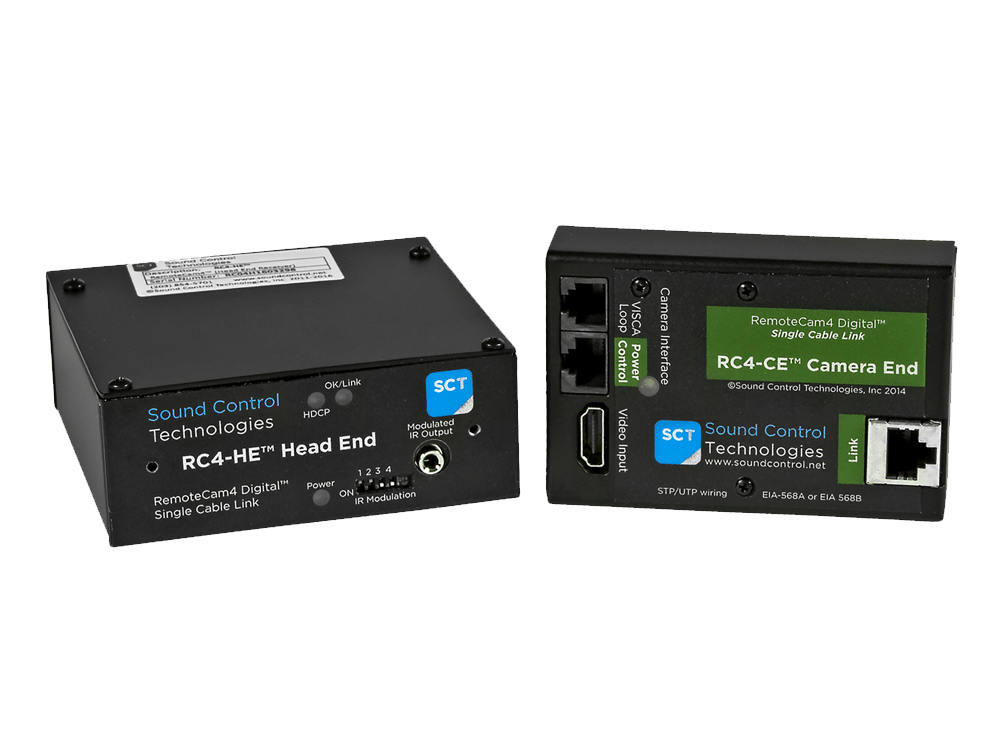

The RC4-Producer solves the distance limitation between a Poly RealPresence Group Series or G7500 codec and the EagleEye Producer in conference room and boardroom installations. The RC4-CE camera module installs at the camera position and the RC4-HE head-end module installs at the codec; a single installer-supplied CAT cable between them carries video, camera control, and 12V DC power up to 100 meters. Because control passes transparently, the EagleEye Producer's automatic group framing and speaker detection operate normally over the extended link. This lets the integrator rack the codec with the rest of the AV equipment while positioning the camera system at the display. For the Poly EagleEye IV camera without the Producer, see the RC4-E4P, and for the EagleEye Cube, see the RC4-E4C at Creation Networks.

Key Features

• Poly EagleEye Producer Compatibility — Tested and supported for the EagleEye Producer with RealPresence Group Series and G7500 codecs.
• Single-CAT Extension up to 100m — Video, camera control, and 12V DC camera power travel over one CAT cable run.
• Automatic Framing Preserved — The EagleEye Producer's group framing and speaker detection operate normally over the extended link.
• No Programming Required — Camera control passes transparently for plug-and-play operation with the Poly codec.
• 12V Camera Power Delivery — The WPS-12 supply at the head end powers the camera system remotely, eliminating a separate electrical run.
• Poly-Specific Cable Set Included — Camera-side and codec-side cables for the EagleEye Producer and supported Poly codecs ship in the kit.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable for long-term serviceability.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Conference room with a RealPresence Group Series codec racked away from the display wall
• Boardroom using EagleEye Producer automatic framing with a concealed G7500 codec
• All-hands room or multi-purpose room reusing structured CAT cabling for the camera run
• Commercial meeting space standardizing Poly video conferencing across multiple rooms
• Government space maintaining installed Poly RealPresence infrastructure

Technical Specifications

Frequently Asked Questions

How does the RC4-Producer differ from the RC4-E4P?

The RC4-Producer is configured for the Poly EagleEye Producer speaker-framing system, while the RC4-E4P is configured for the EagleEye IV camera alone with its HDCI connections. Each kit ships with the cable set specific to its device, so match the kit to the camera hardware in your room.

Does automatic framing still work over the extension?

Yes. The EagleEye Producer performs framing and speaker detection in the device itself, so these functions operate normally over the SCTLink extension.

Does the RC4-Producer include a wall mount or rack shelf?

No. The base kit includes the extension modules, Poly cable set, and power supply only. Compatible RCM-series wall mounts and the RC-RK2 rack shelf are available separately from Creation Networks.

Is the CAT cable included?

No. The CAT run between the RC4-CE and RC4-HE modules is supplied by the installer. CAT5e or better is recommended, with a maximum run of 100 meters.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
