Sound Control Technologies RC4-PHD-S – Cisco SX80 Camera Extension Kit with Rack Shelf

Product Overview

The Sound Control Technologies RC4-PHD-S is a RemoteCam4 project pack pairing the RC4-PHD HDMI camera extension kit with the RC-RK2 single-RU rack shelf. The RC4-PHD is purpose-built for Cisco video conferencing rooms running SX80 or C-Series codecs with PrecisionHD 1080p 12x, 4xS1, or 720p 7x cameras. Using SCTLink™ technology, the kit extends HDMI video, RS-232 camera control, and 12V DC camera power up to 100 meters over a single CAT cable, letting integrators place the camera far from the codec without signal degradation.

Product Description

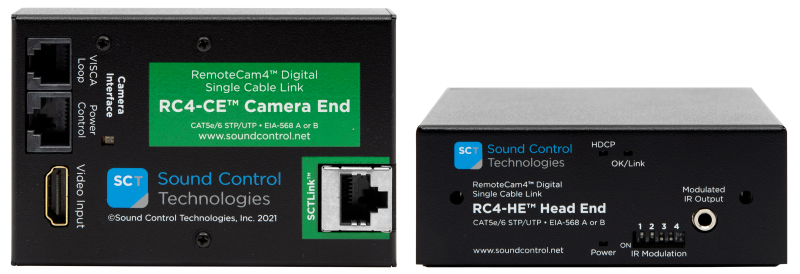

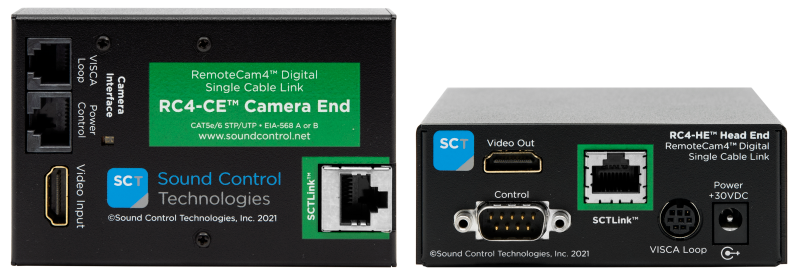

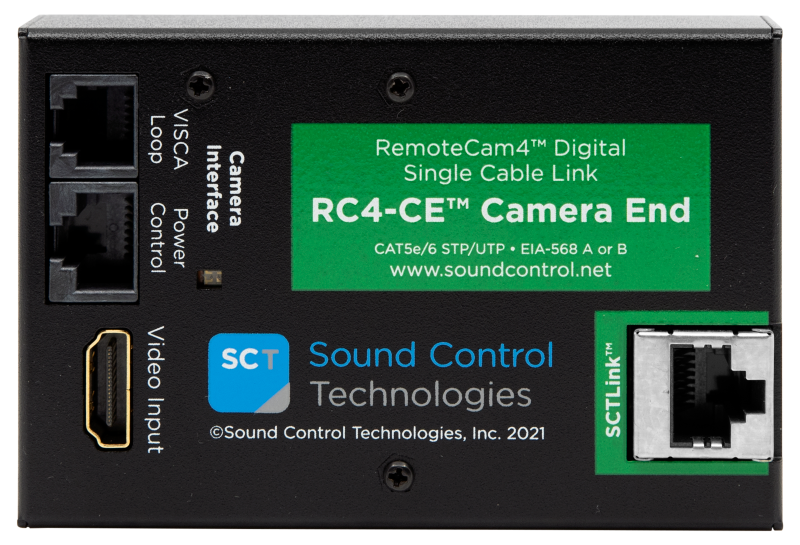

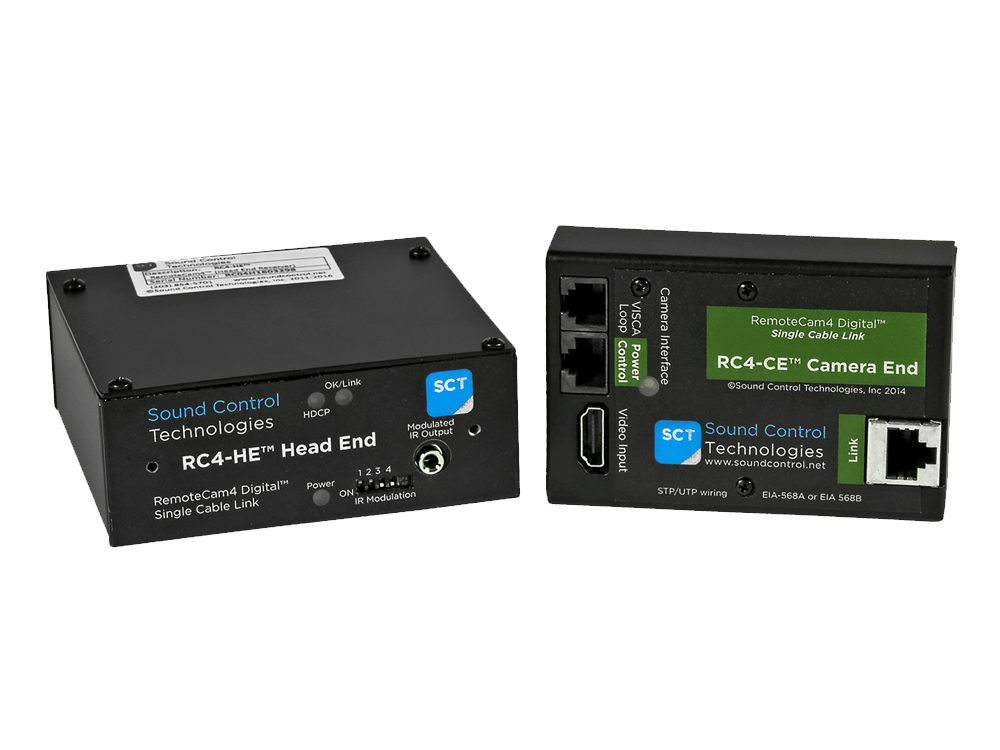

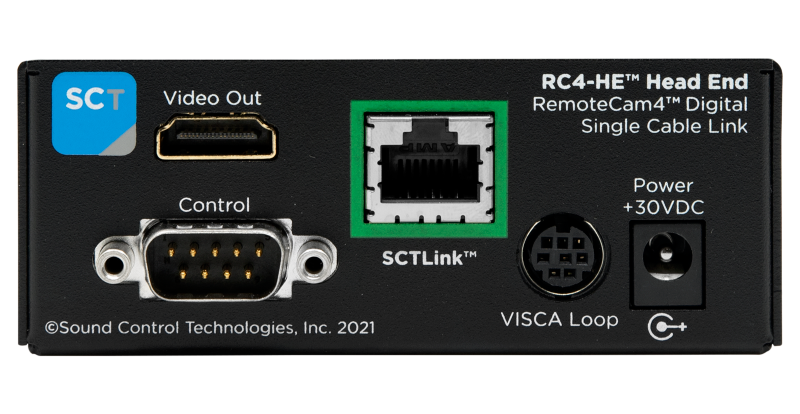

The RC4-PHD-S combines all RC4-PHD base kit components—RC4-CE camera module, RC4-HE head-end/codec module, Cisco-specific camera and codec cable set, and WPS-12 power supply—with the RC-RK2 rack shelf. The -S suffix indicates the rack shelf is included; no camera wall mount is supplied. The RC-RK2 is a single-RU shelf with 9-inch depth that holds the RC4-HE head-end module and power supply with rear cable access, keeping the codec rack tidy and serviceable. SCTLink carries video, serial control, and camera power over one installer-supplied CAT cable, so the camera position needs no local outlet or separate control run. Control passes transparently and no programming is required—the SX80 or C-Series codec sees the camera exactly as if it were locally connected. For a camera wall mount instead of the rack shelf, see the RC4-PHD-K.

Key Features

• Cisco SX80 and C-Series Compatibility — Purpose-built cable set for SX80 and C-Series codecs with PrecisionHD 1080p 12x, 4xS1, and 720p 7x cameras.
• RC-RK2 Rack Shelf Included — Single-RU shelf mounts the head-end module and power supply in the equipment rack with rear cable access.
• Single-CAT Extension up to 100m — HDMI video, RS-232 control, and 12V DC camera power over one CAT cable run.
• No Programming Required — Camera control passes transparently for plug-and-play operation with the Cisco codec.
• 12V Camera Power Delivery — WPS-12 supply powers the camera through the extension link, eliminating a local outlet at the camera.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Boardroom with a Cisco SX80 codec rack-mounted away from the PrecisionHD camera position
• All-hands room or auditorium extending a PrecisionHD 12x camera over CAT infrastructure
• Government space standardized on Cisco SX80 or C-Series room systems
• Training room or multi-purpose room consolidating codec hardware in an equipment rack

Technical Specifications

Frequently Asked Questions

What does the -S suffix mean?

The -S suffix indicates this project pack includes the RC4-PHD base extension kit plus the RC-RK2 rack shelf. No camera wall mount is included. For a wall mount instead, order the RC4-PHD-K.

Which Cisco hardware does the RC4-PHD support?

The RC4-PHD is designed for Cisco SX80 and C-Series codecs paired with PrecisionHD 1080p 12x, 4xS1, or 720p 7x cameras. For the SX20 codec, see the RC4-PSX (4xS2/2.5x cameras) or RC4-PSA (12x camera) instead.

Is the CAT cable included?

No. The CAT cable between the RC4-CE and RC4-HE modules is installer-supplied. CAT5e or better is recommended; the maximum run is 100 meters.

Does the kit require programming?

No. Camera control passes transparently through the SCTLink connection, so the codec controls the camera exactly as if it were locally connected.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
