Sound Control Technologies RC4-PHD – Camera Extension for Cisco PrecisionHD Cameras

Product Overview

The Sound Control Technologies RC4-PHD is a commercial-grade camera extension kit for Cisco PrecisionHD 1080p 12x, 4xS1, and 720p 7x cameras paired with the Cisco SX80 and C-Series codecs. Using SCTLink™ technology, the RC4-PHD extends video, camera control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit includes camera and head-end modules with a Cisco-specific cable set, and no programming is required.

Product Description

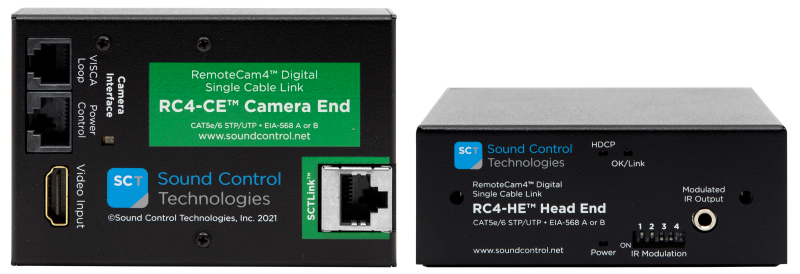

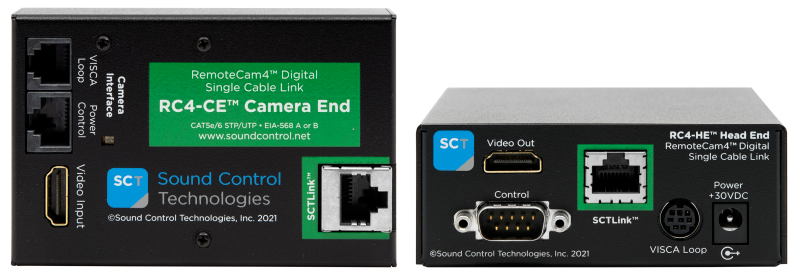

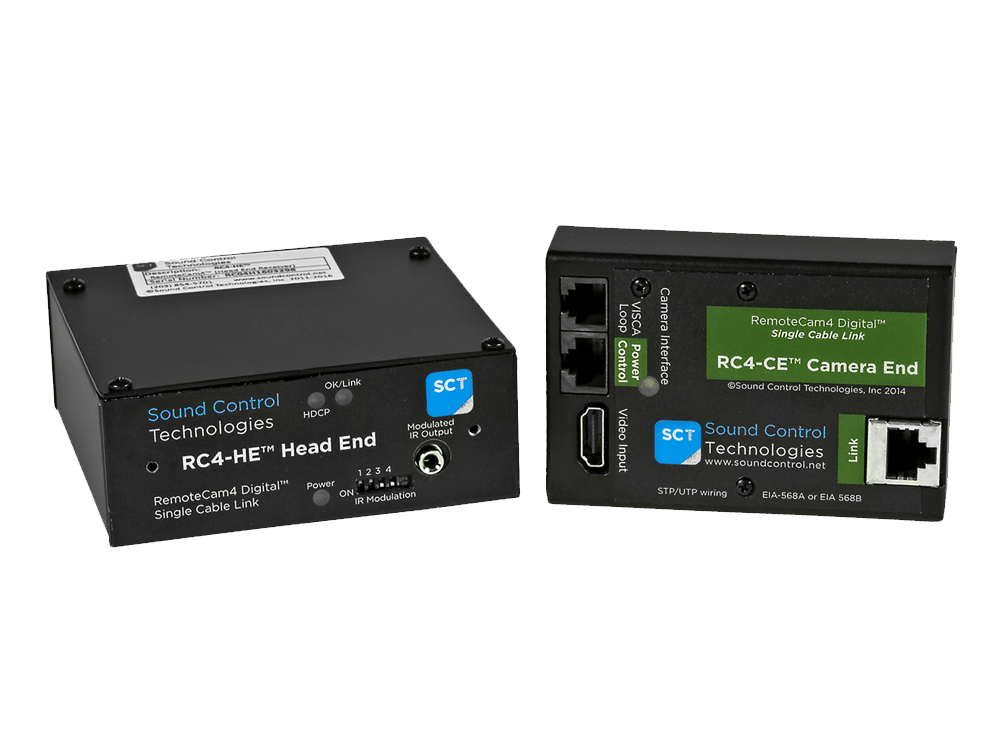

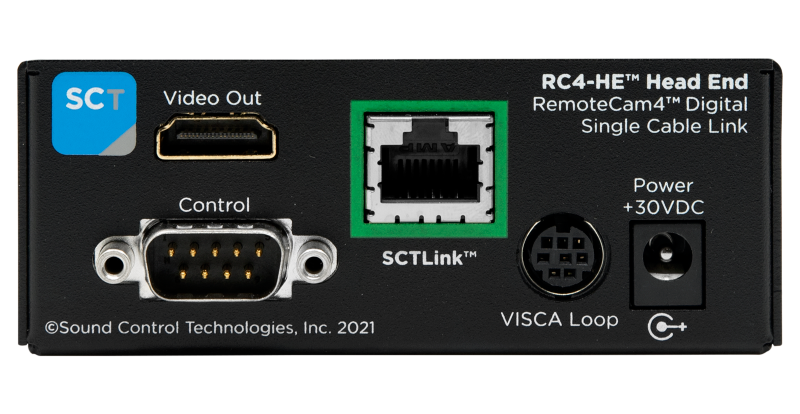

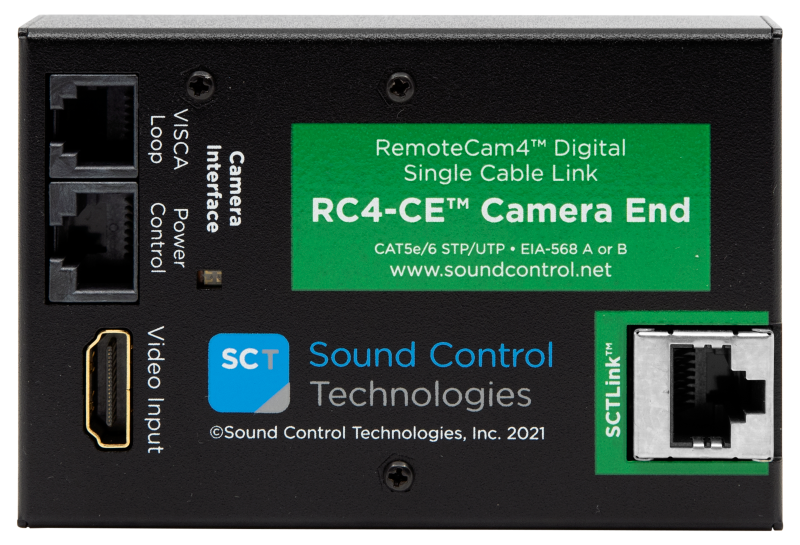

The RC4-PHD solves the distance limitation between a Cisco SX80 or C-Series codec and its PrecisionHD camera in boardroom and large conference room installations. The kit covers the broadest set of legacy PrecisionHD models in the RC4 family, spanning the 1080p 12x, 1080p 4xS1, and 720p 7x cameras. The RC4-CE camera module installs at the camera position and the RC4-HE head-end module installs at the codec; a single installer-supplied CAT cable between them carries video, camera control, and 12V DC power up to 100 meters. Control passes transparently, so pan, tilt, zoom, and presets operate exactly as with a direct connection. For PrecisionHD 4xS2 and 2.5x cameras, see the RC4-PSX (SX20) or RC4-PSB (C-Series), and for 12xS2/12xS1/4xS1 cameras with the SX80, see the RC4-PSA at Creation Networks. Wall mount and rack shelf project packs are available as RC4-PHD-K, RC4-PHD-S, and RC4-PHD-KS.

Key Features

• Broad PrecisionHD Coverage — Supports Cisco PrecisionHD 1080p 12x, 1080p 4xS1, and 720p 7x cameras with the SX80 and C-Series codecs.
• Single-CAT Extension up to 100m — Video, camera control, and 12V DC camera power travel over one CAT cable run.
• No Programming Required — Camera control passes transparently for plug-and-play operation with the Cisco codec.
• 12V Camera Power Delivery — The WPS-12 supply at the head end powers the camera remotely, eliminating a separate electrical run.
• Cisco-Specific Cable Set Included — Camera-side and codec-side cables for the supported PrecisionHD cameras and codecs ship in the kit.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable for long-term serviceability.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Boardroom with an SX80 or C-Series codec racked in a remote AV closet and the camera at the display wall
• Large conference room or all-hands room using PrecisionHD 12x zoom at distance
• Training room or multi-purpose room reusing structured CAT cabling for camera placement
• Government space maintaining installed Cisco TelePresence systems
• Commercial meeting space extending the service life of legacy PrecisionHD camera inventory

Technical Specifications

Frequently Asked Questions

Which Cisco cameras does the RC4-PHD support?

The RC4-PHD supports the PrecisionHD 1080p 12x, PrecisionHD 1080p 4xS1, and PrecisionHD 720p 7x cameras with SX80 and C-Series codecs. For PrecisionHD 4xS2 and 2.5x cameras, use the RC4-PSX or RC4-PSB depending on your codec.

Does the RC4-PHD include a wall mount or rack shelf?

No. The base kit includes the extension modules, Cisco cable set, and power supply only. The RC4-PHD-K adds a camera wall mount, the RC4-PHD-S adds the RC-RK2 rack shelf, and the RC4-PHD-KS adds both.

Is the CAT cable included?

No. The CAT run between the RC4-CE and RC4-HE modules is supplied by the installer. CAT5e or better is recommended, with a maximum run of 100 meters.

Will camera control and presets still work over the extension?

Yes. Camera control passes transparently through the SCTLink connection, so the codec controls the PrecisionHD camera exactly as it would over a direct cable.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
