Sound Control Technologies RC4-P40-K – Panasonic Camera Extension Kit with Wall Mount
Sound Control Technologies RC4-P40-K – Panasonic Camera Extension Kit with Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-P40-K – Panasonic Camera Extension K...
Product Overview
The Sound Control Technologies RC4-P40-K is a project pack bundling the RC4-P40 HDMI camera extension kit with an RCM-UNI on-wall camera mount. Designed for Panasonic AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70 cameras, the kit extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RCM-UNI wall mount provides a clean permanent installation at the camera location, reducing on-site fabrication requirements.
Product Description

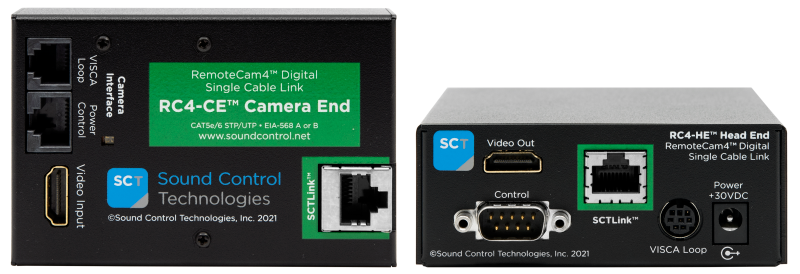

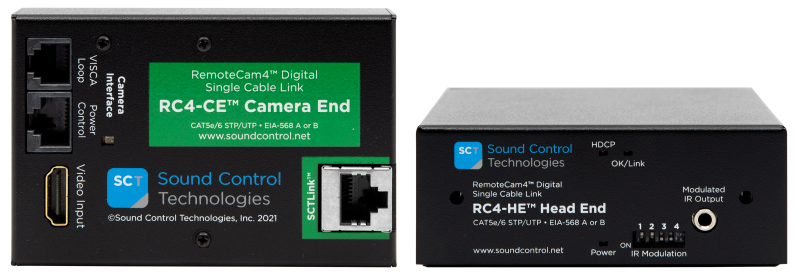

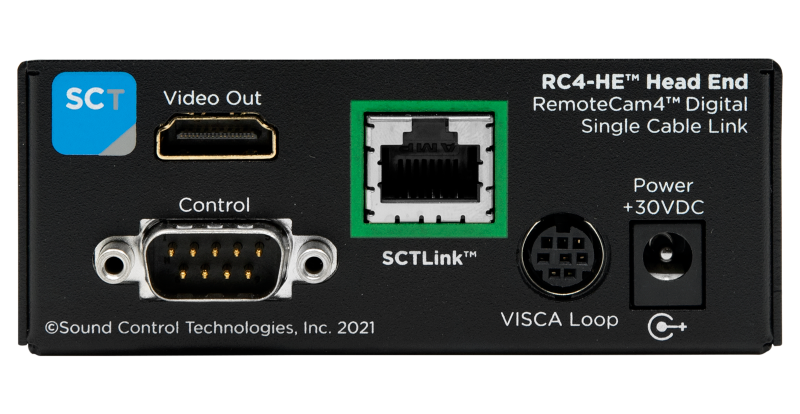

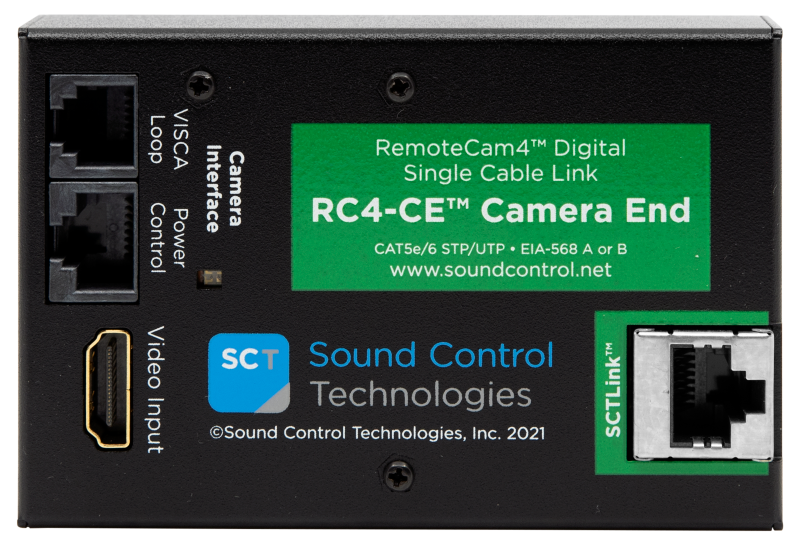

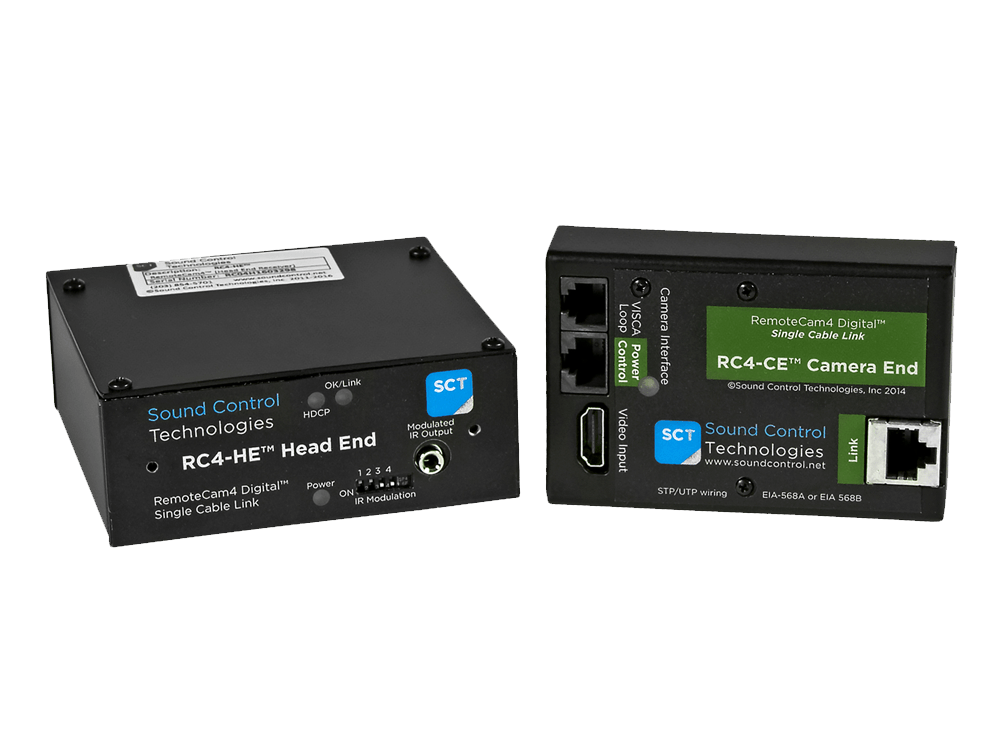

The RC4-P40-K combines all RC4-P40 base kit components—RC4-CE camera module, RC4-HE head-end/codec module, Panasonic-specific cable set (HDMI, Visca out, Visca loop, DC power), and WPS-12 power supply—with the RCM-UNI on-wall camera mount. The RCM-UNI is a dual-gang wall plate mount compatible with a range of PTZ camera form factors. The -K suffix indicates the camera wall mount is included; the rack shelf is not. For installations also requiring rack mounting of the head-end module, the RC4-P40-KS (if needed) includes both accessories. No programming is required for standard Visca PTZ operation.
Key Features
- RCM-UNI On-Wall Mount Included — Dual-gang wall mount for clean permanent camera installation without custom hardware.
- Complete Panasonic Extension Kit — All RC4-P40 components including Panasonic-specific cables and WPS-12 power supply.
- Panasonic PTZ Compatibility — Supports AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, and AW-UN70.
- Single-CAT Extension up to 100m — HDMI video, RS-232 Visca control, and 12V power over one CAT cable.
- No Programming Required — Plug-and-play Visca PTZ control from codec or control system.
- Modular Design — RC4-CE and RC4-HE individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured for permanent AV installations.
Typical Applications
- Boardroom with wall-mounted Panasonic AW-UE70 PTZ camera at extended distance from the codec rack
- Conference room requiring a clean wall-mount finish for Panasonic AW-HE42 camera
- House of worship with wall-mounted Panasonic PTZ camera connected via CAT infrastructure
- Government or corporate space deploying Panasonic cameras with integrated wall mount
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-P40-K |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, Panasonic-specific cable set (HDMI, Visca out, Visca loop, DC power), WPS-12 Power Supply, RCM-UNI On-Wall Camera Mount |
| Supported Cameras | Panasonic AW-HE20, AW-UE20, AW-HE38H, AW-HN38H, AW-HE42, AW-UE70, AW-UN70 |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,630 |
Frequently Asked Questions
What does the -K suffix mean?
The -K suffix indicates this project pack includes the RC4-P40 base kit plus the RCM-UNI on-wall camera mount. No rack shelf is included. For a rack shelf, see RC4-P40-S. For both wall mount and rack shelf, a KS variant may be available.
Why is the RC4-P40-K priced higher than other RC4 -K variants?
The RC4-P40-K includes a Panasonic-specific extended cable set and the RCM-UNI camera mount. The pricing reflects the full content of the project pack; consult the pricebook for exact current pricing.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
