Sound Control Technologies RC4-P13-S – Panasonic AW-HE130 Camera Extension with Rack Shelf

Product Overview

The Sound Control Technologies RC4-P13-S is a project pack combining the RC4-P13 HDMI camera extension kit for the Panasonic AW-HE130 PTZ camera with the RC-RK2 rack shelf for the head-end module. Using SCTLink™ technology, the kit extends HDMI video, RS-232 PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. This variant suits integrators who rack-mount the head-end module and already have their own camera-end mounting solution.

Product Description

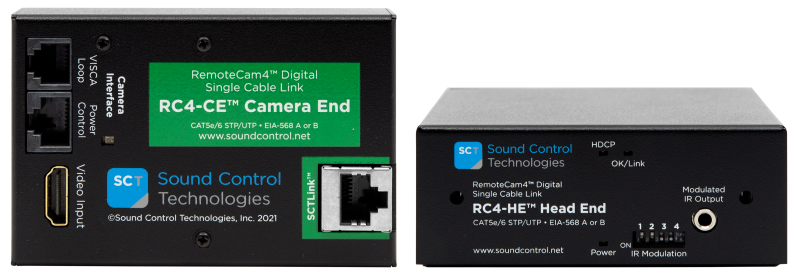

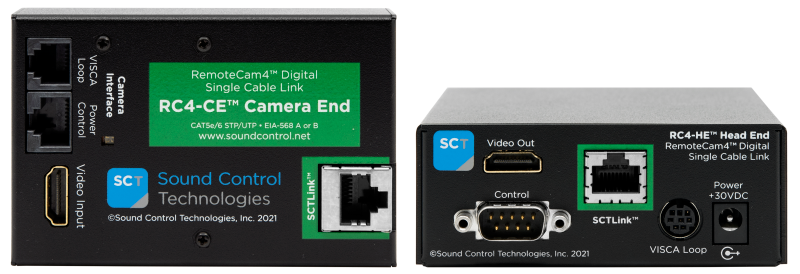

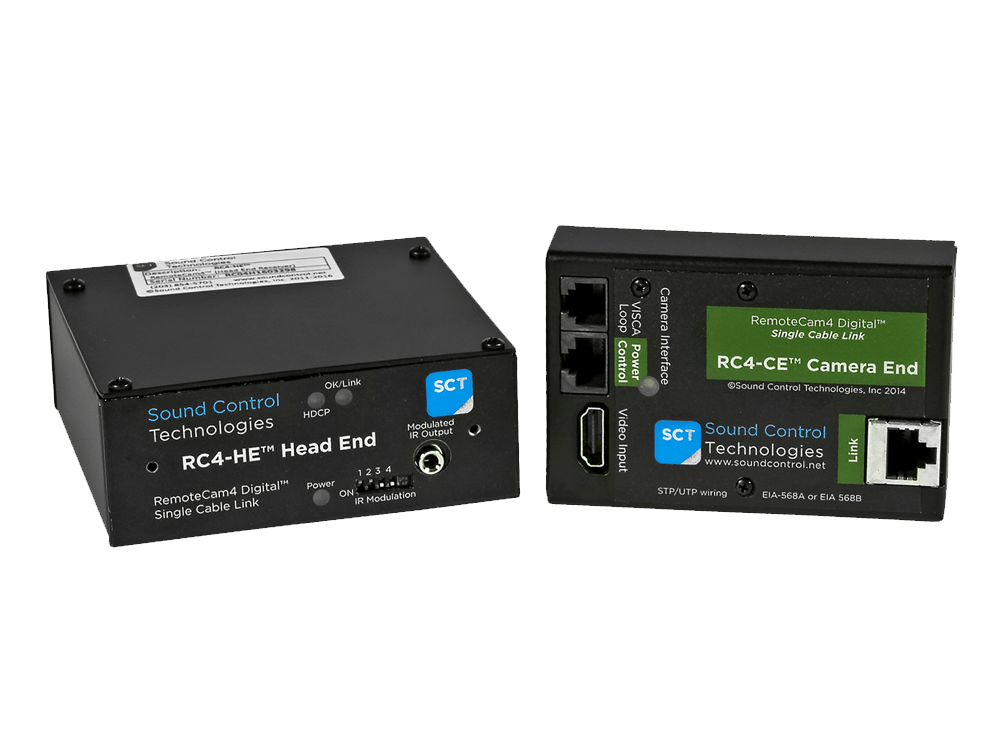

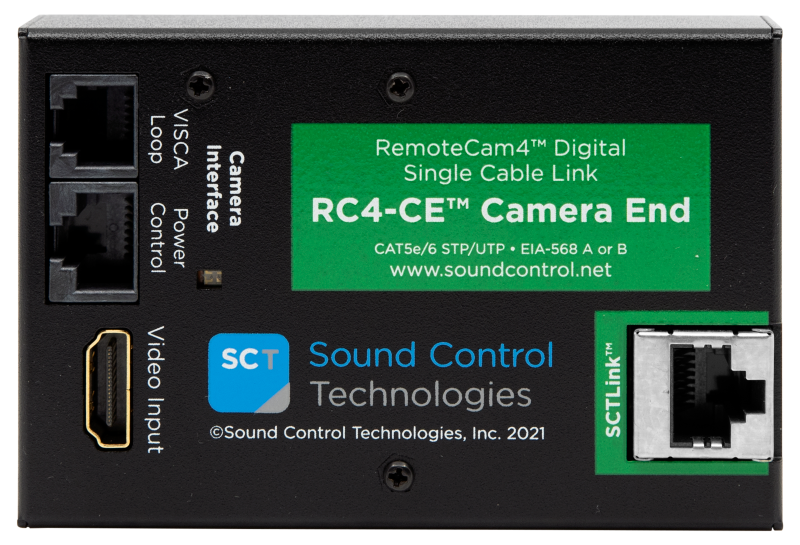

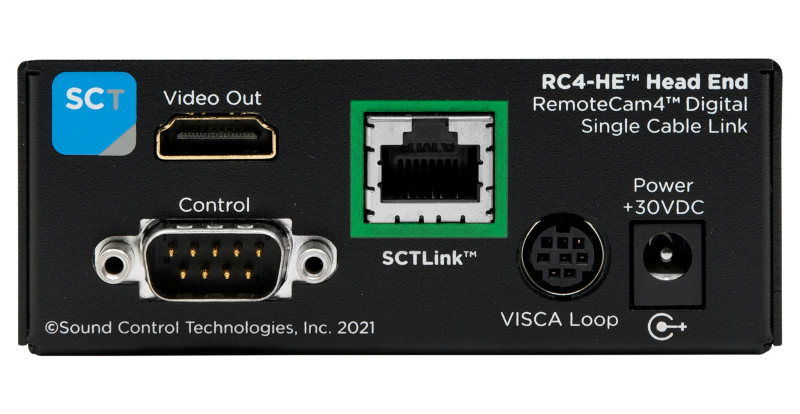

The RC4-P13-S targets broadcast, production, and conferencing installations where the Panasonic AW-HE130 camera must be positioned at distance from the rack or control position. The RC4-CE camera module connects to the AW-HE130, the RC4-HE head-end module connects to the codec, switcher, or control system, and a single installer-supplied CAT cable carries HDMI video, RS-232 control, and 12V DC power up to 100 meters between them. RS-232 control passes transparently, so camera control from a production controller or codec requires no programming. The project pack includes the complete RC4-P13 base kit — RC4-CE camera module, RC4-HE head-end/codec module, the AW-HE130-specific camera and head-end cable set, and WPS-12 power supply — plus the RC-RK2 1RU rack shelf that secures the head-end module in a standard equipment rack. Integrators who also need a camera-end wall mount should consider the RC4-P13-K (wall mount) or RC4-P13-KS (wall mount and rack shelf).

Key Features

• Panasonic AW-HE130 Compatibility — Cable set and power delivery are configured specifically for the AW-HE130 PTZ camera.
• RC-RK2 Rack Shelf Included — 1RU shelf secures the RC4-HE head-end module in a standard 19-inch equipment rack.
• Single-CAT Extension up to 100m — HDMI video, RS-232 control, and 12V DC camera power over one CAT cable run.
• No Programming Required — RS-232 PTZ control passes transparently for plug-and-play operation.
• 12V Camera Power Delivery — WPS-12 supply and RC4-CE module power the camera remotely without a separate power circuit at the camera.
• Modular Design — RC4-CE and RC4-HE modules are individually replaceable.
• Commercial-Grade Construction — USA/Taiwan manufactured for permanent AV installations.

Typical Applications

• Broadcast studio with an AW-HE130 positioned away from the production rack
• Auditorium or house of worship with cameras at ceiling or rear-wall positions
• Boardroom or all-hands room with rack-mounted head-end equipment
• Training room or multi-purpose room using existing CAT infrastructure for camera runs
• Government or corporate meeting space with centralized equipment racks

Technical Specifications

Frequently Asked Questions

What does the -S variant add over the RC4-P13 base kit?

The RC4-P13-S includes everything in the RC4-P13 base kit plus the RC-RK2 1RU rack shelf, which mounts the RC4-HE head-end module in a standard equipment rack. It does not include a camera-end wall mount.

Which camera does this kit support?

The RC4-P13 is designed and tested for the Panasonic AW-HE130 PTZ camera. For Panasonic AW-HE40/AW-HE60-class cameras, see the RC4-P40 family.

Is the CAT cable included?

No. The CAT run between the RC4-CE and RC4-HE modules is supplied by the installer. CAT5e or better is recommended; the maximum run is 100 meters.

Can a third-party control system manage the camera over this link?

Yes. RS-232 control passes transparently through the extension, so production controllers and AV control systems can send PTZ and preset commands with no special programming.

What warranty and support terms apply?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
