Sound Control Technologies RC4-E4P-KS – Camera Extension Project Pack with Rack Shelf and Wall Mount
Sound Control Technologies RC4-E4P-KS – Camera Extension Project Pack with Rack Shelf and Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-E4P-KS – Camera Extension Project Pa...
Product Overview
The Sound Control Technologies RC4-E4P-KS is a complete project pack for integrators extending the Poly EagleEye IV camera to remote locations over CAT5e/6 cable in RealPresence G7500 and compatible codec installations. This camera extension kit carries HDMI video, VISCA PTZ control, and 12V DC camera power over a single CAT cable run up to 300 feet. The -KS project pack includes the RC4 extension kit, the RC-RK2 rack shelf for head-end rack mounting, and the RCM-EE4 on-wall mount specifically designed for the EagleEye IV camera.
Product Description

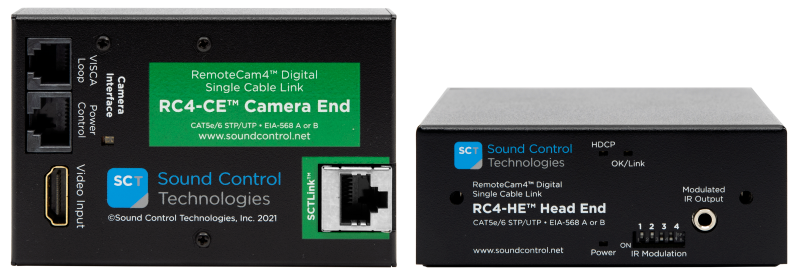

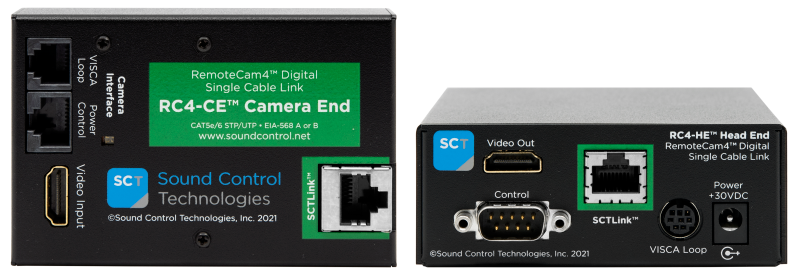

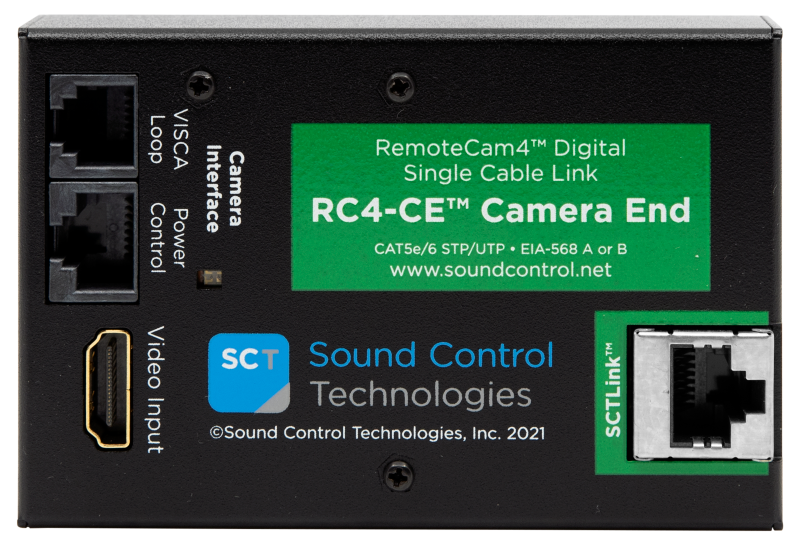

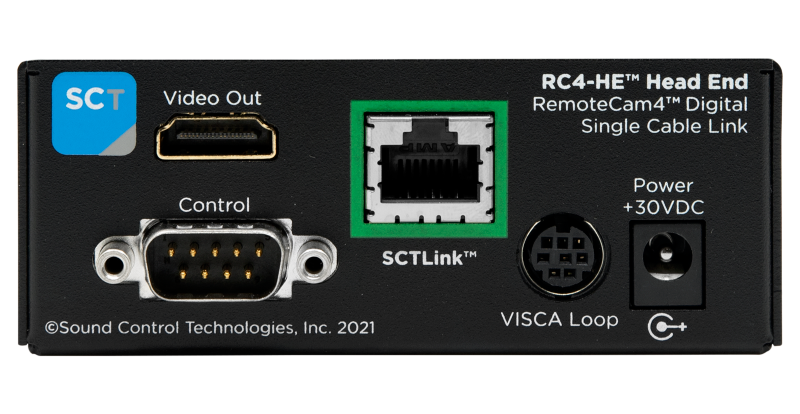

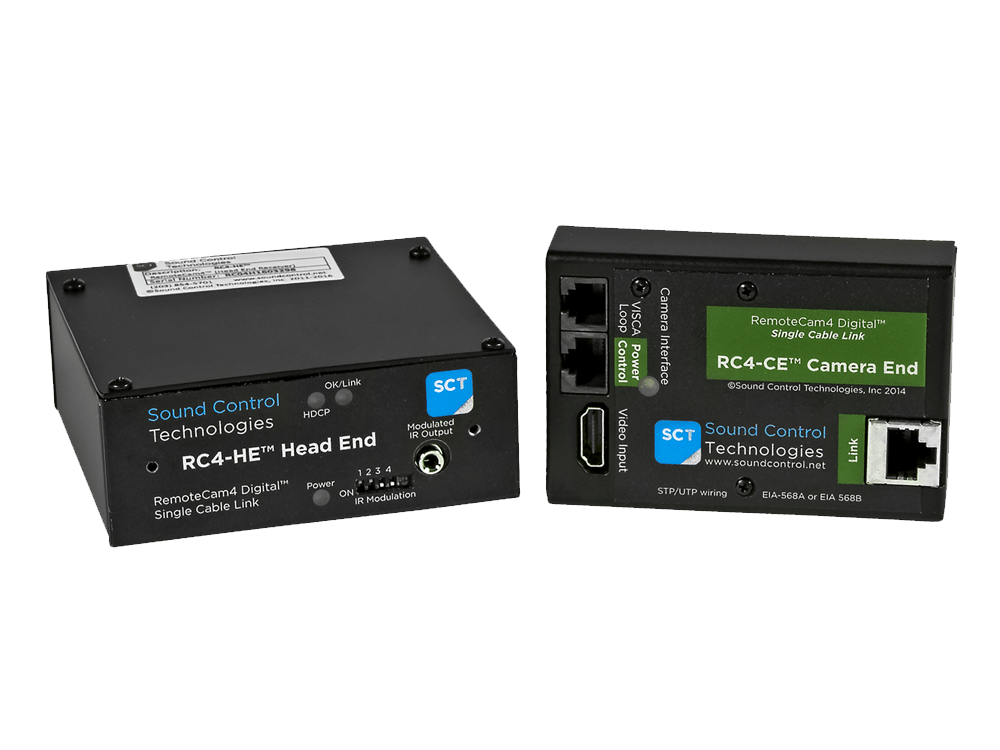

The RC4 platform is a commercial-grade camera extension system designed for permanent fixed installation in conference rooms, boardrooms, and commercial meeting spaces. It transmits HDMI video at up to 1080p 60Hz, bidirectional VISCA serial control for full PTZ operation, and 12V DC power — all over a single CAT5e/6 cable — from a codec rack location to the camera deployment point. The camera-end module connects directly to the Poly EagleEye IV using manufacturer-matched cabling, and the head-end module connects at the codec rack.
The RC4-E4P-KS -KS configuration delivers the complete hardware set for a standard Poly RealPresence G7500 installation: the RC4 extension kit for signal extension, the RC-RK2 rack shelf for 1U rack mounting of the head-end unit, and the RCM-EE4 on-wall camera mount designed specifically for the EagleEye IV form factor. Procuring all three components as a single SKU simplifies project ordering and ensures compatibility across all kit components.
No separate camera power supply is needed at the camera location because 12V DC power is delivered over the same CAT cable as the video and control signals. This reduces conduit fill, simplifies site preparation, and is appropriate for plenum cable routing in commercial construction when plenum-rated CAT cable is used. The system is manufactured in the USA and Taiwan.
Key Features
- Poly EagleEye IV Specific Configuration — Camera-end module is matched to the Poly EagleEye IV camera and RealPresence G7500 codec for verified signal compatibility.
- Single-Cable Extension — HDMI video, VISCA PTZ control, and 12V camera power all travel over one CAT5e/6 cable, simplifying rough-in and reducing cable counts.
- 300-Foot Reach — Extends camera installation up to 300 feet from the codec rack, suitable for large conference rooms and multi-room deployments.
- 1080p 60Hz Video — Delivers full HD video at up to 1080p 60Hz for professional video conferencing quality.
- Complete -KS Project Pack — Bundles the RC4 kit, RC-RK2 rack shelf, and RCM-EE4 EagleEye IV wall mount in one SKU for streamlined procurement.
- No Local Camera Power Required — Power over CAT eliminates a separate electrical circuit at the camera wall plate, reducing installation cost.
- Commercial-Grade Design — Built for permanent fixed installation; manufactured in the USA and Taiwan.
Typical Applications
- Poly RealPresence G7500 conference room deployment
- Boardroom EagleEye IV camera extension with rack-mounted codec
- Commercial meeting space video conferencing infrastructure
- Multi-purpose room PTZ camera integration
- Training room codec and camera system build-out
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-E4P-KS |
| Compatible Cameras | Poly EagleEye IV |
| Compatible Codecs | Poly RealPresence G7500 and compatible |
| Signals Carried | HDMI video, VISCA serial control, 12V DC camera power |
| Maximum Extension Distance | Up to 300 ft over CAT5e/6 |
| Video Resolution | Up to 1080p 60Hz |
| Kit Contents | RC4 Extension Kit + RC-RK2 Rack Shelf + RCM-EE4 On-Wall Camera Mount |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,700 |
Frequently Asked Questions
Which cameras and codecs does the RC4-E4P-KS support?
The RC4-E4P-KS is configured for the Poly EagleEye IV camera with Poly RealPresence G7500 and compatible codecs. If you are using a different Poly camera or codec generation, SCT offers additional RC4 variants — contact Creation Networks to verify the correct SKU for your system.
What does the -KS suffix mean?
-KS indicates the full project pack: RC4 extension kit plus the RC-RK2 rack shelf (for codec-end 1U rack mounting) and the RCM-EE4 on-wall camera mount (designed for the EagleEye IV). The base RC4-E4P includes only the extension kit; -S adds the rack shelf only; -K adds the wall mount only.
What CAT cable specification is required?
CAT5e or CAT6 is required. For plenum installations, use plenum-rated cable. Maximum supported run is 300 feet. Shielded cable is recommended in high-RF environments.
Is the Poly EagleEye IV camera included?
No. The RC4-E4P-KS is a camera extension and mounting kit only. The Poly EagleEye IV camera is sourced separately. Contact Creation Networks for camera availability and bundled pricing options.
What warranty applies to SCT products?
Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RC4 product line.
