Sound Control Technologies RC4-AS6-S – AVer PTC500+ Camera Extension Kit with Rack Shelf
Sound Control Technologies RC4-AS6-S – AVer PTC500+ Camera Extension Kit with Rack Shelf is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-AS6-S – AVer PTC500+ Camera Extensio...
Product Overview
The Sound Control Technologies RC4-AS6-S is a project pack combining the RC4-AS6 HDMI camera extension kit for the AVer PTC500+ with an RC-RK2 1RU rack shelf. SCTLink™ technology extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RC-RK2 provides organized 1RU rack mounting for the RC4-HE head-end module when a camera wall mount is not required.
Product Description

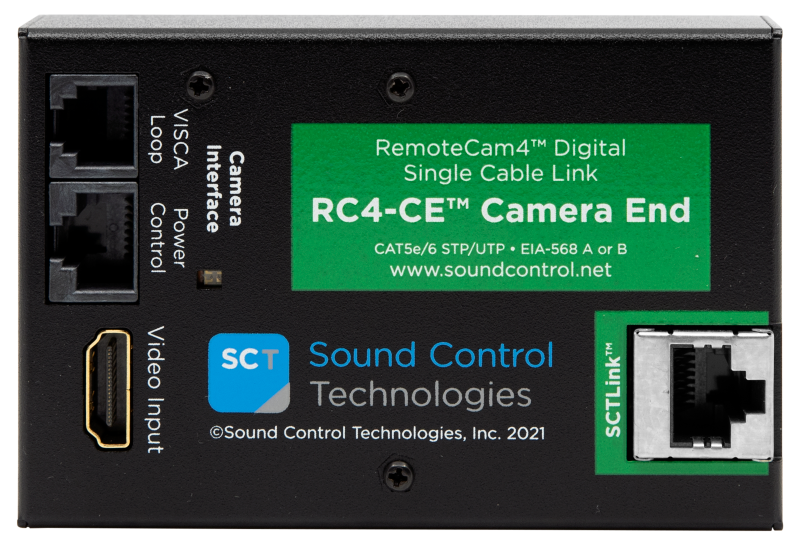

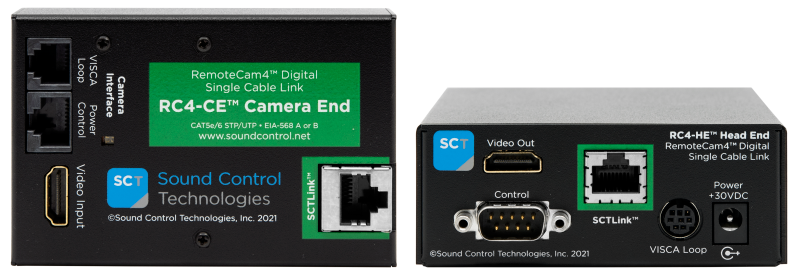

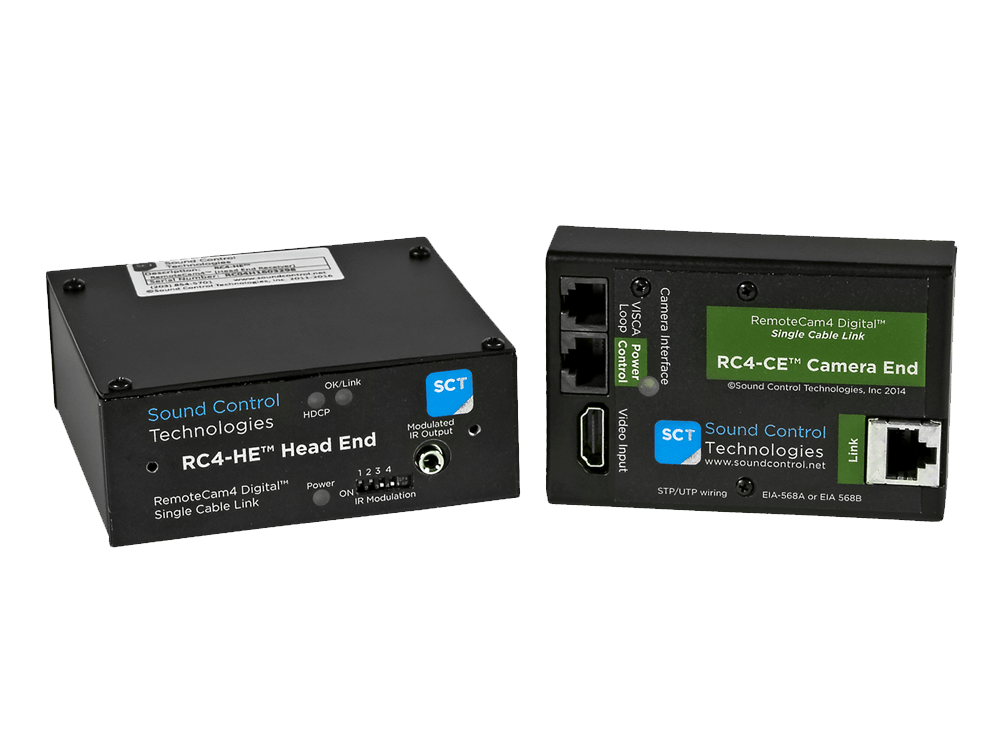

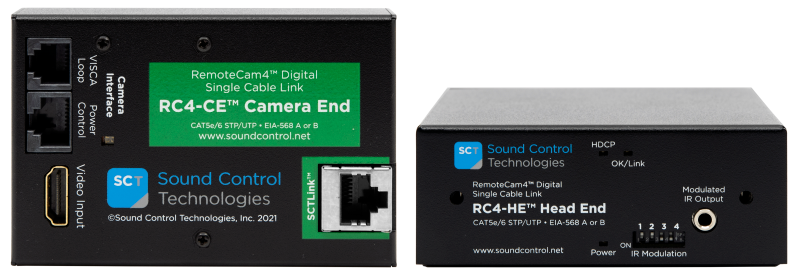

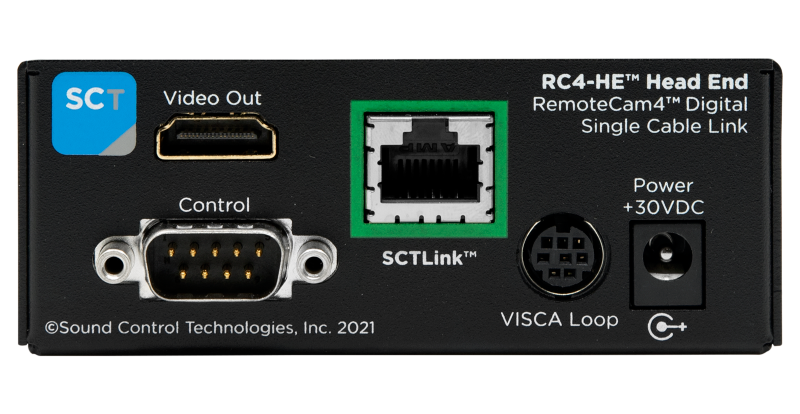

The RC4-AS6-S includes all RC4-AS6 base kit components—RC4-CE, RC4-HE, AVer PTC500+-specific cable set, and WPS-12 power supply—plus the RC-RK2 1RU rack shelf. The RC-RK2 holds up to two SCT head-end modules per rack unit. The extension system carries HDMI video, RS-232 Visca control, and 12V camera power over one CAT cable. No programming is required. The -S suffix indicates the rack shelf is included without a camera wall mount.
Key Features
- RC-RK2 Rack Shelf Included — 1RU shelf for RC4-HE head-end mounting; accommodates up to 2 SCT modules.
- Complete AVer PTC500+ Kit — RC4-CE, RC4-HE, camera-specific cables, and WPS-12 power supply included.
- AVer PTC500+ Compatibility — Designed for the AVer PTC500+ auto-tracking camera.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Modular Design — RC4-CE and RC4-HE individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Training room or conference room with AVer PTC500+ camera requiring organized rack integration
- Multi-camera rack housing two RC4-AS6 systems sharing one RC-RK2 shelf
- Educational facility with AVer PTC500+ where rack organization is needed but no wall mount is required
- Corporate meeting space with rack-mounted AVer PTC500+ head-end module
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-AS6-S |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, AVer PTC500+-specific cable set, WPS-12 Power Supply, RC-RK2 1RU Rack Shelf |
| Supported Cameras | AVer PTC500+ |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Rack Shelf Capacity | 1RU; up to 2 SCT head-end modules |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -S suffix mean?
The -S suffix indicates this project pack includes the RC4-AS6 base kit plus the RC-RK2 1RU rack shelf. No camera wall mount is included. For a wall mount, see RC4-AS6-K. For both, see RC4-AS6-KS.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
