Sound Control Technologies RC4-AS6-KS – AVer PTC500+ Extension Kit with Wall Mount and Rack Shelf
Sound Control Technologies RC4-AS6-KS – AVer PTC500+ Extension Kit with Wall Mount and Rack Shelf is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-AS6-KS – AVer PTC500+ Extension Kit ...
Product Overview
The Sound Control Technologies RC4-AS6-KS is the most complete project pack in the RC4-AS6 family, bundling the HDMI camera extension kit for the AVer PTC500+ with both an RCM-UNI on-wall camera mount and an RC-RK2 1RU rack shelf. SCTLink™ technology extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. This pack suits installations requiring both a clean camera wall-mount finish and organized rack mounting for the head-end module.
Product Description

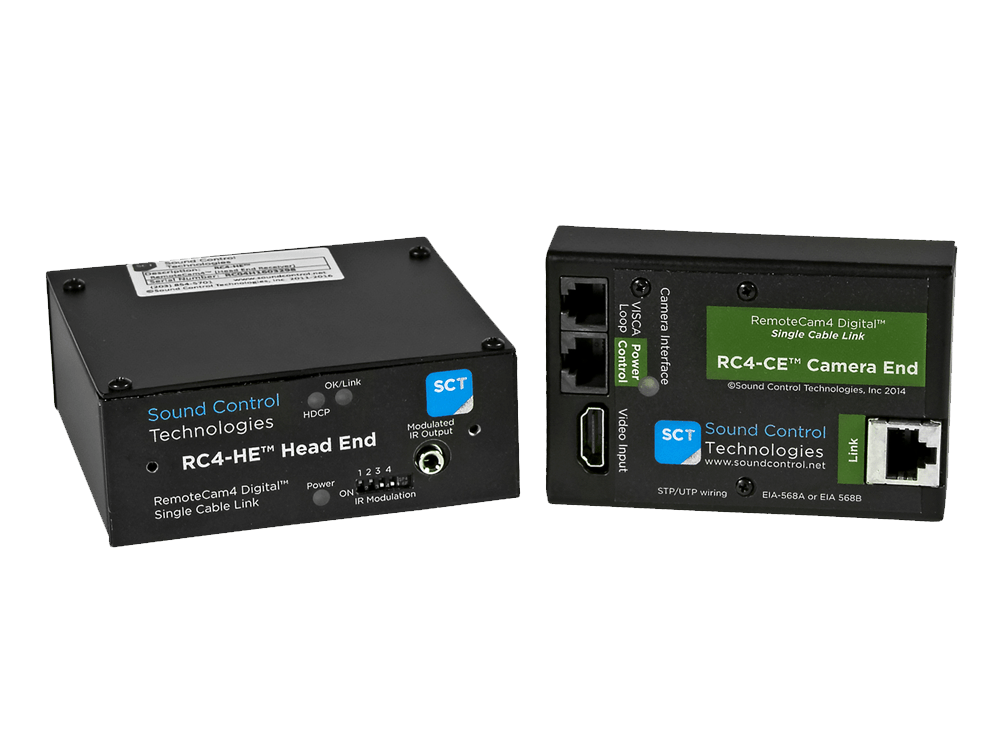

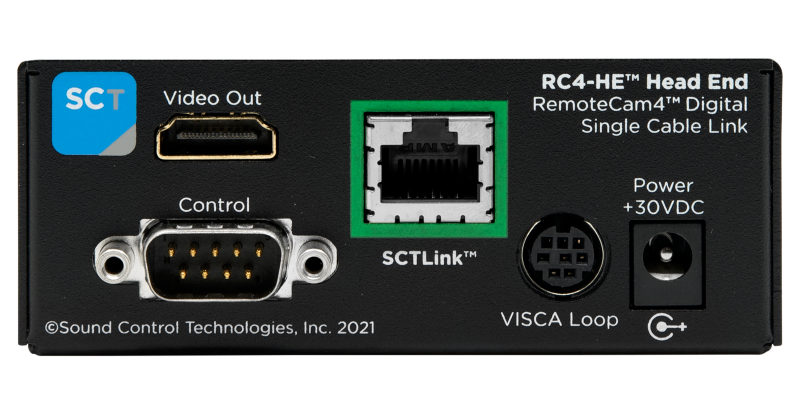

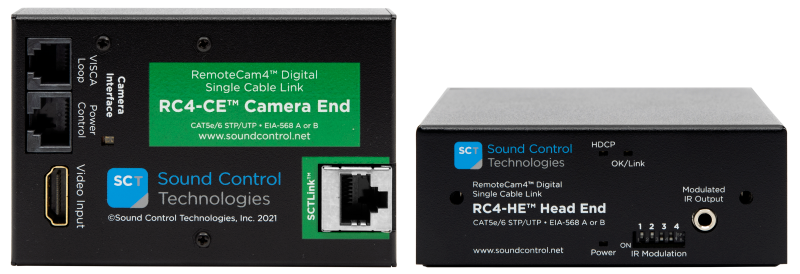

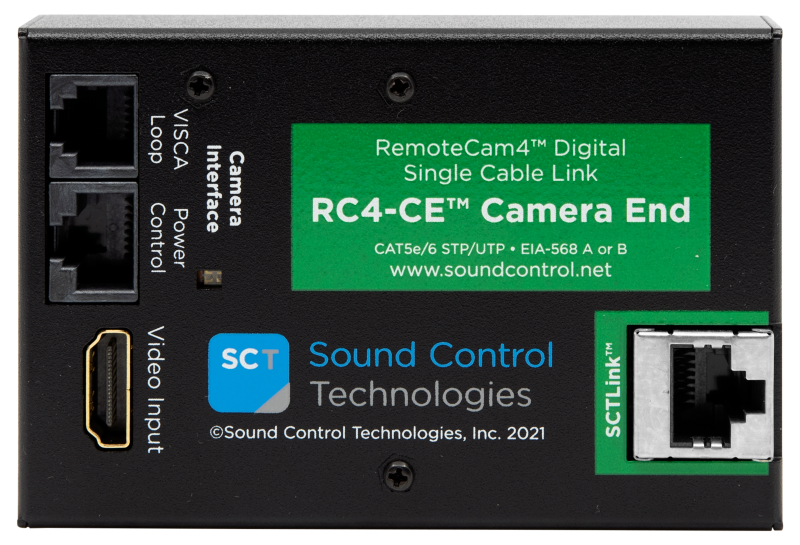

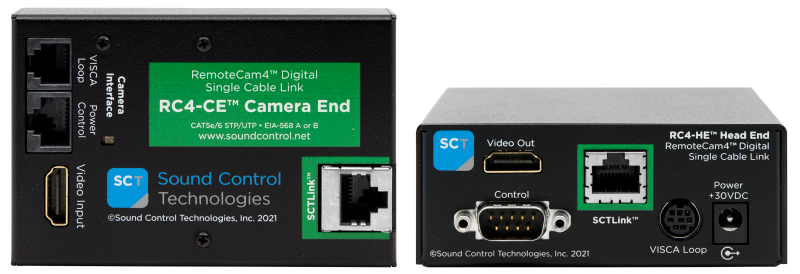

The RC4-AS6-KS includes all RC4-AS6 base kit components—RC4-CE, RC4-HE, AVer PTC500+-specific cable set, and WPS-12 power supply—plus the RCM-UNI on-wall camera mount and the RC-RK2 1RU rack shelf. The RCM-UNI provides a dual-gang wall plate installation at the camera location; the RC-RK2 (accommodating up to two SCT head-end modules) keeps the head-end organized in the equipment rack. The -KS suffix denotes both accessories are included. No programming is required for standard Visca PTZ operation.
Key Features
- Complete Project Pack — Includes RC4-AS6 base kit, RCM-UNI wall mount, and RC-RK2 rack shelf in one order.
- RCM-UNI Wall Mount — Dual-gang wall plate for clean permanent camera installation.
- RC-RK2 Rack Shelf — 1RU shelf for organized head-end module mounting; holds up to 2 SCT modules.
- AVer PTC500+ Compatibility — Engineered for the AVer PTC500+ auto-tracking PTZ camera.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Training room with wall-mounted AVer PTC500+ where both camera mount and rack integration are needed
- Conference room requiring the complete project pack to minimize separate hardware procurement
- Educational facility deploying AVer PTC500+ cameras with full installation hardware
- Corporate meeting space requiring both wall mount and rack organization for AVer PTC500+ system
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-AS6-KS |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, AVer PTC500+-specific cable set, WPS-12 Power Supply, RCM-UNI On-Wall Camera Mount, RC-RK2 1RU Rack Shelf |
| Supported Cameras | AVer PTC500+ |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Rack Shelf Capacity | 1RU; up to 2 SCT head-end modules |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,700 |
Frequently Asked Questions
What does the -KS suffix mean?
The -KS suffix indicates this project pack includes the base extension kit plus both the on-wall camera mount (RCM-UNI) and the RC-RK2 rack shelf. Choose -K for wall mount only, -S for rack shelf only, or -KS for both.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
