Sound Control Technologies RC4-AS6-K – AVer PTC500+ Camera Extension Kit with Wall Mount
Sound Control Technologies RC4-AS6-K – AVer PTC500+ Camera Extension Kit with Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-AS6-K – AVer PTC500+ Camera Extensio...
Product Overview
The Sound Control Technologies RC4-AS6-K is a project pack bundling the RC4-AS6 HDMI camera extension kit for the AVer PTC500+ with an RCM-UNI on-wall camera mount. Using SCTLink™ technology, the kit extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RCM-UNI wall mount provides a clean permanent installation at the camera location without custom fabrication.
Product Description

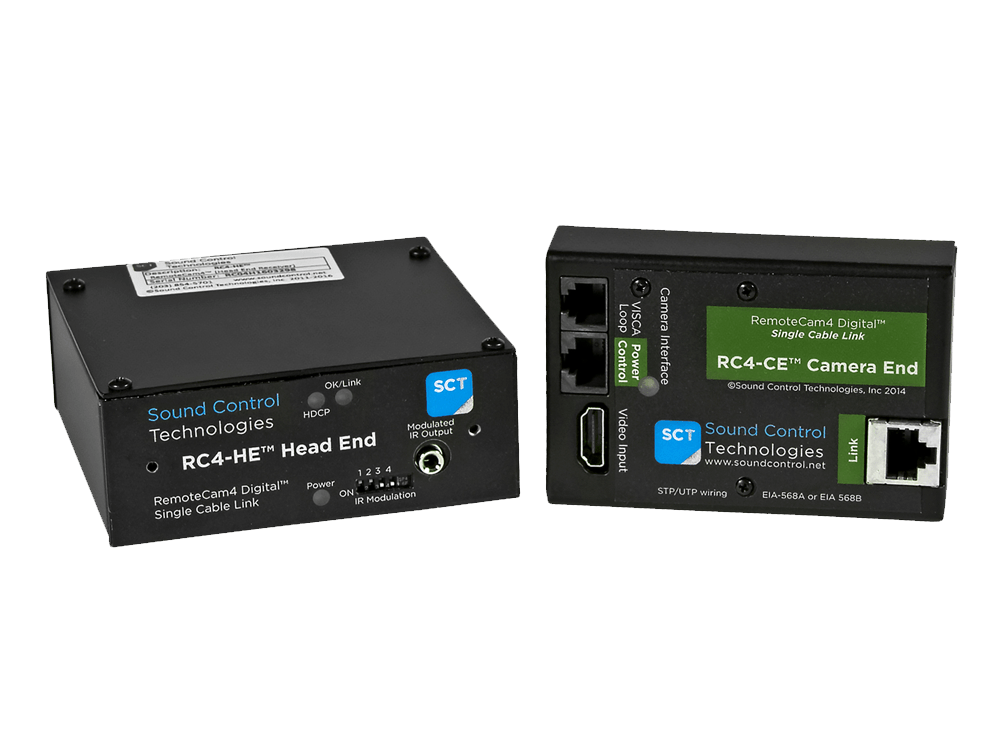

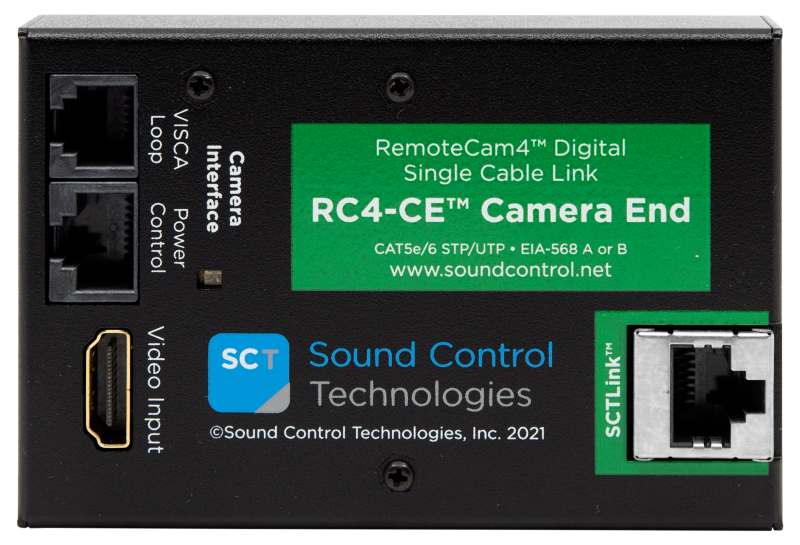

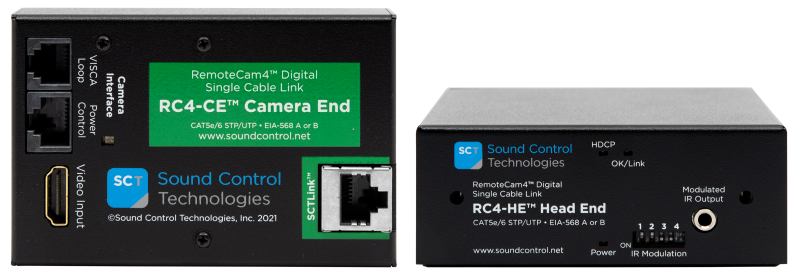

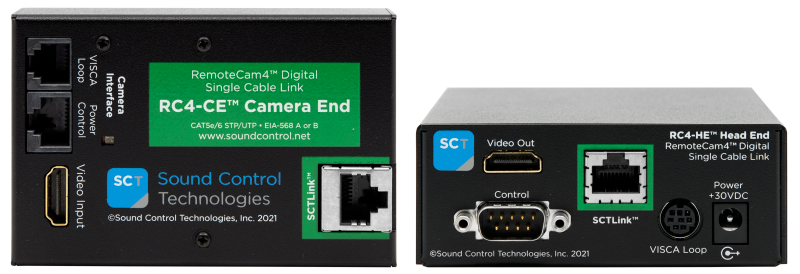

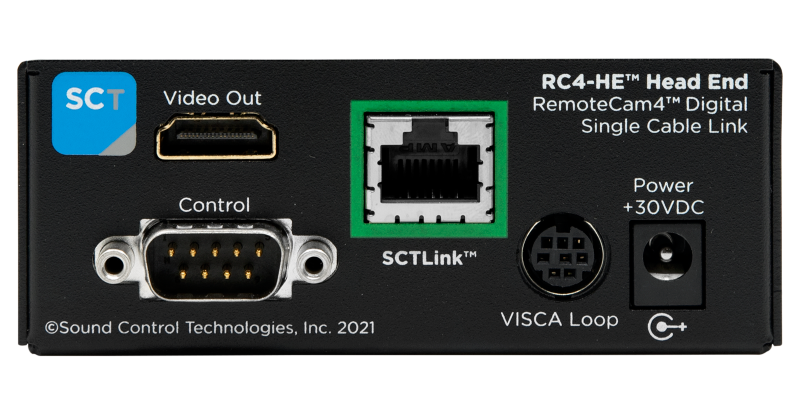

The RC4-AS6-K includes all RC4-AS6 base kit components—RC4-CE camera module, RC4-HE head-end module, AVer PTC500+-specific cable set, and WPS-12 power supply—plus the RCM-UNI on-wall camera mount. The RC4 extension carries HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable. No programming is required. The -K suffix indicates the camera wall mount is included without a rack shelf. For both wall mount and rack shelf, see RC4-AS6-KS.
Key Features
- RCM-UNI On-Wall Mount Included — Dual-gang wall plate mount for clean AVer PTC500+ camera installation at the remote location.
- Complete Extension Kit — RC4-CE, RC4-HE, AVer PTC500+-specific cables, and WPS-12 power supply included.
- AVer PTC500+ Compatibility — Engineered for the AVer PTC500+ auto-tracking PTZ camera.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Modular Design — RC4-CE and RC4-HE individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Training room or lecture hall with wall-mounted AVer PTC500+ camera at extended distance
- Conference room requiring clean wall-mount finish for AVer PTC500+ auto-tracking camera
- Educational facility with permanent AVer PTC500+ wall installation
- Corporate meeting space with AVer PTC500+ camera on side or front wall
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-AS6-K |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, AVer PTC500+-specific cable set, WPS-12 Power Supply, RCM-UNI On-Wall Camera Mount |
| Supported Cameras | AVer PTC500+ |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -K suffix mean?
The -K suffix indicates this pack includes the RC4-AS6 base kit plus the RCM-UNI on-wall camera mount. No rack shelf is included. For both wall mount and rack shelf, see RC4-AS6-KS.
Does this kit support the auto-tracking feature of the AVer PTC500+?
The RC4-AS6-K carries RS-232 Visca control signals transparently. Contact Creation Networks to confirm full auto-tracking functionality with your control system before ordering.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
