Sound Control Technologies RC4-AS6 – HDMI Camera Extension for AVer PTC500+
Sound Control Technologies RC4-AS6 – HDMI Camera Extension for AVer PTC500+ is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-AS6 – HDMI Camera Extension for AVer...
Product Overview
The Sound Control Technologies RC4-AS6 is a commercial-grade HDMI camera extension kit engineered for the AVer PTC500+ auto-tracking PTZ camera. Using SCTLink™ technology, the RC4-AS6 extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The kit is plug-and-play with no programming required and includes all cables specific to the AVer PTC500+ camera interface, enabling clean single-cable deployment in conference rooms, training rooms, and commercial meeting spaces.
Product Description

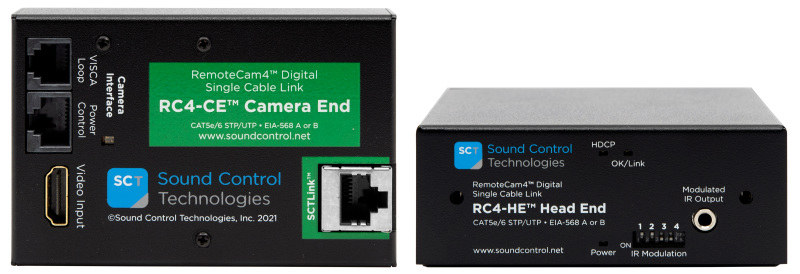

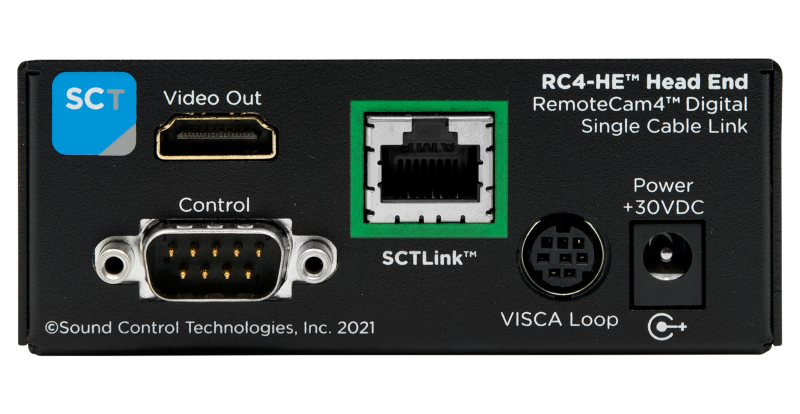

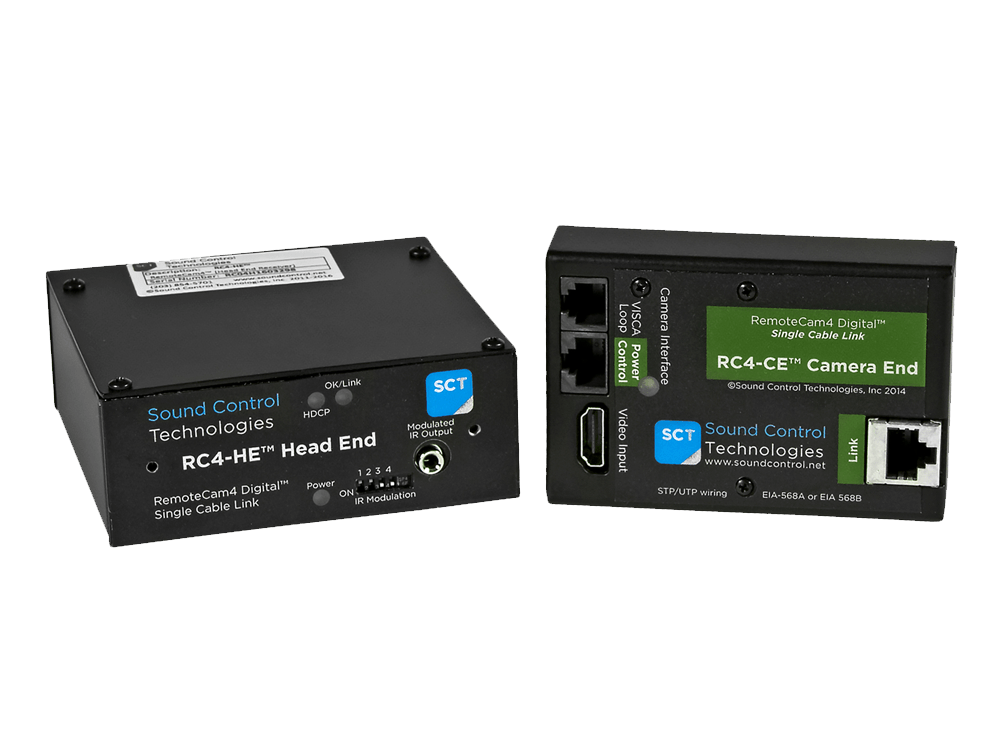

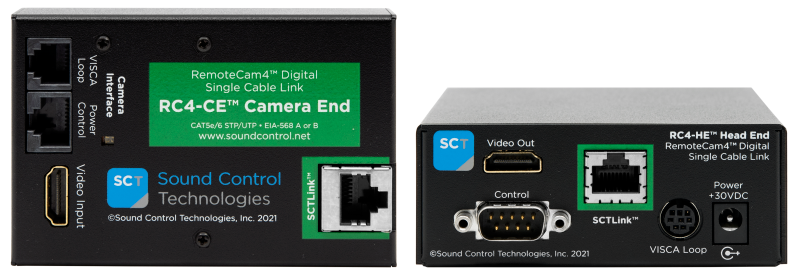

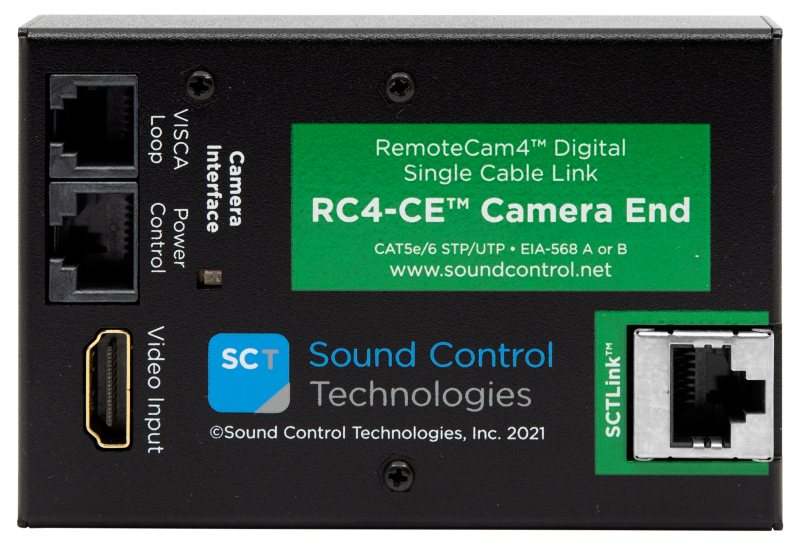

The AVer PTC500+ is an auto-tracking presenter camera used in training rooms, lecture halls, and conference rooms. The RC4-AS6 enables installations where the PTC500+ needs to be positioned away from the codec or display—up to 100 meters—without running multiple HDMI and power cables. The RC4-CE camera module mounts at the camera, the RC4-HE head-end module installs at the codec rack or AV equipment location, and a single CAT cable connects the two. HDMI video, RS-232 Visca control, and 12V DC power all travel over that one cable. The WPS-12 power supply provides power at the head end, and the RC4-CE delivers regulated 12V DC to the PTC500+ remotely. The kit includes cables specific to the AVer PTC500+ connector interface. For the AVer CAM520 Pro series, use the RC4-APA; for AVer PTZ series cameras, use the RC4-USM.
Key Features
- AVer PTC500+ Specific Design — Cable set and configuration engineered for the AVer PTC500+ auto-tracking PTZ camera.
- Single-CAT Extension up to 100m — HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable run.
- No Programming Required — RS-232 Visca PTZ control passes transparently; no external control processor needed.
- 12V Camera Power Delivery — WPS-12 supply and RC4-CE eliminate a separate power run to the PTC500+ location.
- Modular Design — RC4-CE and RC4-HE are individually replaceable.
- Commercial-Grade Construction — USA/Taiwan manufactured for permanent deployment.
Typical Applications
- Training room or lecture hall with AVer PTC500+ auto-tracking camera positioned at ceiling or back wall
- Conference room deploying AVer PTC500+ at extended distance from the codec or display system
- Corporate meeting space with auto-tracking camera requiring CAT cable extension
- Educational facility with AVer PTC500+ camera integrated into a permanent AV system
- All-hands room or boardroom with AVer PTC500+ presenter tracking camera at extended range
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-AS6 |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Supported Cameras | AVer PTC500+ |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Included Components | RC4-CE Camera Module, RC4-HE Head-End Module, AVer PTC500+-specific cable set, WPS-12 Power Supply |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,445 |
Frequently Asked Questions
Is the RC4-AS6 specific to the AVer PTC500+, or does it support other AVer cameras?
The RC4-AS6 is designed specifically for the AVer PTC500+ camera. For AVer CAM520 Pro, CAM550, and CAM570, use the RC4-APA. For AVer PTZ211, PTZ310, PTZ330, and TR series cameras, use the RC4-USM.
Does the RC4-AS6 support the auto-tracking function of the PTC500+?
The RC4-AS6 carries RS-232 Visca control signals transparently. Auto-tracking control signals that travel over RS-232 Visca will pass through the extension. If the PTC500+ auto-tracking relies on a different interface, contact Creation Networks to confirm compatibility before installation.
Is a camera wall mount available for this kit?
Yes. The RC4-AS6-K project pack includes this base kit plus an RCM-UNI on-wall camera mount. The RC4-AS6-KS includes both the wall mount and an RC-RK2 rack shelf.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
