Sound Control Technologies RC4-APA-S – AVer Camera Extension Kit with Rack Shelf
Sound Control Technologies RC4-APA-S – AVer Camera Extension Kit with Rack Shelf is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-APA-S – AVer Camera Extension Kit wi...
Product Overview
The Sound Control Technologies RC4-APA-S is a project pack combining the RC4-APA HDMI camera extension kit with an RC-RK2 1RU rack shelf, providing a complete installation package for AVer CAM520 Pro, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI cameras. SCTLink™ technology extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RC-RK2 rack shelf is a 1RU mounting solution for the RC4-HE head-end module, keeping the equipment rack organized when no camera wall mount is needed.
Product Description

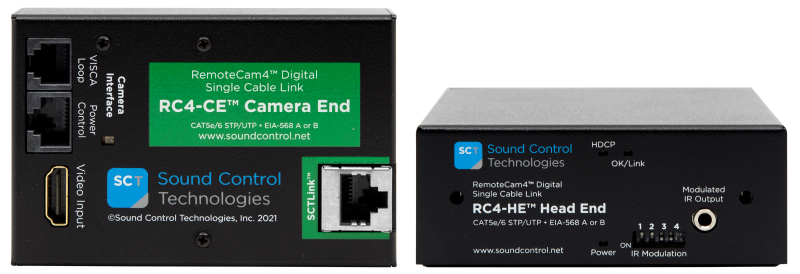

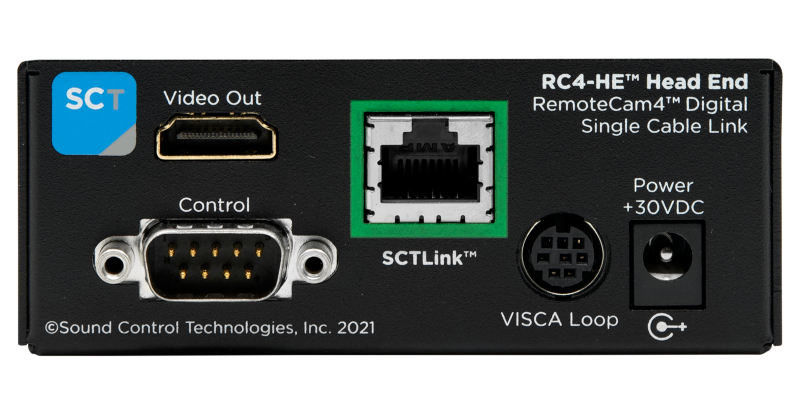

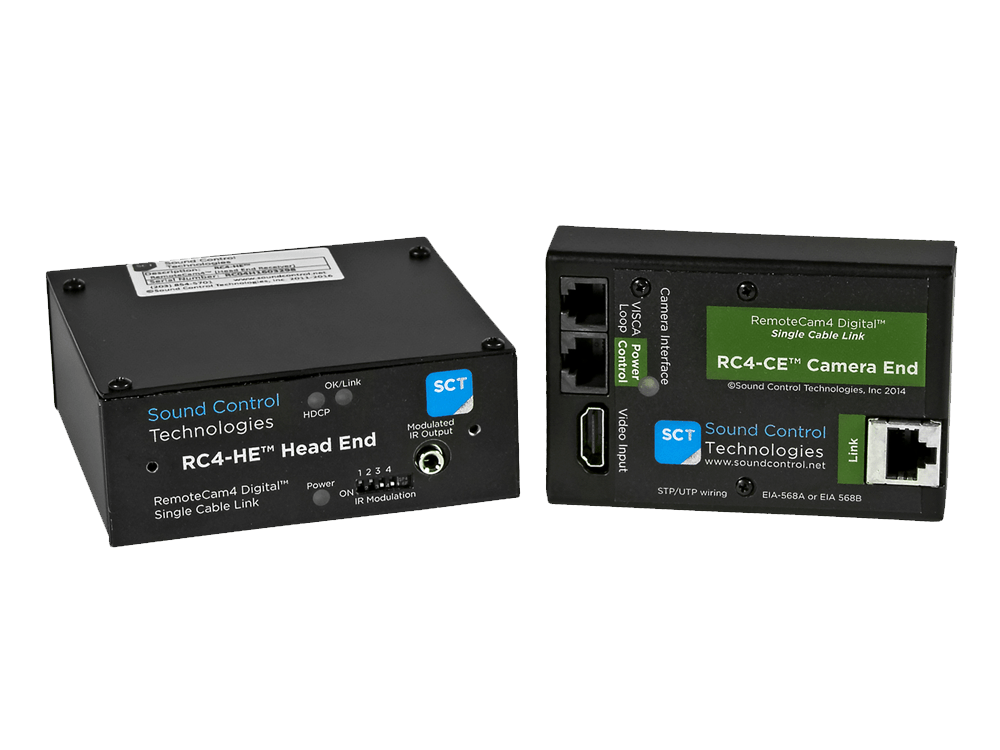

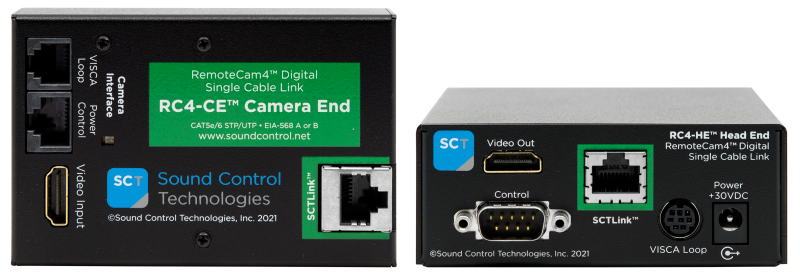

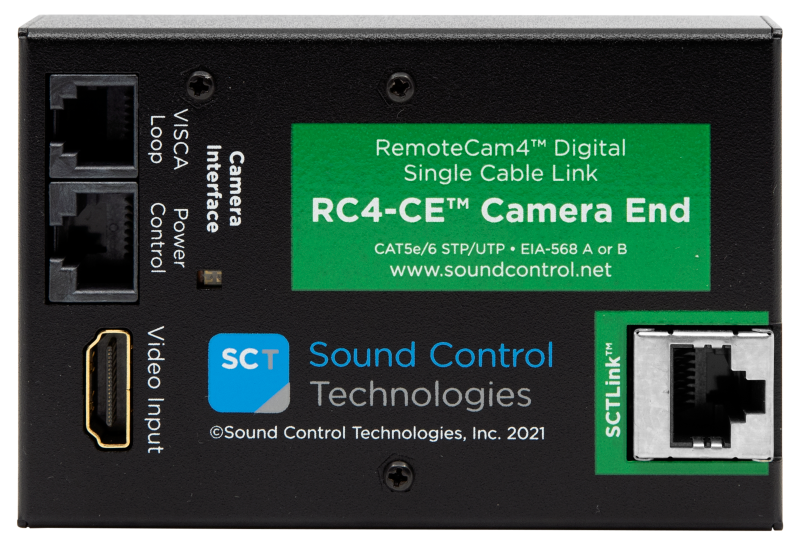

The RC4-APA-S bundles the complete RC4-APA base kit—RC4-CE camera module, RC4-HE head-end module, AVer-specific cables, and WPS-12 power supply—with an RC-RK2 1RU rack shelf. The RC-RK2 holds up to two SCT head-end modules in a single rack unit, useful when multiple camera extension systems share the same equipment rack. The RC4 extension carries HDMI video, RS-232 Visca control, and 12V camera power over a single CAT cable to the remote AVer PTZ camera. No programming is needed for standard Visca operation. The -S suffix distinguishes this pack from the RC4-APA-K (camera wall mount only) and the RC4-APA base kit (no accessories). For installations requiring both a rack shelf and a camera wall mount, the RC4-APA-KS provides both accessories.
Key Features
- RC-RK2 Rack Shelf Included — 1RU shelf accommodates up to two SCT head-end modules for organized rack installation.
- Complete Extension Kit — RC4-CE, RC4-HE, AVer-specific cables, and WPS-12 power supply included.
- Broad AVer Compatibility — Supports AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, and MD330UI.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Plug-and-play RS-232 Visca control.
- Shared Rack Shelf — RC-RK2 can accommodate a second head-end module if a second camera system is installed.
- Commercial-Grade — USA/Taiwan manufactured for permanent AV installations.
Typical Applications
- Conference room with an AVer PTZ camera at extended distance where the RC4-HE needs rack mounting
- Multi-camera rack housing two RC4 extension systems sharing one RC-RK2 shelf
- Corporate or government space with dedicated AV rack and remote AVer camera placement
- Training room with AVer camera extension requiring organized rack integration
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-APA-S |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, RCC-C001-0.3M HDMI Camera Cable, PPC-022-0.3M Power Cable, RCC-C005-0.3M Control Cable, RCC-H001-1.0M HDMI Head-End Cable, RCC-H010-2.0M Serial Head-End Cable, WPS-12 Power Supply, RC-RK2 1RU Rack Shelf |
| Supported Cameras | AVer CAM520 Pro Advanced, CAM520 Pro3, CAM550, CAM570, MD120UI, MD330U, MD330UI |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Rack Shelf Capacity | 1RU; accommodates up to 2 SCT head-end modules |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -S suffix mean?
The -S suffix indicates this project pack includes the RC4-APA base kit plus the RC-RK2 1RU rack shelf. It does not include a camera wall mount. For a kit with a camera wall mount, see RC4-APA-K. For both accessories, see RC4-APA-KS.
How many modules fit in the RC-RK2 rack shelf?
The RC-RK2 accommodates up to two SCT head-end modules (RC4-HE, RC5-HE, RCU2-HE, or similar) in one rack unit. This is practical when two camera extension systems share the same equipment rack.
Is a camera wall mount included?
No. The RC4-APA-S includes only the rack shelf. For a camera wall mount, select RC4-APA-K or RC4-APA-KS.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
