Sound Control Technologies RC4-1BC-K – Crestron 1Beyond Camera Extension Kit with Wall Mount
Sound Control Technologies RC4-1BC-K – Crestron 1Beyond Camera Extension Kit with Wall Mount is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC4-1BC-K – Crestron 1Beyond Camera Exte...
Product Overview
The Sound Control Technologies RC4-1BC-K is a project pack bundling the RC4-1BC HDMI camera extension kit with an RCM-URM on-wall camera mount, providing a complete installation solution for Crestron 1Beyond IV-CAMPTZ-12 and IV-CAMPTZ-20 cameras. Using SCTLink™ technology, the kit extends HDMI video, RS-232 Visca PTZ control, and 12V DC camera power up to 100 meters over a single CAT cable. The RCM-URM wall mount enables clean permanent camera installation at the remote location.
Product Description

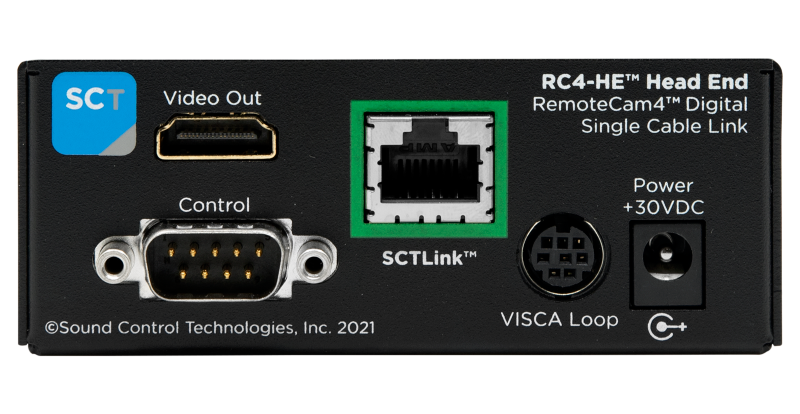

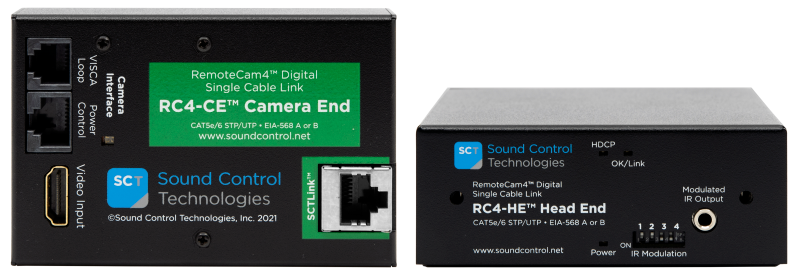

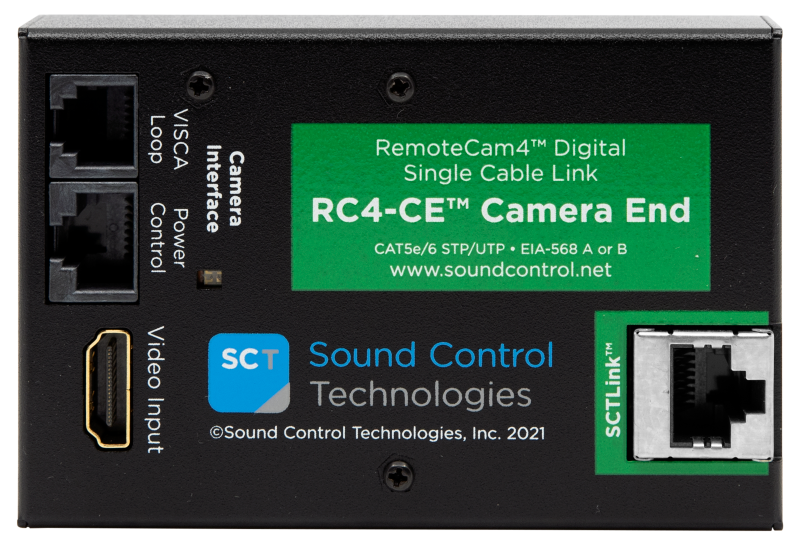

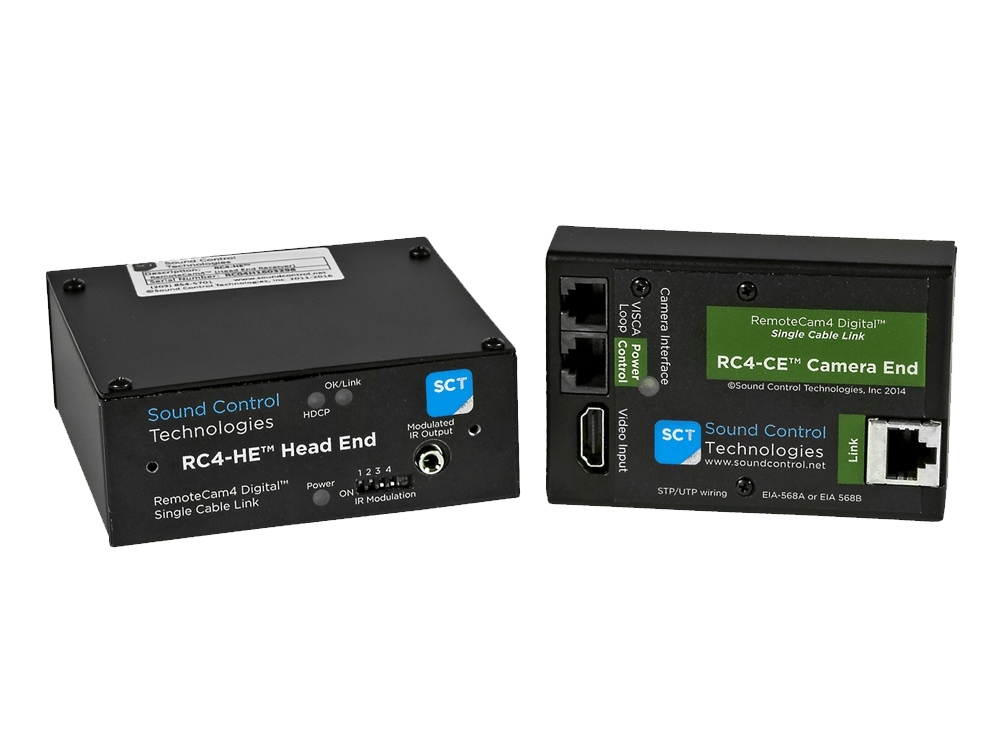

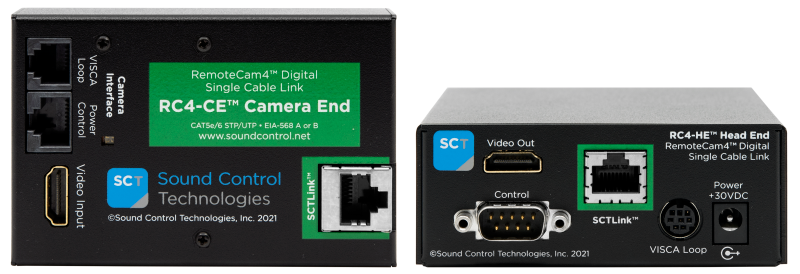

The RC4-1BC-K includes all RC4-1BC base kit components—RC4-CE camera module, RC4-HE head-end module, Crestron 1Beyond-specific cable set, and WPS-12 power supply—plus the RCM-URM on-wall camera mount. The RCM-URM is a dual-gang wall plate mount appropriate for the 1Beyond camera form factor. The RC4 extension carries HDMI video, RS-232 Visca control, and 12V DC power over one CAT cable. No programming is required. The -K suffix indicates the camera wall mount is included without a rack shelf. For both mount and rack shelf, see RC4-1BC-KS.
Key Features
- RCM-URM On-Wall Mount Included — Wall mount paired for Crestron 1Beyond camera form factor; dual-gang plate installation.
- Complete Extension Kit — All RC4-1BC components plus camera-specific cables and WPS-12 power supply.
- Crestron 1Beyond Compatibility — Supports IV-CAMPTZ-12 and IV-CAMPTZ-20 cameras.
- Single-CAT Extension up to 100m — HDMI, RS-232 Visca, and 12V power over one CAT cable.
- No Programming Required — Transparent RS-232 Visca PTZ control.
- Modular Design — RC4-CE and RC4-HE individually replaceable.
- Commercial-Grade — USA/Taiwan manufactured.
Typical Applications
- Conference room with wall-mounted Crestron 1Beyond IV-CAMPTZ-12 camera at extended distance
- Boardroom deploying Crestron 1Beyond cameras with integrated wall mount and CAT extension
- Corporate or government meeting space requiring a clean wall-mount finish for 1Beyond cameras
- Multi-purpose room with Crestron 1Beyond PTZ camera on a side or front wall
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC4-1BC-K |
| Product Family | RemoteCam4™ (RC4) — HDMI + Visca Control + 12V Camera Power |
| Kit Contents | RC4-CE Camera Module, RC4-HE Head-End Module, Crestron 1Beyond-specific cable set, WPS-12 Power Supply, RCM-URM On-Wall Camera Mount |
| Supported Cameras | Crestron 1Beyond IV-CAMPTZ-12, IV-CAMPTZ-20 |
| Signal Types Carried | HDMI video, RS-232 Visca PTZ control, 12V DC camera power |
| Maximum Extension Distance | 100 meters (328 ft) over CAT cable |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,515 |
Frequently Asked Questions
What does the -K suffix mean?
The -K suffix indicates this pack includes the RC4-1BC base kit plus the RCM-URM on-wall camera mount. No rack shelf is included. For a kit with both the wall mount and a rack shelf, see RC4-1BC-KS.
Is the RC4-1BC-KS the right choice if I need both a wall mount and a rack shelf?
Yes. The RC4-1BC-KS includes the base extension kit, the RCM-URM on-wall mount, and the RC-RK2 rack shelf. The RC4-1BC-K includes only the wall mount.
What warranty and support terms apply?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for this product.
