Product Overview
The Sound Control Technologies RC-SDA5+USM is a RemoteCam5 extension kit configured for PTZ cameras with square bases from Aver, Lumens, Marshall, PTZ Optics, and Sony. It packages the RC-SDA5+ BYOD Camera Bridge with square-base camera cabling to deliver HDMI-to-USB3 conversion and UVC-to-IP-Visca PTZ control translation over CAT cable. Commercial AV integrators can order a single SKU that covers the head-end bridge and all camera-specific cabling for square-base PTZ installations requiring IP Visca control.

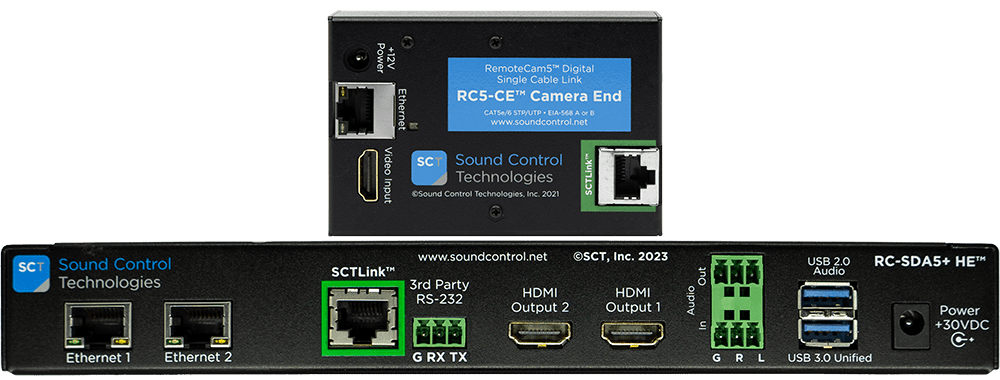

The kit replaces the RC5-HE head-end module and pairs with existing RC5-CE extension modules in the field, enabling upgrades without pulling new cable.
Product Description

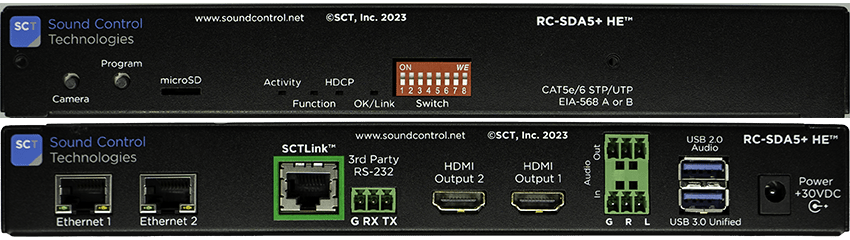

The RC-SDA5+USM is designed for PTZ cameras with a square base form factor that use IP Visca for PTZ control. The RC-SDA5+ bridge accepts HDMI video and audio from the camera, outputs USB3 to the host codec or BYOD device, and converts incoming UVC PTZ commands to IP Visca for full pan, tilt, and zoom control. Signal and control travel over CAT cable to the RC5-CE extension module at the camera end.
AV system designers benefit from a pre-matched kit that eliminates cabling compatibility research for square-base cameras from Aver, Lumens, Marshall, PTZ Optics, and Sony. Technicians can replace the RC5-HE head-end without touching the camera-end RC5-CE module or existing CAT cable runs. The kit supports BYOD and BYOM deployments, presenting the camera as a standard UVC USB3 device to any connected host.
Key Features
- Square Base Camera Cabling — Configured for PTZ cameras with square bases from Aver, Lumens, Marshall, PTZ Optics, and Sony.
- HDMI to USB3 Conversion — Converts camera HDMI video and audio to USB3 output for standard UVC-compatible host connections.
- IP Visca PTZ Control — Translates UVC PTZ commands to IP Visca for full pan, tilt, and zoom operation.
- RC5 Head-End Replacement — Direct replacement for the RC5-HE module, compatible with installed RC5-CE extension modules.
- BYOD/BYOM Compatible — Standard UVC USB3 output works with BYOD laptops and room codecs from major AV vendors.
Typical Applications
- Conference room
- Boardroom
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC-SDA5+USM |
| Kit Contents | RC-SDA5+ BYOD Camera Bridge + square-base PTZ camera cabling |
| Video Input | HDMI |
| Video/Data Output | USB3 |
| PTZ Control | UVC PTZ (in) → IP Visca (out) |
| Infrastructure | CAT cable (pairs with RC5-CE extension module) |
| Compatible Camera Form Factor | Square base PTZ cameras (Aver, Lumens, Marshall, PTZ Optics, Sony) |
| Compatible Extension Module | RC5-CE |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What is the difference between the RC-SDA5+USM and RC-SDA5+URM?
The USM variant includes cabling for square-base PTZ cameras. The URM variant is configured for rectangular-base PTZ cameras. Contact Creation Networks to confirm the correct variant for your specific camera model.
Is the RC5-CE extension module included in this kit?
No. The RC5-CE module must already be installed at the camera end or sourced separately. The RC-SDA5+USM includes the RC-SDA5+ bridge and square-base camera cabling only.
Where can I get warranty and support information?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for the RC-SDA5+USM.
