Sound Control Technologies RC-SDA4+USM – RemoteCam4 Kit for Square Base PTZ Cameras

Product Overview

The Sound Control Technologies RC-SDA4+USM is a RemoteCam4 extension kit configured for PTZ cameras with square bases, including models from Lumens, Marshall, Sony, and PTZ Optics. It packages the RC-SDA4+ BYOD Camera Bridge with square-base camera cabling to deliver HDMI-to-USB3 conversion and UVC-to-RS-232-Visca PTZ control translation over CAT cable. Commercial AV integrators can specify a single SKU that covers the head-end bridge and all camera-specific cabling for square-base PTZ installations.

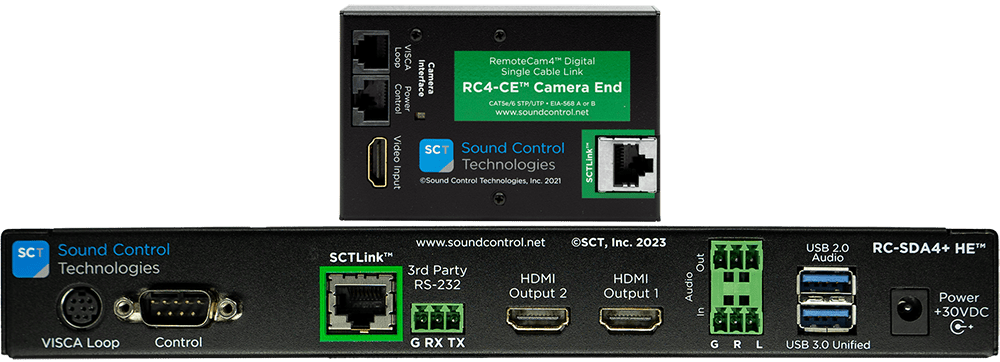

The kit replaces the RC4-HE head-end module and works with existing RC4-CE extension modules in the field, supporting upgrades without new cabling infrastructure.

Product Description

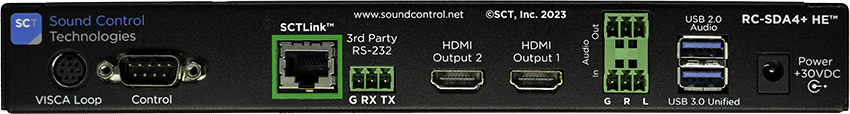

The RC-SDA4+USM targets installations using PTZ cameras with a square base form factor, common across several Lumens, Marshall, Sony, and PTZ Optics models. The RC-SDA4+ bridge accepts HDMI video and audio from the camera, delivers USB3 output to the connected codec or BYOD host, and converts UVC PTZ commands from the host to RS-232 Visca for camera pan, tilt, and zoom. Signal and control travel over CAT cable to the RC4-CE module at the camera end.

For AV system designers, the USM variant eliminates cabling compatibility research specific to square-base camera configurations. Technicians can swap out the RC4-HE head-end for the RC-SDA4+ bridge without touching the camera-end RC4-CE module or existing cable runs. The kit is compatible with BYOD and BYOM workflows, presenting the camera as a UVC USB3 device to any connected host system.

Key Features

• Square Base Camera Cabling — Includes cables matched to PTZ cameras with square bases from Lumens, Marshall, Sony, and PTZ Optics.
• HDMI to USB3 Conversion — Converts camera HDMI video and audio to USB3 output, presenting the camera as a UVC device.
• RS-232 Visca PTZ Control — Translates UVC PTZ commands to RS-232 Visca for full pan, tilt, and zoom operation of the connected camera.
• RC4 Head-End Upgrade — Direct replacement for the RC4-HE module, pairs with existing RC4-CE extension modules without recabling.
• BYOD/BYOM Compatible — Standard UVC USB3 output works with BYOD laptops, Cisco codecs, Poly codecs, and software-based room systems.

Typical Applications

• Conference room
• Boardroom
• Training room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What is the difference between the USM and URM variants?

The USM (Universal Square Mount) includes cabling for square-base PTZ cameras. The URM (Universal Rectangular Mount) is designed for rectangular-base cameras. Contact Creation Networks to confirm the correct variant for your specific camera model.

Does the RC-SDA4+USM require new cable to be pulled?

No. The kit replaces only the RC4-HE head-end module. The RC4-CE extension module and existing CAT cable runs at the camera end remain in place.

Where can I get warranty and support information?

Contact Creation Networks for current Sound Control Technologies warranty terms and support options for the RC-SDA4+USM.
