Sound Control Technologies RC-SDA4+URM – RemoteCam4 Kit for Rectangular Base PTZ Cameras
Sound Control Technologies RC-SDA4+URM – RemoteCam4 Kit for Rectangular Base PTZ Cameras is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RC-SDA4+URM – RemoteCam4 Kit for Rectang...
Product Overview

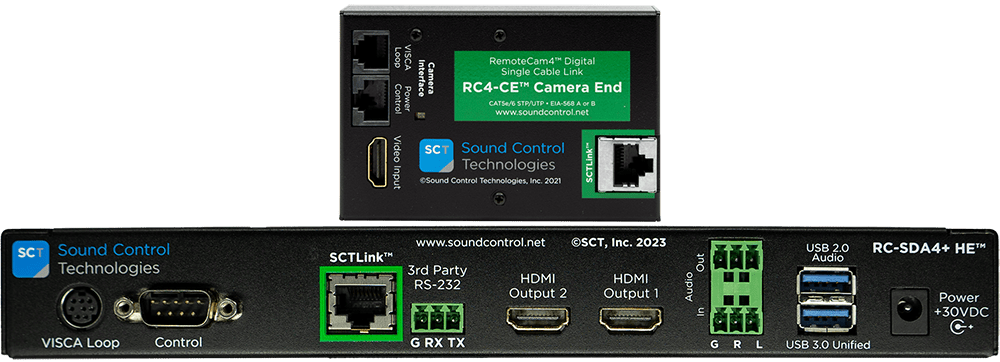

The Sound Control Technologies RC-SDA4+URM is a RemoteCam4 extension kit configured for PTZ cameras with rectangular bases, including models from Lumens, Marshall, Sony, and PTZ Optics. It packages the RC-SDA4+ BYOD Camera Bridge with rectangular-base camera cabling to deliver HDMI-to-USB3 conversion and UVC-to-RS-232-Visca PTZ control translation over a CAT cable run. Commercial AV integrators can specify a single SKU for complete head-end and cabling assembly for rectangular-base PTZ camera installations.
The kit replaces the RC4-HE head-end module and works with existing RC4-CE extension modules, supporting field upgrades without new cabling.
Product Description

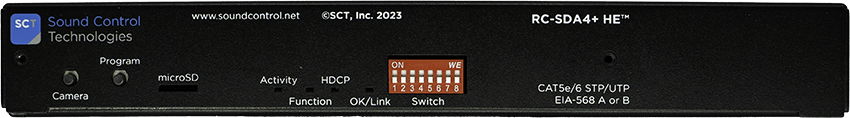

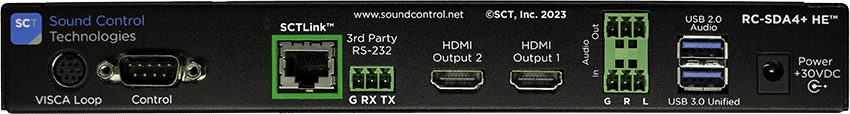

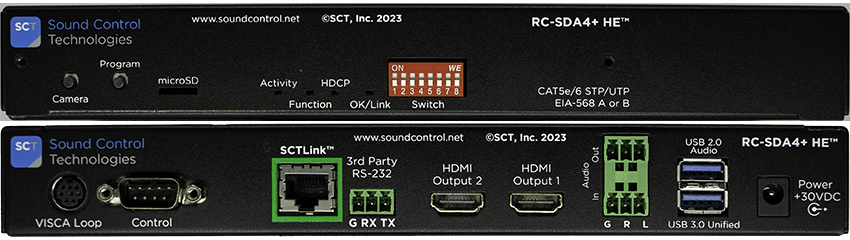

The RC-SDA4+URM targets deployments where PTZ cameras have a rectangular base form factor, a common configuration for several Lumens, Marshall, Sony, and PTZ Optics models. The RC-SDA4+ bridge accepts HDMI video and audio from the camera, outputs USB3 to the host codec or BYOD device, and converts incoming UVC PTZ commands to RS-232 Visca for camera control. All signal and control traffic travels over CAT cable to the RC4-CE extension module at the camera location.
AV system designers benefit from a pre-matched kit that eliminates cable compatibility research for rectangular-base cameras. The RC-SDA4+URM is interchangeable with the RC4-HE in the rack, allowing technicians to upgrade head-end hardware without pulling new cabling or modifying camera-end terminations. The kit supports BYOD and BYOM environments, presenting the camera as a standard UVC USB3 device to any connected host.
Key Features
- Rectangular Base Camera Cabling — Includes cabling matched to PTZ cameras with rectangular bases from Lumens, Marshall, Sony, and PTZ Optics.
- HDMI to USB3 Conversion — Converts camera HDMI video and audio to USB3 output for direct connection to codecs or BYOD laptops.
- RS-232 Visca PTZ Control — Translates UVC PTZ commands from the USB host to RS-232 Visca for full camera control.
- RC4 Head-End Replacement — Direct replacement for the RC4-HE module, compatible with installed RC4-CE extension modules.
- BYOD/BYOM Ready — Presents the camera as a UVC USB3 device, compatible with Zoom, Teams, and codec-based room systems.
Typical Applications
- Conference room
- Boardroom
- Training room
- Commercial meeting space
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RC-SDA4+URM |
| Kit Contents | RC-SDA4+ BYOD Camera Bridge + rectangular-base PTZ camera cabling |
| Video Input | HDMI |
| Video/Data Output | USB3 |
| PTZ Control | UVC PTZ (in) → RS-232 Visca (out) |
| Infrastructure | CAT cable (pairs with RC4-CE extension module) |
| Compatible Camera Form Factor | Rectangular base PTZ cameras (Lumens, Marshall, Sony, PTZ Optics) |
| Compatible Extension Module | RC4-CE |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
What is the difference between the URM and UNI kit variants?
The URM (Universal Rectangular Mount) includes cabling specific to PTZ cameras with a rectangular base form factor. The UNI variant uses a different cable configuration. Contact Creation Networks to confirm which variant matches your specific camera model.
Is the RC4-CE extension module included?
No. The RC-SDA4+URM includes the RC-SDA4+ bridge and camera-specific cabling. The RC4-CE extension module must be present at the camera end or sourced separately.
Where can I get warranty and support information?
Contact Creation Networks for current Sound Control Technologies warranty terms and support options for the RC-SDA4+URM.
