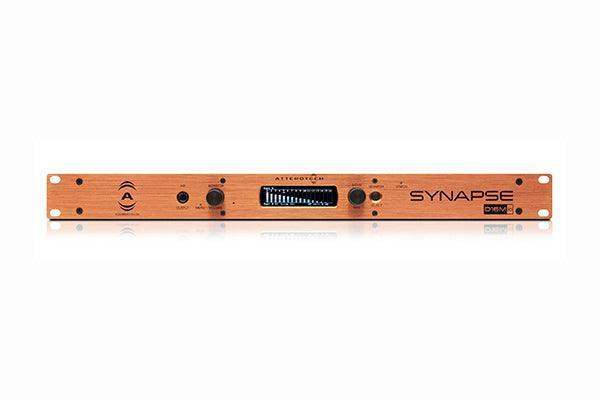

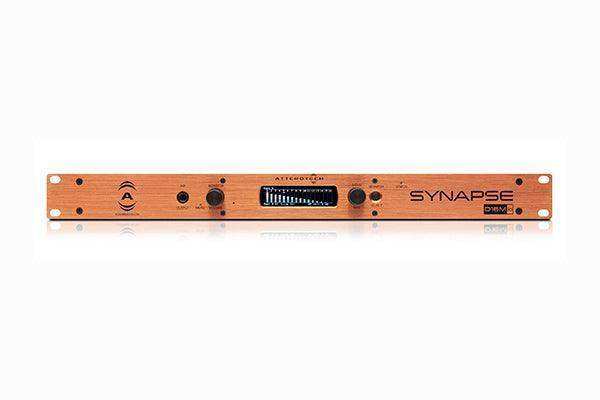

QSC Synapse D16Mio – 16-Channel Dante/AES67 Mixed I/O Interface

Product Overview

The QSC Synapse D16Mio (by Attero Tech) is a 16-channel Dante/AES67 mixed-I/O networked audio interface, providing 16 mic/line inputs and 16 balanced line outputs in one rack unit. It connects analog sources and destinations to a Dante or AES67 network for commercial audio systems.

Studio-grade preamps, switchable phantom power, and Q-SYS Extension integration make it a flexible input/output bridge for distributed installations.

Product Description

The D16Mio combines 16 channels of studio-grade microphone preamplifiers — with up to 51 dB of digitally controlled gain in 3 dB steps, switchable +48 V phantom power, and a switchable pad for professional line-level inputs — with 16 balanced line outputs offering digitally controlled attenuation from 0 to -100 dB.

Built on Dante with AES67 interoperability, it bridges analog mic and line sources and destinations into a networked audio system in a single chassis, reducing the number of separate input and output devices required.

A Q-SYS Extension allows drag-and-drop integration into a Q-SYS design. For input-only or output-only high density, see the QSC Synapse D32Mi and QSC Synapse D32o.

Key Features

• 16 mic/line inputs + 16 line outputs — A mixed-I/O interface that bridges analog sources and destinations to the network in one chassis.
• Studio-grade preamps — Up to 51 dB of digitally controlled gain in 3 dB steps with switchable +48 V phantom power.
• Switchable input pad — Accommodates professional line-level inputs.
• Balanced line outputs — Digitally controlled output attenuation from 0 to -100 dB.
• Dante/AES67 — High-performance networked audio with AES67 interoperability.
• Q-SYS Extension — Drag-and-drop integration into a Q-SYS design.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• Broadcast studio
• Government space
• Auditorium

Technical Specifications

Frequently Asked Questions

How many inputs and outputs does the D16Mio have?
It provides 16 mic/line inputs and 16 balanced line outputs in a single chassis.

Does it supply phantom power?
Yes. Each input offers switchable +48 V phantom power, up to 51 dB of gain in 3 dB steps, and a switchable pad for line-level sources.

How does it integrate with Q-SYS?
A Q-SYS Extension allows drag-and-drop integration into a Q-SYS design over Dante or AES67.

What warranty and support come with this product?
QSC and Attero Tech products are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period. Creation Networks provides pre- and post-sale support for system design and integration questions.
