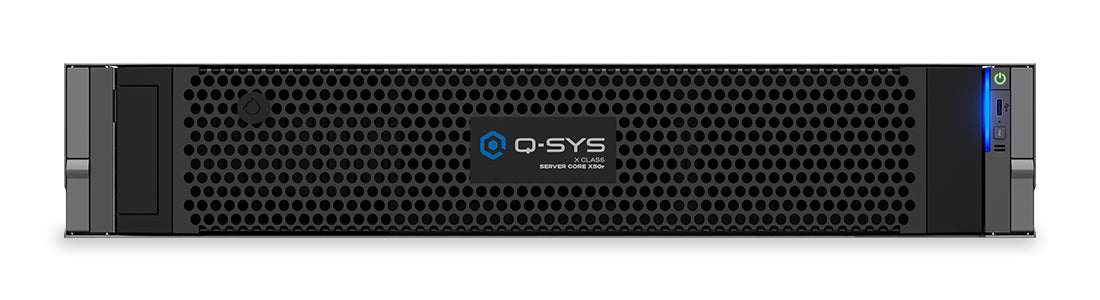

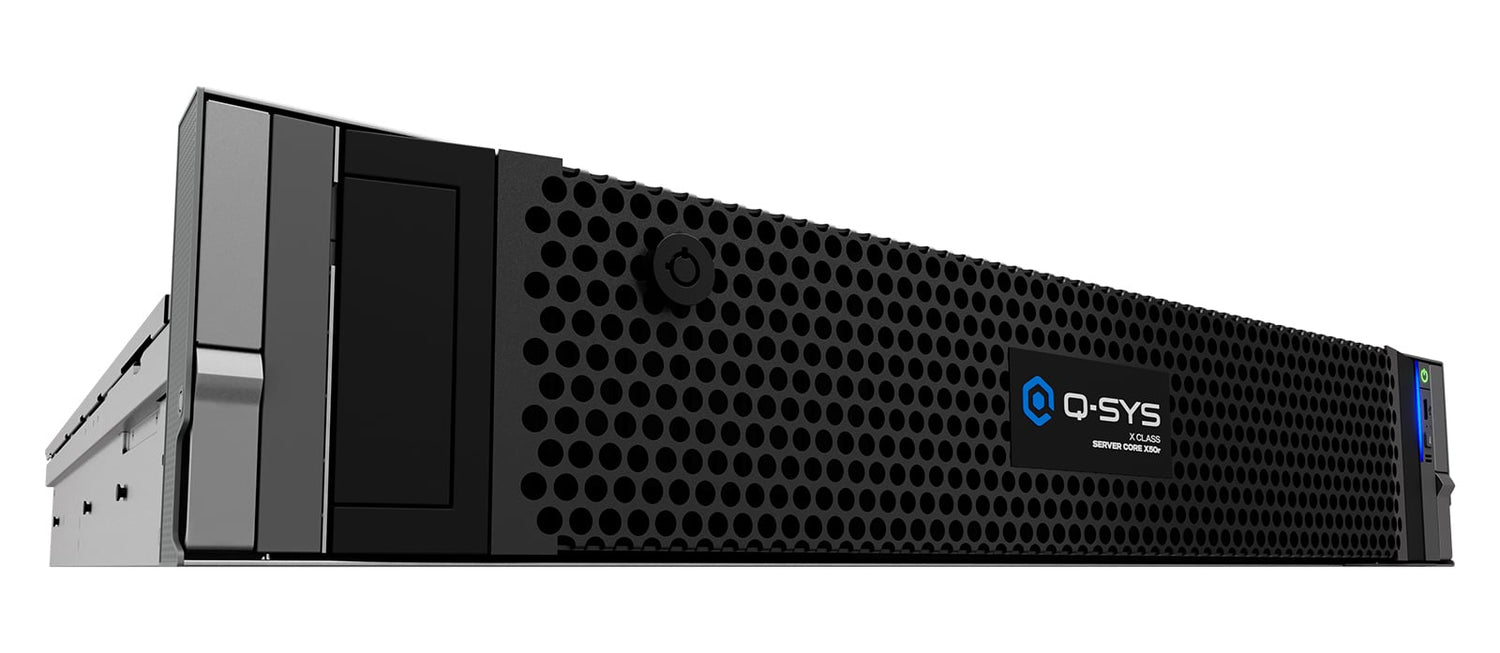

QSC Server Core X50r – Q-SYS X-Class High-Capacity AV&C Processor

Product Overview

The QSC Server Core X50r is the flagship Q-SYS Full Stack AV Platform processor, engineered for mission-critical, large-scale AV&C deployments where maximum DSP power and network audio capacity are non-negotiable. Built on industry-proven Dell server hardware and running the Q-SYS real-time operating system, the Server Core X50r delivers up to 4096×4096 networked audio channels at 10 Gbps — making it the most powerful Q-SYS Core available today. As an authorized QSC dealer, Creation Networks supplies and integrates the Server Core X50r for enterprise and large-venue clients across North America.

Product Description

The Server Core X50r combines centralized, software-driven AV processing with the reliability of a 2RU rack-mount Dell server platform. Its fully networked architecture eliminates local analog I/O constraints, allowing integrators to place network I/O and distributed processing exactly where they are needed across any facility. The system ships with an 8×8 Dante license and is upgradable to 512×512 Dante channels, while supporting AES67 alongside native Q-LAN audio transport. Dual redundant hot-swappable 1100 W power supplies and dual 10 Gbps SFP+ fiber LAN ports (LAN A / LAN B) with two auxiliary 1 Gbps copper RJ45 ports provide the redundancy demanded by themed entertainment, convention centers, large houses of worship, and campus-wide deployments. Remote management is handled via a dedicated iDRAC port, and the unit includes a 960 GB NVMe SSD media drive for on-board media playback expandable to 256 tracks.

Key Features

• 4096×4096 network audio channels at 10 Gbps (512×512 at 1 Gbps)
• 1024×1024 network audio streams at 10 Gbps (256×256 at 1 Gbps)
• 256 AEC processors (200 ms window), assignable and routable
• Up to 96 VoIP softphone instances
• 8×8 Dante license included; upgradable to 512×512 Dante channels
• 256×256 Media/WAN stream channel capacity
• Multi-track recording/playback: 4-ch recording / 16-ch playback, expandable to 256 channels
• 512+ Q-SYS peripheral device limit
• Dual redundant hot-swappable 1100 W power supply units

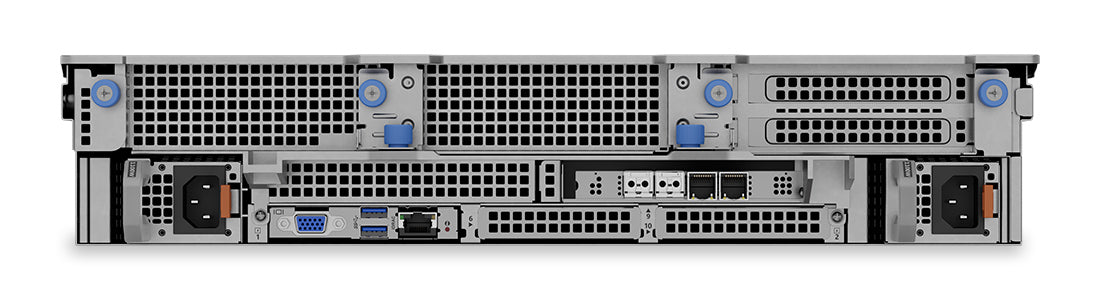

• 4× SFP+ ports: 2× 10 Gbps multimode fiber (LAN A/B) + 2× 1 Gbps copper RJ45 (AUX A/B)
• 960 GB NVMe SSD Q-SYS media drive (pre-installed)
• Integrated Dell iDRAC for remote hardware management
• 2RU form factor; static ReadyRails A4 kit for square hole racks included
• Scripting and UCI functionality included
• Intel 64-bit architecture; 32-bit floating-point audio and Q-LAN transport

Typical Applications

• Themed entertainment parks and immersive experiences requiring centralized audio control
• Large resorts, casinos, and hospitality venues with distributed zones across multiple buildings
• Convention centers and large multi-use arenas with complex AV routing requirements
• Major houses of worship with campus-wide audio distribution
• University campuses running building-wide AV as a managed IT service
• Broadcast and production facilities requiring high channel-count, low-latency audio processing
• Mission-critical government and corporate campuses demanding redundant, IT-grade AV infrastructure

Technical Specifications

Frequently Asked Questions

How does the Server Core X50r differ from the Core 5200?

The Server Core X50r is built on a newer Dell platform, offers 10 Gbps networking for up to 4096×4096 audio channels, includes 256 AEC processors and 96 VoIP instances, and supports 512+ peripherals — making it the higher-capacity option for the most demanding installations. The Core 5200 operates at 1 Gbps with 512×512 channels and 160 AEC processors.

What Dante support is included?

An 8×8 software Dante license is included. This can be licensed up to 512×512 Dante channels through QSC.

Does the Server Core X50r support redundant networking?

Yes. LAN A and LAN B are the primary 10 Gbps multimedia ports and support network redundancy. AUX A and AUX B are 1 Gbps auxiliary ports for segregated services such as VoIP, SNMP, and WAN media streaming.

Can Creation Networks assist with design and integration?

Yes. Creation Networks is an authorized QSC dealer offering system design, configuration, and integration services for the Server Core X50r and the full Q-SYS ecosystem.

What is the warranty coverage?

QSC provides a 3-year system warranty on the Server Core X50r, backed by Dell hardware support.
