QSC QIO-IR1x4 – Q-SYS Network Infrared I/O Expander

Product Overview

The QSC QIO-IR1x4 is a Q-SYS network infrared I/O expander that brings IR device control onto the Q-SYS network at the room edge. As a Q-SYS network IR expander, it lets a Core control displays, media players, and other IR devices in a conference room or boardroom over standard Ethernet, removing the need for local control wiring back to the rack. It is natively managed in Q-SYS Designer Software, making IR control a configurable part of a larger AV system integration.

Product Description

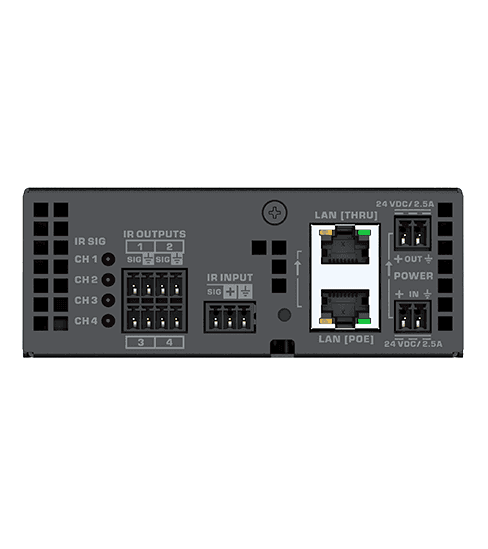

The QIO-IR1x4 provides one IR receiver input and four IR emitter outputs, enabling Q-SYS control of a broad range of professional and consumer devices such as video displays and media players. Like the rest of the QIO platform, it connects to the Q-SYS network over standard gigabit Ethernet as a Q-LAN device and is powered by PoE (802.3af Type 1 Class 1) or 24 VDC, with daisy-chainable power and pass-through Ethernet so multiple QIO peripherals can share a switch port. The compact quarter-rack-width chassis can be surface-mounted under a table or on a wall, or rack-mounted with the optional QIO-RMK tray. Because it is natively integrated into Q-SYS Designer Software, IR command sets are configured and triggered within the same design that handles audio and control.

Key Features

• One IR Input, Four IR Outputs — A single IR receiver input and four IR emitter outputs let one expander control multiple displays, media players, and consumer or professional devices.
• Native Q-SYS Integration — The expander appears in Q-SYS Designer Software, so IR control is configured alongside audio and other control in one design.
• Network-Distributed Control — IR control runs over standard gigabit Ethernet as a Q-LAN device, placing emitters near the equipment they control.
• Flexible Power — PoE (802.3af Type 1 Class 1) or 24 VDC operation with daisy-chainable power and pass-through Ethernet.
• Compact Mounting — A quarter-rack-width chassis supports under-table or on-wall surface mounting and an optional 19-inch rack tray.

Typical Applications

• Conference room and boardroom display and source control
• Training rooms and multi-purpose rooms
• Government and commercial meeting spaces

Technical Specifications

Frequently Asked Questions

What can the QIO-IR1x4 control? It controls IR-capable devices such as video displays and media players through its four IR emitter outputs, with one IR receiver input for learning or feedback.

How does it connect to Q-SYS? The expander is a native Q-SYS peripheral managed in Q-SYS Designer Software, connecting over standard gigabit Ethernet as a Q-LAN device.

How is it powered? It runs on PoE (802.3af Type 1 Class 1) or 24 VDC, and DC power can be daisy-chained across multiple QIO units.

How does it mount? The quarter-rack-width chassis supports under-table or on-wall mounting, or rack mounting with the optional QIO-RMK tray.

What about warranty and support? The QIO-IR1x4 is covered under QSC warranty terms; contact Creation Networks support for Q-SYS control design and AV integration assistance.
