QSC PL-SUB18 – Passive 18-in Installation Subwoofer, Black

Product Overview

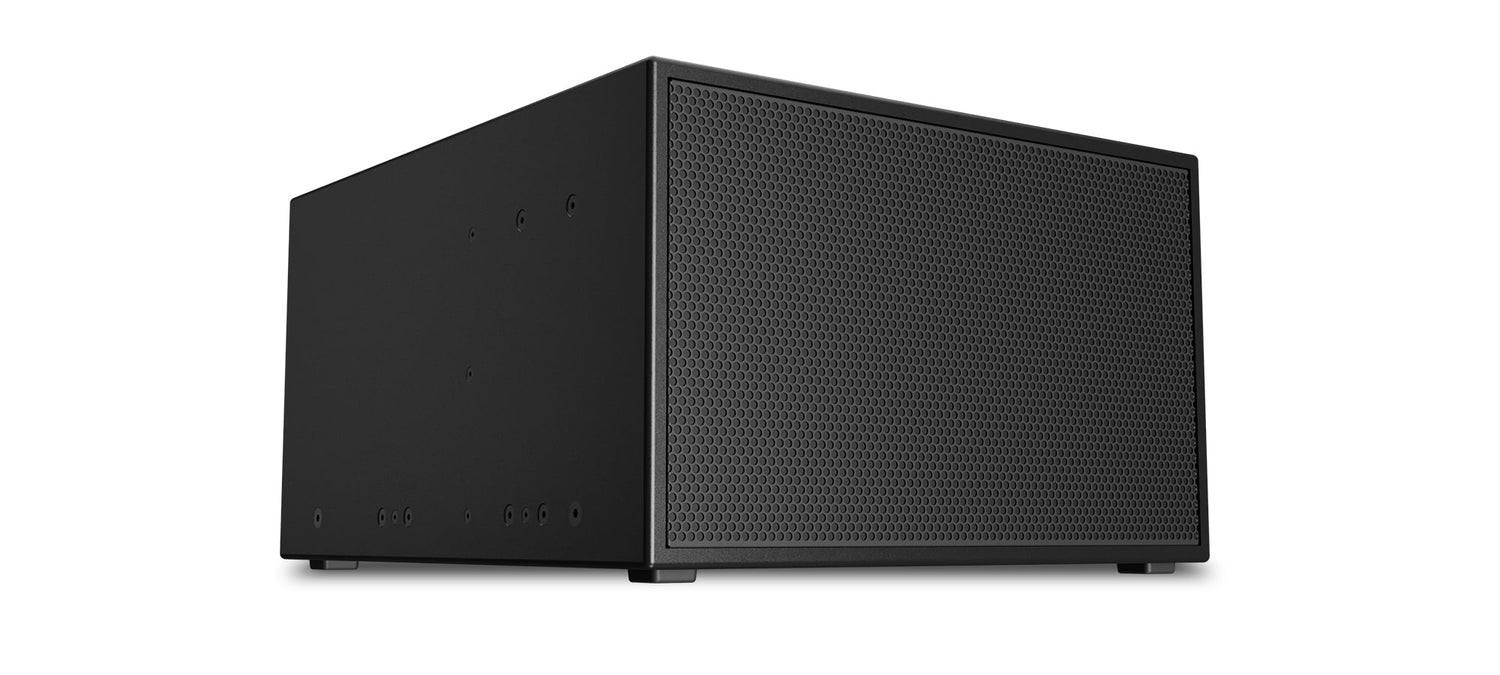

The QSC PL-SUB18-BK is an 18-inch passive installation subwoofer engineered for large-scale installed sound systems that demand extended low-frequency reproduction and exceptional output. Finished in RAL 9011 black with a durable polyurea coating and IP54-rated enclosure, the PL-SUB18 is purpose-built for permanent venue installations where reliability and performance cannot be compromised.

Product Description

Built around an 18-inch woofer with a 4-inch voice coil housed in a bass-reflex enclosure constructed from exterior-grade plywood, the PL-SUB18 delivers up to 138 dB peak SPL and extends usable bass response to 35 Hz (–6 dB). The enclosure features integrated retractable rigging hardware, allowing arrays of up to 10 PL-SUB18 units — or combined arrays of 3 PL-SUB18 plus 10 PL-LA12 line array elements — to be flown safely. The input cup is IP65-rated and accepts dual Speakon NL4 connectors plus a 4-pole Euroblock, ensuring flexible wiring and a weatherproof seal. When deployed in pairs or larger groupings, the PL-SUB18 supports cardioid bass configurations via Q-SYS processing, allowing installers to reduce rear-firing energy and maximize front-of-house coverage. The hydrophobic stainless steel mesh grille and UV/corrosion-treated steel face add durability suited for semi-outdoor or challenging indoor environments.

Key Features

• 18-inch neodymium-motor woofer with 4-inch (101.6 mm) voice coil
• 97 dB sensitivity (1 W/1 m); 138 dB peak SPL
• 750 W continuous / 1500 W rated power handling at 8 ohms
• Frequency response: 38 Hz – 82 Hz (–3 dB); 35 Hz – 90 Hz (–6 dB)
• IP54-rated bass-reflex enclosure in exterior plywood with polyurea paint

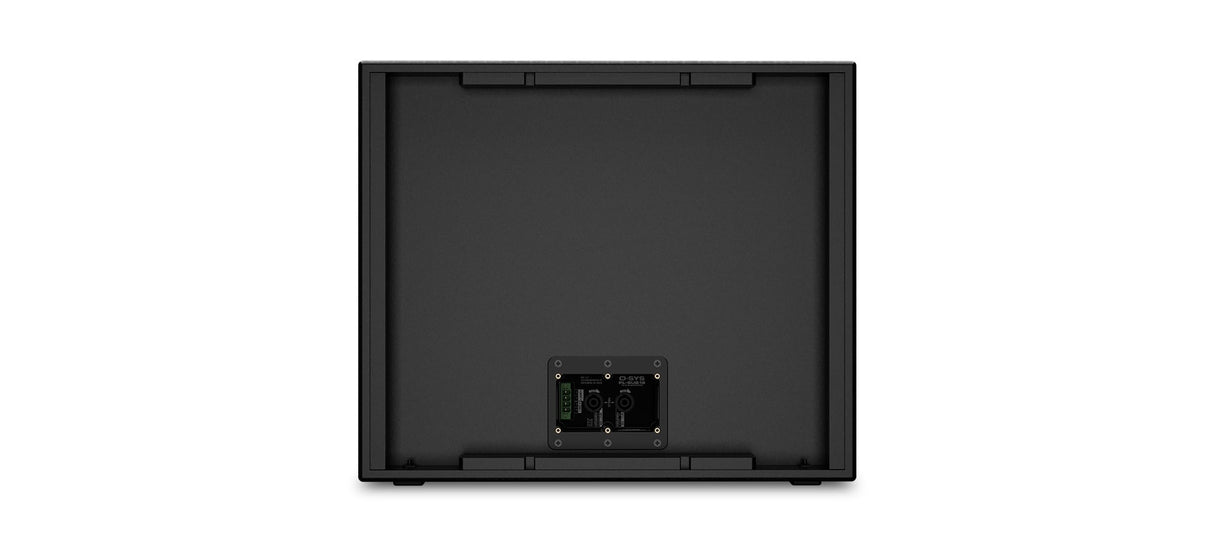

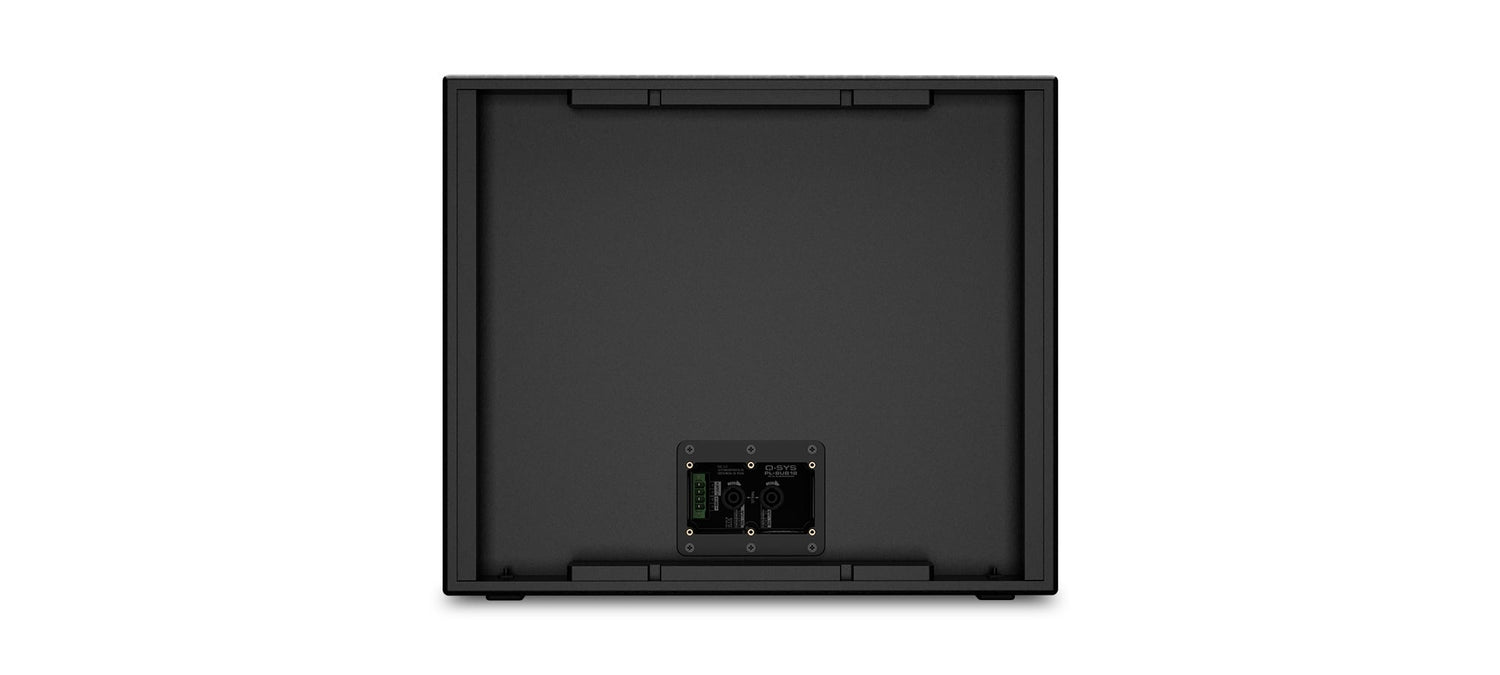

• IP65-rated input cup with 2× Speakon NL4 + 1× 4-pole Euroblock
• Integrated retractable rigging — flyable up to 10 units or combined PL-LA12 arrays

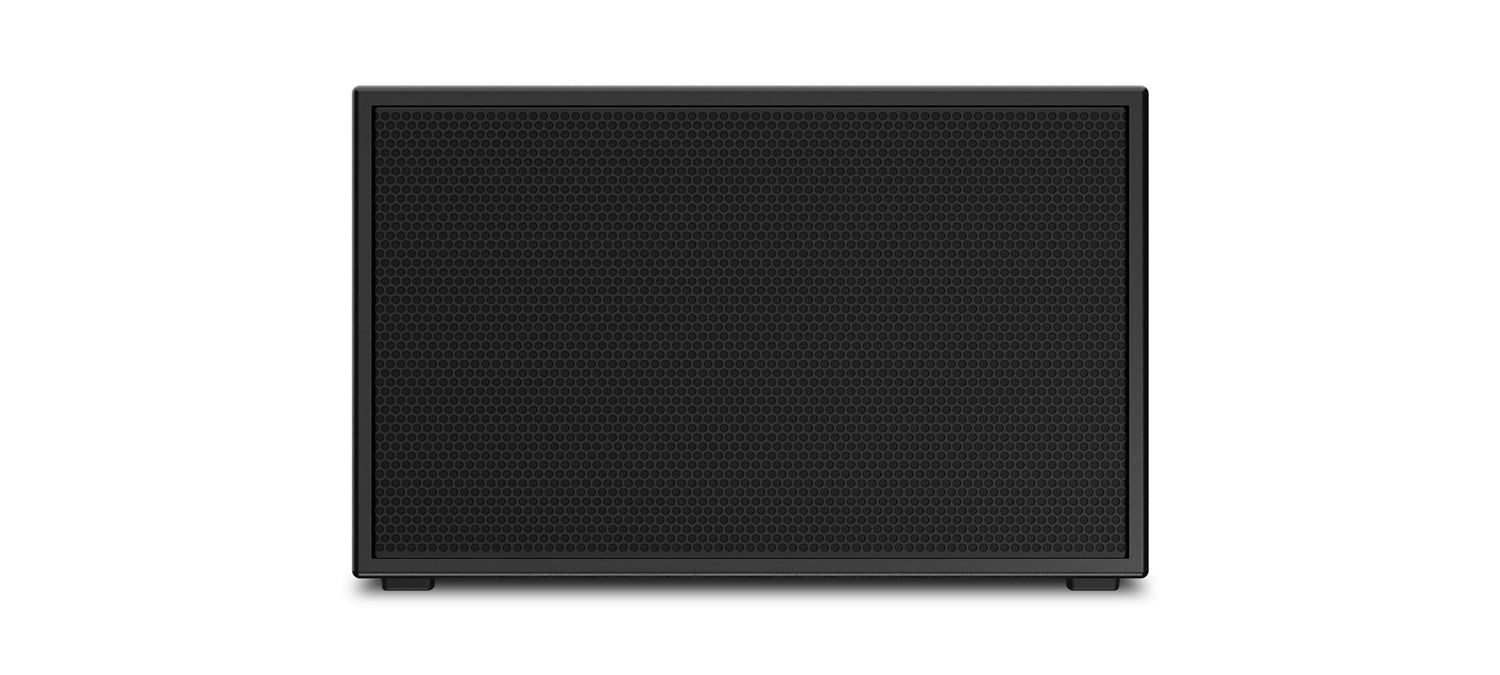

• Hydrophobic stainless steel mesh grille with UV and corrosion treatment
• Omnidirectional or cardioid bass deployment (cardioid requires 2+ units with Q-SYS processing)
• Nominal impedance: 8 ohms (minimum 6 ohms)
• RAL 9011 black finish

Typical Applications

• Houses of worship with high-output sound reinforcement requirements
• Performing arts centers and concert halls
• Nightclubs, live music venues, and ballrooms
• Stadiums, arenas, and large multipurpose facilities
• Outdoor amphitheaters and covered stages (with appropriate weather protection)
• Flown subwoofer arrays in touring or permanent theatrical installations

Technical Specifications

FAQs

Can the PL-SUB18-BK be used outdoors?

The PL-SUB18 enclosure is IP54-rated and the grille uses hydrophobic stainless steel mesh, making it suitable for covered or semi-outdoor installations. For fully exposed outdoor applications, additional weather protection measures are recommended. Contact us at Creation Networks to discuss your project.

How many PL-SUB18 units can be flown together?

The integrated retractable rigging supports arrays of up to 10 PL-SUB18 units, or combined arrays of 3 PL-SUB18 units paired with up to 10 PL-LA12 line array elements.

Does the PL-SUB18 support cardioid configuration?

Yes. When deployed in groups of two or more, the PL-SUB18 can be configured in a cardioid bass pattern using Q-SYS DSP processing, which reduces rear-firing energy and improves front-of-house coverage consistency.

What amplifier does QSC recommend for the PL-SUB18?

QSC recommends the Q-SYS CX-Q 8K4 amplifier, one channel per PL-SUB18, for optimal performance.

Is professional installation required?

Yes. The PL-SUB18 is a professional installation loudspeaker. Rigging must be performed by a qualified rigger following applicable safety standards. Contact Creation Networks for system design and installation support.
