QSC PL-SUB18 – 18-in Passive Installation Subwoofer, White

Product Overview

The QSC PL-SUB18-WH is an 18-inch passive installation subwoofer engineered for large-scale installed sound systems that demand extended low-frequency reproduction and exceptional output. Finished in RAL 9003 white with a durable polyurea coating and IP54-rated enclosure, the PL-SUB18 white variant blends into light-colored architectural environments without sacrificing the performance characteristics that define the PL Series.

Product Description

Built around an 18-inch woofer with a 4-inch voice coil housed in a bass-reflex enclosure constructed from exterior-grade plywood, the PL-SUB18 delivers up to 138 dB peak SPL and extends usable bass response to 35 Hz (–6 dB). The enclosure features integrated retractable rigging hardware, allowing arrays of up to 10 PL-SUB18 units — or combined arrays of 3 PL-SUB18 plus 10 PL-LA12 line array elements — to be flown safely. The input cup is IP65-rated and accepts dual Speakon NL4 connectors plus a 4-pole Euroblock, ensuring flexible wiring and a weatherproof seal. When deployed in pairs or larger groupings, the PL-SUB18 supports cardioid bass configurations via Q-SYS processing, allowing installers to reduce rear-firing energy and maximize front-of-house coverage. The hydrophobic stainless steel mesh grille and UV/corrosion-treated steel face add durability suited for semi-outdoor or challenging indoor environments. The white finish is ideal for houses of worship, performing arts centers, and premium commercial spaces where aesthetics are a priority.

Key Features

• 18-inch neodymium-motor woofer with 4-inch (101.6 mm) voice coil
• 97 dB sensitivity (1 W/1 m); 138 dB peak SPL
• 750 W continuous / 1500 W rated power handling at 8 ohms
• Frequency response: 38 Hz – 82 Hz (–3 dB); 35 Hz – 90 Hz (–6 dB)
• IP54-rated bass-reflex enclosure in exterior plywood with polyurea paint

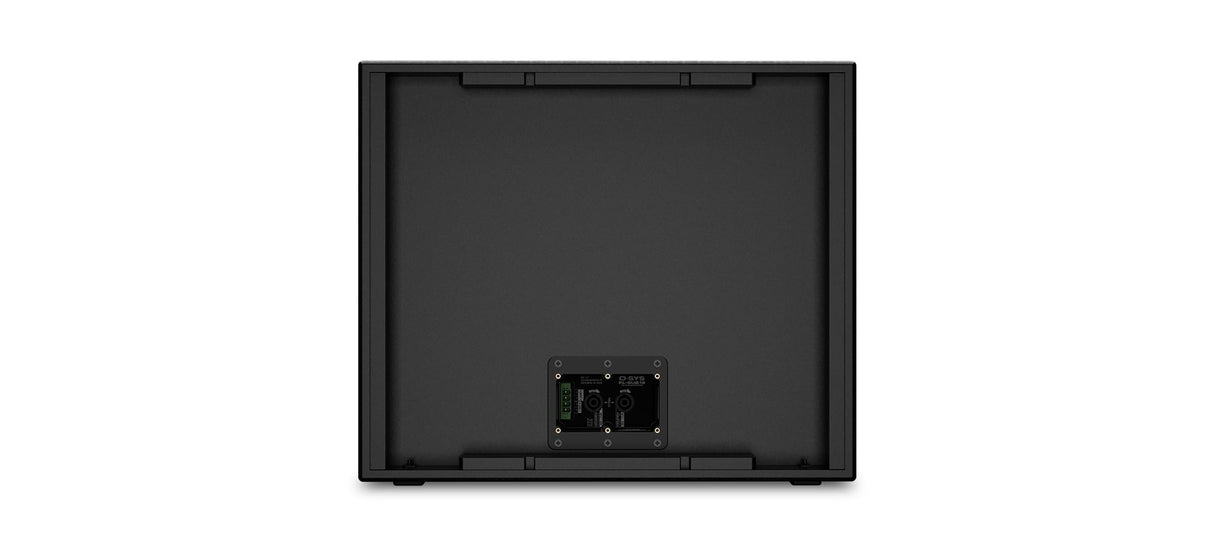

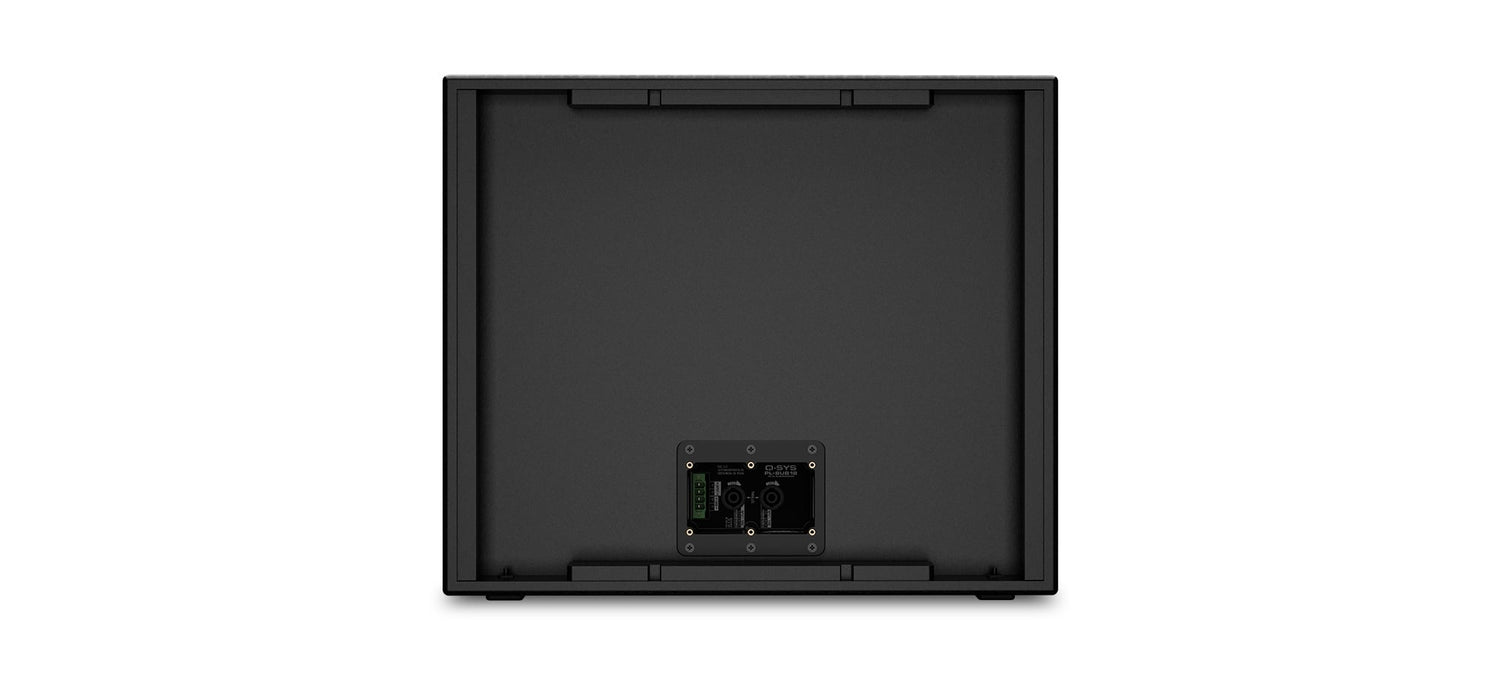

• IP65-rated input cup with 2× Speakon NL4 + 1× 4-pole Euroblock
• Integrated retractable rigging — flyable up to 10 units or combined PL-LA12 arrays
• Hydrophobic stainless steel mesh grille with UV and corrosion treatment
• Omnidirectional or cardioid bass deployment (cardioid requires 2+ units with Q-SYS processing)
• Nominal impedance: 8 ohms (minimum 6 ohms)
• RAL 9003 white finish — ideal for light-colored architectural environments

Typical Applications

• Houses of worship where white or light-toned speaker systems are specified
• Performing arts centers and concert halls with white or neutral color schemes
• Premium hospitality venues, hotel ballrooms, and conference centers
• Upscale nightclubs and entertainment venues with designer aesthetics
• Stadiums, arenas, and large multipurpose facilities requiring white finish
• Flown subwoofer arrays in theatrical and permanent installations

Technical Specifications

FAQs

How does the PL-SUB18-WH differ from the PL-SUB18-BK?

The PL-SUB18-WH and PL-SUB18-BK are acoustically identical. The only difference is the enclosure finish — RAL 9003 white vs. RAL 9011 black. Choose white for lighter-toned architectural environments.

Can the PL-SUB18-WH be used outdoors?

The enclosure is IP54-rated and the grille uses hydrophobic stainless steel mesh, making it suitable for covered or semi-outdoor installations. Additional weather protection is recommended for fully exposed outdoor use. Contact Creation Networks to discuss your project.

How many PL-SUB18 units can be flown together?

The integrated retractable rigging supports arrays of up to 10 PL-SUB18 units, or combined arrays of 3 PL-SUB18 units paired with up to 10 PL-LA12 line array elements.

Does the PL-SUB18-WH support cardioid configuration?

Yes. When deployed in groups of two or more, the PL-SUB18 can be configured in a cardioid bass pattern using Q-SYS DSP processing, reducing rear-firing energy and improving front-of-house coverage.

What amplifier does QSC recommend?

QSC recommends the Q-SYS CX-Q 8K4 amplifier, one channel per PL-SUB18, for optimal performance.
