QSC PL-LA8 – 8-in 2-Way Passive Installation Line Array, White
Product Overview
The QSC PL-LA8-WH is a two-way passive 8-inch installation line array loudspeaker finished in white (RAL 9003) for installs where the cabinet must blend with light architectural surfaces. With a 100x15 degree dispersion pattern and IP54-rated weatherization, this passive line array module delivers controlled vertical coverage and high intelligibility for indoor and covered outdoor applications. The impact-resistant ABS enclosure supports both passive and bi-amp operation, giving system designers flexibility in amplifier and DSP deployment. It is a purpose-built solution for scalable, low-visibility fixed-install line array systems.
Product Description
The PL-LA8 pairs an 8-inch neodymium LF transducer with a 2-inch voice coil and a 1-inch exit compression driver to deliver a system bandwidth of 69 Hz to 20 kHz (-3 dB). System sensitivity is 101.5 dB (1 W/1 m), with continuous SPL reaching 116 dB in passive mode and 120 dB when bi-amped. The bass reflex enclosure can be ground-stacked up to 4 cabinets or flown up to 14 cabinets when configured with the required PL-LA8-AF array frame. Eight discrete rigging angles from 0.5 to 12 degrees allow precise vertical splay tuning for each deployment. Connectivity includes two Speakon NL4 connectors and a parallel locking 4-pole Euroblock, all housed in an IP65-sealed input cup. The white RAL 9003 finish, stainless hardware, UV-treated grille, and hydrophobic mesh make the cabinet suitable for demanding fixed-install environments where aesthetics matter. At 27.4 lbs, the cabinet balances output density with manageable rigging weight for integrators.
Key Features
- White RAL 9003 Finish — Light-toned ABS enclosure blends with ceilings and pale architectural surfaces.
- 100x15 Degree Coverage — Wide horizontal dispersion with tight vertical control for even audience coverage.
- Passive or Bi-Amp Operation — Selectable crossover at 1.6 kHz passive or 1.5 kHz bi-amp adapts to varied system architectures.
- Neodymium LF Transducer — 8-inch driver with 2-inch voice coil reduces weight while maintaining output for flown arrays.

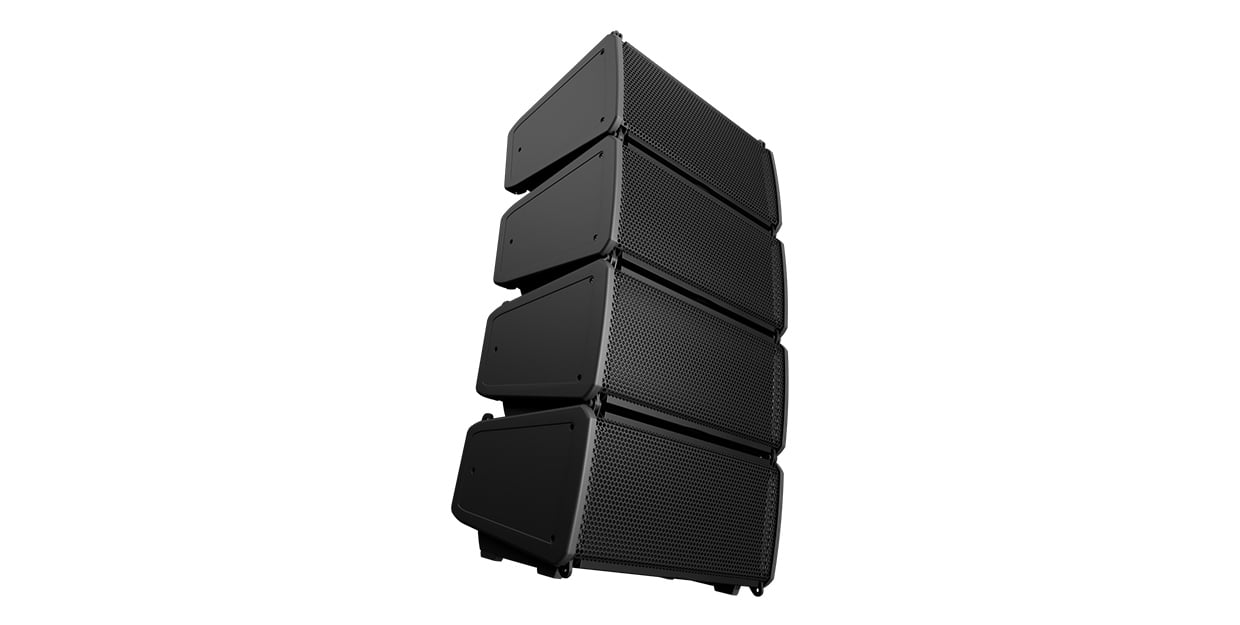

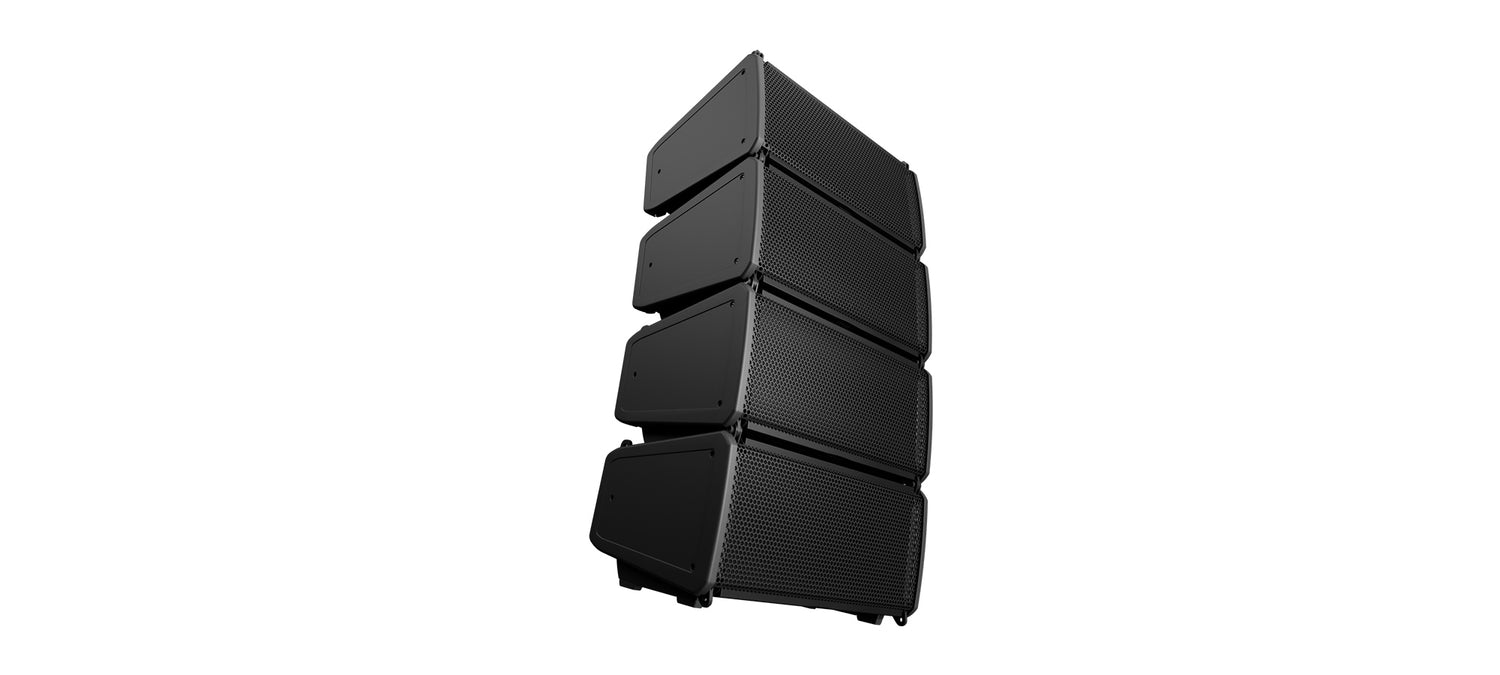

- Scalable Deployment — Ground-stack up to 4 or fly up to 14 cabinets with the PL-LA8-AF array frame.
- Eight Rigging Angles — Discrete splay settings from 0.5 to 12 degrees enable precise array shaping.
- IP54 Weatherization — Stainless hardware, UV-treated grille, and hydrophobic mesh support covered outdoor use.
- IP65 Sealed Input Cup — Dual Speakon NL4 and parallel Euroblock connectors protected against moisture ingress.
Typical Applications
- House of worship — even vocal and music coverage with a low-visibility white finish in light-toned sanctuaries.
- Auditorium — scalable arrays delivering consistent SPL while blending with architectural surfaces.
- Multi-purpose room — flexible line array coverage for events ranging from speech to live music.
- Commercial meeting space — high intelligibility for presentations and amplified program audio.
- Government space — reliable installed reinforcement for council chambers and assembly halls.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Two-way passive/bi-amp installation line array, bass reflex |
| LF Transducer | 8 in (200 mm), 2 in (50.8 mm) voice coil, neodymium |
| HF Transducer | Compression driver, 1 in (25.4 mm) exit, 1.75 in (44.5 mm) voice coil |
| Coverage (H x V) | 100x15 degrees |
| System Bandwidth (-3 dB) | 69 Hz - 20 kHz |
| Crossover | 1.6 kHz (passive); 1.5 kHz (bi-amp) |
| System Sensitivity | 101.5 dB (1 W/1 m) |
| Max SPL (Continuous) | 116 dB (passive); 120 dB (bi-amp) |
| Max SPL (Peak) | 128 dB (passive); 132 dB (bi-amp) |
| System Power Rating | 260 W continuous / 520 W rated at 8 ohm |
| Nominal Impedance | 8 ohm (passive); 8 ohm (LF); 16 ohm (HF) |
| Connectors | 2x Speakon NL4; 1x Euroblock locking 4-pole (parallel); IP65 sealed input cup |
| Rigging Angles | 0.5, 1.5, 3, 4.5, 6, 8, 10, 12 degrees |
| Deployment | Ground stack up to 4x; flyable up to 14x (requires PL-LA8-AF) |
| Enclosure | Impact-resistant ABS; White (RAL 9003) |
| Weatherization | IP54; input cup IP65; stainless hardware; UV-treated grille; hydrophobic mesh |
| Grille | 18 Ga, 1.2 mm steel |
| Dimensions (H x W x D) | 10.7 x 20.1 x 13.7 in (272 x 512 x 349 mm) |
| Weight | 27.4 lbs (12.4 kg) |
Frequently Asked Questions
- How does the PL-LA8-WH differ from the PL-LA8-BK?
- The acoustic and mechanical specifications are identical; only the enclosure finish differs, with the WH model supplied in white RAL 9003.
- Does the PL-LA8 require the array frame for deployment?
- Yes. The PL-LA8-AF array frame is required for both ground-stack and flown configurations.
- Can the PL-LA8 be bi-amped?
- Yes. It supports passive operation with a 1.6 kHz crossover or bi-amp operation with a 1.5 kHz crossover for greater system headroom.
- How many cabinets can be flown in a single array?
- Up to 14 PL-LA8 cabinets can be flown when using the PL-LA8-AF array frame.
- Is the PL-LA8 suitable for outdoor installation?
- It carries an IP54 rating with an IP65 sealed input cup, stainless hardware, UV-treated grille, and hydrophobic mesh, making it suitable for covered outdoor and weather-exposed installs.
- What connectors are provided?
- Two Speakon NL4 connectors and one parallel locking 4-pole Euroblock, all housed in an IP65 sealed input cup.
