QSC PL-LA12-AF – Array Frame for PL-LA12 and PL-SUB18, White
Product Overview
The QSC PL-LA12-AF-WH is the white array frame designed for the PL-LA12 line array loudspeaker. This rigging frame enables safe, precision flown arrays of up to 12 PL-LA12 elements — or combined arrays of 3 PL-SUB18 subwoofers plus 10 PL-LA12 elements — and supports splay angle adjustments from 0.5° to 12° for precise coverage shaping in large-venue installations.
Product Description
Constructed from zinc-plated, powder-coated steel rated for 1000 hours UV resistance and 200 hours salt spray resistance, the PL-LA12-AF-WH is engineered for durability in demanding permanent installation environments. The frame provides 11 rigging pick points and supports frame downtilt from 0° to 45°, with uptilt achievable by reversing the frame orientation. Eight splay angle settings (0.5°, 1.5°, 3°, 4.5°, 6°, 8°, 10°, 12°) allow precise array curvature configuration. The working load limit is 300.3 kg (662 lbs) for combined PL-LA12 arrays at a 7:1 factor of safety. The PL-LA12-AF has been analyzed by an independent structural engineering firm. The pullback bar accessory (PL-LA12-PB, sold separately) works with rigging pick point #6 to provide horizontal angle control of the array. The white finish coordinates with white-finished PL-LA12 elements for cohesive all-white array installations.
Key Features
- Compatible with QSC PL-LA12 line array loudspeaker
- Supports arrays of up to 12× PL-LA12, or 3× PL-SUB18 + 10× PL-LA12
- 8 splay angle settings: 0.5°, 1.5°, 3°, 4.5°, 6°, 8°, 10°, 12°
- 11 rigging pick points
- Frame downtilt: 0° to 45° (uptilt possible by reversing frame)
- Working load limit: 300.3 kg / 662 lbs (7:1 factor of safety)
- Zinc-plated, powder-coated steel — 1000 hrs UV, 200 hrs salt spray rated
- Independently analyzed by structural engineering firm
- Compatible with PL-LA12-PB pullback bar (sold separately)

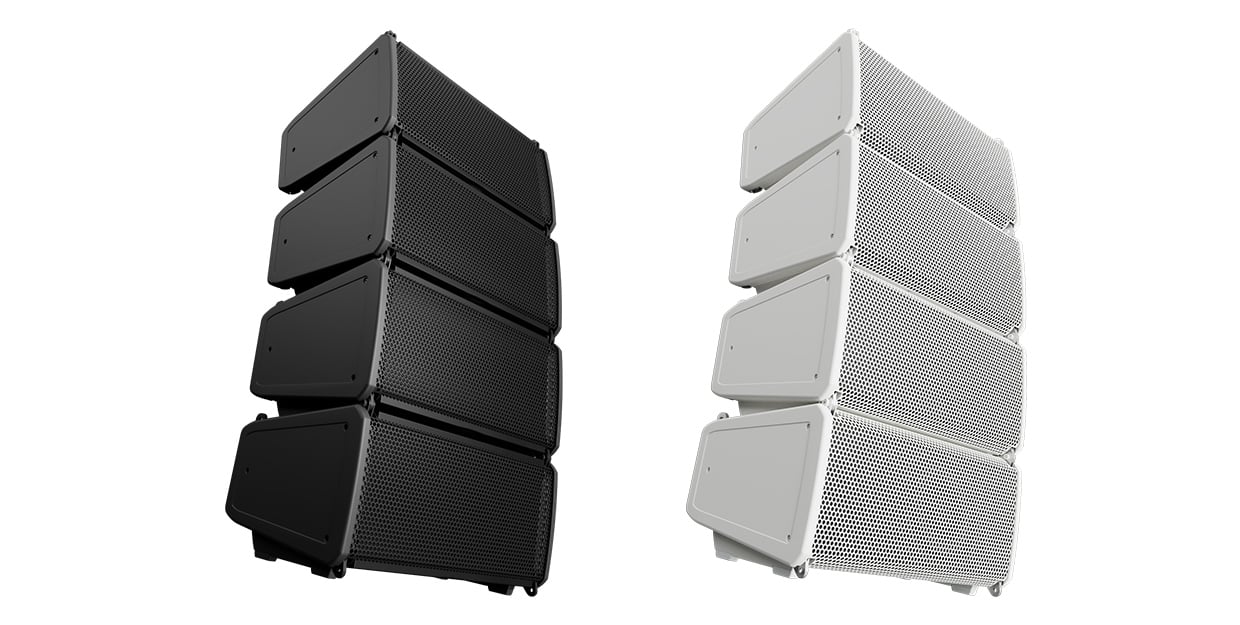

- White finish for all-white array installations
- Frame weight: 32 lbs (14.5 kg)
Technical Specifications
| Compatible Speaker | QSC PL-LA12 |
|---|---|
| Max Array Capacity | 12× PL-LA12, or 3× PL-SUB18 + 10× PL-LA12 |
| Splay Angles | 0.5°, 1.5°, 3°, 4.5°, 6°, 8°, 10°, 12° |
| Rigging Pick Points | 11 points (#1–#11) |
| Frame Downtilt Range | 0° to 45° |
| Working Load Limit (7:1 FoS) | 300.3 kg / 662 lbs (array) |
| Working Load Limit (10:1 FoS) | 214.1 kg / 472 lbs |
| Frame Weight | 32 lbs (14.5 kg) |
| Material | Zinc-plated, powder-coated steel |
| Finish | White |
| Weather Resistance | 1000 hrs UV, 200 hrs salt spray |
| Accessories | PL-LA12-PB pullback bar (sold separately) |
