QSC PL-DC8 – 8-in 2-Way Passive/Bi-Amp Directivity Control Loudspeaker, Black

Product Overview

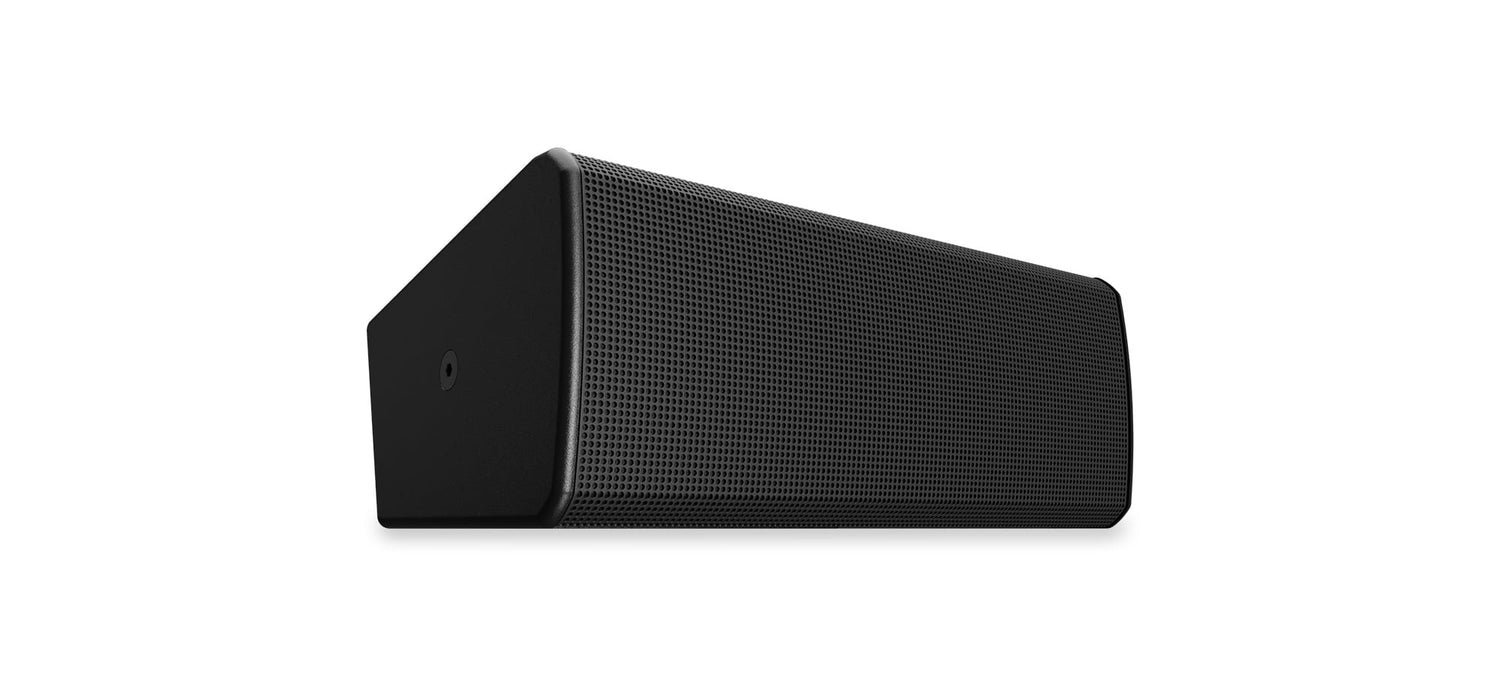

The QSC PL-DC8-BK is a two-way passive 8-inch directivity control point source loudspeaker built for installs requiring reconfigurable coverage and extended low-frequency reach from a vertical trapezoidal cabinet. With rotatable half-horn assemblies offering symmetrical and asymmetrical patterns, this passive directivity control loudspeaker adapts its dispersion to room geometry. The black (RAL 9011) exterior-plywood enclosure carries IP54 weatherization with polyurea paint for installed indoor and covered outdoor use. It is a purpose-built solution for main and fill coverage in fixed-install reinforcement systems.

Product Description

The PL-DC8 pairs an 8-inch neodymium LF transducer with a 2-inch voice coil and a 1-inch exit compression driver to deliver a system bandwidth of 61 Hz to 20 kHz (−3 dB) from an 11° trapezoidal enclosure. The reconfigurable and rotatable half-horn assemblies provide symmetrical 120° x 50° (default), 90° x 50°, or asymmetrical 105° (60°+45°) x 50° coverage. System sensitivity is 99 dB (120° x 50°) or 100 dB (90° x 50°), with continuous SPL up to 114 dB passive and 116 dB bi-amped. Power handling is 260 W continuous and 520 W program at 8 Ω. The cabinet supports passive operation at a 1.6 kHz crossover or bi-amp operation at 1.5 kHz. Connectivity includes two Speakon NL4 connectors and a parallel locking 4-pole Euroblock in an IP65-sealed input cup. Rigging uses 3x M10 on top and bottom, 2x M10 on the sides, and 4x M6 patterns for the PL-DC8-YM yoke mount and M10 KIT. IP54 weatherization with polyurea paint and an IP65 input cup supports challenging fixed-install environments. At 26.7 lbs, it delivers full-range output with flexible pattern control.

Key Features

• Reconfigurable Coverage — Rotatable half-horn assemblies provide 120°, 90°, or asymmetrical 105° horizontal patterns.
• 8-Inch Neodymium LF — Single driver with 2-inch voice coil delivers extended low-frequency reach down to 61 Hz (−3 dB).
• Asymmetrical Horn Option — 60°+45° split coverage targets non-symmetrical seating from a single cabinet.
• Passive or Bi-Amp Operation — Selectable crossover at 1.6 kHz passive or 1.5 kHz bi-amp adapts to system architecture.
• Trapezoidal Enclosure — 11° cabinet geometry supports tight array clustering and corner placement.
• M10 Rigging — Multiple M10 and M6 points with M10 KIT and PL-DC8-YM yoke support flexible mounting.
• IP54 Weatherization — Polyurea paint and IP65 input cup support covered outdoor installation.

Typical Applications

• House of worship — full-range reconfigurable coverage for sanctuaries and balconies.
• Auditorium — main or fill coverage with pattern control tuned to the audience plane.
• Multi-purpose room — adaptable dispersion with extended low-end for music and speech.
• Commercial meeting space — high-output reinforcement for presentations and program audio.
• Government space — installed coverage for council chambers and assembly halls.

Technical Specifications

Frequently Asked Questions

How is the coverage pattern changed?

The PL-DC8 uses reconfigurable and rotatable half-horn assemblies to select 120°, 90°, or asymmetrical 105° (60°+45°) horizontal coverage.

Does it support bi-amping?

Yes. It operates passively at a 1.6 kHz crossover or bi-amped at 1.5 kHz.

What rigging hardware is available?

The cabinet provides M10 and M6 points and is compatible with the PL-DC8-YM yoke mount and M10 KIT.

Can it be installed outdoors?

Yes, in covered locations. It carries IP54 weatherization with polyurea paint and an IP65 sealed input cup.

What connectors are provided?

Two Speakon NL4 connectors and one parallel locking 4-pole Euroblock in an IP65 sealed input cup.

What amplifier power is recommended?

The system is rated for 260 W continuous and 520 W program at 8 Ω.
