QSC PL-DC24 – Dual 4-in 2-Way Passive Directivity Control Loudspeaker, White

Product Overview

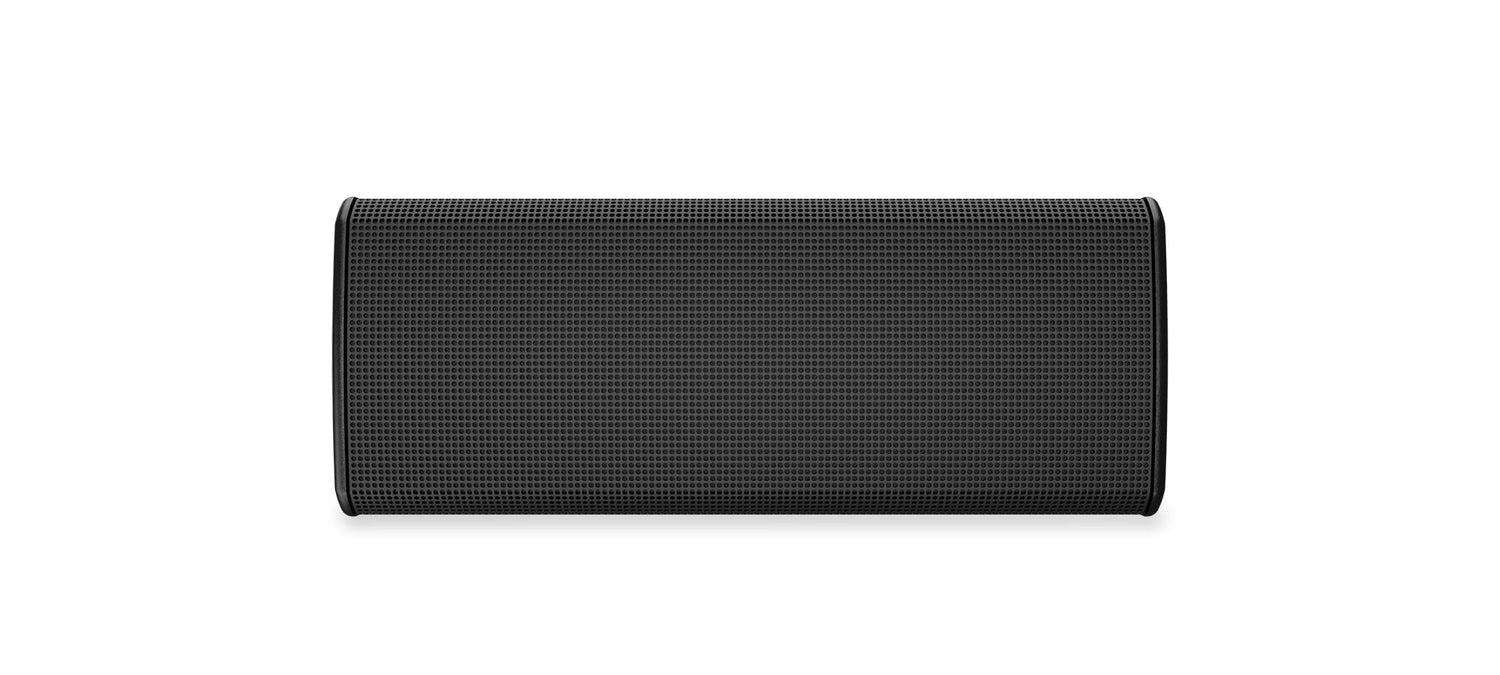

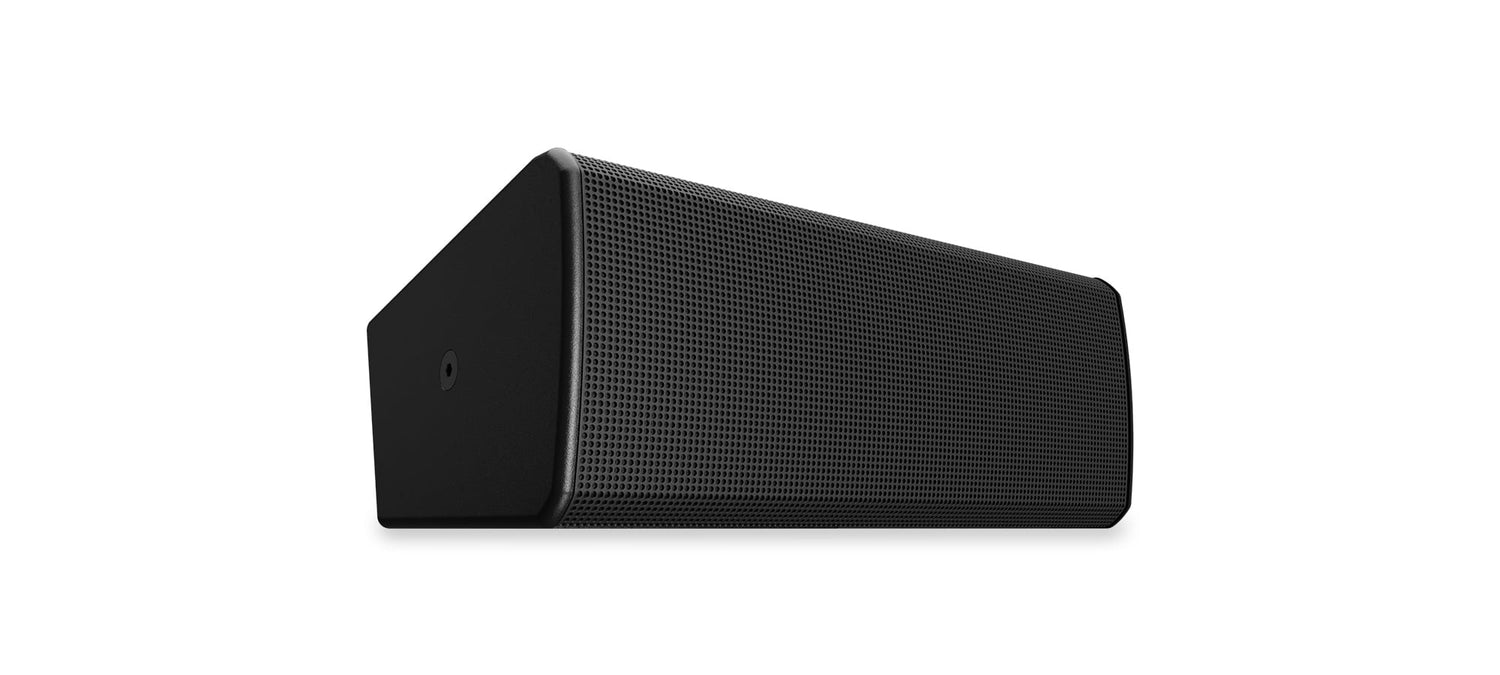

The QSC PL-DC24-WH is a two-way passive dual-4-inch directivity control point source loudspeaker finished in white (RAL 9003) for stage fills, delays, and under-balcony fill where a compact, low-visibility cabinet is required. With a fixed 110° x 50° horn and an asymmetrical enclosure profile, this passive directivity control loudspeaker delivers consistent coverage that blends with light architectural surfaces. The exterior-plywood enclosure carries IP54 weatherization with polyurea paint for installed indoor and covered outdoor use. It is a purpose-built solution for distributed fill and supplemental coverage in fixed-install systems.

Product Description

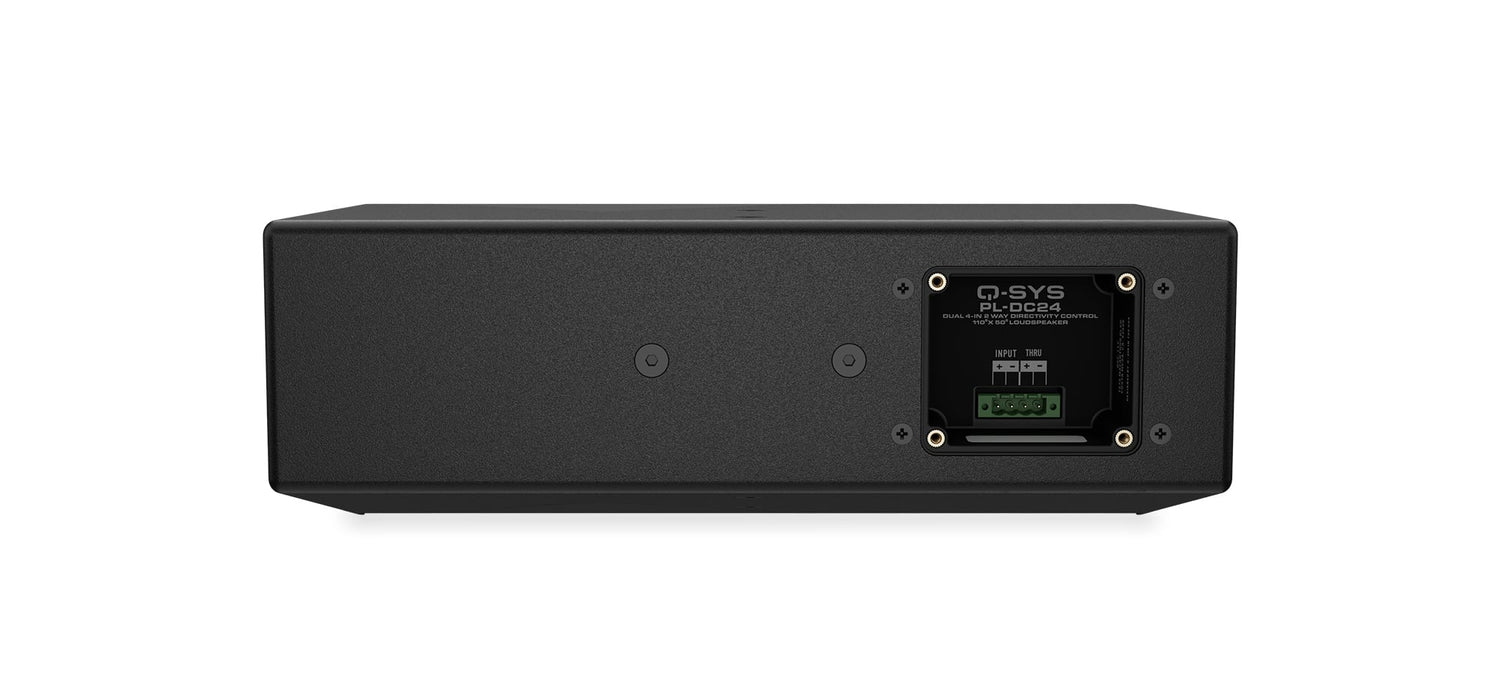

The PL-DC24 pairs dual 4-inch neodymium LF transducers in a V-shaped layout with a 0.7-inch exit compression driver to deliver a system bandwidth of 119 Hz to 20 kHz (−3 dB). System sensitivity is 97.5 dB (1 W/1 m), with continuous SPL of 111 dB and peak SPL of 123 dB. The fixed-horn point source design provides 110° x 50° coverage, and the asymmetrical 15° profile between top and bottom supports horizontal orientation for stage-lip and fill applications. Power handling is 120 W continuous and 240 W program at 8 Ω. The cabinet connects via a single locking 4-pole 14 AWG Euroblock in an IP65-sealed input cup. Rigging options include rear, top/bottom, and side M8 points for the PL-DC24-YM yoke mount or PL-DC24-FM flush mount. The white RAL 9003 finish, exterior plywood, stainless screws, UV-treated grille, hydrophobic mesh, polyurea paint, and IP65 input cup support installed environments where aesthetics matter. At 8.7 lbs, it installs in tight locations with minimal hardware load.

Key Features

• White RAL 9003 Finish — Light-toned enclosure blends with pale ceilings and walls in fill positions.
• Dual 4-Inch Neodymium LF — V-shaped transducer layout delivers consistent point source output from a compact cabinet.
• 110° x 50° Fixed Horn — Wide, defined coverage pattern suited to fill and delay positions.
• Asymmetrical 15° Profile — Horizontal-orientation design for stage-lip, delay, and under-balcony fill.
• Compact Footprint — 8.7 lb cabinet installs in space-constrained fill locations.
• IP54 Weatherization — Exterior plywood, polyurea paint, stainless screws, and IP65 input cup support covered outdoor use.
• Flexible Rigging — Rear, top/bottom, and side M8 points accept the PL-DC24-YM yoke or PL-DC24-FM flush mount.

Typical Applications

• Auditorium — stage-lip fill and delay coverage that blends with light finishes.
• House of worship — discreet front fill and supplemental coverage in sanctuaries.
• Multi-purpose room — compact fill speakers for distributed coverage zones.
• Broadcast studio — low-profile near-field reinforcement and monitoring.

Technical Specifications

Frequently Asked Questions

How does the PL-DC24-WH differ from the PL-DC24-BK?

The specifications are identical; only the enclosure finish differs, with the WH model supplied in white RAL 9003.

What is the PL-DC24 designed for?

It is intended for stage fills, delays, and under-balcony fill, typically installed in a horizontal orientation.

Is the horn pattern adjustable?

No. The PL-DC24 uses a fixed 110° x 50° horn.

What mounting accessories are available?

The PL-DC24-YM yoke mount and PL-DC24-FM flush mount are available, using the cabinet's M8 rigging points.

Can it be used outdoors?

Yes, in covered locations. It carries IP54 weatherization with exterior plywood, polyurea paint, and an IP65 sealed input cup with cable gland.

What is the recommended amplifier power?

The loudspeaker is rated for 120 W continuous and 240 W program at 8 Ω.
