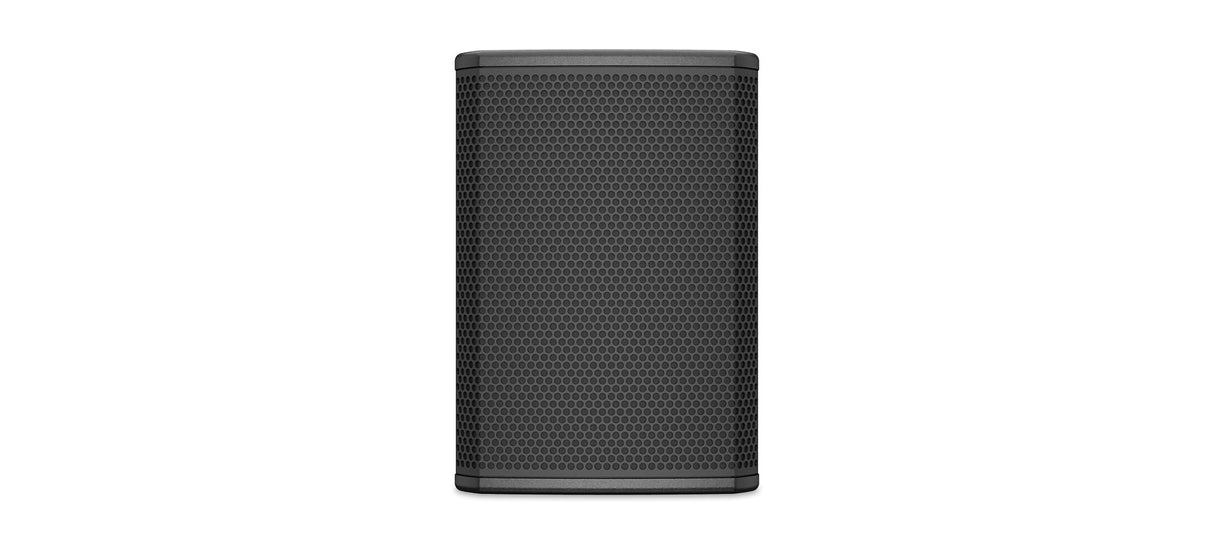

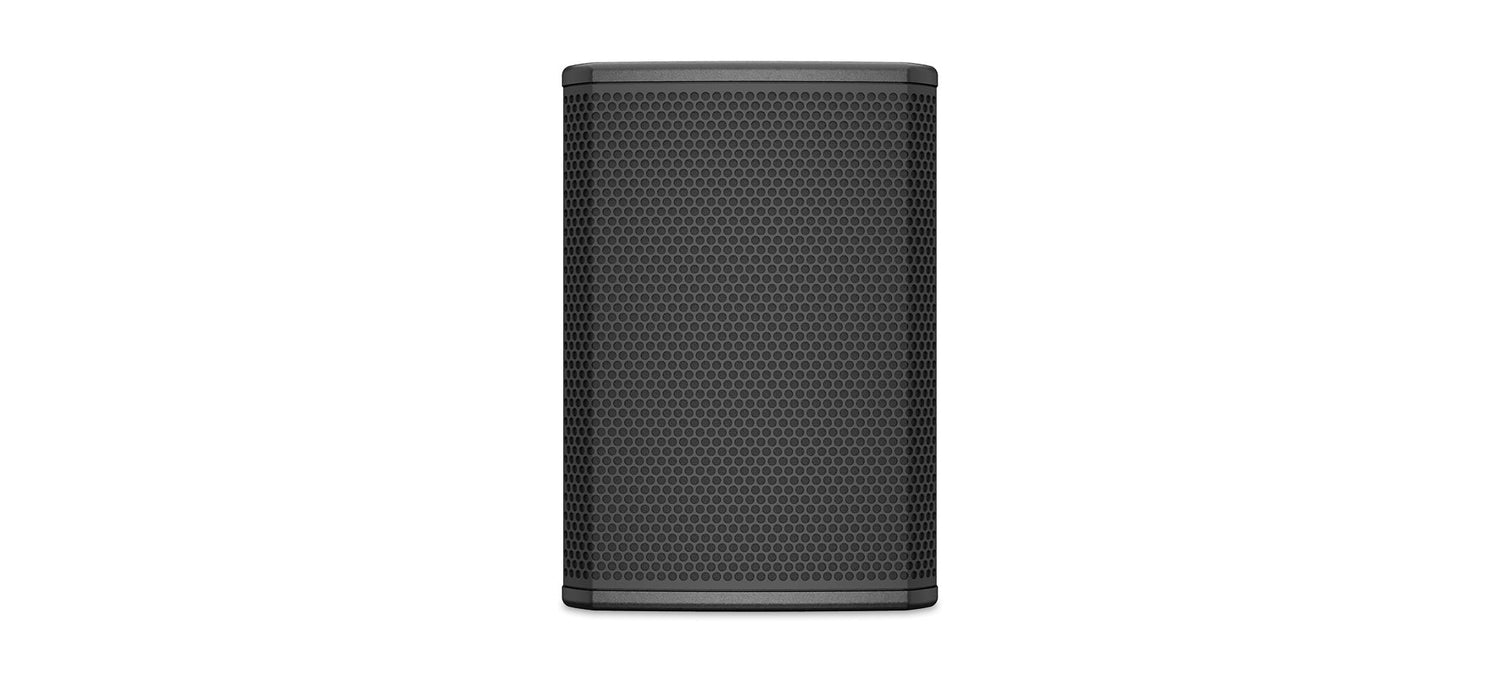

QSC PL-CA6 – Two-Way Passive 6-in Coaxial Loudspeaker, Black

Product Overview

The QSC PL-CA6-BK is a two-way full-range 6-inch coaxial installation loudspeaker designed for distributed and foreground coverage where point source imaging and extended bandwidth are required. With 115° conical DMT coverage and a trapezoidal enclosure, this passive coaxial loudspeaker delivers consistent on- and off-axis response from a compact cabinet. The black (RAL 9011) Baltic plywood enclosure carries IP54 weatherization with polyurea paint for installed indoor and covered outdoor use. It is a purpose-built solution for surface-mount distributed and fill audio in fixed-install systems.

Product Description

The PL-CA6 combines a 6-inch LF transducer with a coaxial compression-driver HF section to deliver a system bandwidth of 77 Hz to 20 kHz (−3 dB) with point source coherence. The 115° conical DMT coverage provides wide, symmetrical dispersion suited to overhead and wall-mounted distribution. System sensitivity is 93 dB (1 W/1 m), with continuous SPL of 111 dB and peak SPL of 123 dB. Power handling is 215 W continuous and 430 W program at 8 Ω. The cabinet connects via a single locking 4-pole 14 AWG Euroblock in an IP65-sealed input cup. Rigging uses 4x M6 top/bottom patterns and a single M8 for the PL-CA6-YM yoke mount. The 60° trapezoidal Baltic plywood enclosure is available in black or white; this model ships in black. Polyurea paint, an IP54 rating, and an IP65 input cup support installed environments. At 13.4 lbs, it balances output and bandwidth with a compact, mountable form factor.

Key Features

• Coaxial Point Source — 6-inch LF and coaxial compression HF deliver coherent imaging from a single axis.
• 115° Conical DMT Coverage — Wide, symmetrical dispersion for overhead and wall-mounted distributed audio.
• Extended Bandwidth — Response down to 77 Hz (−3 dB) supports full-range foreground program.

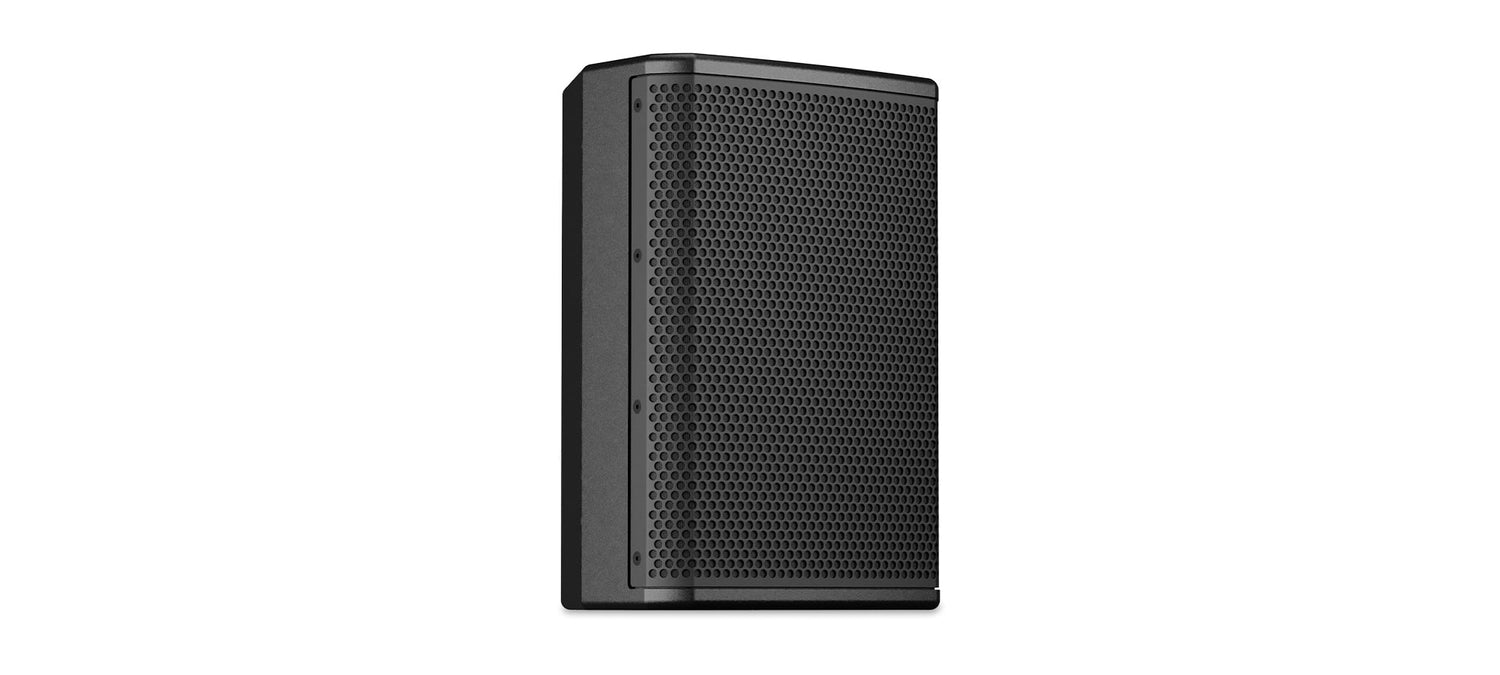

• Trapezoidal Enclosure — 60° cabinet geometry supports angled and corner mounting.
• IP54 Weatherization — Baltic exterior plywood, polyurea paint, and IP65 input cup support covered outdoor use.
• Yoke Mount Ready — M6 patterns and M8 point accept the PL-CA6-YM yoke mount.

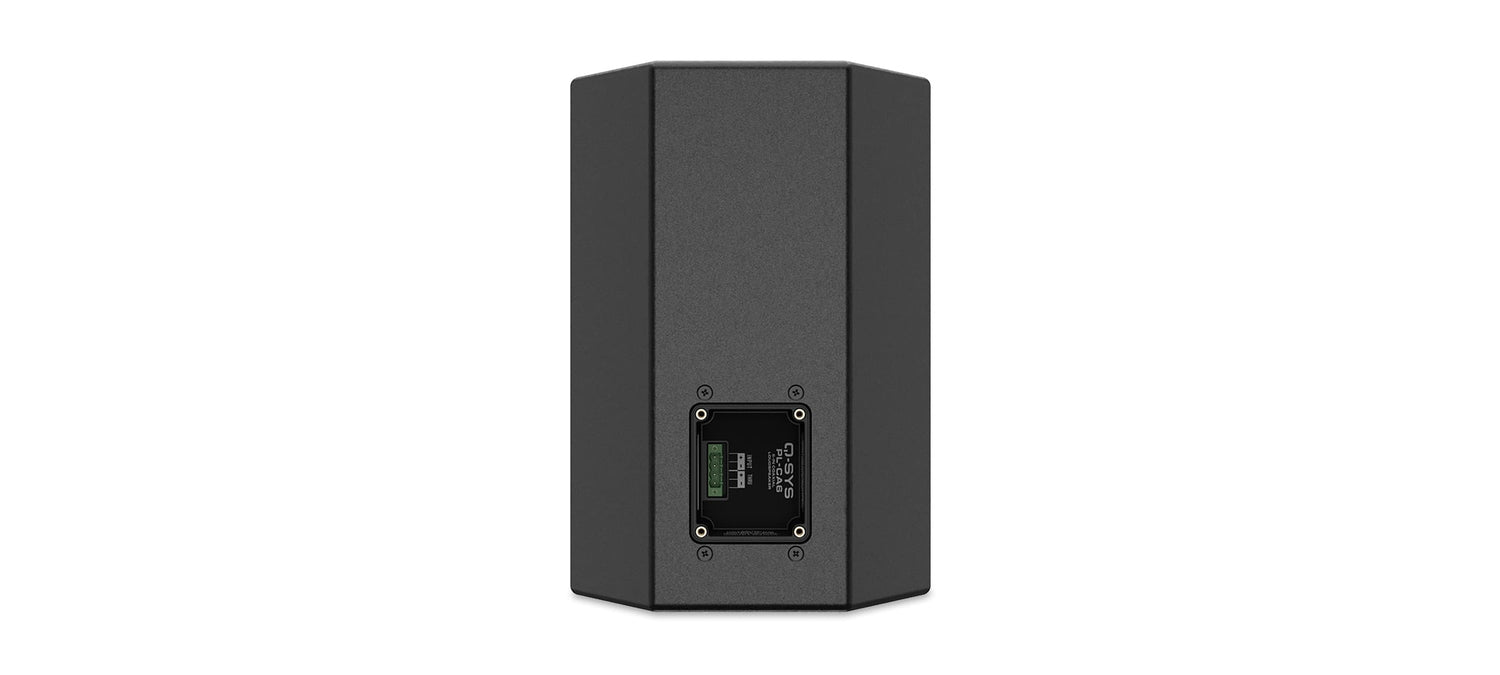

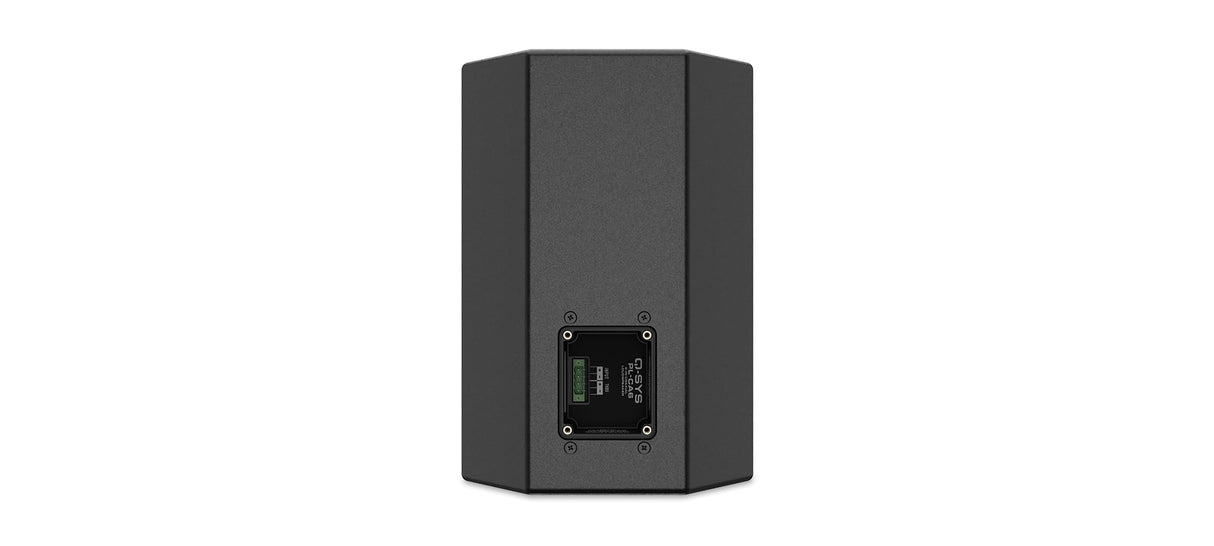

• Locking Euroblock Input — 4-pole 14 AWG connector in an IP65 sealed input cup.

Typical Applications

• Commercial meeting space — distributed foreground audio with consistent coverage.
• Multi-purpose room — point source coverage for speech and music program.
• House of worship — supplemental and zone coverage in sanctuaries and gathering spaces.
• Training room — even speech reinforcement for instructional spaces.

Technical Specifications

Frequently Asked Questions

What is conical DMT coverage?

It refers to QSC's Directivity Matched Transition coaxial design, which maintains a consistent 115° conical pattern across the crossover region.

What mounting accessory is available?

The PL-CA6-YM yoke mount attaches via the cabinet's M6 patterns and M8 point.

Can the PL-CA6 be used outdoors?

Yes, in covered locations. It carries IP54 weatherization with Baltic exterior plywood, polyurea paint, and an IP65 sealed input cup.

What connector does it use?

A single locking 4-pole 14 AWG Euroblock housed in an IP65 sealed input cup.

What amplifier power is recommended?

The loudspeaker is rated for 215 W continuous and 430 W program at 8 Ω.

Is a white version available?

Yes. The PL-CA6 enclosure is offered in black and white; this listing is for the black RAL 9011 finish.
