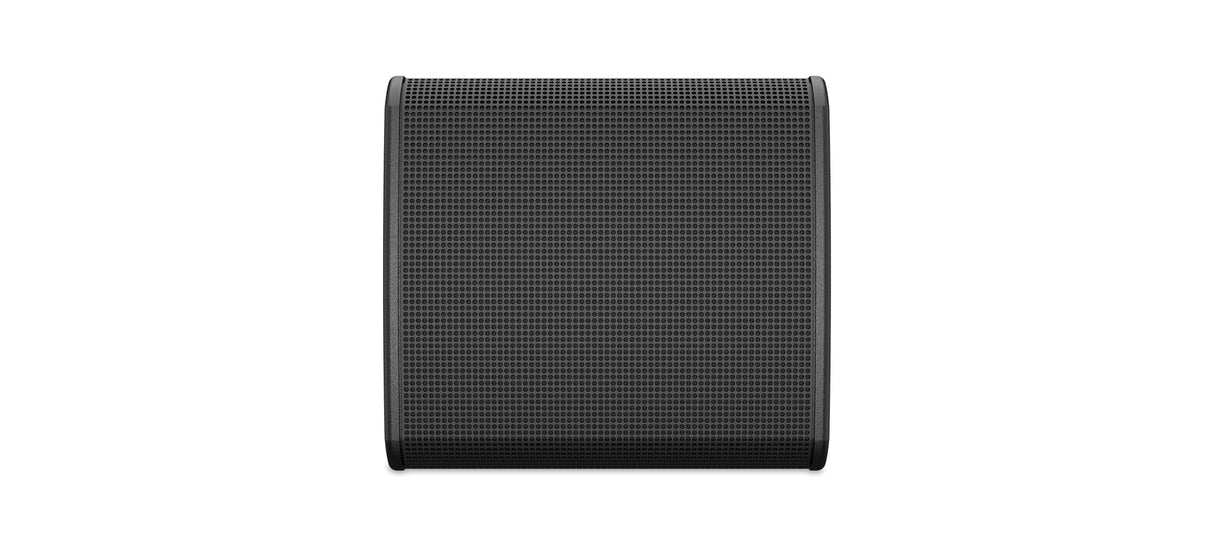

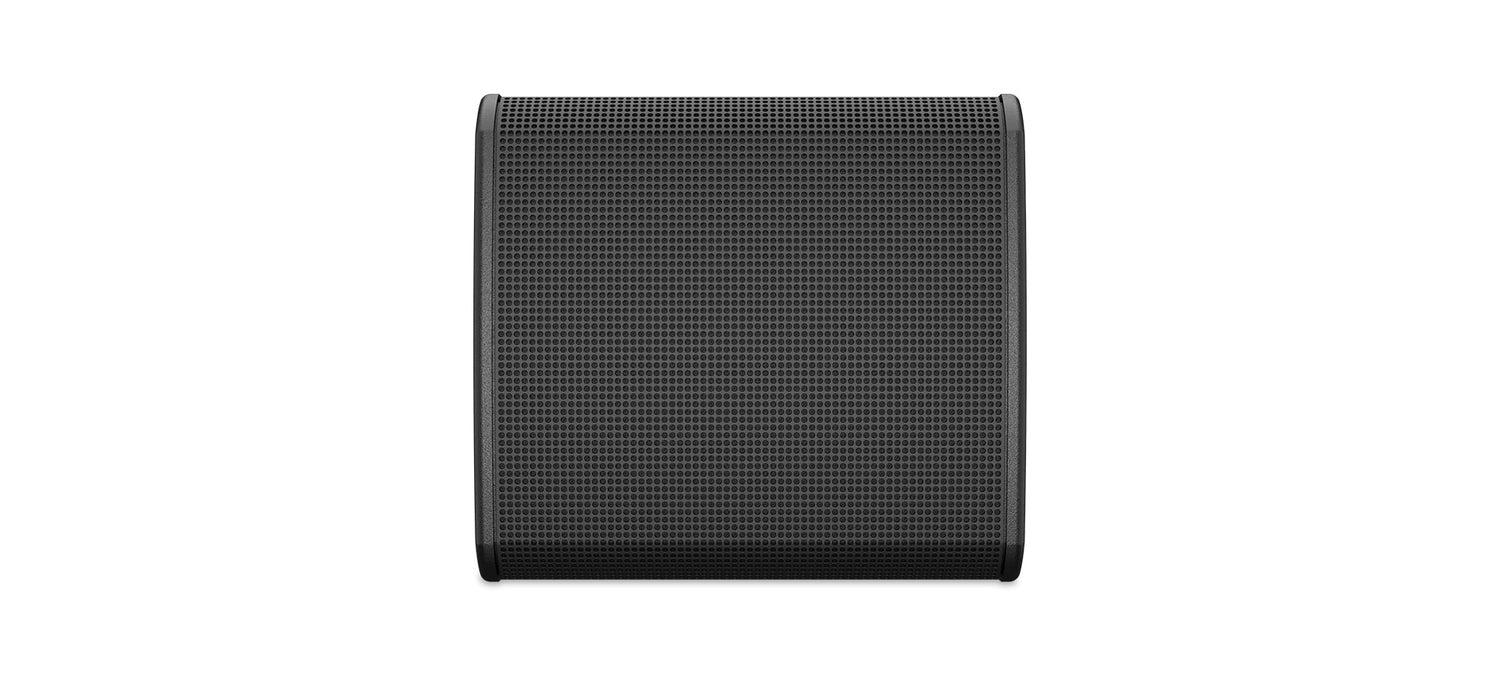

QSC PL-CA5 – Two-Way Passive 5-in Coaxial Loudspeaker, Black
Product Overview

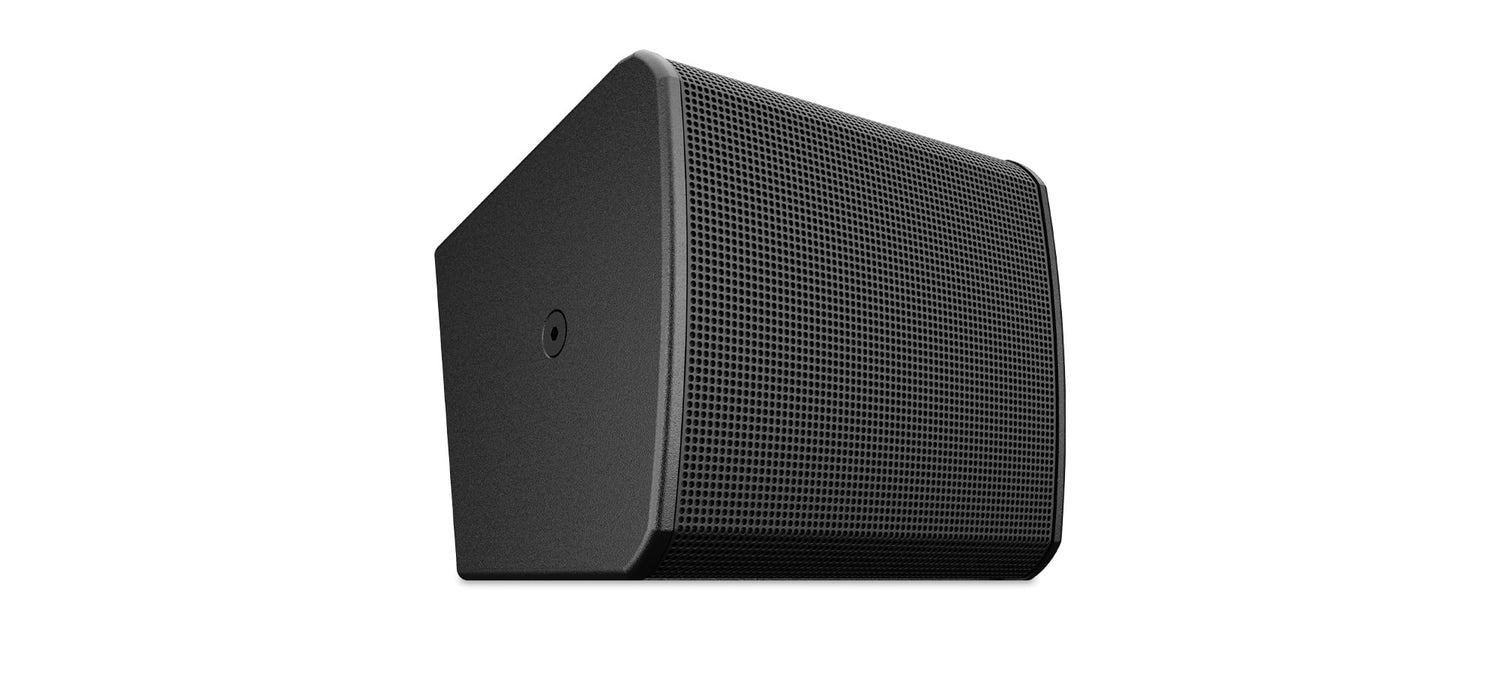

The QSC PL-CA5-BK is a two-way full-range 5-inch coaxial installation loudspeaker designed for distributed coverage in compact zones where point source imaging and a small footprint are required. With 115° conical DMT coverage and an asymmetrical enclosure profile, this passive coaxial loudspeaker delivers consistent on- and off-axis response for foreground and background audio. The black (RAL 9011) Baltic plywood enclosure carries IP54 weatherization with polyurea paint for installed indoor and covered outdoor use. It is a purpose-built solution for surface-mount distributed audio in fixed-install systems.
Product Description
The PL-CA5 combines a 5-inch LF transducer with a coaxial 1-inch voice coil tweeter to deliver a system bandwidth of 102 Hz to 20 kHz (−3 dB) with point source coherence. The 115° conical DMT coverage provides wide, symmetrical dispersion suited to overhead and wall-mounted distribution. System sensitivity is 88 dB (1 W/1 m), with continuous SPL of 107 dB and peak SPL of 119 dB. Power handling is 90 W continuous and 180 W program at 16 Ω, with the higher nominal impedance supporting parallel multi-speaker runs on a single amplifier channel. The cabinet connects via a single locking 4-pole 14 AWG Euroblock in an IP65-sealed input cup. Rigging uses rear, top/bottom, and side M8 points for the PL-CA5-YM yoke mount, and is compatible with the PL-DC24-FM flush mount. The 12 mm Baltic exterior plywood construction, polyurea paint, and IP65 input cup support installed environments. At 8.8 lbs, it installs cleanly in tight or distributed-coverage locations.
Key Features
- Coaxial Point Source — 5-inch LF and 1-inch coaxial tweeter deliver coherent imaging from a single axis.
- 115° Conical DMT Coverage — Wide, symmetrical dispersion for overhead and wall-mounted distributed audio.
- 16 Ω Nominal Impedance — Supports parallel multi-speaker runs on a single amplifier channel.
- Compact Footprint — 8.8 lb cabinet installs in space-constrained distributed-coverage zones.
- IP54 Weatherization — Baltic exterior plywood, polyurea paint, and IP65 input cup support covered outdoor use.
- Flexible Rigging — M8 points accept the PL-CA5-YM yoke and PL-DC24-FM flush mount.
- Locking Euroblock Input — 4-pole 14 AWG connector in an IP65 sealed input cup with cable gland.
Technical Specifications
| Specification | Value |
|---|---|
| Type | Two-way passive full-range coaxial, bass reflex |
| LF Transducer | 5 in (127 mm), 1.5 in (38 mm) voice coil |
| HF Transducer | Coaxial tweeter, 1 in (25 mm) voice coil |
| Coverage | 115° conical DMT |
| System Bandwidth (−3 dB) | 102 Hz–20 kHz |
| System Sensitivity | 88 dB (1 W/1 m) |
| Max SPL (Continuous) | 107 dB |
| Max SPL (Peak) | 119 dB |
| System Power Rating | 90 W continuous / 180 W rated @ 16 Ω |
| Nominal Impedance | 16 Ω |
| Minimum Impedance | 11.5 Ω |

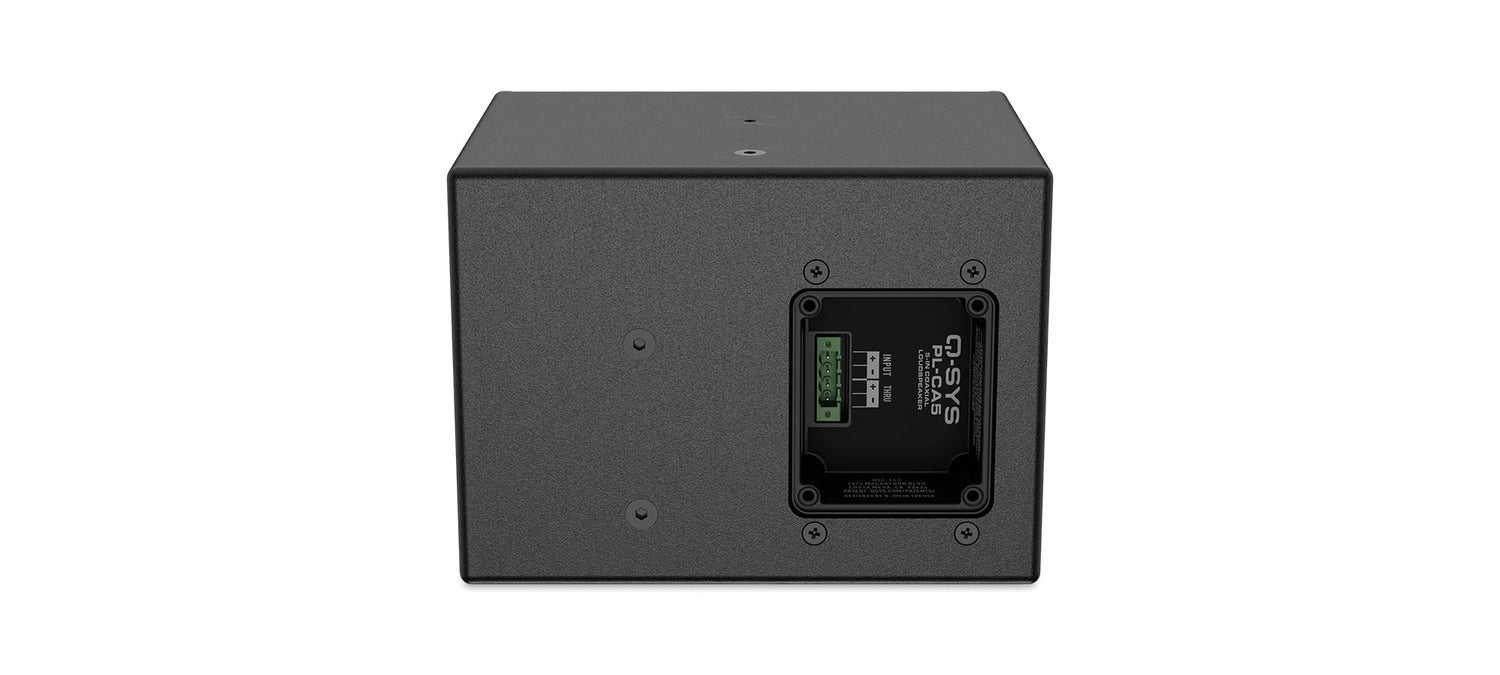

| Connectors | 1x Euroblock locking 4-pole 14 AWG; IP65 sealed input cup |
| Rigging | Rear: 2x M8 (70 mm); Top/Bottom: 2x M8 (60 mm); Sides: 1x M8 for yoke |
| Enclosure | 12 mm Baltic exterior plywood; Black (RAL 9011); polyurea paint |
| Weatherization | IP54; polyurea paint; IP65 input cup with gland |
| Dimensions (H x W x D) | 7.1 x 7.9 x 7.2 in (180 x 200 x 182 mm) |
| Weight | 8.8 lbs (4 kg) |
