QSC PL-CA12 – Two-Way Passive/Bi-Amp 12-in Coaxial Loudspeaker, White

Product Overview

The QSC PL-CA12-WH is a 12-inch two-way full-range coaxial loudspeaker designed for permanent installation environments where a white finish and slightly more compact dimensions than a 15-inch model are desirable. Delivering 80° conical DMT coverage, 131 dB peak SPL, and a frequency response reaching 42 Hz (–6 dB), the PL-CA12 is a versatile full-range loudspeaker for medium-sized venues and distributed systems.

Product Description

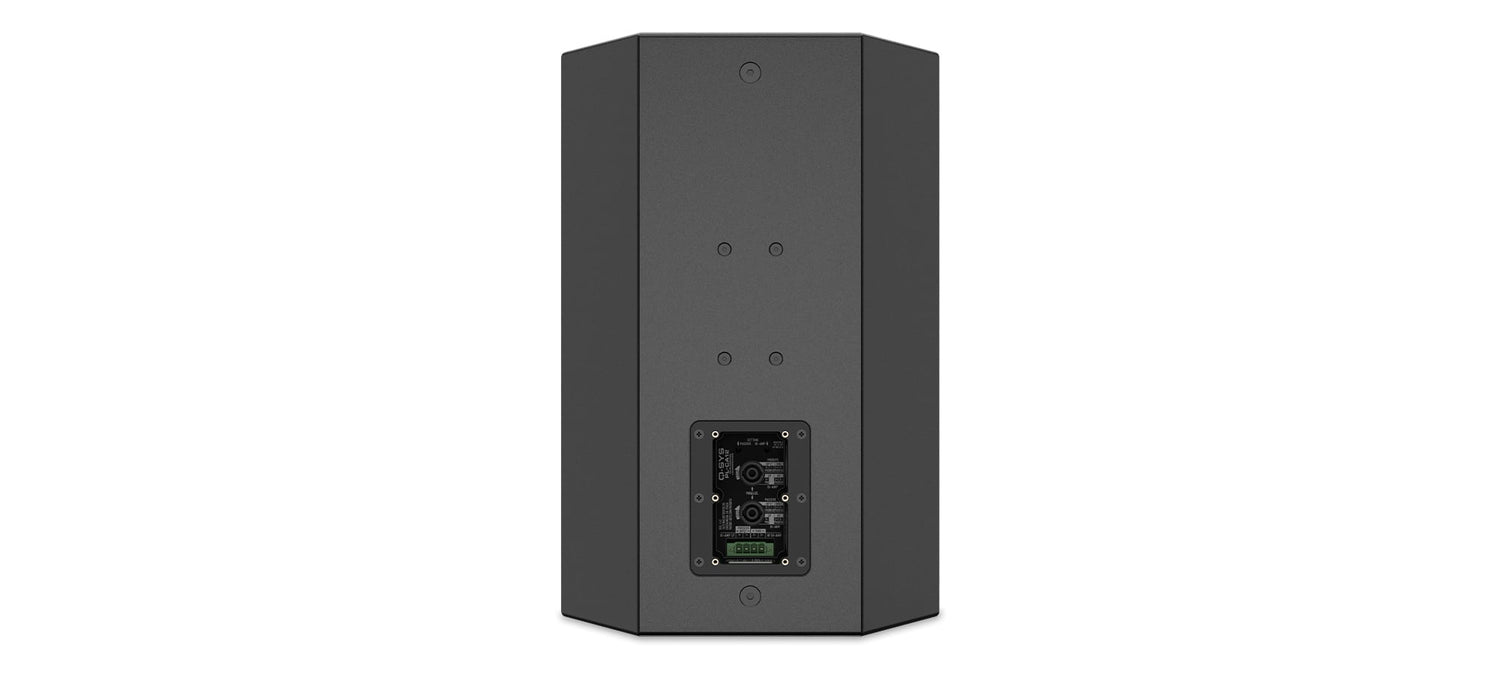

The PL-CA12 enclosure is built from 15 mm Baltic exterior plywood with a polyurea paint finish and IP54 environmental rating. The coaxial driver arrangement positions the HF compression driver at the acoustical center of the 12-inch neodymium LF cone, creating a unified acoustic source that delivers consistent coverage across the 80° conical pattern from low through high frequencies — a result of QSC's Directivity Matched Transition (DMT) technology. With 102 dB system sensitivity and 330 W continuous / 660 W rated power handling in passive mode, the PL-CA12 offers strong output for its enclosure size. The system also supports bi-amp operation for additional headroom. The IP65-rated input cup accepts dual Speakon NL4 connectors and a 4-pole Euroblock. Rigging points include top/bottom M6 pattern points, M10 attachment points, M8 yoke attachment, side M10 points, and rear pullback anchors, providing the same comprehensive rigging flexibility as the PL-CA15. The PL-CA12-YM-WH yoke mount (sold separately) is the recommended accessory for white-finish installations.

Key Features

• 12-inch neodymium LF driver with 3-inch (72.6 mm) voice coil
• Coaxial HF compression driver with 3-inch (76.2 mm) voice coil
• 80° conical coverage with Directivity Matched Transition (DMT) technology
• 102 dB system sensitivity (1 W/1 m, 200 Hz – 10 kHz)
• 119 dB continuous / 131 dB peak SPL (passive mode)
• 330 W continuous / 660 W rated system power handling (passive, 8 Ω)
• Frequency response: 47 Hz – 20 kHz (–3 dB); 42 Hz – 20 kHz (–6 dB)
• Passive or bi-amp operation
• IP54-rated trapezoidal enclosure in 15 mm Baltic plywood with polyurea paint
• IP65-rated input cup with 2× Speakon NL4 + 1× 4-pole Euroblock
• Comprehensive rigging: M6 pattern, M10 top/bottom/side/pullback, M8 yoke point
• Compatible with PL-CA12-YM-WH white yoke mount and PL-CA12-SL sub-link (sold separately)
• RAL 9003 white finish

Typical Applications

• Houses of worship specifying white speaker systems in medium-sized sanctuaries
• Corporate conference centers and training facilities
• Hotel ballrooms, meeting rooms, and hospitality venues
• Educational institutions, lecture halls, and auditoriums
• Distributed speaker systems in multi-zone commercial installations
• Museum, gallery, and architecturally sensitive public-space audio

Technical Specifications

FAQs

How does the PL-CA12-WH compare to the PL-CA15-WH?

The PL-CA12-WH is more compact and lighter (44 lbs vs. 50.7 lbs), making it better suited for medium-sized spaces or weight-sensitive rigging situations. The PL-CA15-WH offers slightly higher output (120 dB vs. 119 dB continuous) and deeper low-frequency extension (43 Hz vs. 47 Hz at –3 dB).

Can the PL-CA12-WH be paired with a PL-SUB15 or PL-SUB18 subwoofer?

Yes. The PL-CA12 includes a sub-link bracket point compatible with the PL-CA12-SL sub-link accessory, enabling integrated configurations with PL Series subwoofers. Contact Creation Networks for system design assistance.

Is a white yoke mount available for the PL-CA12-WH?

Yes. The PL-CA12-YM-WH white yoke mount is available separately at Creation Networks.

Can the PL-CA12-WH be used in bi-amp mode?

Yes. Bi-amp mode provides separate amplifier channels for the LF and HF drivers, increasing both continuous and peak SPL output compared to passive operation.
