QSC MPA-Q 8x250 – 8-Channel 250W Q-SYS Network Amplifier
Product Overview
The QSC MPA-Q 8x250 is an eight-channel, 250 W per channel Q-SYS network amplifier that brings native Q-SYS integration to medium and large distributed audio applications. Part of the MPA-Q Series — QSC's mid-power tier in the Q-SYS network amplifier portfolio — the MPA-Q 8x250 is engineered for hospitality venues, entertainment spaces, retail environments, and corporate and government facilities where reliable, software-driven amplification across many zones is essential. Creation Networks is an authorized QSC dealer supplying and integrating the MPA-Q Series for commercial AV projects nationwide.
Product Description

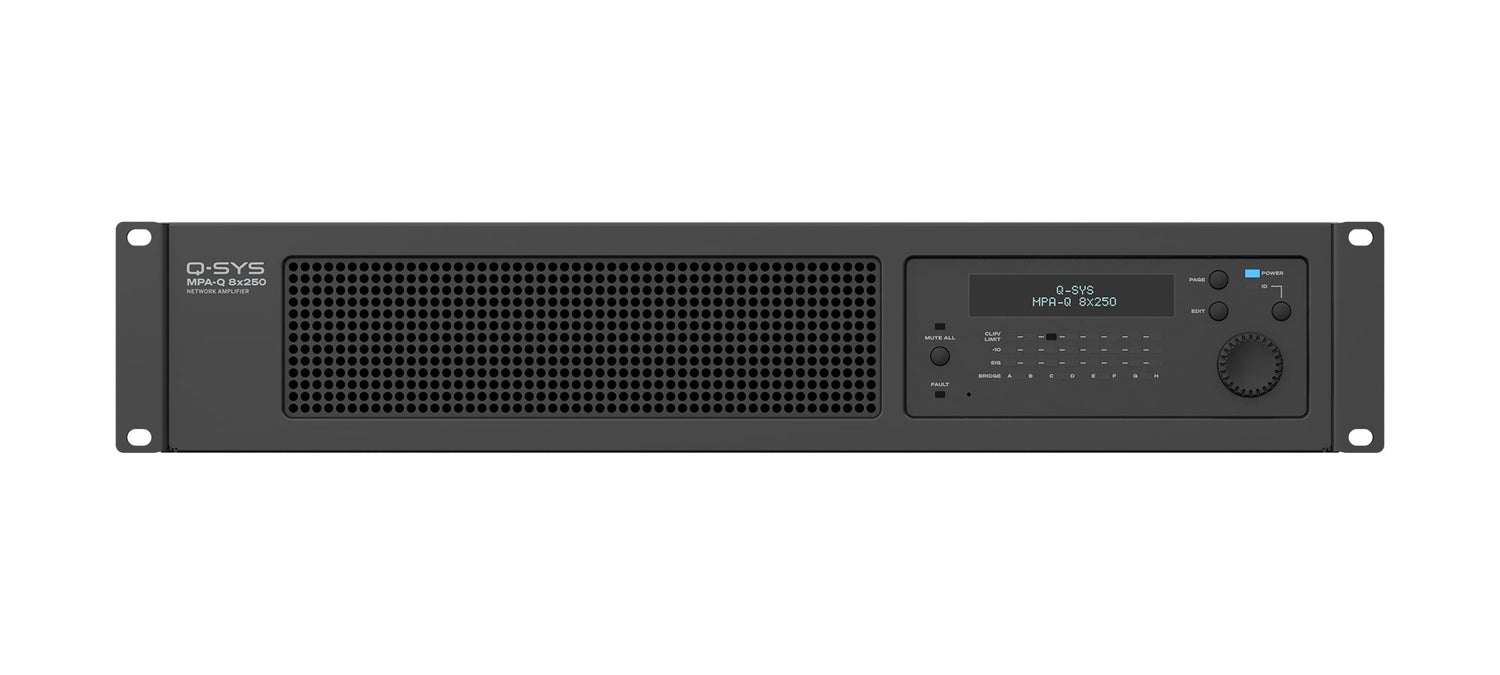

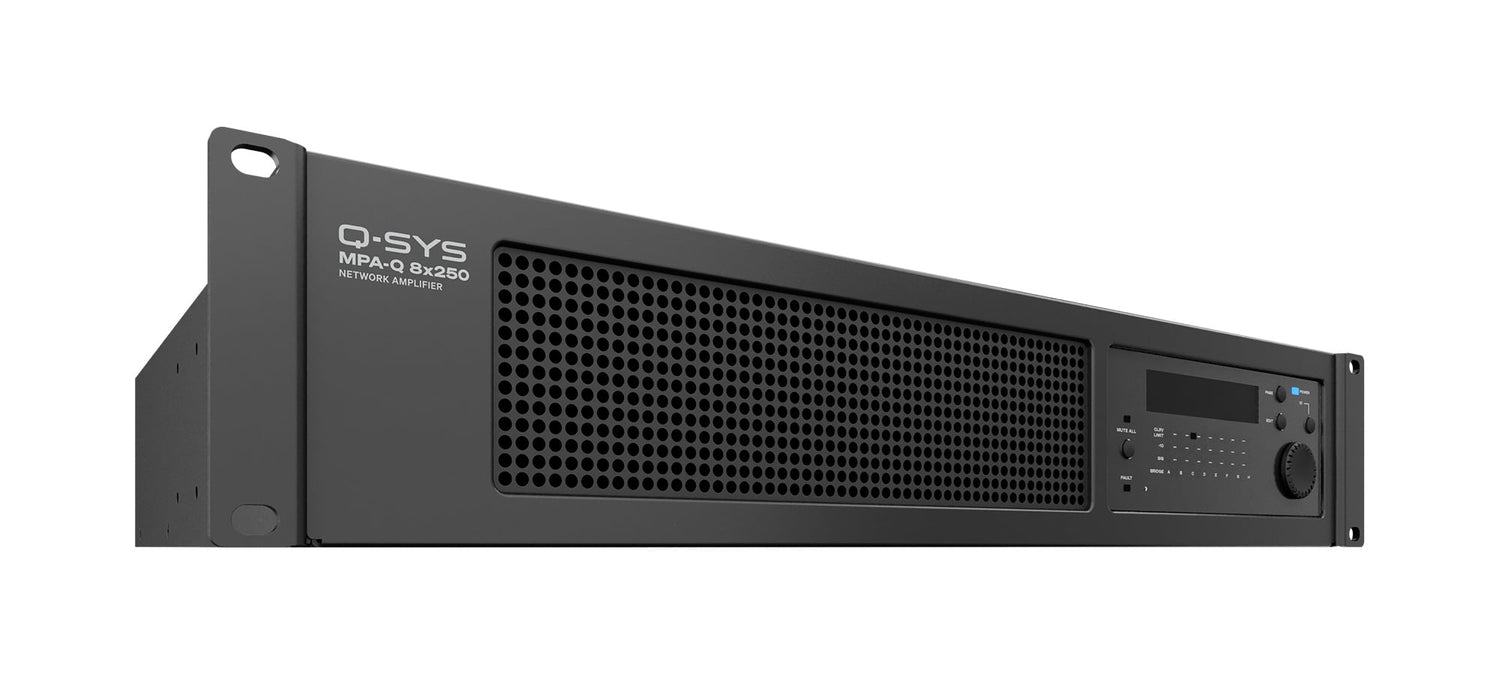

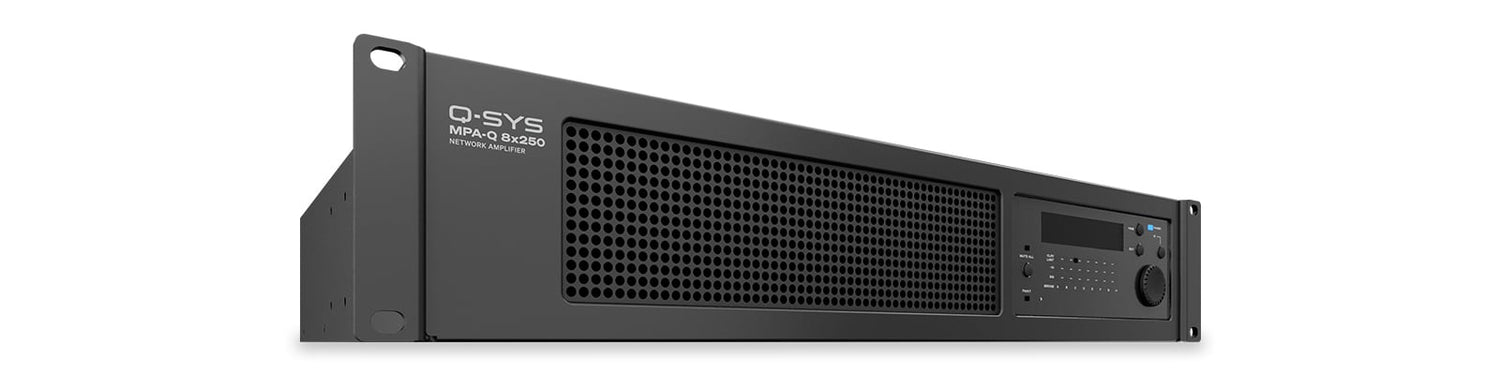

The MPA-Q 8x250 delivers 250 W per channel across eight independently configurable output channels with Lo-Z, Hi-Z, 70 V, and 100 V direct drive available on every channel — no bridging or manual switches required. Eight analog line-level inputs are fully routable into Q-SYS or can drive outputs directly. Two gigabit Ethernet ports provide redundant Q-LAN networked audio, and LAN A optionally accepts PoE (802.3af Type 1) to enable rapid audio restore after a power interruption. Standalone Mode automatically switches to available analog inputs if network connectivity drops, ensuring audio continuity without manual intervention. The full-rack-width, 2RU quiet fan-cooled chassis can be rack-mounted or surface-mounted, and includes four GPI inputs and two NO/NC output relays for integration with third-party control systems.
Key Features
- 8 output channels at 250 W per channel (continuous, all channels driven)
- Lo-Z, Hi-Z, 70 V, and 100 V direct drive on all channels — no bridging or manual switches needed
- 8 analog line-level inputs, fully routable into Q-SYS or direct out
- Two gigabit Ethernet ports for redundant Q-LAN networked audio
- LAN A accepts optional PoE (802.3af Type 1) for quick audio restore after power outage
- Standalone Mode: automatic failover to analog inputs if network connectivity drops
- Analog Mode: bypasses network audio for fully analog amplifier operation; front-panel display allows basic channel configuration
- DSP per channel: Gain, Polarity, IIR Filters (HPF, Parametric, Shelf, Array Correction), FIR Filters (1024 taps), Delay (up to 2020 ms), Limiters (narrow-band, RMS, peak)
- SNR >112 dB (A-weighted, 20 Hz–20 kHz, 8Ω)
- THD+N <0.01%–0.03% typical at 1 kHz (1% max)
- 4 GPI inputs and 2 NO/NC output relays for external control integration
- Full-rack-width, 2RU quiet fan-cooled form factor; rack or surface mountable
- 100–240 V, 50/60 Hz universal power input
Typical Applications
- Hotels, casinos, and resorts with multi-zone background music and paging across lobbies, restaurants, and event spaces
- Entertainment venues and nightclubs requiring distributed audio across many independently controlled zones
- Retail flagship stores and shopping centers with zone-by-zone audio management
- Large corporate campuses and conference centers with distributed paging and background music
- Government facilities and airport terminals requiring reliable, zone-specific audio distribution
- Houses of worship with overflow rooms, lobbies, and courtyard audio zones
- Multi-zone performance audio applications integrated within the Q-SYS platform
Technical Specifications
| Specification | Value |
|---|---|
| Output Channels | 8 |
| Output Power (continuous, all ch, 8Ω) | 150 W per channel |
| Output Power (maximum, all ch, 8Ω) | 250 W per channel |
| Output Power (maximum, single ch, 8Ω) | 500 W |
| Output Power (2-ch bridged, 8Ω) | 500 W max / 300 W continuous |
| Impedance Options | Lo-Z (8Ω, 4Ω, 2Ω), 70 V, 100 V, Hi-Z |
| Frequency Response | +0.2 dB / −0.7 dB (20 Hz–20 kHz, 8Ω) |
| THD+N @ 1 kHz | 0.01%–0.03% typical; 1% max |
| SNR (A-weighted, 8Ω) | >112 dB |
| Gain @ +4 dBu input | 31 dB |
| Damping Factor | >160 |
| Analog Input Dynamic Range | >108 dB (unweighted) |
| Input Impedance @ 1 kHz | >11k balanced; >5.5k unbalanced |
| Sample Rate | 48 kHz |
| DSP | Gain, Polarity, IIR Filters, FIR (1024 taps/ch), Delay (up to 2020 ms/ch), Limiters |
| Networking | 2× 1 Gbps Ethernet (LAN A: optional PoE 802.3af Type 1) |
| GPI / Relays | 4 GPI inputs (0–3.3 V DC closure); 2 NO/NC output relays |

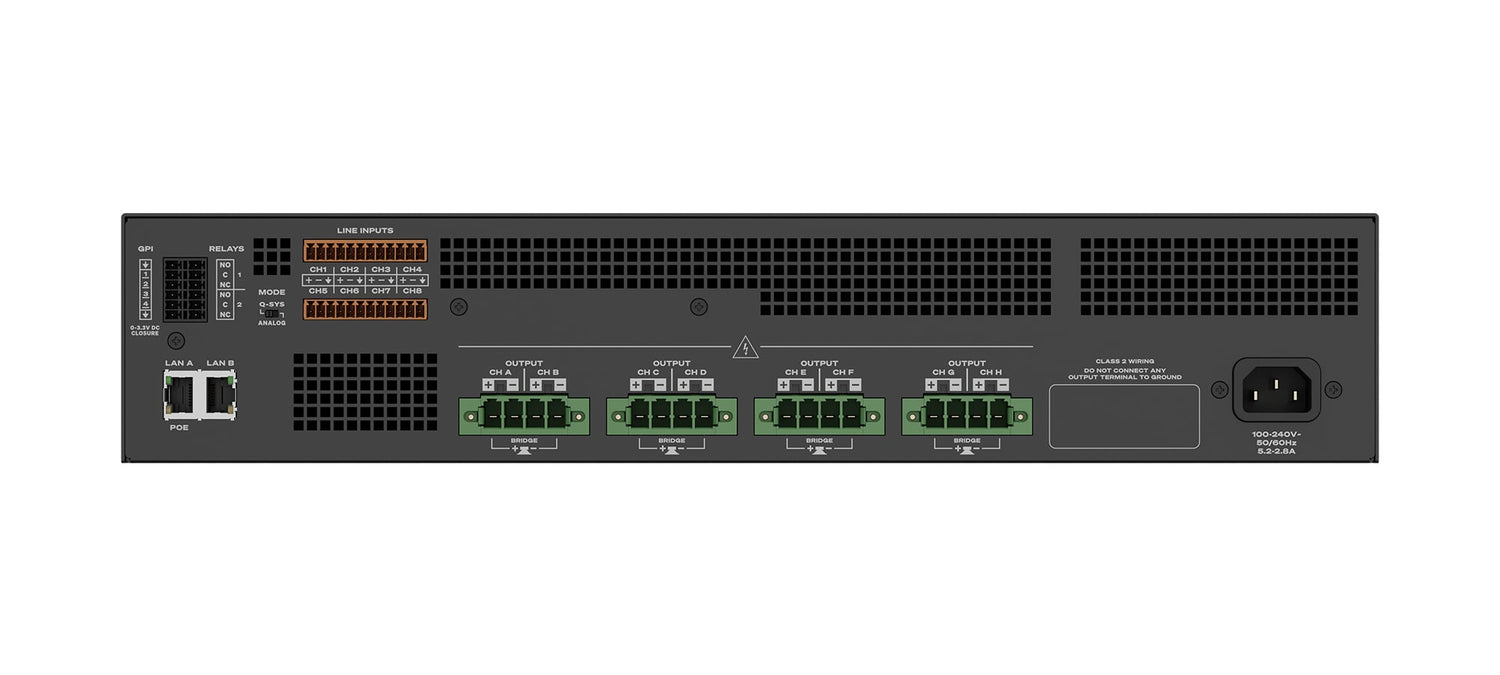

| Audio I/O Connectors | Output: 8× 4-pin Euro 7.62 mm; Input: 8× 3-pin Euro 3.5 mm |
| AC Power Input | 100–240 V, 50/60 Hz, 5.2–2.8 A |
| Dimensions (L×W×H) | 15.0 × 19.0 × 3.5 in (381 × 483 × 89 mm) |
| Weight | 22.9 lb (10.4 kg) |
| Operating Temperature | 32°–104° F (0°–40° C) |
| Humidity Range | 5%–85% RH |
Frequently Asked Questions
- What happens if the network connection drops?
- The MPA-Q 8x250 features Standalone Mode, which automatically switches audio sources to the available analog line inputs if network connectivity is lost. When network audio is restored, the amplifier switches back automatically — with no manual intervention required.
- Can the MPA-Q 8x250 run without a Q-SYS Core?
- Yes. Setting the rear-panel Mode switch to Analog Mode bypasses Q-SYS entirely, turning the unit into a fully analog amplifier. In this mode, analog inputs route directly to corresponding outputs, and basic channel configuration (gain, mute, impedance, bridge) is available from the front-panel display.
- Does the MPA-Q 8x250 support 70 V and 100 V distributed audio?
- Yes. Lo-Z (2, 4, 8Ω), 70 V, 100 V, and Hi-Z are all supported on every output channel simultaneously without bridging or manual switch changes — all configurable in Q-SYS Designer Software.
- How does PoE benefit this amplifier?
- LAN A accepts optional PoE (802.3af Type 1). When a PoE connection is present after a power outage, the amplifier can restore network audio within seconds — before its internal power supply is fully initialized — minimizing audio downtime.
- Can Creation Networks design a system using the MPA-Q 8x250?
- Creation Networks is an authorized QSC dealer with expertise in Q-SYS system design. Contact us for assistance with amplifier selection, zone design, and full Q-SYS integration.
