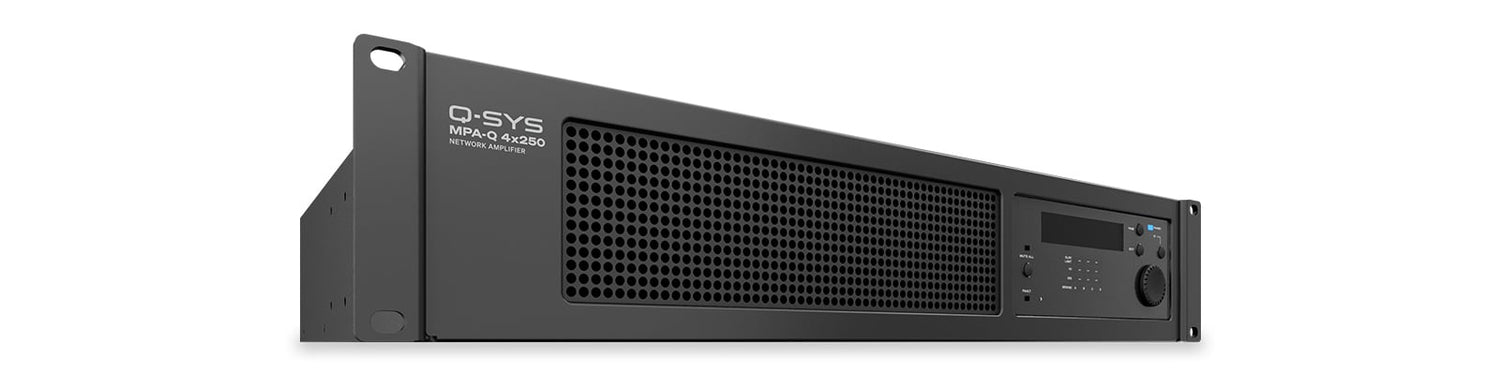

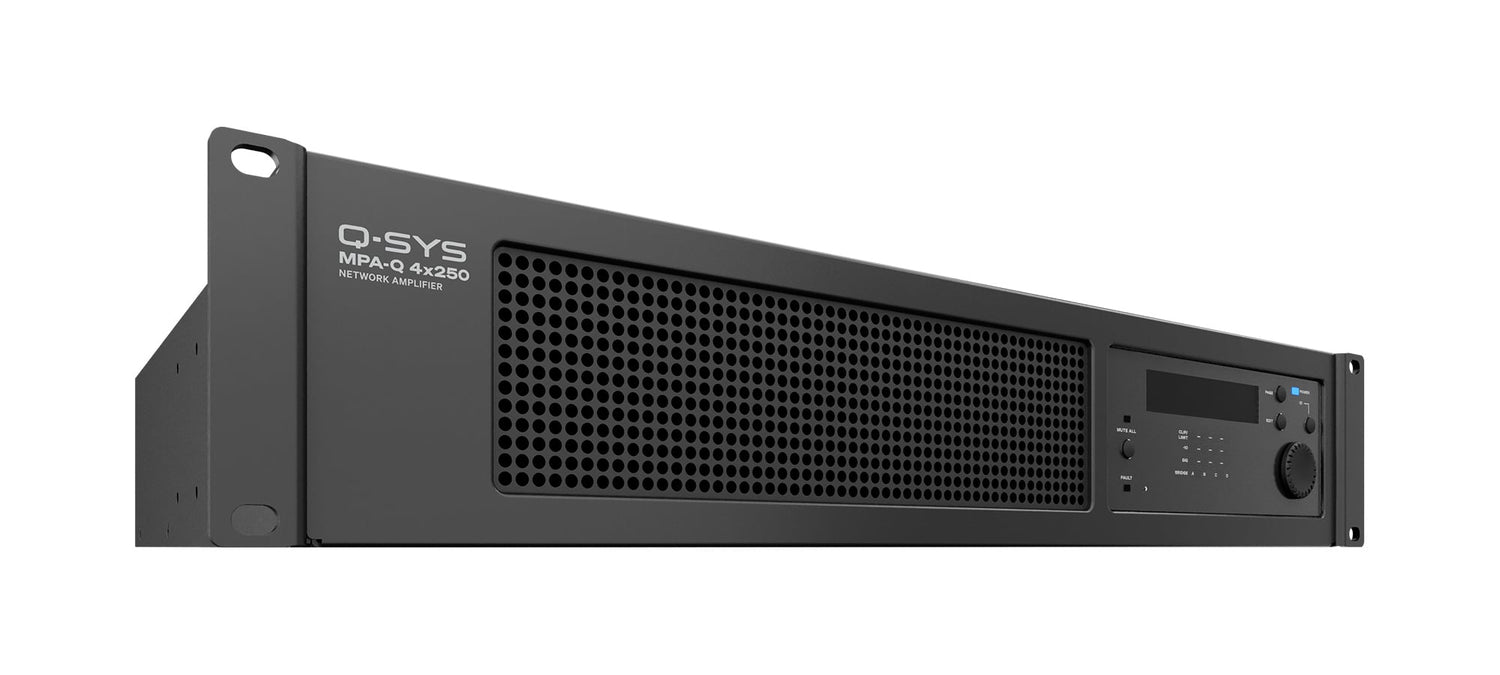

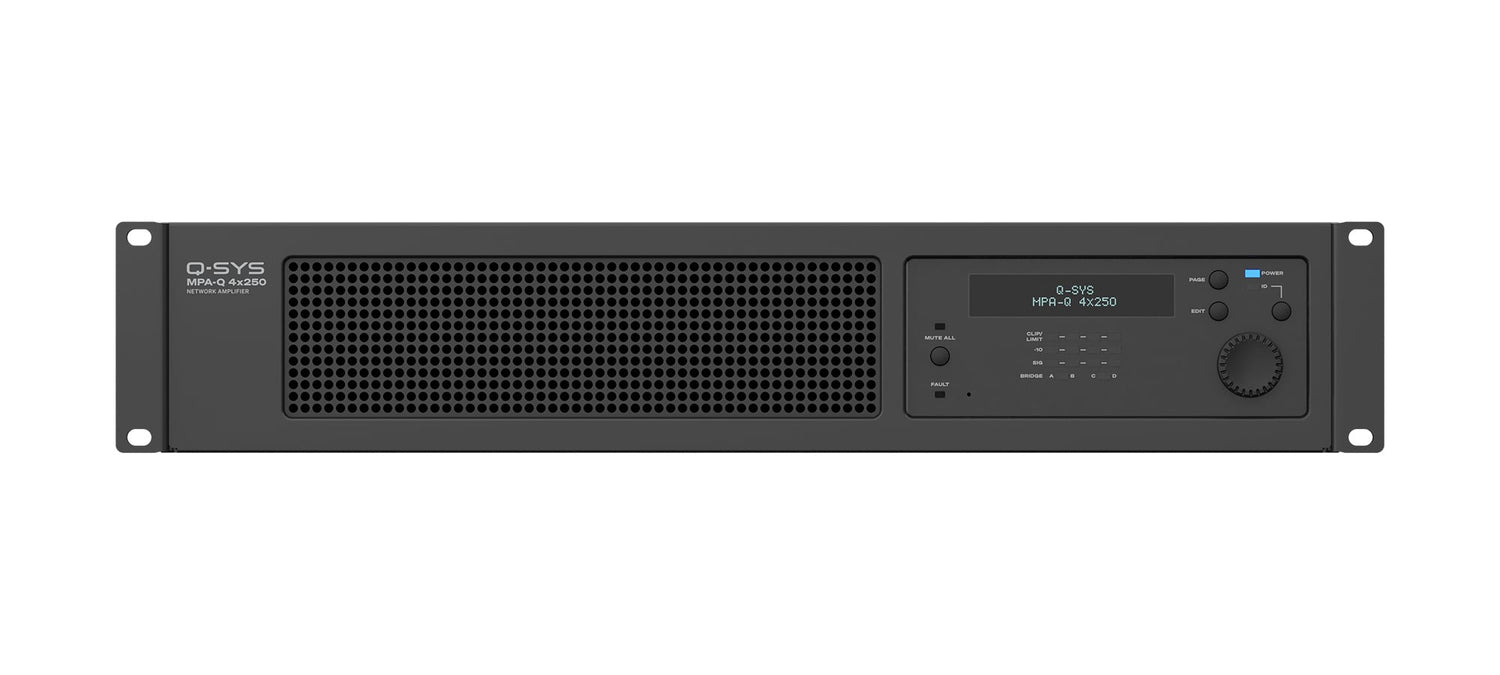

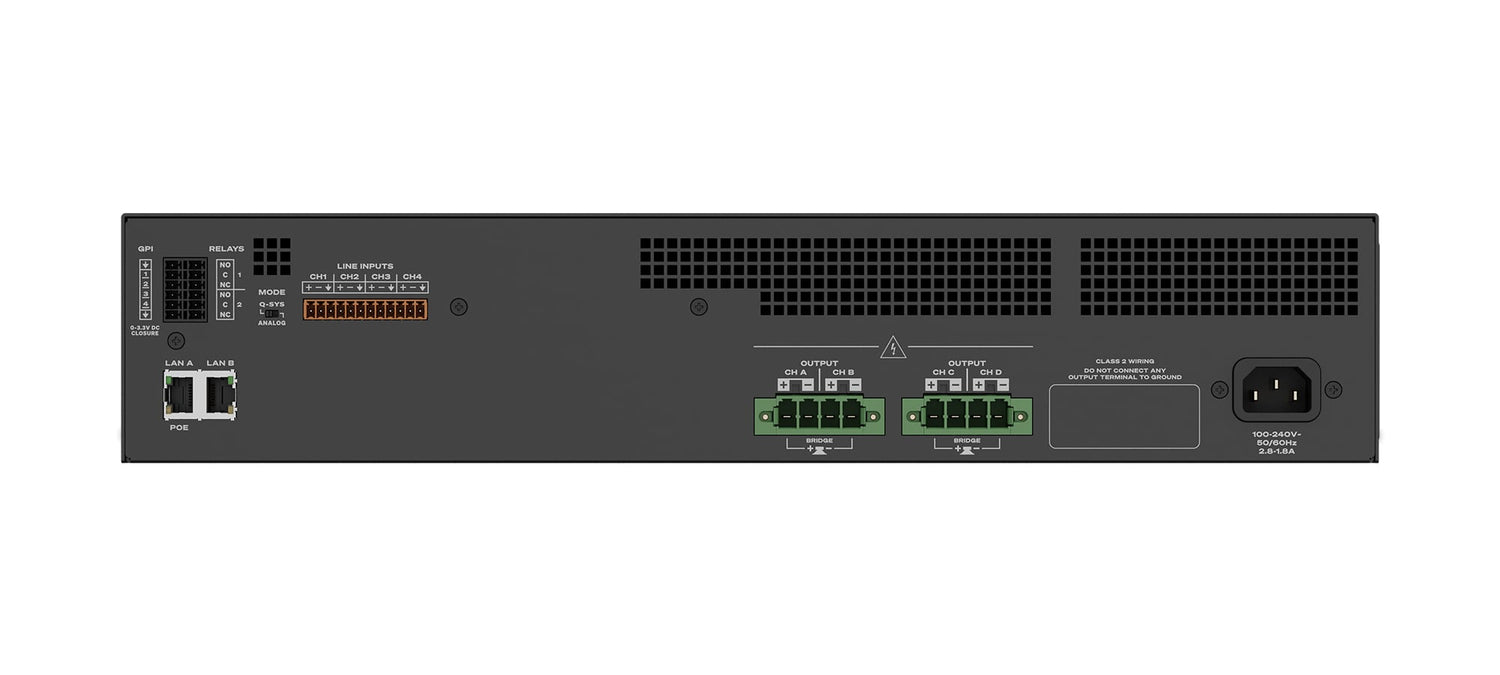

QSC MPA-Q 4x250 – 4-Channel 250W Q-SYS Network Amplifier

Product Overview

The QSC MPA-Q 4x250 is a four-channel, 250 W per channel Q-SYS network amplifier that serves as the entry point to the MPA-Q Series — QSC's mid-power tier in the Q-SYS network amplifier portfolio. Combining native Q-SYS integration with practical four-channel flexibility and 250 W output power, the MPA-Q 4x250 is well-suited for medium-sized zones in hospitality, retail, entertainment, and corporate facilities where Q-SYS control is preferred but high-density channel counts are not required. Creation Networks is an authorized QSC dealer supplying and integrating the MPA-Q Series for commercial AV projects nationwide.

Product Description

The MPA-Q 4x250 delivers 250 W per channel across four independently configurable output channels with Lo-Z, Hi-Z, 70 V, and 100 V direct drive on every channel — no bridging or manual switches required. Four analog line-level inputs are fully routable into Q-SYS or can drive outputs directly. Two gigabit Ethernet ports provide redundant Q-LAN networked audio connectivity, and LAN A optionally accepts PoE (802.3af Type 1) for rapid audio restore following a power interruption. Standalone Mode automatically switches to available analog inputs if network connectivity drops. When bridged, two channels combine to deliver up to 500 W maximum into a single load. The quiet fan-cooled, full-rack-width 2RU chassis supports rack and surface mounting and includes four GPI inputs and two NO/NC relays for seamless control system integration.

Key Features

• 4 output channels at 250 W per channel (continuous, all channels driven)
• Lo-Z, Hi-Z, 70 V, and 100 V direct drive on all channels — no bridging or manual switches needed
• Up to 500 W maximum when 2 channels are bridged (A+B or C+D)
• 4 analog line-level inputs, fully routable into Q-SYS or direct out
• Two gigabit Ethernet ports for redundant Q-LAN networked audio
• LAN A accepts optional PoE (802.3af Type 1) for quick audio restore after power outage
• Standalone Mode: automatic failover to analog inputs if network connectivity drops
• Analog Mode: bypasses network audio for fully analog amplifier operation with front-panel configuration
• DSP per channel: Gain, Polarity, IIR Filters (HPF, Parametric, Shelf, Array Correction), FIR Filters (1024 taps), Delay (up to 2020 ms), Limiters (narrow-band, RMS, peak)
• 4 GPI inputs and 2 NO/NC output relays for external control integration
• Full-rack-width, 2RU quiet fan-cooled form factor; rack or surface mountable
• 100–240 V, 50/60 Hz universal power input

Typical Applications

• Hotel restaurants, bars, and meeting rooms requiring independent zone control via Q-SYS
• Retail environments with defined audio zones needing moderate output power
• Corporate conference centers and office common areas with Q-SYS-managed audio
• Entertainment venues with smaller performance or lounge spaces
• Houses of worship with side chapel, lobby, or overflow room audio zones
• Small-to-medium ballrooms and banquet halls with flexible zone audio requirements
• Projects requiring an entry-level MPA-Q amplifier with full Q-SYS feature integration

Technical Specifications

Frequently Asked Questions

How does the MPA-Q 4x250 compare to the MPA-Q 4x500?

Both models offer 4 output channels with identical features, connectivity, and DSP. The difference is output power: the 4x250 delivers 250 W per channel (500 W bridged maximum) while the 4x500 delivers 500 W per channel (1000 W bridged maximum). Choose the 4x250 when loudspeaker system requirements are met at 250 W per zone.

Can the MPA-Q 4x250 operate without a Q-SYS Core processor?

Yes. Setting the rear-panel Mode switch to Analog Mode bypasses Q-SYS entirely. Analog inputs route directly to corresponding outputs, and basic channel parameters including gain, mute, impedance, and bridge are configurable from the front-panel display.

Does the MPA-Q 4x250 support 70 V and 100 V distributed speaker systems?

Yes. All four output channels support Lo-Z (2, 4, 8Ω), 70 V, 100 V, and Hi-Z operation, configurable in Q-SYS Designer Software without any hardware changes.

What happens if the network drops while the amplifier is in Q-SYS Mode?

Standalone Mode (configured in Q-SYS Designer) allows the amplifier to automatically switch to available analog line inputs when network connectivity is lost. Audio resumes from those inputs immediately, and switches back to Q-LAN networked audio when connectivity is restored.

Can Creation Networks help specify the right MPA-Q model for my project?

Creation Networks is an authorized QSC dealer offering system design, zone power analysis, and full Q-SYS integration services. Contact us to discuss your project and determine the best amplifier configuration for your needs.
