QSC Medium Meeting Room – In-Ceiling Speakers with Sennheiser TeamConnect Ceiling 2

Product Overview

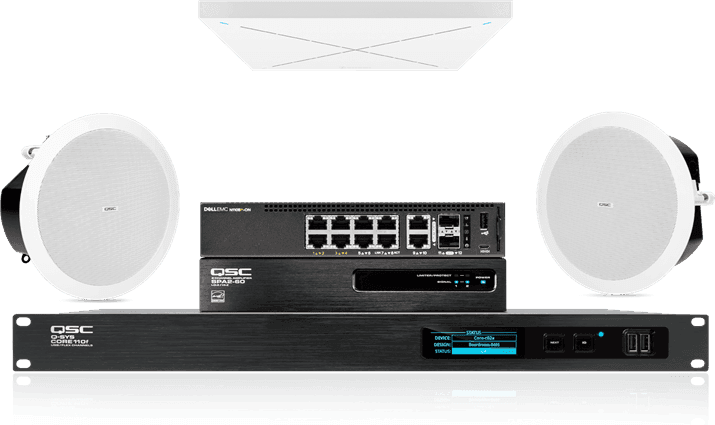

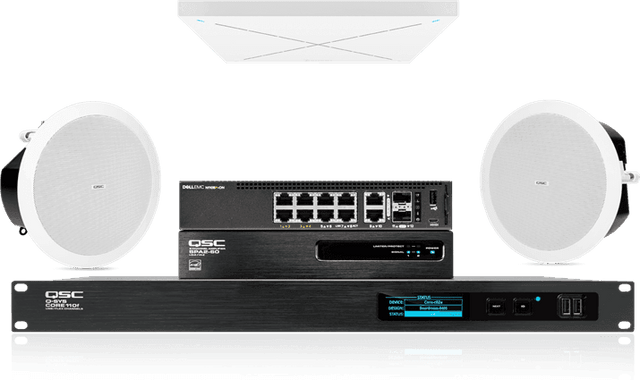

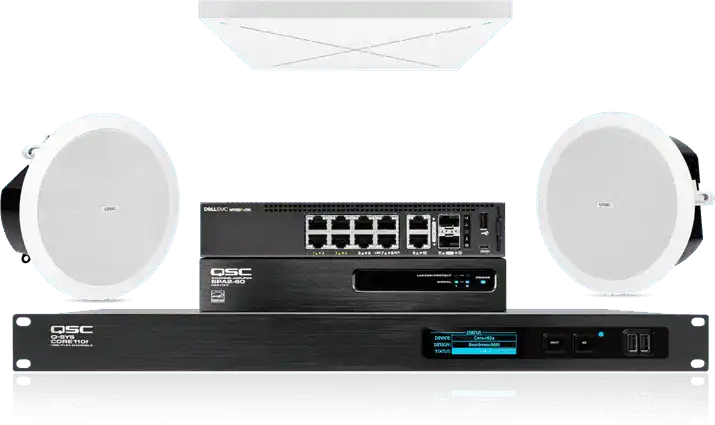

The QSC Medium Meeting Room audio bundle is a Microsoft Teams Rooms certified Q-SYS Teams Room kit for medium conference rooms that need clean, ceiling-distributed audio and hands-free voice capture. It combines the Q-SYS Core 110f processor with a Sennheiser TeamConnect Ceiling 2 beamforming microphone and two QSC AD-C4T-LP ceiling loudspeakers for clear speech and even coverage. As a pre-configured conference room audio system, it standardizes Microsoft Teams Rooms audio while minimizing programming and installation effort.

Product Description

This in-ceiling configuration provides a complete Microsoft Teams Rooms audio signal chain for medium spaces. The Q-SYS Core 110f processor handles audio DSP, acoustic echo cancellation, noise reduction, and USB AV bridging, with a single USB connection to the Teams Room PC. Two QSC AD-C4T-LP ceiling loudspeakers, driven by a QSC SPA2-60 amplifier, distribute audio evenly, and a pre-configured QSC network switch speeds deployment of the networked AV peripherals.

The Sennheiser TeamConnect Ceiling 2 microphone uses dynamic beamforming to track active talkers automatically, eliminating table microphones. A Q-SYS plugin provides plug-and-play configuration of the microphone, and because the system runs natively on Q-SYS, it can be expanded with additional I/O and room control in Q-SYS Designer. For comparable components, see the QSC AD-C4T low-profile ceiling loudspeaker and the QSC SPA2-60 power amplifier.

Key Features

• Microsoft Teams Rooms certified — End-to-end certified hardware for native Teams Room integration.
• Q-SYS Core 110f processor — Centralized audio DSP, room control, and USB AV bridging.
• Sennheiser TeamConnect Ceiling 2 — Dynamic beamforming microphone tracks the active talker for hands-free capture.
• Two AD-C4T-LP ceiling loudspeakers — Distributed in-ceiling coverage with QSC Intrinsic Correction for clarity.
• QSC SPA2-60 amplifier — Compact amplification matched to the ceiling loudspeaker layout.
• Single-USB connectivity — One USB connection carries bidirectional audio to the meeting PC.
• Pre-configured network switch — Speeds deployment and supports Q-SYS AV peripherals.
• Q-SYS Sennheiser plugin — Plug-and-play microphone configuration within Q-SYS Designer.

Typical Applications

• Conference room
• Boardroom
• Training room
• Multi-purpose room
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

Is this bundle certified for Microsoft Teams Rooms? Yes. It is a Microsoft Teams Rooms certified configuration that connects to a Teams Room PC over a single USB connection.

How is the Sennheiser microphone configured? A Q-SYS plugin provides plug-and-play setup of the TeamConnect Ceiling 2 within Q-SYS Designer, with no separate DSP programming required.

Can I add overhead delay speakers later? Yes. The Q-SYS platform allows additional loudspeakers, I/O, and room control to be added for larger or acoustically complex spaces.

What about warranty and support? Coverage follows each manufacturer's standard warranty terms. For current QSC warranty details or help specifying this system, contact Creation Networks support.
