QSC Large Meeting Room – In-Ceiling Speakers with Sennheiser TeamConnect Ceiling 2

Product Overview

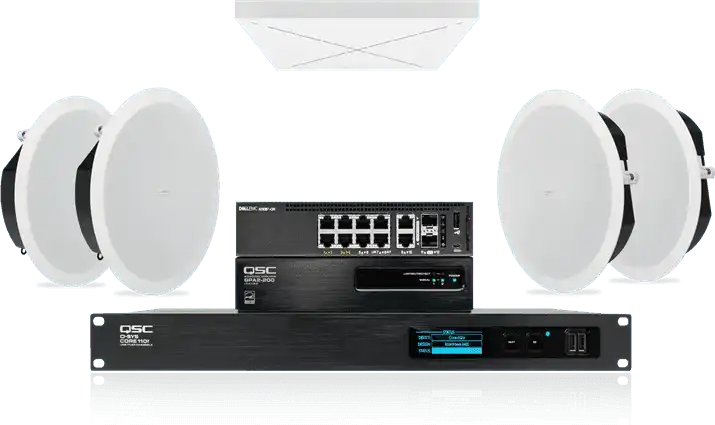

The QSC Large Meeting Room audio bundle is a Microsoft Teams Rooms certified Q-SYS Teams Room kit designed for large conference rooms that need even, ceiling-distributed sound and hands-free voice capture. It combines the Q-SYS Core 110f v2 processor with a Sennheiser TeamConnect Ceiling 2 beamforming microphone and four QSC AD-C6T-LP ceiling loudspeakers for balanced coverage and clear speech. As a pre-configured conference room audio system, it standardizes Microsoft Teams Rooms audio across larger spaces while reducing programming and installation time.

Product Description

This in-ceiling configuration delivers a complete Microsoft Teams Rooms audio signal chain. The Q-SYS Core 110f v2 processor handles audio DSP, acoustic echo cancellation, noise reduction, and room control, and a single USB connection carries bidirectional audio to the Teams Room PC. Four QSC AD-C6T-LP ceiling loudspeakers distribute audio evenly across the room, driven by a QSC SPA2-200 amplifier, while a pre-configured QSC network switch speeds deployment of the networked AV peripherals.

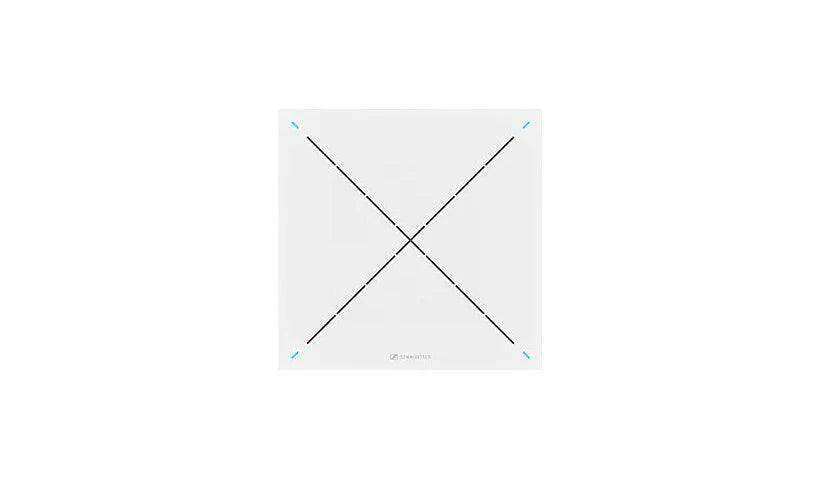

The Sennheiser TeamConnect Ceiling 2 microphone uses dynamic beamforming to track active talkers automatically, removing the need for table microphones. Because the system runs natively on Q-SYS, integrators can expand room control, add I/O, or fine-tune loudspeaker performance in Q-SYS Designer without additional processors. For comparable components, see the QSC AD-C6T low-profile ceiling loudspeaker and the QSC SPA2-200 power amplifier.

Key Features

• Microsoft Teams Rooms certified — End-to-end certified hardware for native Teams Room integration.

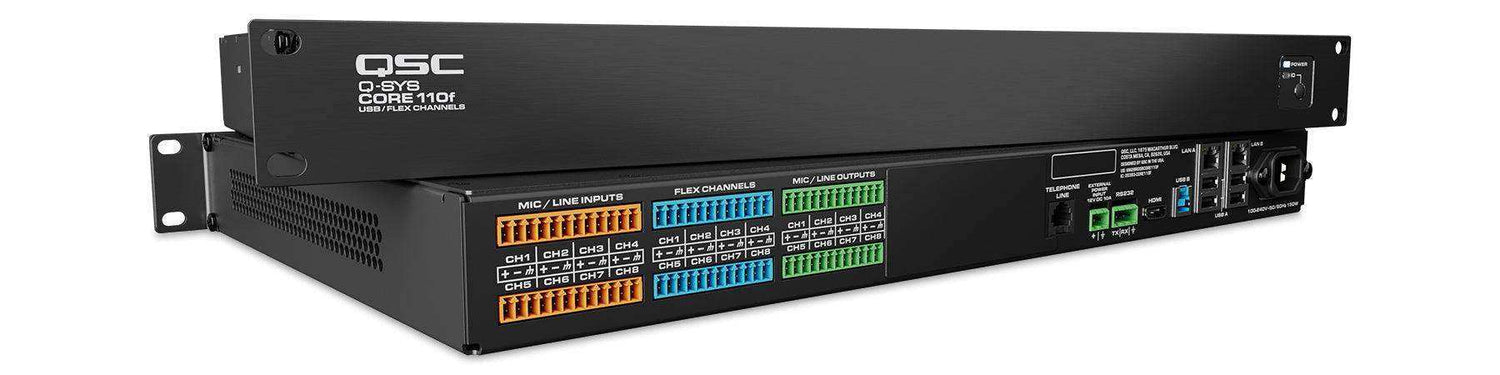

• Q-SYS Core 110f v2 processor — Centralized audio DSP and room control with drag-and-drop configuration in Q-SYS Designer.
• Sennheiser TeamConnect Ceiling 2 — Dynamic beamforming microphone tracks the active talker automatically for hands-free capture.
• Four AD-C6T-LP ceiling loudspeakers — Distributed in-ceiling coverage with QSC Intrinsic Correction for clarity.

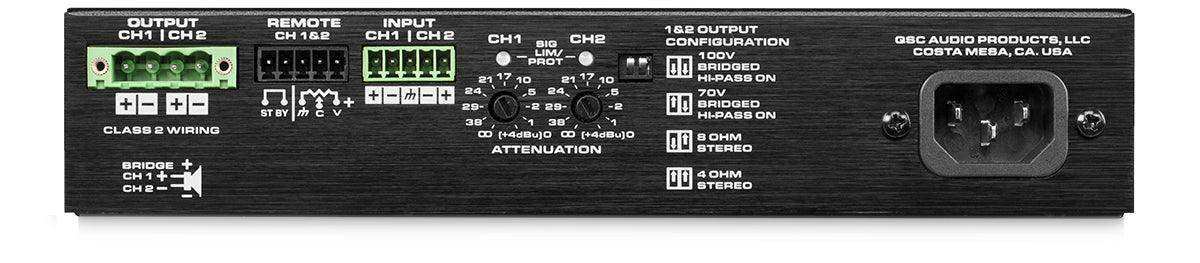

• QSC SPA2-200 amplifier — Efficient amplification sized for the ceiling loudspeaker layout.
• Single-USB connectivity — One USB connection carries bidirectional audio to the meeting PC.
• Pre-configured network switch — Speeds deployment and supports Q-SYS AV peripherals out of the box.
• AEC and noise reduction — Acoustic echo cancellation and noise reduction deliver clear far-end audio.

Typical Applications

• Conference room
• Boardroom
• Multi-purpose room
• Government space
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Is this bundle certified for Microsoft Teams Rooms? Yes. The hardware is a Microsoft Teams Rooms certified configuration that integrates with a Teams Room PC over a single USB connection.

Why in-ceiling loudspeakers instead of pendants? Ceiling-flush AD-C6T-LP loudspeakers give a clean architectural look and even coverage in rooms with finished, accessible ceilings.

Can the system be expanded later? Yes. Running natively on Q-SYS, it can be expanded with additional I/O and room control in Q-SYS Designer without adding processors.

What about warranty and support? Coverage follows each manufacturer's standard warranty terms. For current QSC warranty details or help specifying this system, contact Creation Networks support.
