QSC KC12 – 3000W Active 3-Way Column Loudspeaker System, Black

Product Overview

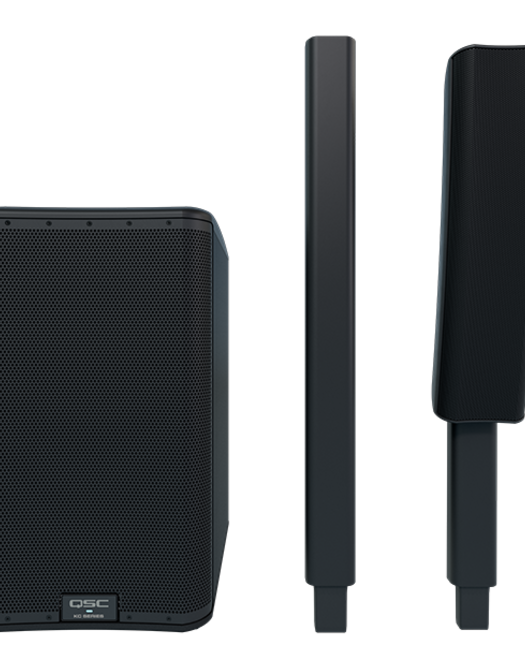

The QSC KC12 is a complete 3000W active 3-way column loudspeaker system designed for high-output portable and installed sound applications. It combines a 12-inch subwoofer module (KC12S), a compact column array head (KC12T), and a 32-inch pole (KC-SP32) into a single integrated system. The KC12 delivers 132 dB peak SPL with a wide 145 degree horizontal coverage pattern suited to large audiences in reverberant spaces. Available in black powder-coat finish.

Product Description

The KC12 system addresses the challenge of achieving full-range, high-SPL reinforcement without the footprint and complexity of a traditional line array or ground-stack configuration. The KC12T column head uses two 4-inch midrange drivers flanking a 1-inch compression driver with QSC's LEAF waveguide to maintain controlled vertical dispersion of 35 degrees, reducing ceiling and floor reflections in difficult acoustic environments. A 12-inch woofer in the KC12S subwoofer handles low-frequency reproduction down to 40 Hz, powered by a dedicated 2000W Class D amplifier. Total system amplification reaches 3000W peak across all three amplifier channels. Built-in DSP provides up to 200 ms of signal delay, global parametric EQ, subwoofer level trim, and reverb accessible via a monochrome LCD display on the column head. Bluetooth with True Wireless Stereo (TWS) allows wireless audio streaming and stereo pairing of two KC12 systems without additional cabling. The I/O section accommodates two combo XLR/quarter-inch inputs (one supporting Mic/Line Hi-Z, one with phantom power), two XLR loop-thru/mix outputs, a 3.5 mm TRS auxiliary input, and a USB-C port providing 5V/3A power for charging devices.

Key Features

• 3000W Class D Amplification — 2000W to the 12-inch subwoofer, 1000W to the column array, delivering 132 dB peak SPL.
• LEAF Waveguide — Controls vertical dispersion to 35 degrees to minimize room reflections in reverberant venues.
• 145 Degree Horizontal Coverage — Wide audience coverage without repositioning or additional speaker clusters.
• Integrated DSP — 200 ms delay, parametric EQ, subwoofer level, and reverb accessible from the front panel LCD.
• Bluetooth with TWS — Wireless audio streaming and true wireless stereo pairing between two KC12 systems.
• Flexible I/O — Dual combo XLR/quarter-inch inputs, loop-thru and mix XLR outputs, 3.5 mm aux, USB-C charging port.
• Tool-Free Assembly — Three-component system assembles without tools; adjustable pole height offers two system heights.
• 6-Year Warranty — Industry-leading coverage when registered within 30 days of purchase.

Typical Applications

• House of worship — full-range coverage for main or overflow congregation areas
• Multi-purpose room — portable system that packs and deploys quickly for recurring events
• All-hands room — high-output speech and music reinforcement for large open floor plans
• Auditorium — column dispersion pattern controls vertical energy to reduce balcony and ceiling reflections
• Boardroom — premium audio presentation with Bluetooth source connectivity

Technical Specifications

Frequently Asked Questions

Does the KC12 system include the subwoofer, column head, and pole?

Yes. The KC12 ships as a complete system comprising the KC12T column array, KC12S 12-inch subwoofer, and KC-SP32 32-inch pole.

Can the KC12 be used without the pole for a lower profile setup?

Yes. The KC12T column can be mounted directly to the KC12S base without the KC-SP32 pole, reducing the system height to 1463 mm (57.6 in).

What is True Wireless Stereo (TWS) and how does it work on the KC12?

TWS allows two KC12 systems to pair via Bluetooth and operate as a true stereo pair - one unit plays the left channel and the other plays the right channel. No additional hardware or cabling is required between the units.

Is the KC12 suitable for permanent installation or only portable use?

The KC12 is designed primarily as a portable system. For permanent installations, QSC offers other product lines with flying hardware and installation-grade connectivity.

What inputs does the KC12 accept?

Two combo XLR/quarter-inch inputs (one Mic/Line Hi-Z, one Mic/Line with 48V phantom power), a 3.5 mm TRS auxiliary input, and Bluetooth. Two XLR-M outputs support loop-thru and mix functions.

What warranty does QSC provide for the KC12?

QSC covers the KC12 with a 6-year limited warranty, provided the product is registered on the QSC website within 30 days of purchase.
