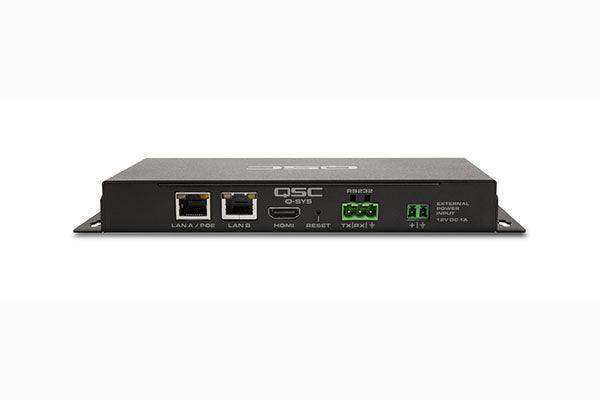

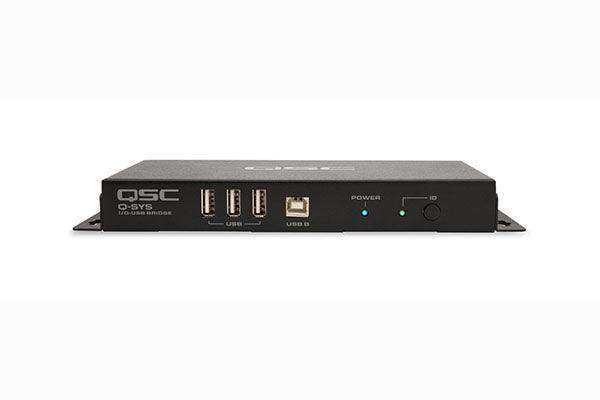

QSC I/O USB Bridge

QSC SKU: I/O USB Bridge
No reviews

Description

Stop hassling with the limitations of distributing media over USB. Q-SYS™ I/O-USB Bridge puts USB access right where you need it, close to every device that needs Q-SYS audio, video, and/or control. The Q-SYS I/O-USB Bridge allows users to integrate networked Q-SYS conference room camera video alongside industry leading audio processing into soft-codec applications via USB connection, all without installing special drivers.

The I/O-USB Bridge and Q-SYS conferencing cameras will offer a brand new networked AV paradigm to soft codec AV integration in medium to large meeting room systems. Because Q-SYS is a fully networked platform, the Q-SYS I/O-USB Bridge can act as an in-rack or Bring Your Own Device (BYOD) endpoint for Q-SYS conferencing camera feeds and audio processed with Q-SYS acoustic echo cancellation (AEC). As part of the Q-SYS Platform, you’re able to receive cryptographically-signed firmware updates, ensuring secure updates in functionality and security to your entire system.

Features
  • Driverless USB 2.0 Connection
  • Built for BYOD (plug and play)
  • Resolutions up to 1080p
  • Emulates webcam video and AEC speakerphone audio over single USB connection
  • Emulates computer soundcard
  • Bridges audio and video over Q-LAN to USB
  • Route USB HID events across Q-LAN networks
  • External Power Supply or PoE enabled (802.3af)
System Details
Supported Resolutions MJPEG: 1080p: 30, 15 fps | 720p: 30, 15 fps | 360p: 30, 15 fps | 180p: 30, 15 fps
USB Connection - USB 2.0 (UVC/UAC) driverless connection for Windows and OS X devices

- Emulates webcam video driver, AEC speakerphone audio driver, and multi-channel soundcard driver over single USB connection
Power Supply  PoE Enabled Device (802.3af) or 12v DC (1A)
 Dimensions 25 x 85 x 183 mm
1 × 3.35 × 7.2 in
 Weight 500g / 1.1 lb
