QSC Flyable high power, bi-amp, 3-way, 2x15", consists of LF-4215-F and MH-1075C-F components - SC-423C-F

QSC SKU: SC-423C-F
No reviews
Price:
$4,975.00

Description

SC-423C-F

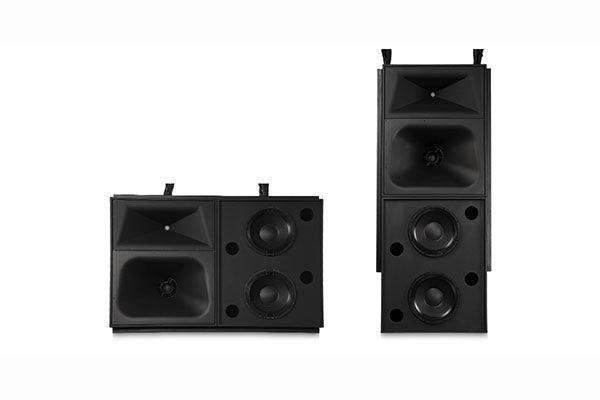

Developed specifically for the unique requirements of Large Format motion picture playback, the SC-423C-F extends QSC’s commitment to the cinema market. As a member of the DCS Digital Cinema Speaker Series, the SC-423C-F is a 3-way bi- or tri-amplified screen channel loudspeaker system comprised of two main units – the MH-1075C-F mid/high frequency system and the LF-4215-F low-frequency system. The two sections can be joined together to create a single, flyable unit. The MH-1075C-F features a high output, horn loaded 10” midrange cone driver and a 3” (75 mm) titanium diaphragm compression driver. The MH-1075C-F includes a driver protection network and a passive crossover for bi-amp operation. Power limiter circuitry protects the highfrequency driver from overpowering. The MH-1075C-F provides extended frequency coverage for the critical midrange band. A high power 10” cone driver allows operation as low as 250 Hz and the advanced phase plug coupling permits a crossover point of up to 1800 Hz to the high-frequency horn. This ensures that most of the dialog range is reproduced by a single element, for unmatched intelligibility

Features



• Flyable 3-way bi- or tri-amplified screen channel speaker system • Constructed of heavily braced, 15 mm tour-grade plywood • Sixteen M10 attachment points per enclosure for safe and easy suspension with installer provided hardware • Common dimensions of Mid/High and LF enclosures facilitate easy installation in vertical or horizontal arrays • MH-1075C-F provides increased high-frequency output • Low-distortion waveguides provide highly articulate dialogue
