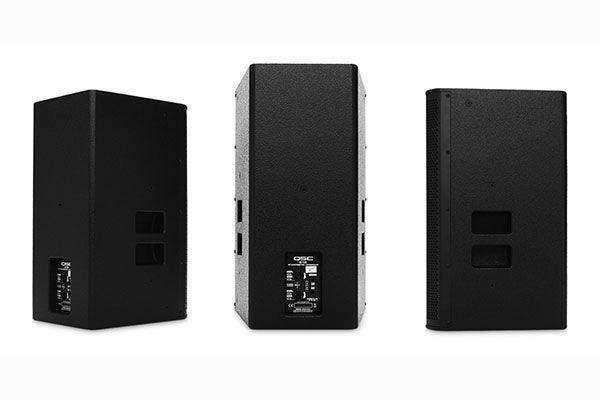

QSC E112 – 12-Inch 2-Way Passive Loudspeaker (Black)

Product Overview

The QSC E112 is a 12-inch, two-way passive loudspeaker in a trapezoidal cabinet, built for live performance, DJ and dance music, karaoke, and event production. It requires external amplification and is part of QSC's E Series Entertainment System.

An 85° DMT coverage pattern and a dual-angle pole socket make it a flexible main or fill loudspeaker for medium and medium-to-long-throw applications.

Product Description

The E112 pairs a 12-inch woofer with a 1-inch compression driver for a frequency response of 64 Hz to 20 kHz (-6 dB) and a peak SPL of 128 dB. It requires an amplifier with a minimum of 400 W continuous (1600 W peak). QSC recommends a DSP speaker processor or a DSP-equipped amplifier — such as QSC GXD or PLD amplifiers, or TouchMix digital mixers — to set crossovers, limiting, and EQ, with factory presets for live reinforcement (with and without subs), stage monitoring, dance music, and karaoke.

The 15 mm, 11-ply enclosure delivers Directivity Matched Transition (DMT) coverage of 85° for most medium and medium-to-long-throw applications. An all-metal dual-angle 35 mm socket allows vertical pole mounting or a 10° down-angle to improve audience coverage and reduce rear-wall reflections, with E Series Yoke or M8 eyebolt mounting options (sold separately). Inputs include dual NL4 and screw-terminal receptacles.

For larger coverage, see the 15-inch QSC E115; for low end, the QSC E118SW.

Key Features

• 12-inch two-way passive design — A 12-inch woofer and 1-inch compression driver deliver high-output, professional sound.
• 400 W continuous / 1600 W peak — High power handling for demanding live and DJ use (external amplifier required).
• E Series Entertainment System DSP — Factory tunings via QSC GXD, PLD amplifiers, or TouchMix mixers.
• 85° DMT coverage — Directivity Matched Transition over a 15 mm, 11-ply enclosure for even coverage.
• Dual-angle pole socket — All-metal 35 mm socket mounts vertically or at a 10° down-angle.
• Flexible connections and mounting — Dual NL4 and screw-terminal inputs; E Series Yoke or M8 eyebolt options (sold separately).
• Tour-grade build — Rugged textured paint and a foam-lined perforated-steel grille.

Typical Applications

• House of worship
• Commercial meeting space
• Multi-purpose room
• Training room
• Auditorium

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the E112 need a separate amplifier?
Yes. It is a passive loudspeaker requiring an amplifier of at least 400 W continuous (1600 W peak); QSC GXD or PLD amplifiers add factory DSP tunings.

What is the dual-angle pole socket for?
The all-metal 35 mm socket lets you mount the E112 straight up or at a 10° down-angle to improve audience coverage and reduce rear-wall reflections.

Can it be installed with a bracket?
Yes. E Series Yoke and M8 eyebolt mounting options are available separately for installation use.

What warranty and support come with this loudspeaker?
QSC loudspeakers are covered under QSC's standard limited warranty; refer to QSC's published warranty terms for the current coverage period applicable to this model. Creation Networks provides pre- and post-sale support for system design and integration questions.
