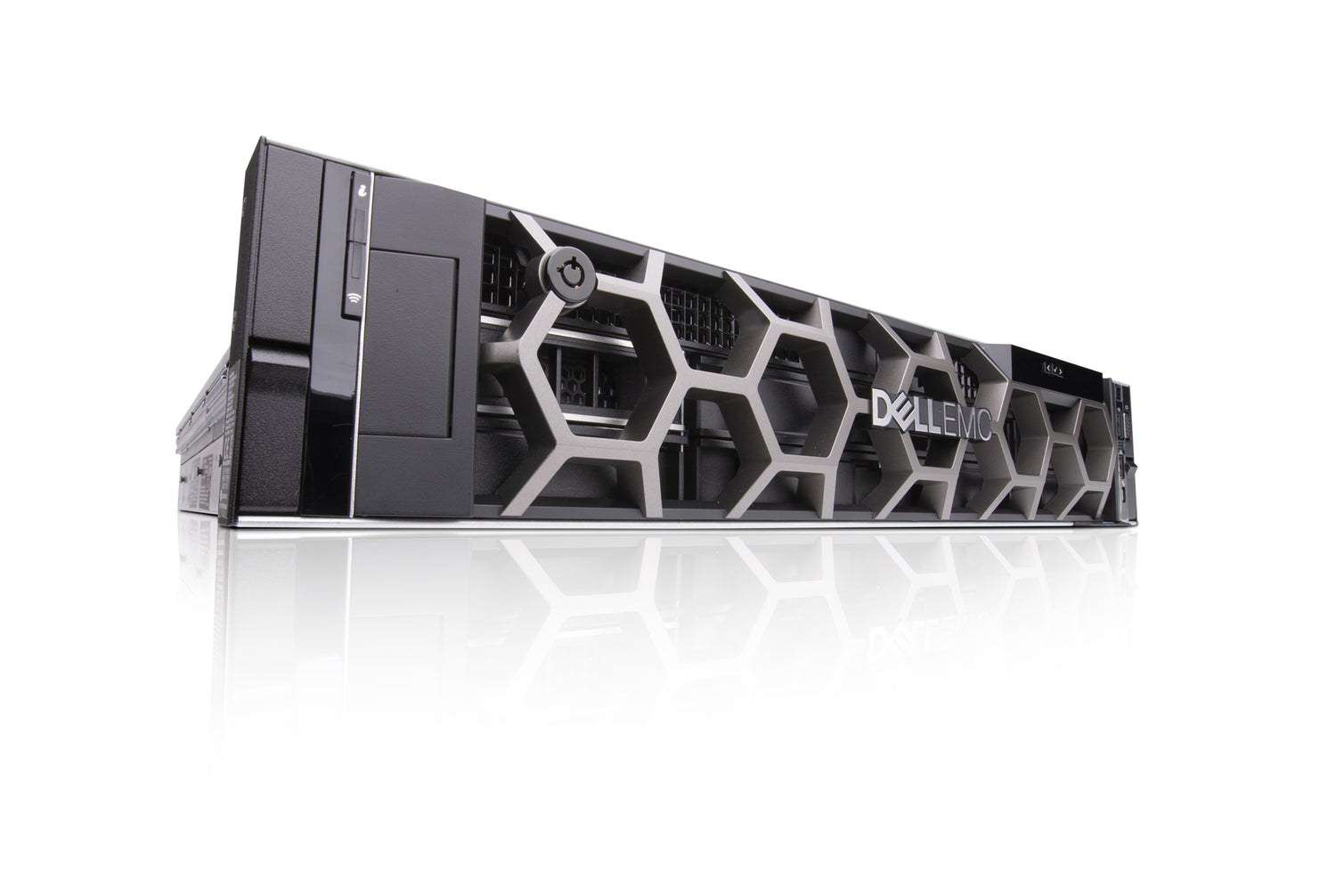

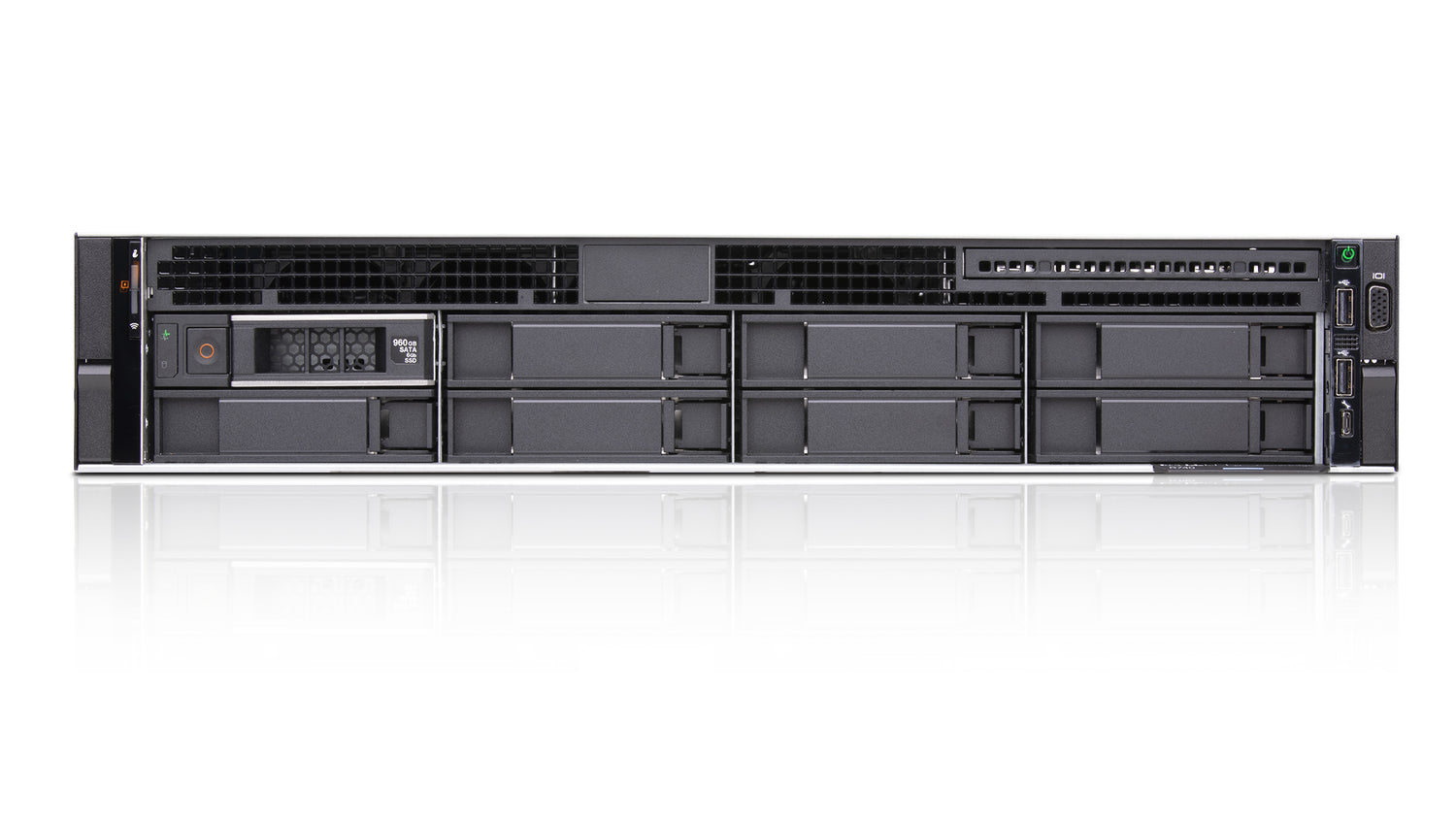

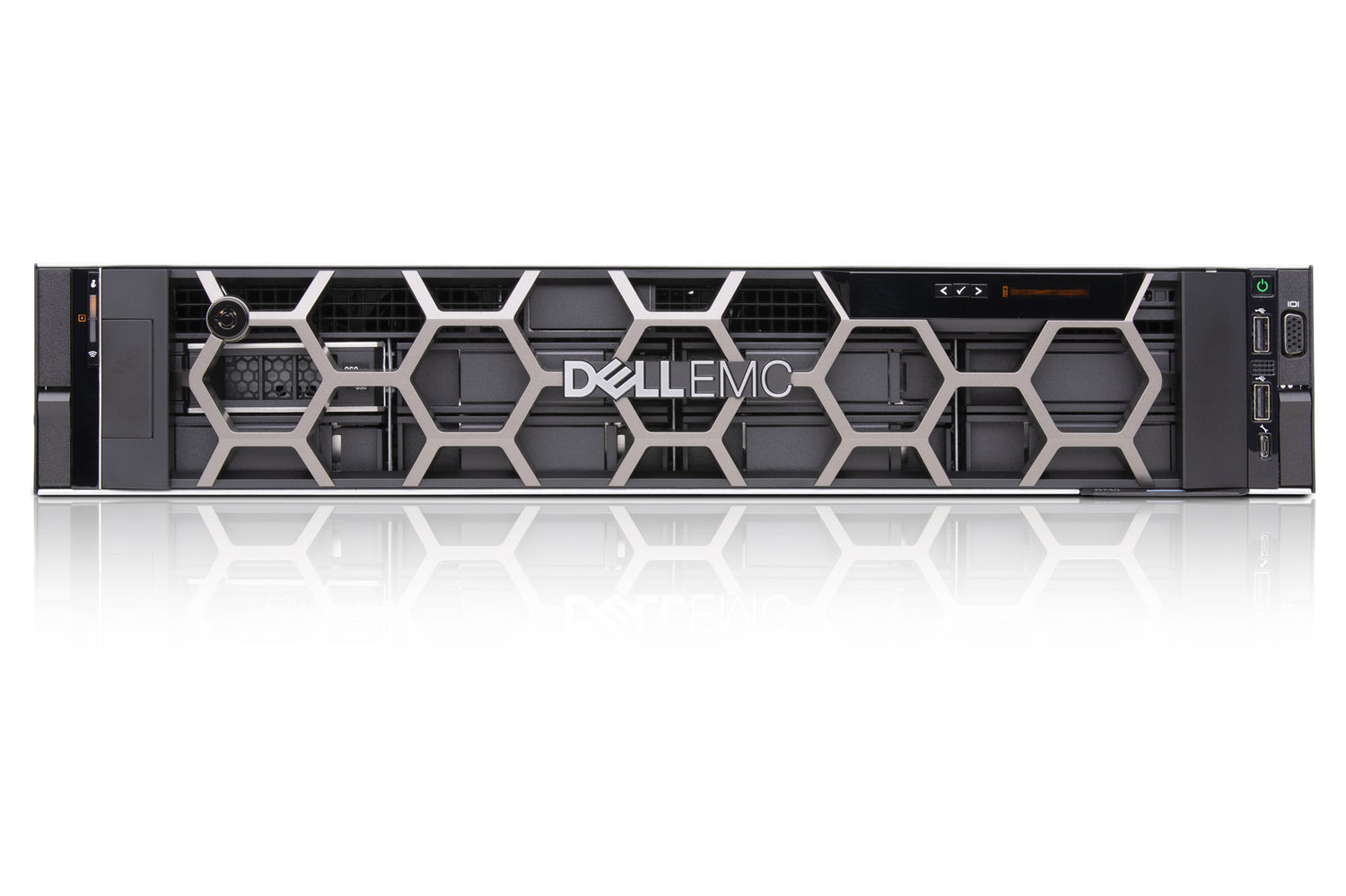

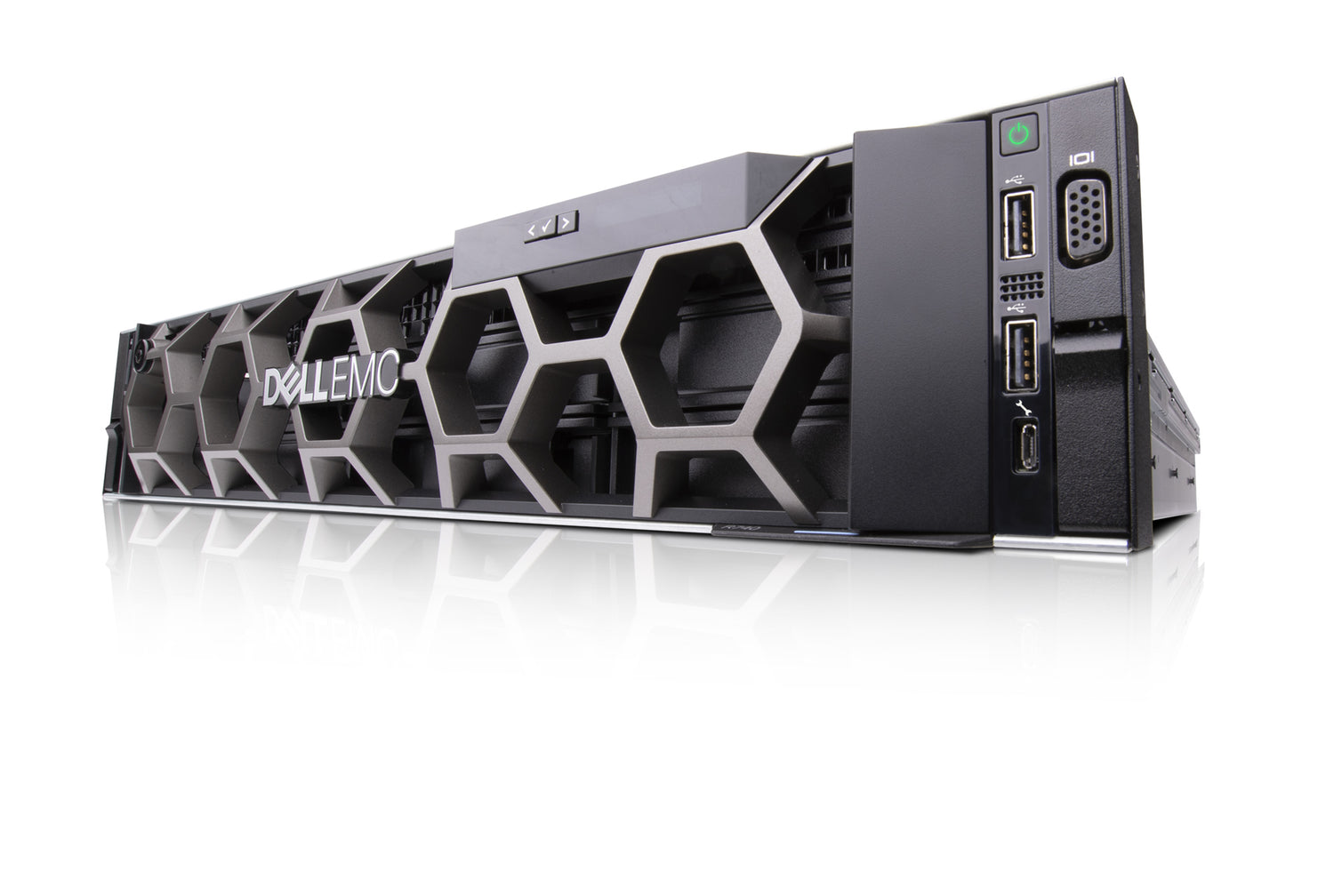

QSC Core 5200 – Q-SYS Enterprise AV&C Server Core Processor

Product Overview

The QSC Core 5200 is an enterprise-grade Q-SYS AV&C server core designed for large-scale installations and IT-centric organizations that want to deploy audio, video, and control as a building-wide managed service. Built on the industry-standard Dell PowerEdge R740 server platform, the Core 5200 pairs the Q-SYS real-time operating system with proven, off-the-shelf IT hardware — delivering the AV industry's first truly IT-grade AV&C solution. As an authorized QSC dealer, Creation Networks provides supply, configuration, and integration services for the Core 5200.

Product Description

The Core 5200 runs the full Q-SYS OS on a 14th-generation Dell PowerEdge R740 chassis, giving IT managers and AV integrators a familiar hardware platform with enterprise lifecycle management. The system provides 512×512 uncompressed, real-time Q-LAN or AES67 networked audio channels, 160 assignable AEC processors with a fixed 3.167 ms analog-to-output latency, and support for up to 64 VoIP softphone instances. Four 1 Gbps Ethernet ports (2× Q-SYS multimedia, 2× auxiliary) handle network segmentation for services like VoIP, SNMP, LLDP, LDAP, and WAN media streaming. Dual hot-swappable 750 W AC power supplies and integrated Dell iDRAC8 Enterprise remote access deliver the uptime and manageability expected in IT environments. A 960 GB SATA SSD media drive is pre-installed, and the standard MTP-16 multi-track player is upgradable to 128 tracks.

Key Features

• 512×512 uncompressed Q-LAN or AES67 networked audio channels
• 160 AEC processors — assignable and routable across all zones
• Fixed analog input-to-output latency of just 3.167 ms
• Dual gigabit Ethernet ports for redundant networked audio (LAN A / LAN B)
• Two independent gigabit auxiliary Ethernet ports for VoIP, SNMP, LLDP, LDAP, and WAN streaming
• Dual hot-swappable 750 W AC mains power supply modules
• iDRAC8 Enterprise: 1× dedicated 1 Gbps management port for IT asset monitoring
• 960 GB SATA SSD Q-SYS high-capacity media drive
• 16-track MTP media player standard; upgradable to 32, 64, or 128 tracks
• Up to 64 VoIP softphone instances for multi-room telephony deployments
• Single software platform: Q-SYS Designer Software over IP for configuration, control, and monitoring
• Compatible with all Q-SYS peripherals: I/O expanders, cameras, paging stations, network amplifiers
• CE marked, UL Listed, RoHS compliant; 3-year QSC warranty backed by Dell
• Dell PowerEdge R740 platform, 14th generation; 2RU form factor

Typical Applications

• Enterprise campuses deploying AV as a centralized IT service across multiple buildings
• Large convention centers and multipurpose venues requiring scalable, zone-based audio distribution
• Hotels and resorts with high room counts and complex background music and paging systems
• Higher education institutions managing classrooms, auditoriums, and common spaces from a single core
• Government facilities requiring IT-grade hardware compliance and remote management
• Healthcare campuses with distributed paging, conferencing, and communications infrastructure
• Houses of worship with large sanctuaries and multi-room overflow requirements

Technical Specifications

Frequently Asked Questions

What makes the Core 5200 different from other Q-SYS Cores?

The Core 5200 is built on a standard Dell PowerEdge R740 server — a commercially available IT platform with well-established support, lifecycle management, and parts availability. This makes it uniquely appealing to IT departments and enterprise customers who need AV infrastructure to align with their existing server management practices.

Can the Core 5200 be managed remotely?

Yes. The integrated Dell iDRAC8 Enterprise port provides dedicated remote hardware monitoring and management, enabling integration with Dell OpenManage and other IT asset management systems — independent of the Q-SYS software layer.

How many tracks does the media player support?

The Core 5200 ships with an MTP-16 (16-track) media player. Optional upgrades to 32, 64, or 128 tracks are available through QSC.

Is the Core 5200 compatible with existing Q-SYS peripherals?

Yes. The Core 5200 is fully compatible with all Q-SYS peripheral devices including I/O-Frame, QIO series expanders, PTZ-IP cameras, I/O-USB Bridge, TSC touchscreen controllers, paging stations, and MPA-Q and CX-Q network amplifiers.

Can Creation Networks help with Core 5200 system design?

Creation Networks is an authorized QSC dealer offering end-to-end support including needs assessment, Q-SYS system design, configuration, and on-site integration for the Core 5200 and the full Q-SYS product portfolio.
