QSC Attero Tech D2i – Dante 2-Input Network Audio Wall Plate
Product Overview
The QSC Attero Tech Axon D2i is a single-gang Dante/AES67 network audio input wall plate for network AV systems, including Q-SYS. It places two balanced mic/line inputs at the wall in a cost-effective form factor, making it easy to bring microphones and analog sources from a room into a networked audio system. A Q-SYS Extension lets integrators add the D2i to Q-SYS installations without any programming, simplifying deployment in conference and meeting spaces.
Product Description

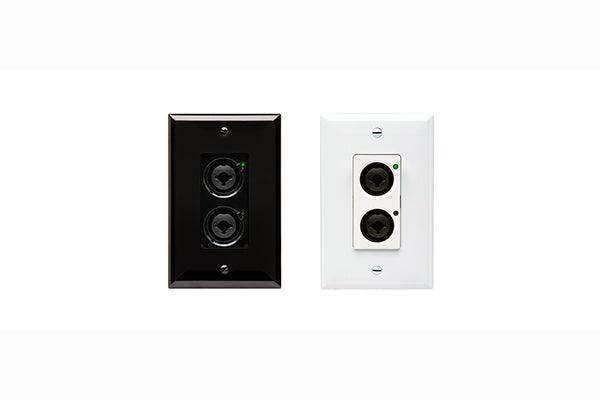

The D2i provides two balanced inputs on combination connectors — a 3-pin XLR for microphone level and a 1/4-inch TRS for line level — with selectable +48V phantom power for condenser microphones. An integrated Axiom port allows Attero Tech by Axiom wall plates to be added to network AV systems and includes RS-232 control pass-through. The plate is powered over Ethernet (PoE 802.3af) for single-cable installation, is Dante Domain Manager ready, and ships with both black and white Decora faceplates and fascia inserts so it blends into any room. For higher input counts and additional formats, compare other Attero Tech networked wall plates at Creation Networks.
Key Features
- Two balanced mic/line inputs — 3-pin XLR (mic level) with combination 1/4-inch TRS (line level).
- +48V phantom power — Supports condenser microphones at the wall.
- Integrated Axiom port — Adds Attero Tech by Axiom wall plates to network AV, with RS-232 control pass-through.
- PoE powered (802.3af) — Single-cable network and power.
- Available Q-SYS Extension — Add to Q-SYS designs without programming.
- Dante Domain Manager ready — Supports secure, managed Dante networks.
- Black and white Decora faceplates included — Blends into any room finish.
Typical Applications
- Conference room
- Huddle room
- Boardroom
- Commercial meeting space
Technical Specifications
| Function | Dante/AES67 network audio input wall plate |
| Form factor | Single-gang |
| Inputs | 2 balanced mic/line (3-pin XLR mic + 1/4-inch TRS line combo) |
| Phantom power | +48 V |
| Control | Integrated Axiom port with RS-232 pass-through |
| Power | PoE (IEEE 802.3af) |
| Networking | Dante/AES67; Dante Domain Manager ready |
| Included | Black and white Decora faceplates and fascia inserts |
Frequently Asked Questions
What inputs does the D2i provide? Two balanced mic/line inputs on combination connectors — 3-pin XLR for mic level and 1/4-inch TRS for line level — with +48V phantom power.
How is it powered? Over Ethernet via PoE (IEEE 802.3af), so one cable carries both network audio and power.
How does it integrate with Q-SYS? An available Q-SYS Extension lets integrators add the D2i to Q-SYS designs without programming.
What about warranty and support? Coverage follows QSC's published warranty terms. Contact Creation Networks support for integration help.
